FRONT WHEEL/SUSPENSION/STEERING

INSTALLATION

Install the fork tubę through the steering stem and top bridge while rotating.

	Jtk ■■ • ■**>!

The bottom edge of the fork cap should be flush with the top of the fork bridge.

Tighten the upper and lower fork pinch bolts.

TOROWE:

Upper pinch bolt: 27 N*m (2.7 kg-m, 20 ft-lb)

Lower pinch bolt: 35 IM*m (3.5 kg-m. 25 ft-lb)

1(1) UPPER PINCH BOLTS* (2) LOWER PINCH BOLTS

(3) BOTTOM EDGE

Tighten the fork cap bolt to the specified torque. TOROUE: 23 N-m (2.3 kg-m. 17 ft-lb)

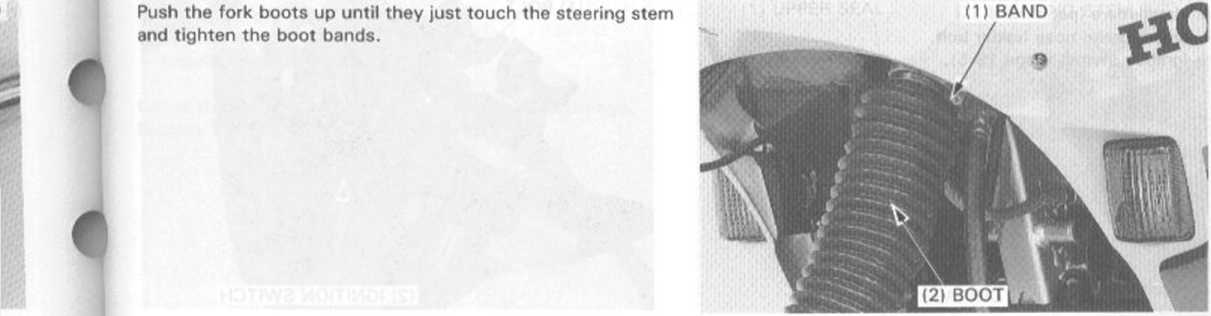

13-17
