Audi RS 6

Self-Study Programme 431

Vorsprung durch Technik

www.audi.co.uk

Service Training

background image

431_015

The Audi RS models from quattro GmbH are the ultimate in sportiness, complemented by powerful and elegant
design, exclusive equipment and perfect quality.
The new Audi RS 6 will only be available as an Avant to start with, with the unrivalled combination of 580 bhp and
a maximum 1,660 litres of luggage space. The Audi RS 6 redefines the concept of high performance in the business
class. With its 426 kW (580 bhp), it is the most powerful model in the current Audi range and with the exception of
pure racing cars like the Le Mans-winning Audi R10 TDI, it is the most powerful Audi of all time. By the same token,
it completely outclasses all its competitors in the luxury performance category.
A newly developed V10 engine with FSI direct injection and twin turbochargers, permanent quattro four-wheel drive
and sports suspension with Dynamic Ride Control DRC sets the standard for high-performance cars in the luxury class.

After reading the Self-Study Programme, you will be able to answer the following questions:

– What are the differences between this engine and the 5.2l V10 engine?

– How does the cooling system with all its radiators, coolers and thermostats work?

– What function does the air filter port in the turbocharger oil return line serve?

– What should be noted regarding the ceramic brake?

– Which modifications to the RS 4 have been incorporated into the Dynamic Ride Control (DRC) system?

background image

Suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

The Self Study Programme teaches the design and function of new vehicle models,
new automotive components or new technologies.

The Self Study Programme is not a Repair Manual.
All values given should be considered as guidelines, and refer
to the software version valid at the time of preparation of the SSP.

For information about maintenance and repair work, always refer to the current technical literature.

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Occupant protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Engine mechanicals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Note

Reference

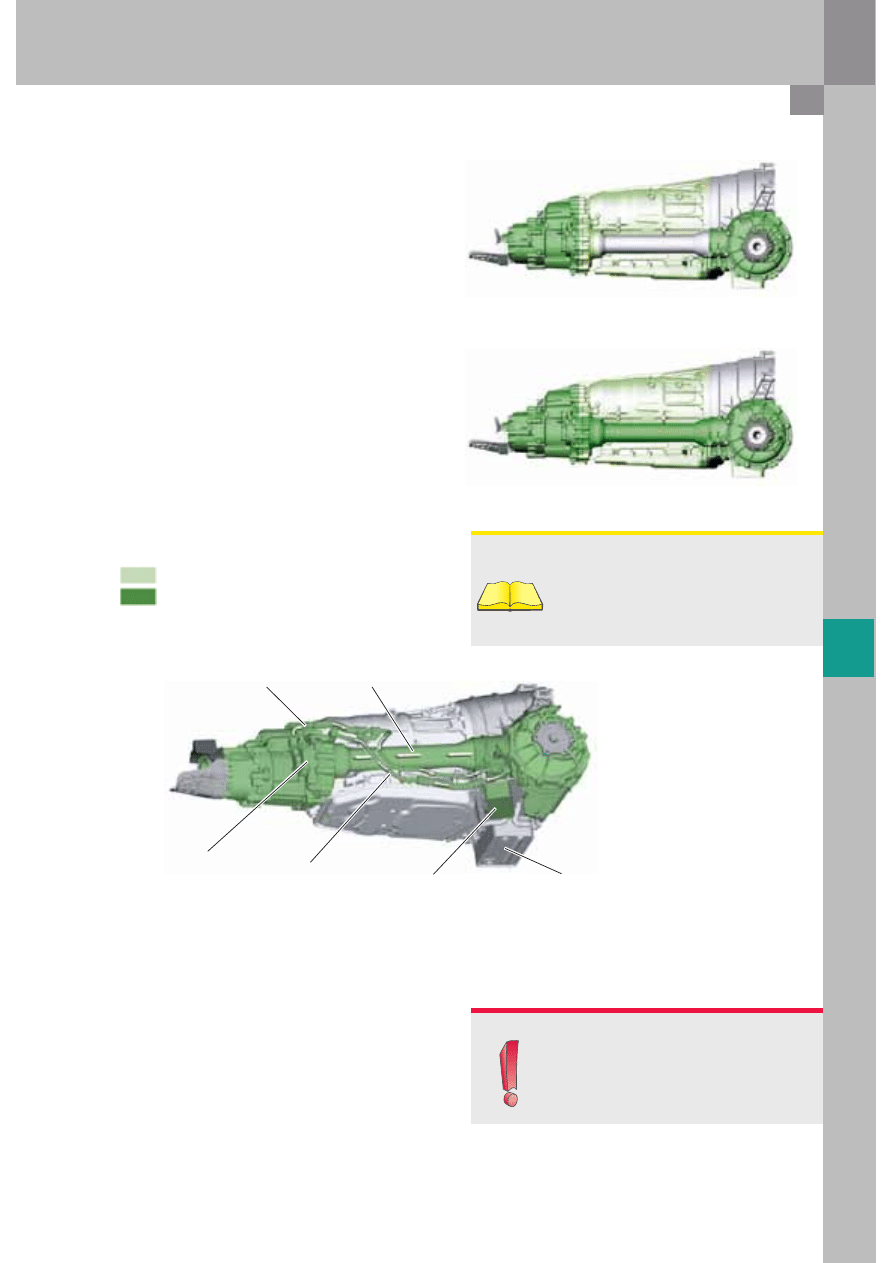

Automatic gearbox 09E . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Engine management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Oil circulation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

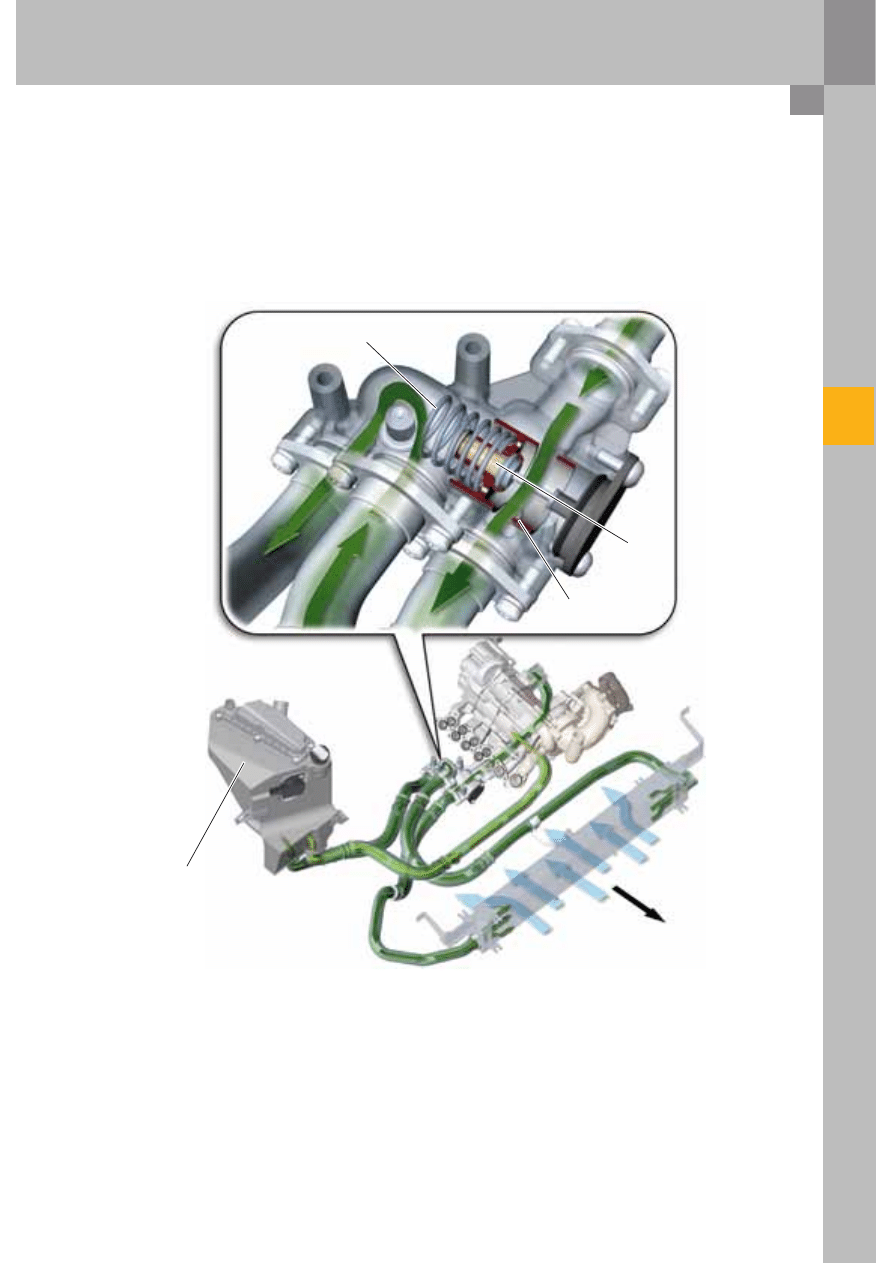

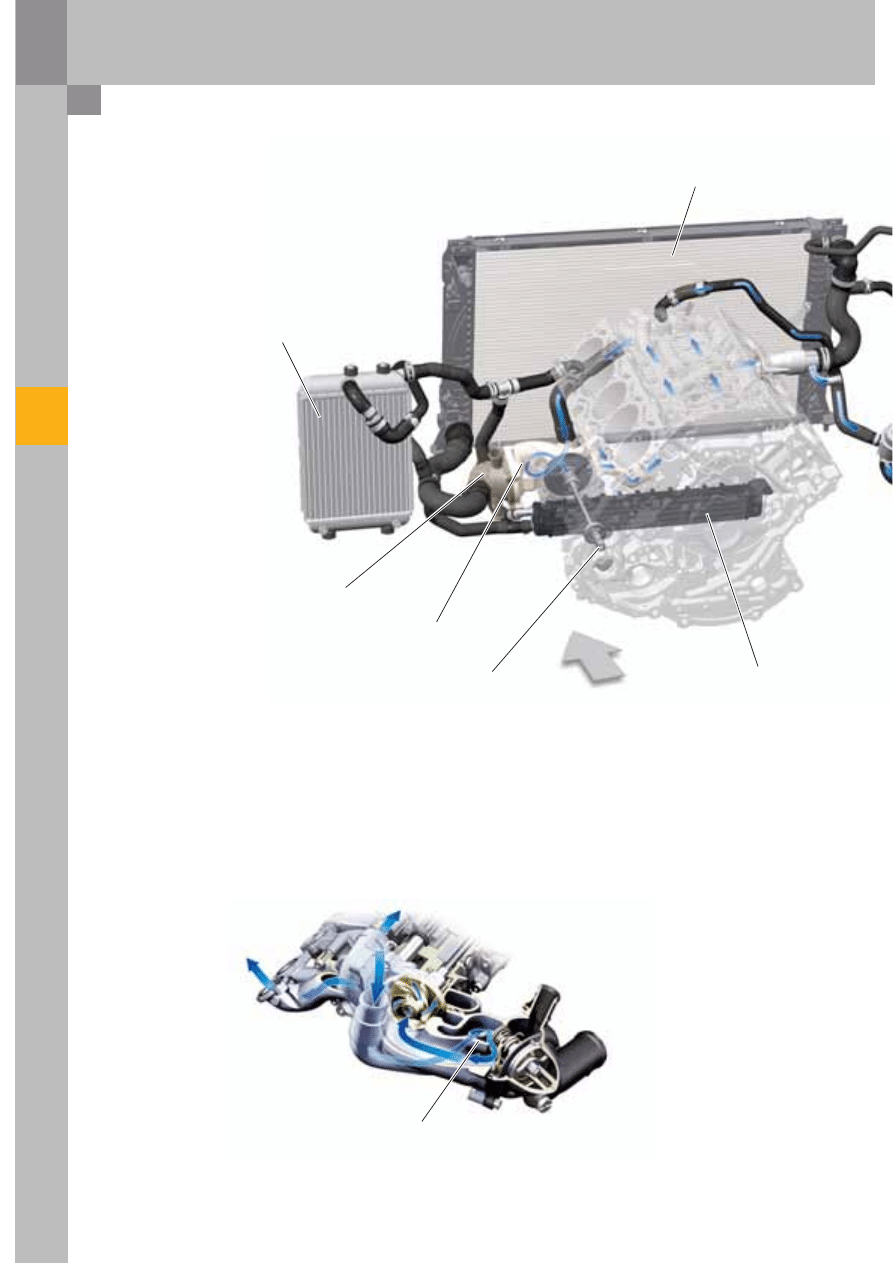

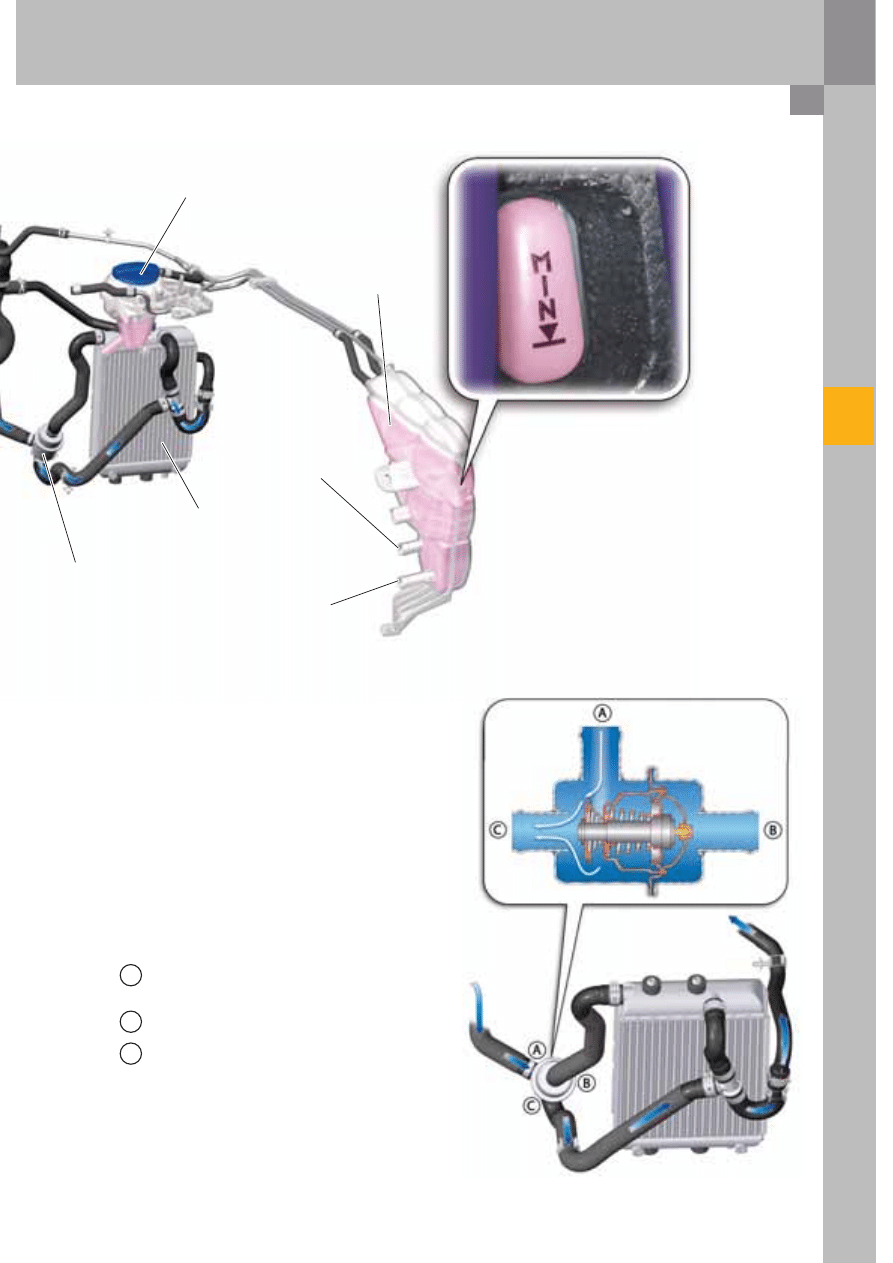

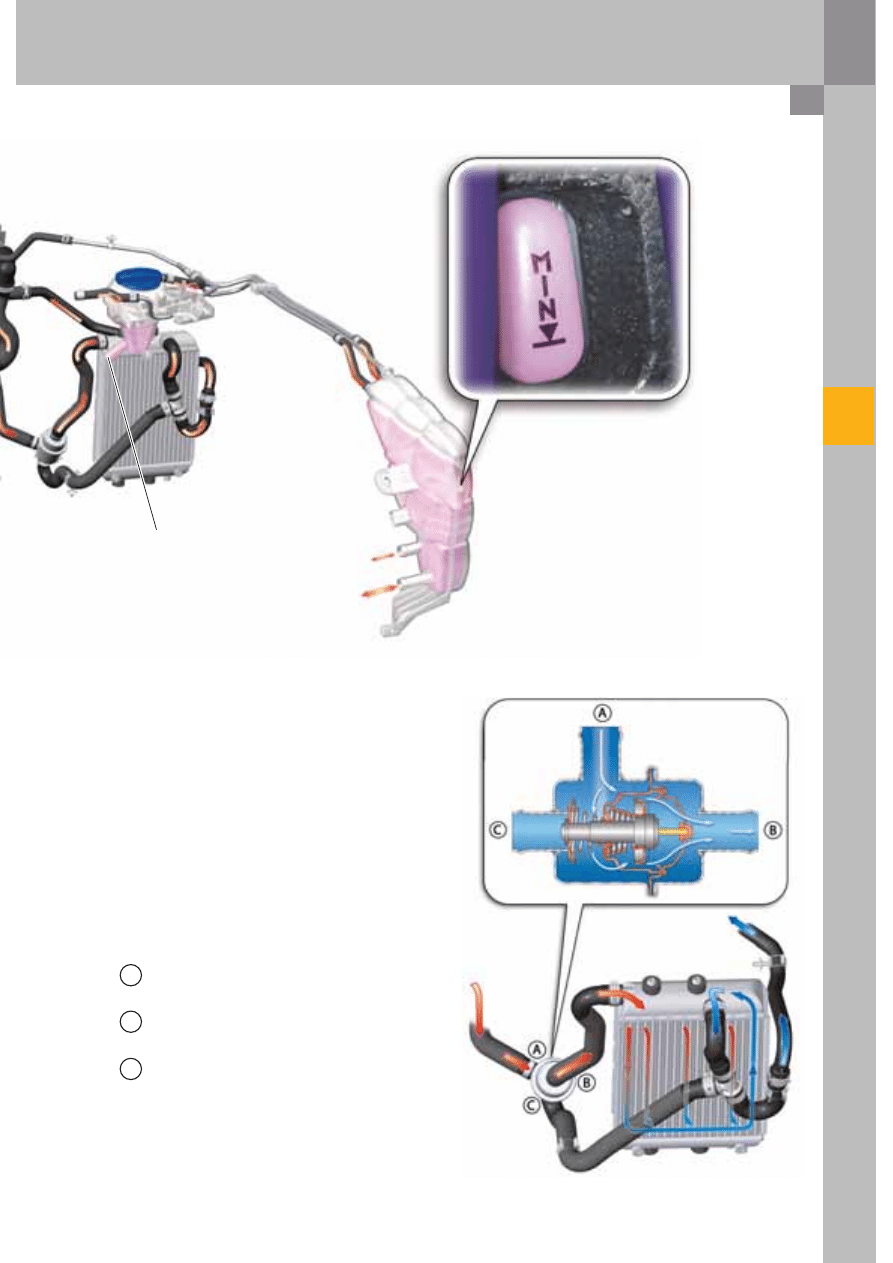

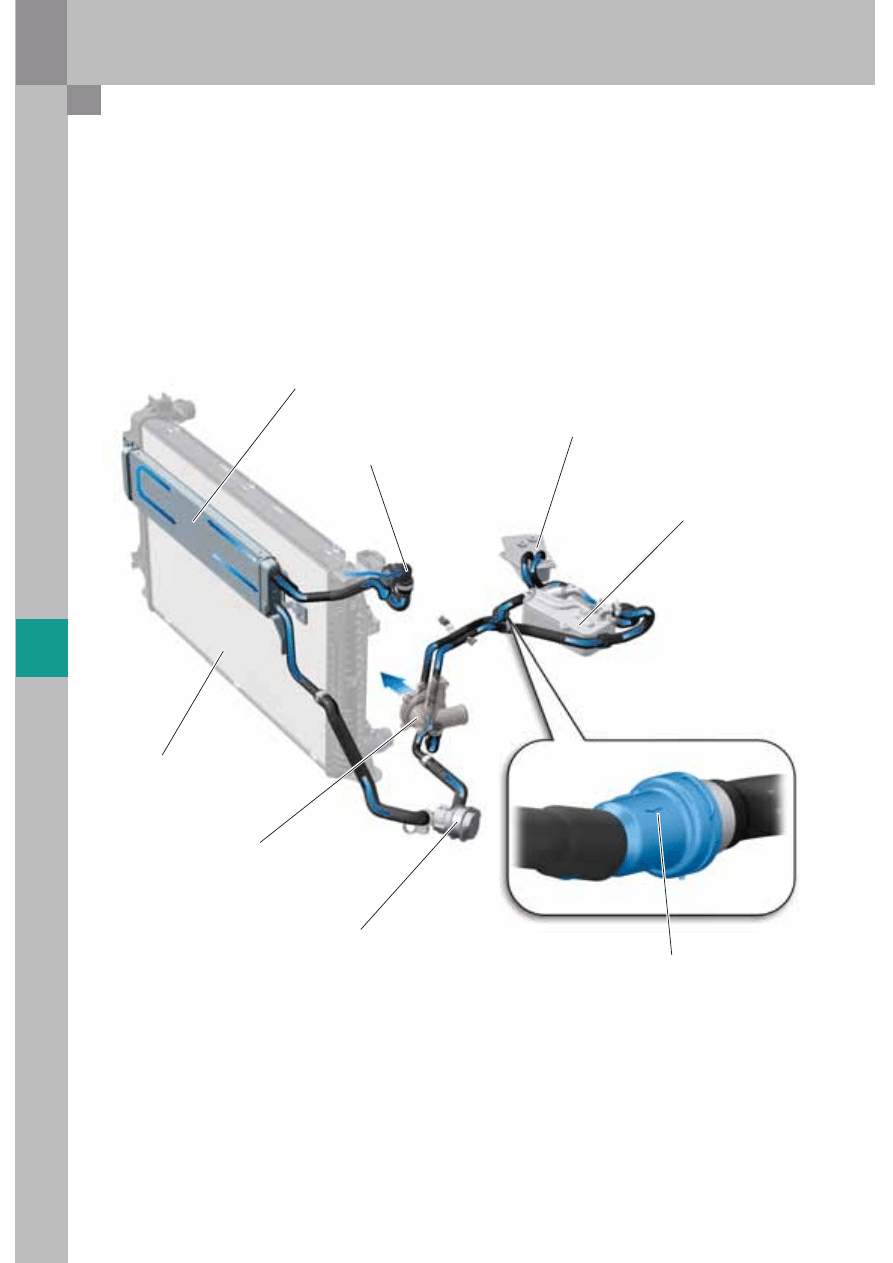

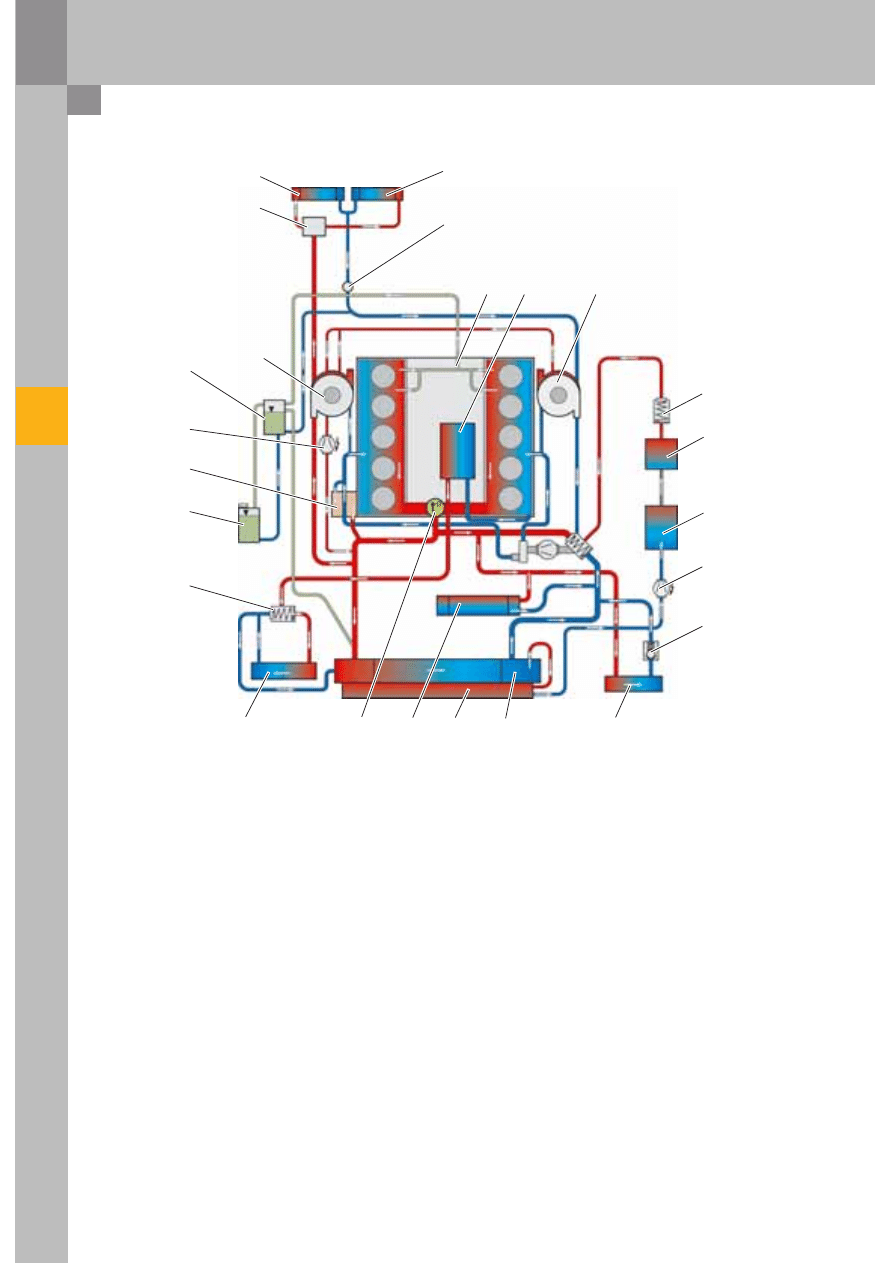

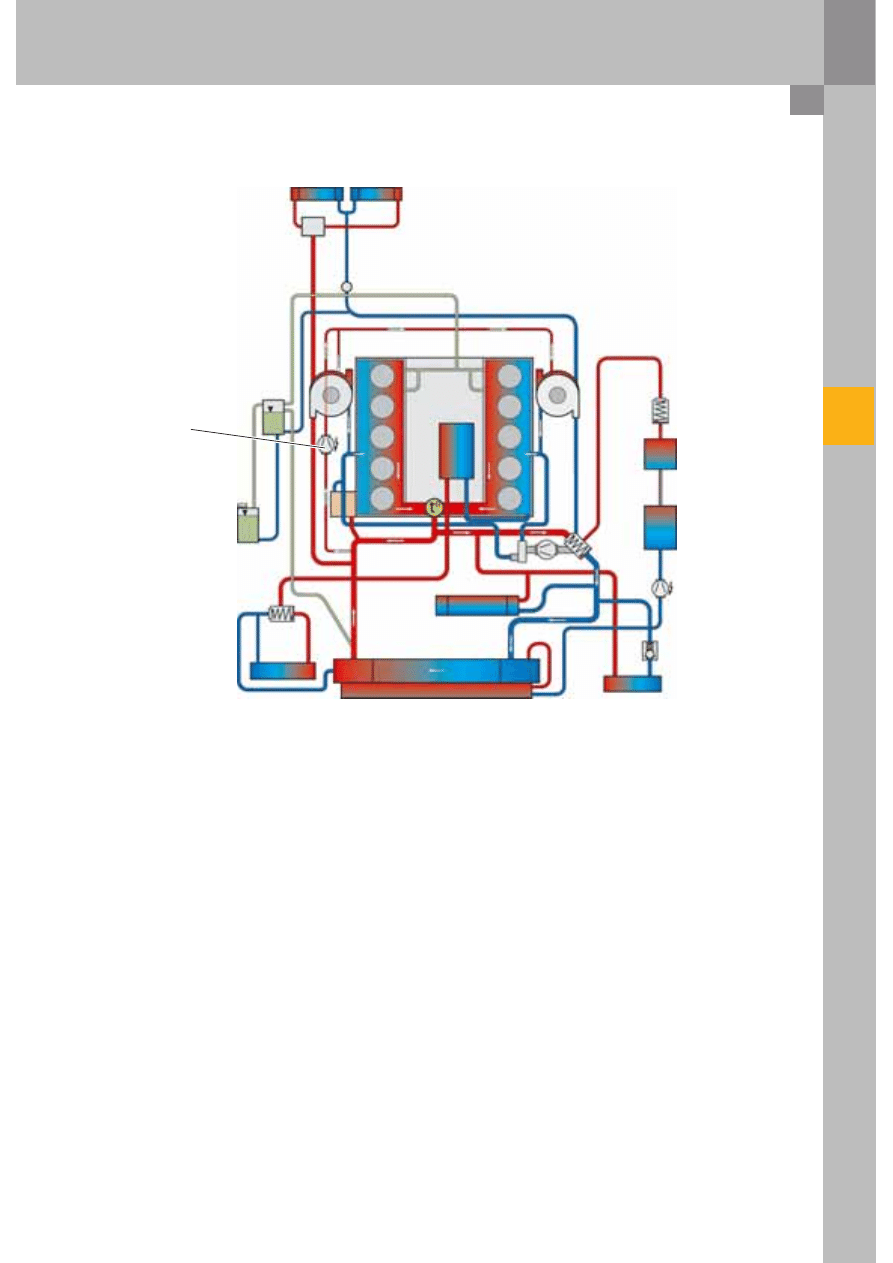

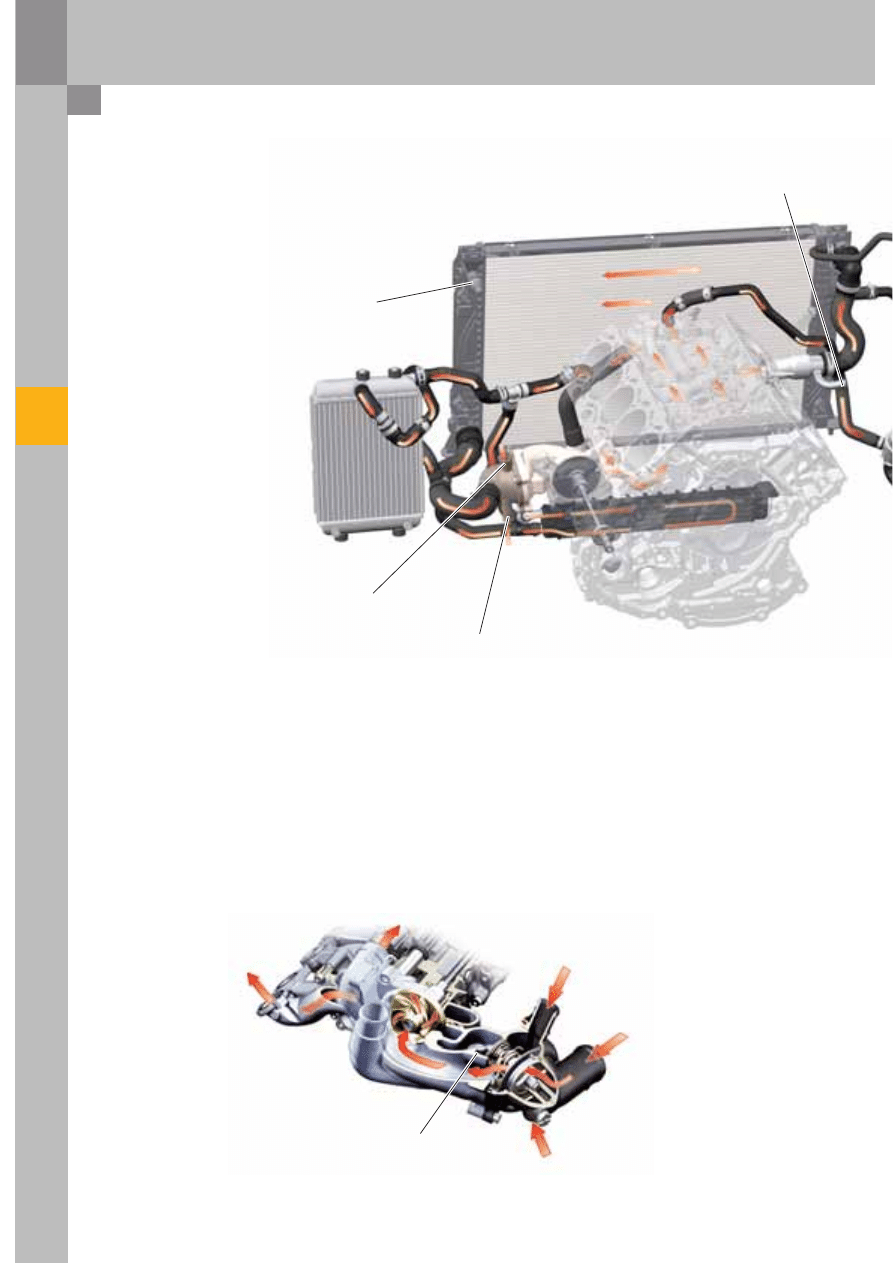

Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

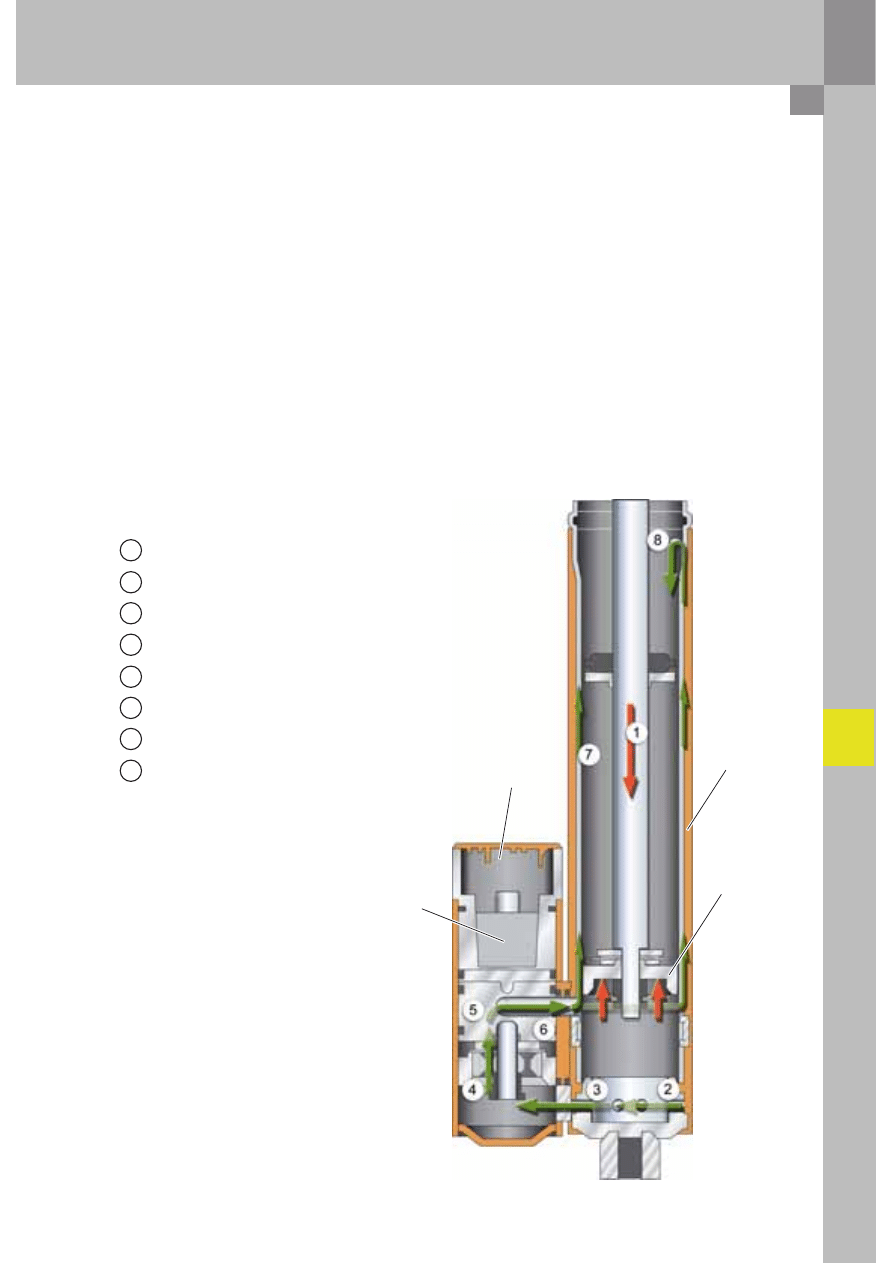

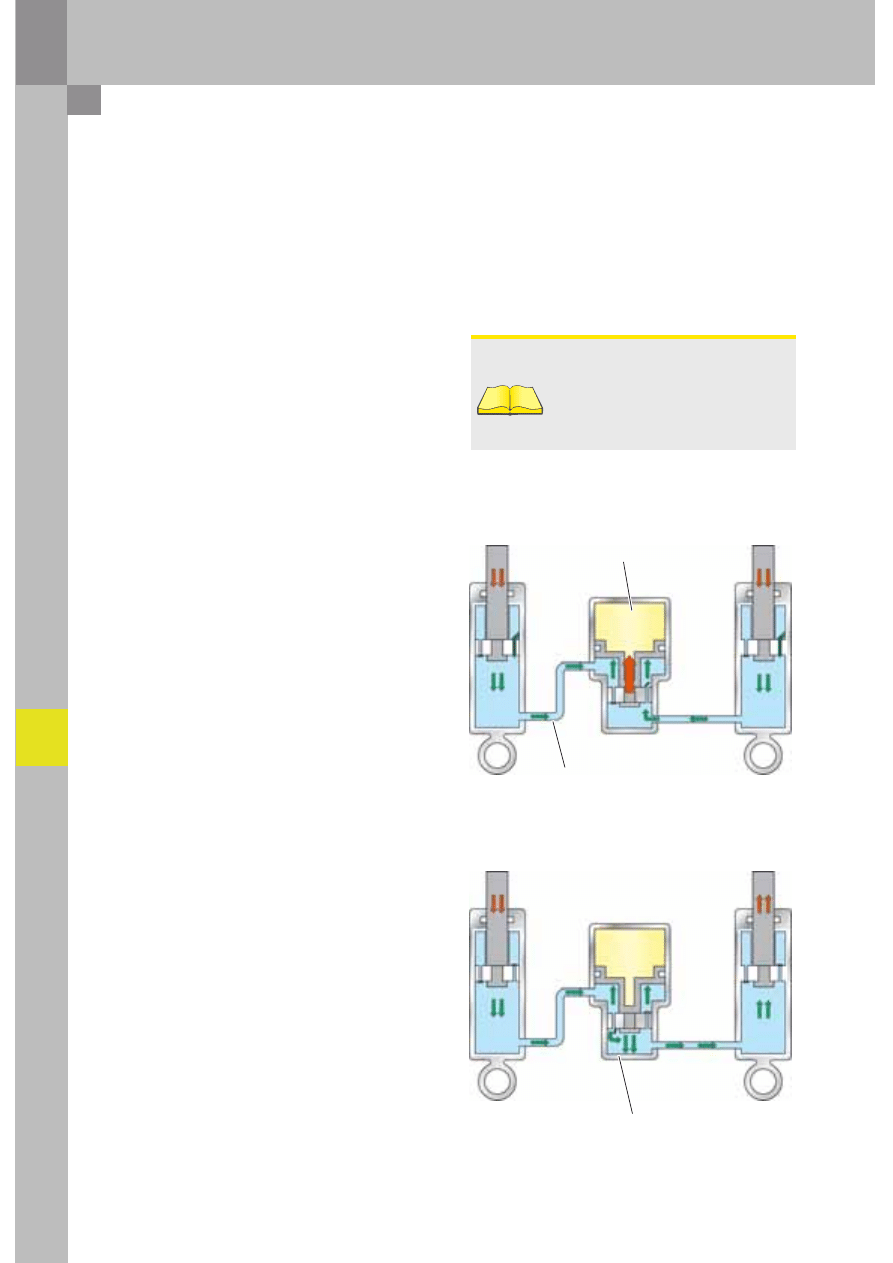

Dynamic Ride Control – DRC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

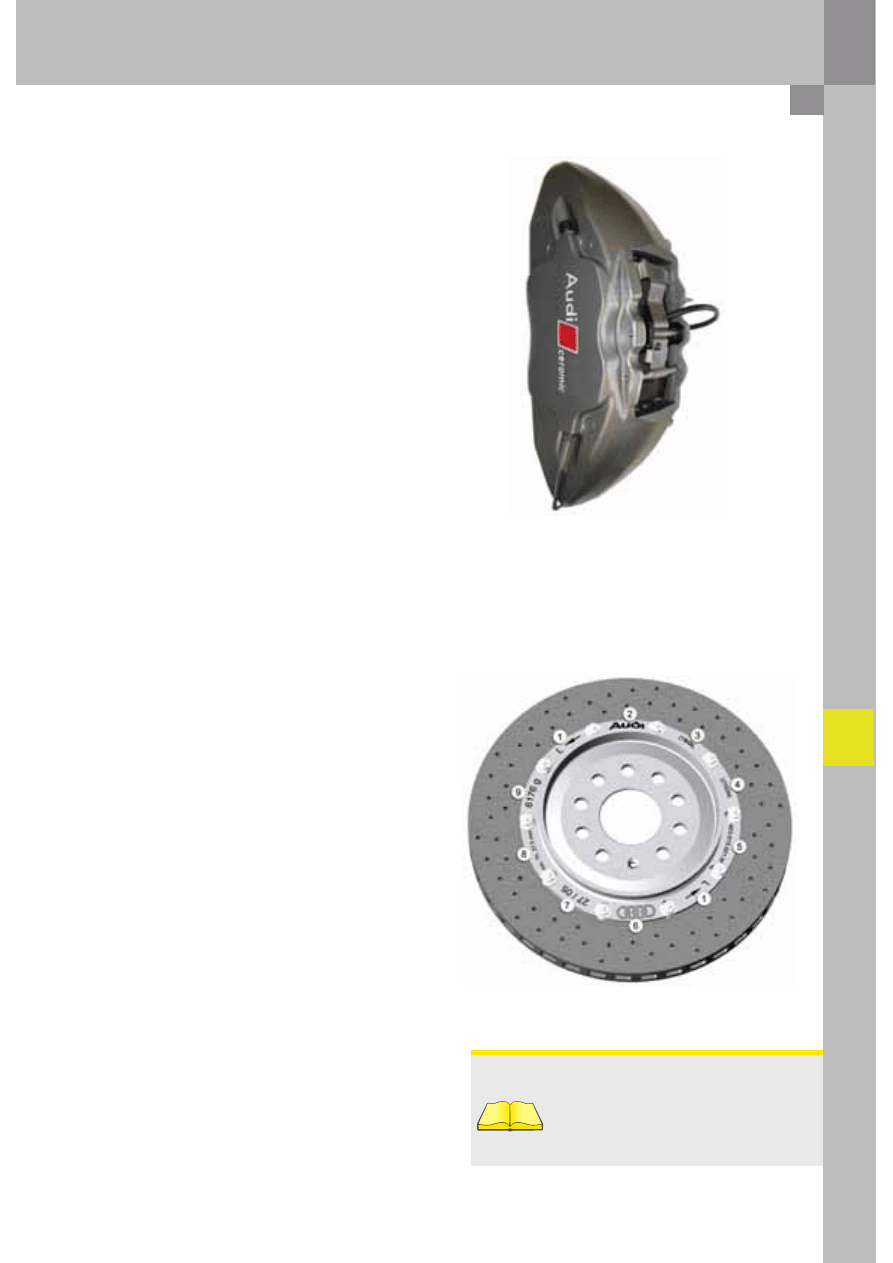

Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

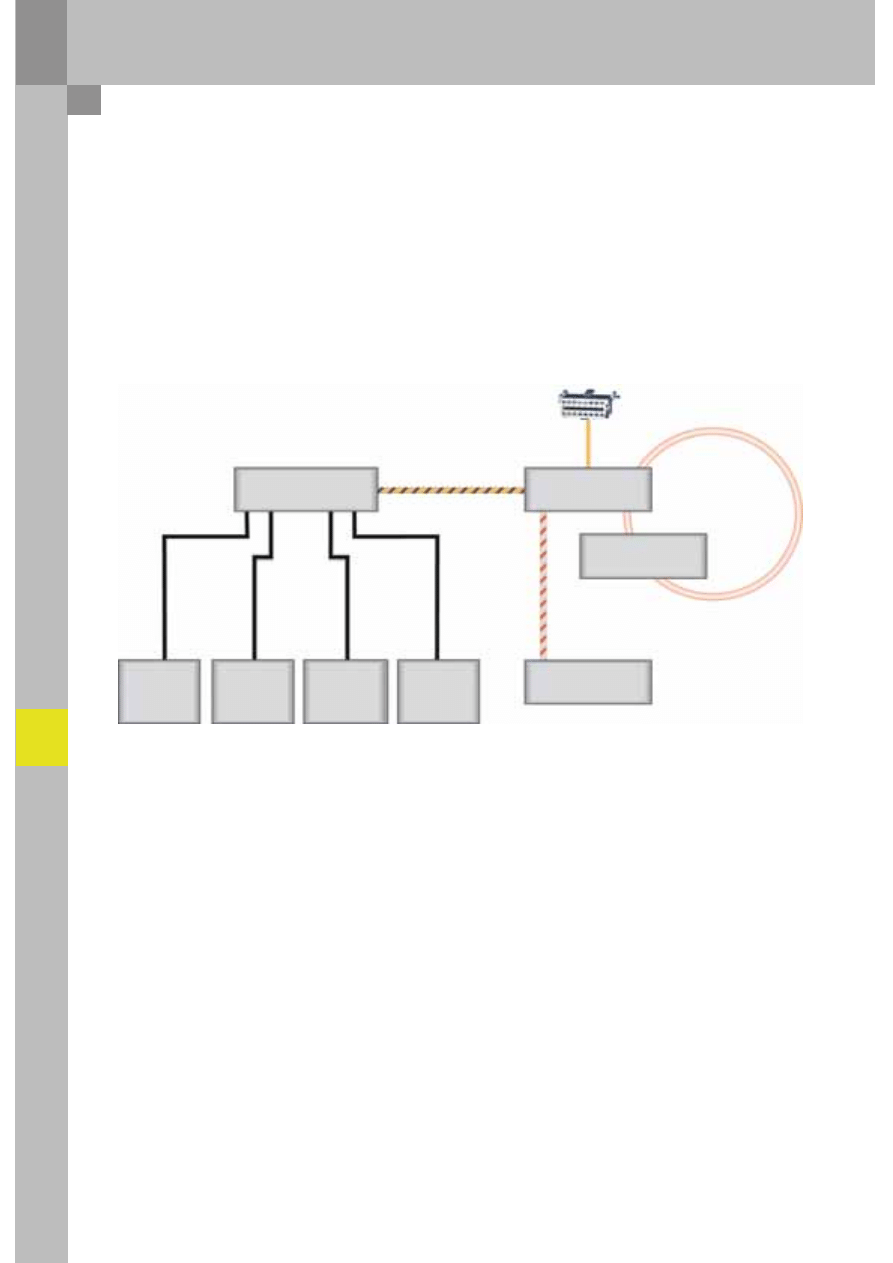

Bus topology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

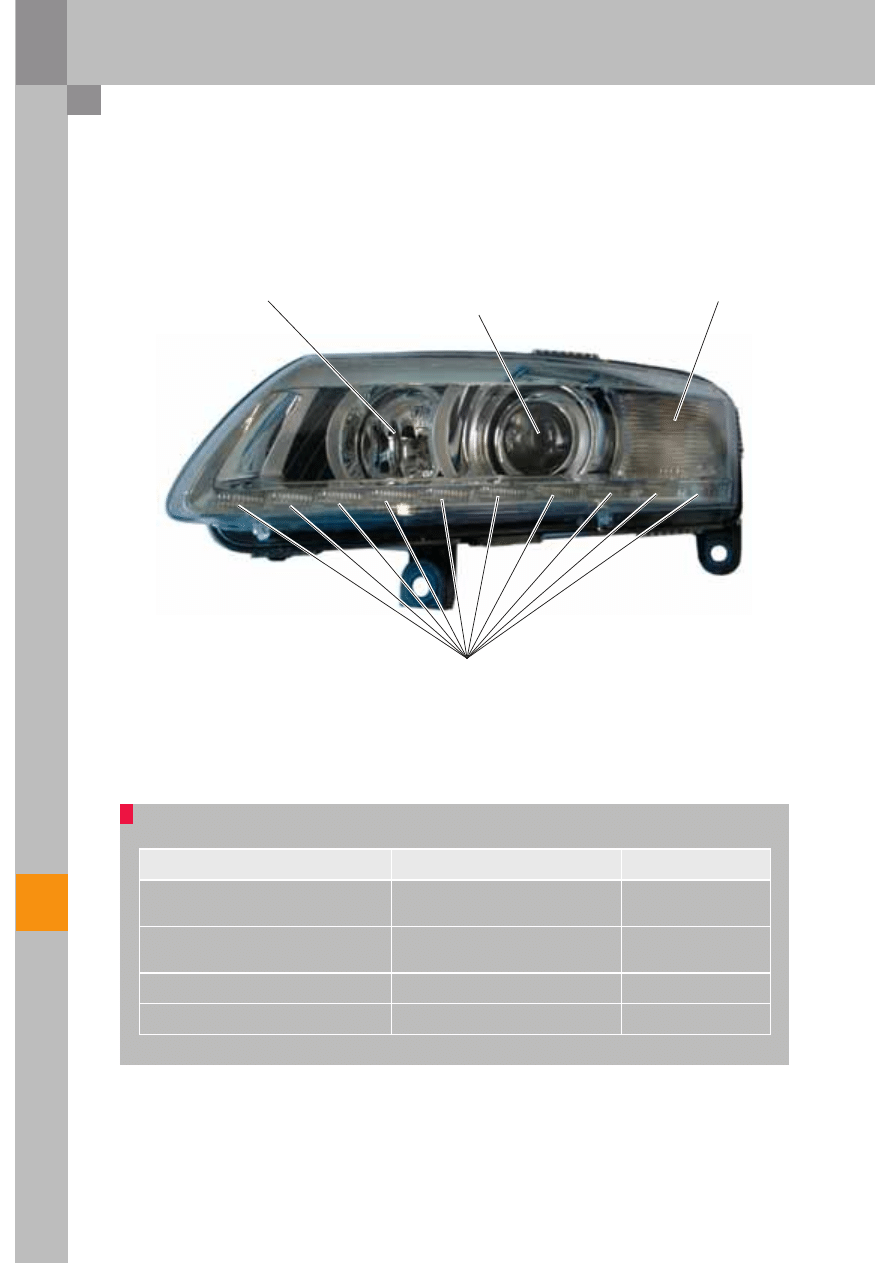

Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

background image

4

431_001_1

431_001_2

Introduction

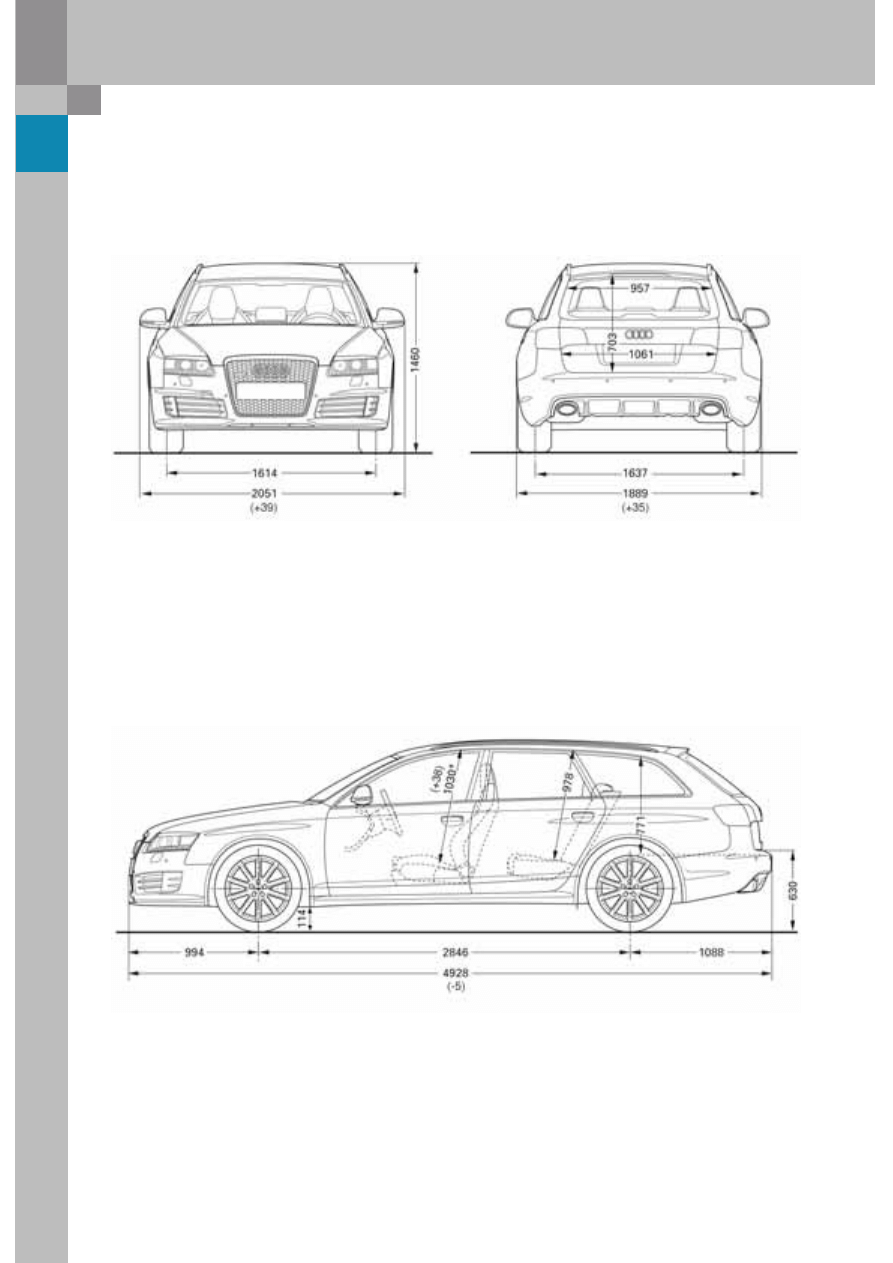

Dimensions of the Audi RS 6 Avant

The values given in square brackets are deviations from the Audi A6 Avant.

* Max. headroom

Specifications in millimetres
Dimensions refer to kerb (unladen) weight of vehicle

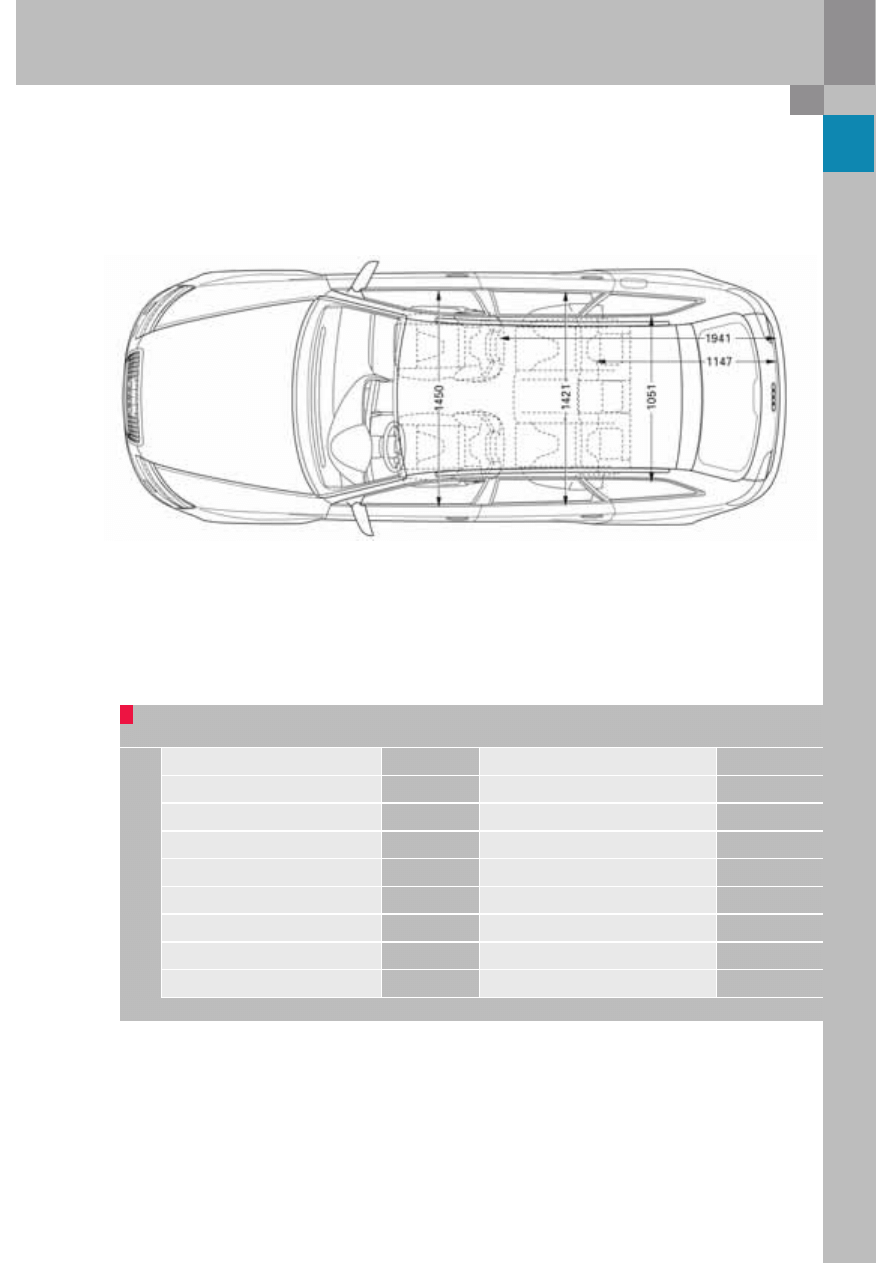

Max. headroom for driver and front passenger has been increased to 1030 mm.

background image

5

431_001_3

Length

in mm

4928

Inner width, front

in mm

1450

Width excl. mirrors

in mm

1889

Inner width, rear

in mm

1421

Height

in mm

1460

Headroom, front

in mm

1030

Track width, front

in mm

1614

Headroom, rear

in mm

978

Track width, rear

in mm

1637

Through-loading width

in mm

1061

Wheelbase

in mm

2846

Load sill height

in mm

630

Kerb weight

in kg

2025

Luggage capacity (seats down)

in l

565/1660

Max. allowable gross weight

in kg

2655

Fuel tank capacity

in l

80

Drag coefficient

c

w

0.35

All interior dimensions are otherwise unchanged despite the modification of the boot floor panel.

The saloon version of the Audi RS 6 will be launched at a later date.

background image

6

431_018

431_019

1

2

3

8

7

6

5

4

10

9

1

2

3

8

7

6

5

4

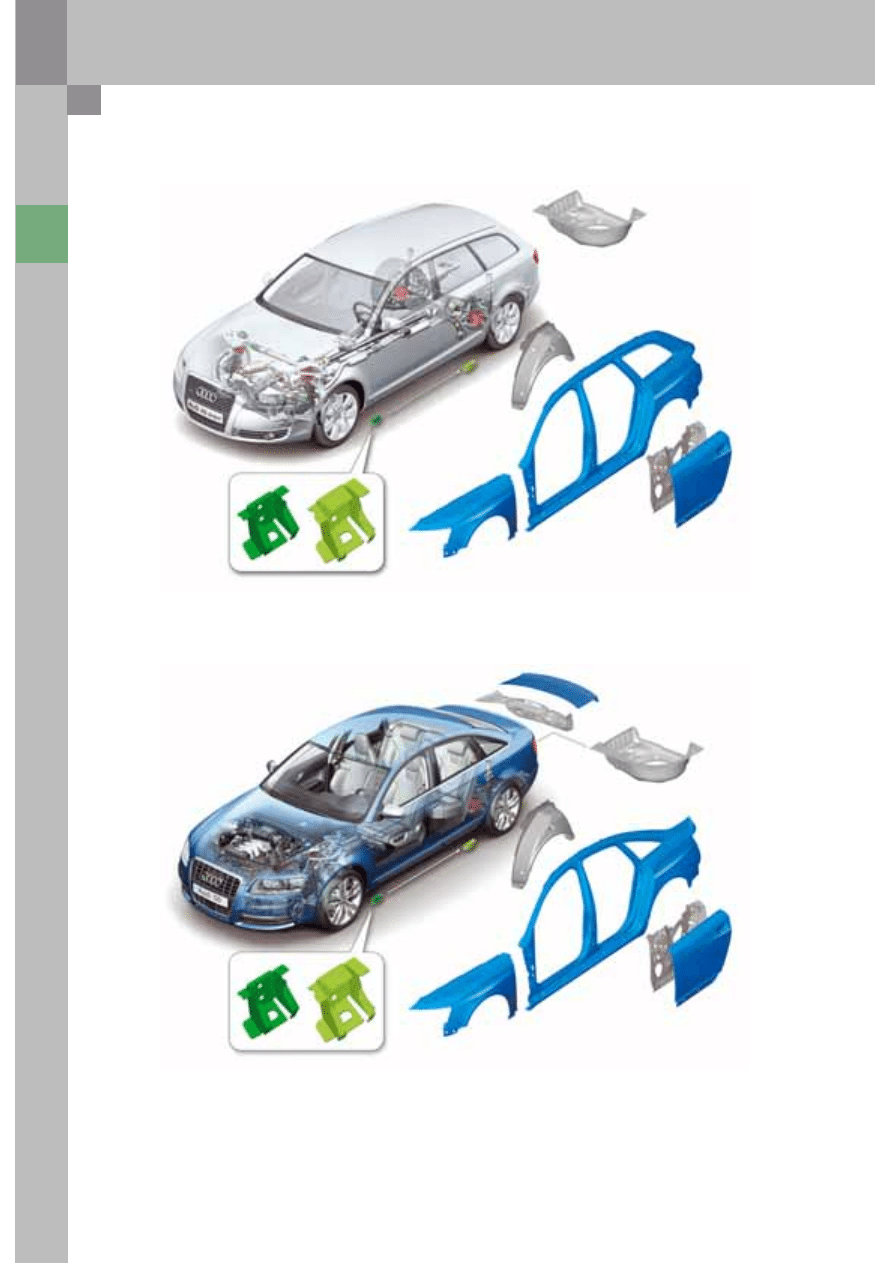

Body

Legend:

1

Wing, front left and right

2

Jack support pad, front left and right

3

Jack support pad, rear left and right

4 Sidewall frame, left and right
5 Wheel arch, rear left and right

Audi RS 6 Avant

Body modifications compared to Audi A6 Avant

6 Door outer panel, rear left and right
7 Door inner panel, rear left and right
8 Boot floor panel, rear
9 Tailgate panel, exterior
10 Tailgate panel, interior

Audi RS 6 saloon

Body modifications compared to Audi S6 saloon

background image

7

431_070

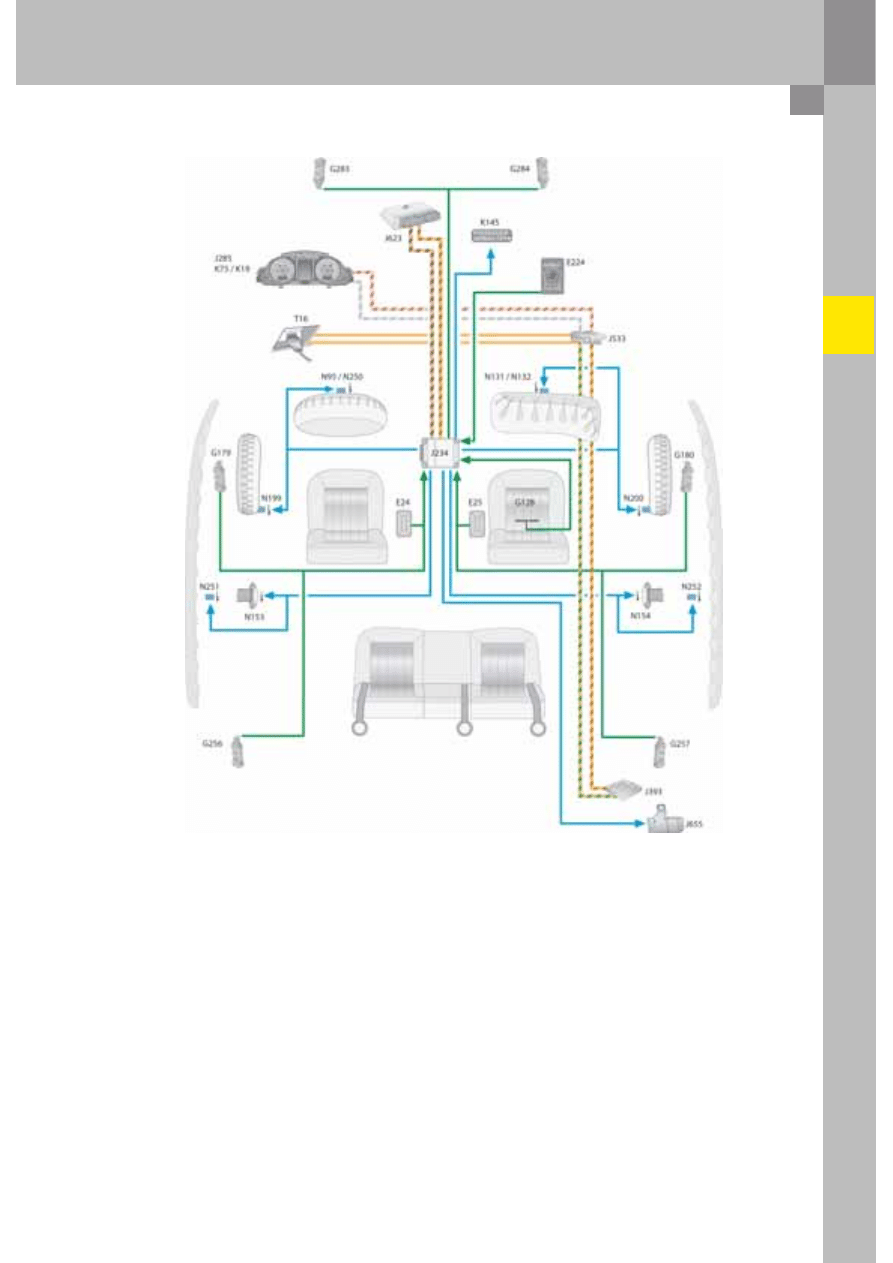

Occupant protection

The Audi RS 6 has the same occupant protection features as the Audi A6 Avant.

Legend:

E24

Driver side belt switch

E25

Front passenger side belt switch

E224

Airbag disabling key switch, front passenger side

G128

Seat occupancy sensor, front passenger side

G179

Side airbag crash sensor, driver side (front door)

G180

Side airbag crash sensor, front passenger side
(front door)

G256

Rear side airbag crash sensor, driver side

G257

Rear side airbag crash sensor, front passenger side

G283

Driver side front airbag crash sensor

G284

Front passenger side front airbag crash sensor

J234

Airbag control unit

J285

Control unit with display in dash panel insert

J393

Convenience system central control unit

J533

Data bus diagnostic interface

J623

Engine control unit

J655

Battery cut-off relay

K19

Seat belt warning system warning lamp

K75

Airbag warning lamp

K145

Passenger airbag off warning lamp
(PASSENGER AIRBAG OFF)

N95

Airbag igniter, driver side

N131 Front passenger side airbag igniter 1
N132 Front passenger side airbag igniter 2
N153 Driver seat belt tensioner igniter -1-
N154 Front passenger seat belt tensioner igniter -1-
N199 Side airbag igniter, driver side
N200 Side airbag igniter, front passenger side
N250 Driver side airbag igniter -2-
N251 Driver side curtain airbag igniter
N252 Front passenger side curtain airbag igniter

T16

16-pin connector (diagnostic port)

background image

8

431_009

Nm

400

600

200

800

1000

0

kW

500

400

300

200

100

0

3000

2000

1000

4000

6000

5000

7000

8000

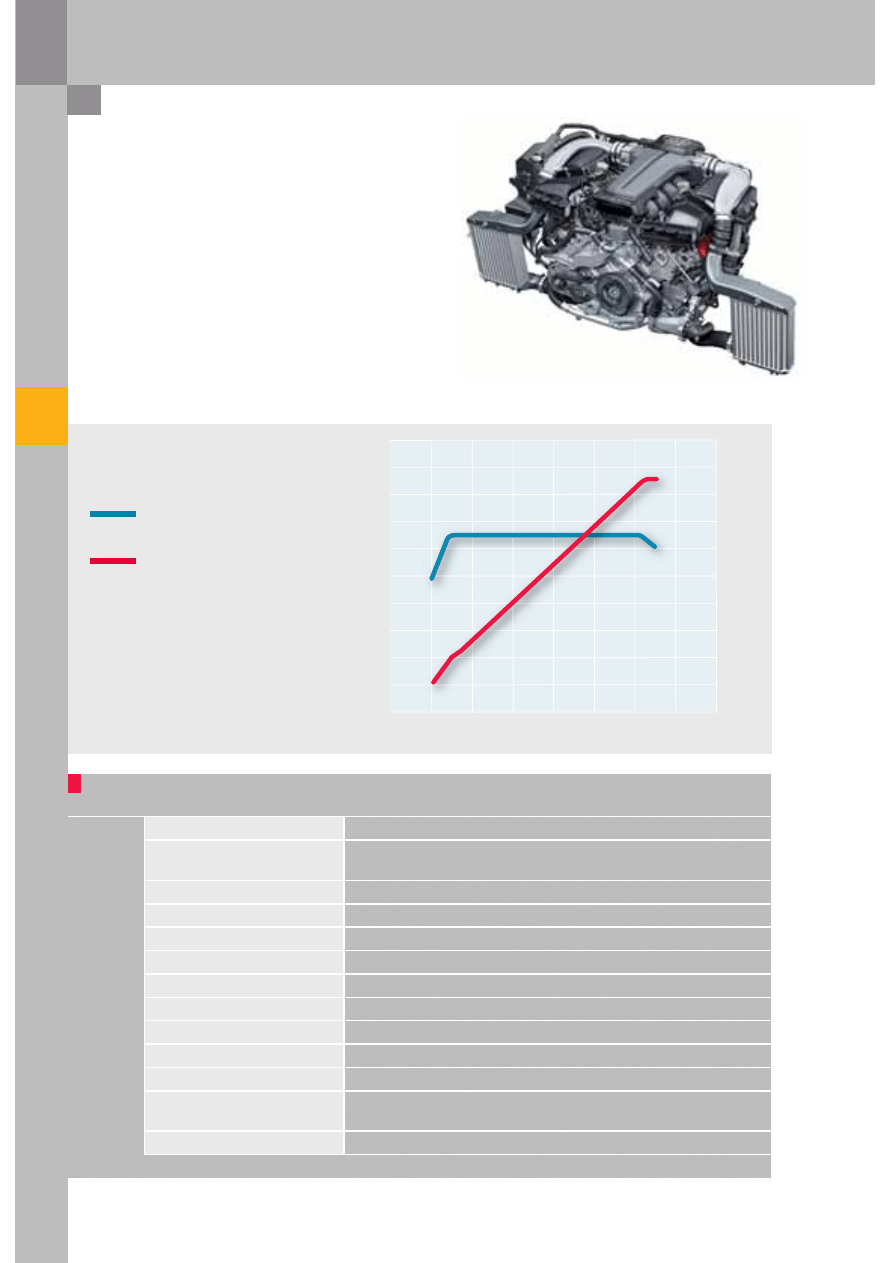

Engine mechanicals

5.0l V10 FSI biturbo

Technical features

– Ten-cylinder petrol engine with aluminium block
– Cylinder head with dual overhead camshafts

(DOHC)

– Roller cam followers with hydraulic valve

clearance adjustment

– Variable intake and exhaust camshaft

adjustment

– Maintenance-free, chain-driven timing gear
– Demand-controlled low and high pressure fuel

system

– Homogeneous direct injection

Engine speed in rpm

Torque/power curve

Max. torque in Nm

Max. power in kW

Specifications of the Audi RS 6

Engine code

BUH

Engine type

Ten-cylinder petrol engine with petrol direct injection,

biturbo charging and closed-loop fuel system

Displacement

in cm

3

4991

Max. power

in kW (bhp)

426 (580) at 6250 – 6700 rpm

Max. torque

in Nm

650 at 1500 – 6250 rpm

Bore

in mm

84.5

Stroke

in mm

89

Compression ratio

10.5 : 1

Cylinder spacing

in mm

90

Firing order

1 - 6 - 5 - 10 - 2 - 7 - 3 - 8 - 4 - 9

Engine management

Bosch ME9.1.2

Exhaust emission control

Single-pipe manifold with 4 integrated main catalytic converters close

to the engine, each with 1 pre-catalyst sensor and 1 post-catalyst sensor

Exhaust emission standard

EU 4

background image

9

431_041

Differences with regard to engine components of 5.2l V10 FSI engine (SSP 376)

– No balancer shaft
– Change in displacement due to modified crankshaft with shorter stroke
– Crankshaft with continuous crank pin
– Dry sump lubrication system
– Oil and water pump module
– Modified crankcase ventilation system with heating

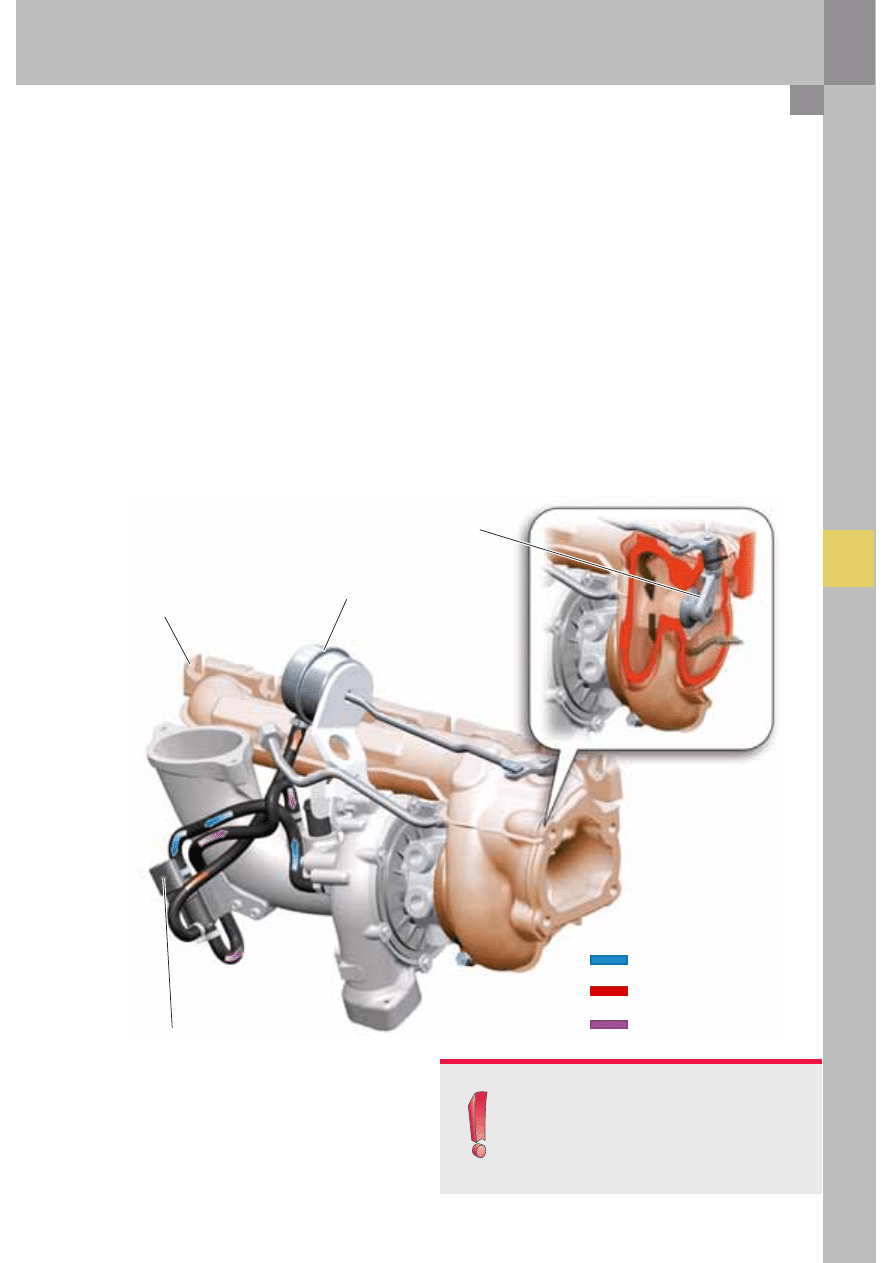

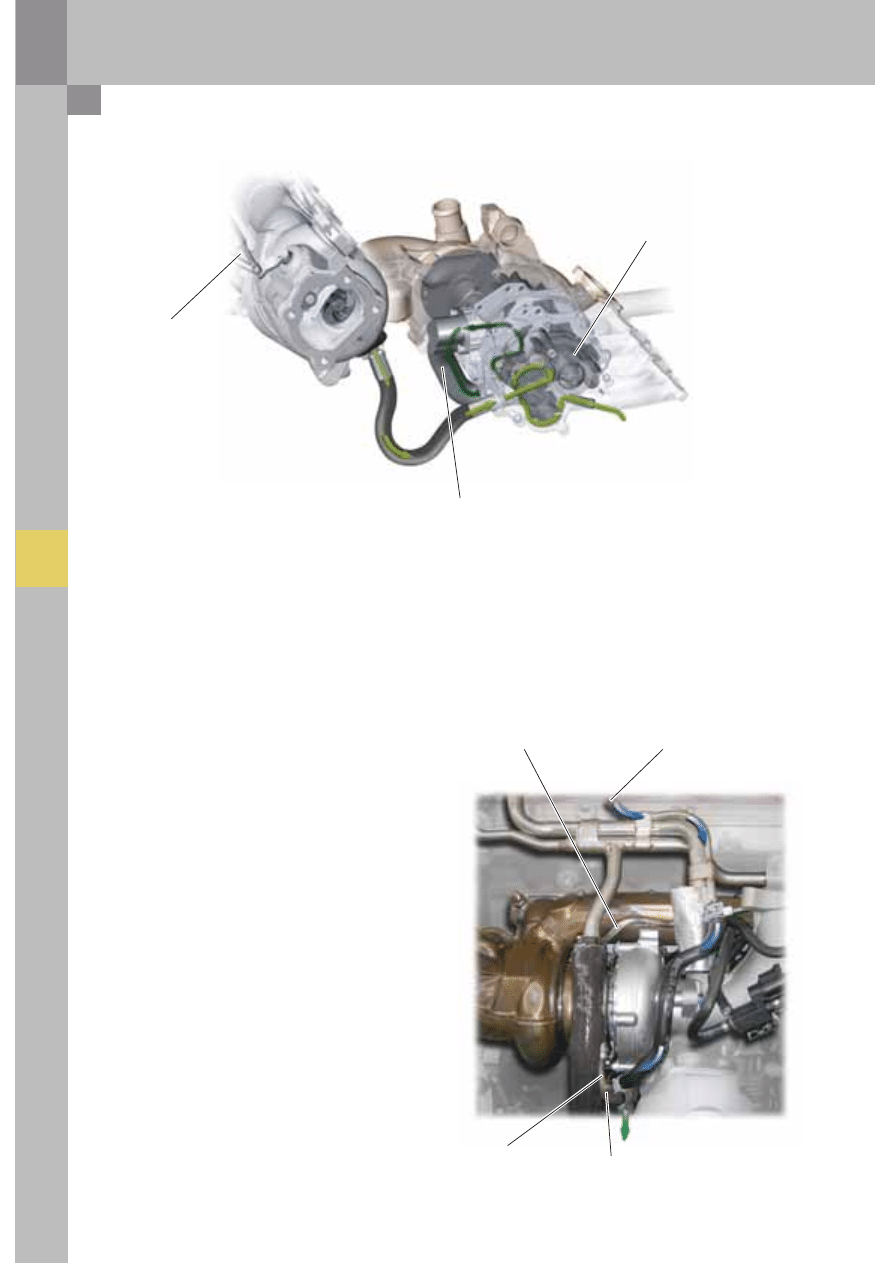

– Exhaust manifold turbocharger module

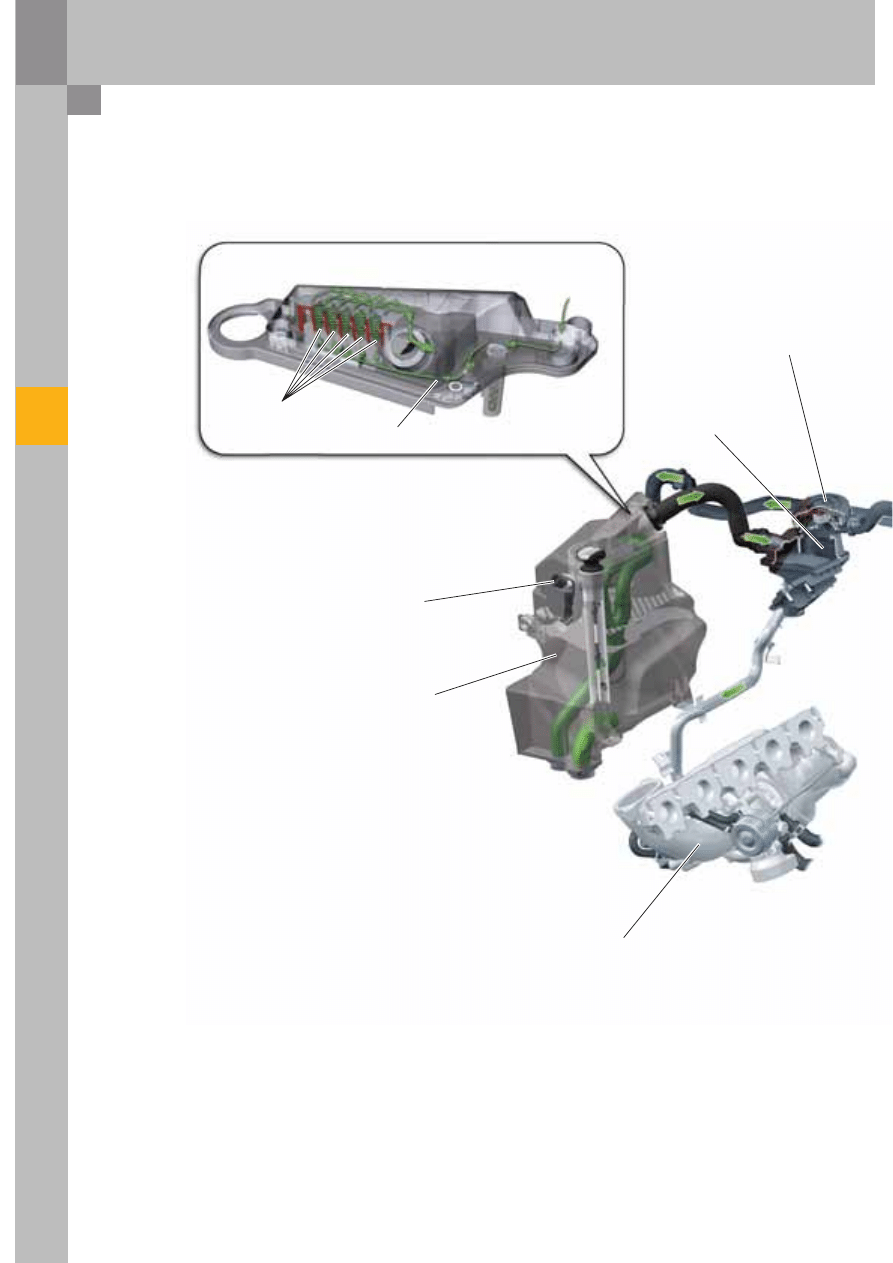

Crankcase ventilation system
with fine oil separator
on right cylinder bank

Exhaust manifold
turbocharger module,
right cylinder bank

Intake module (baffle plate)

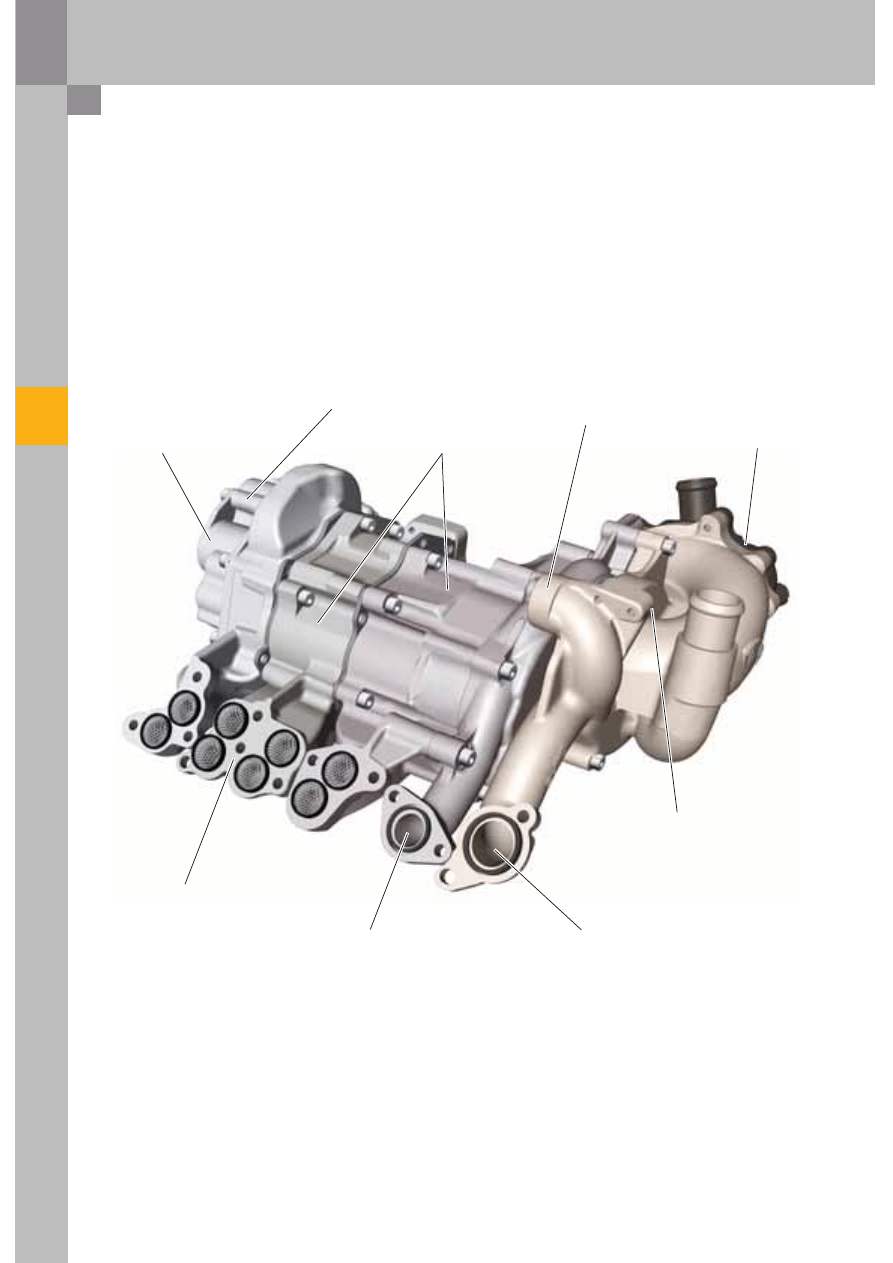

Oil and water pump module

Intake manifold without
switching flaps,
with throttle valve parts

Exhaust manifold
turbocharger module,
left cylinder bank

background image

10

431_046

431_074

Engine mechanicals

The AlSi12Cu1 bedplate has been reinforced by
using cast-in GGG50 inserts attached with four
screws through which the bulk of the power flow
is directed.
These inserts also reduce thermal expansion and
play in the main crankshaft bearings at high
temperatures.

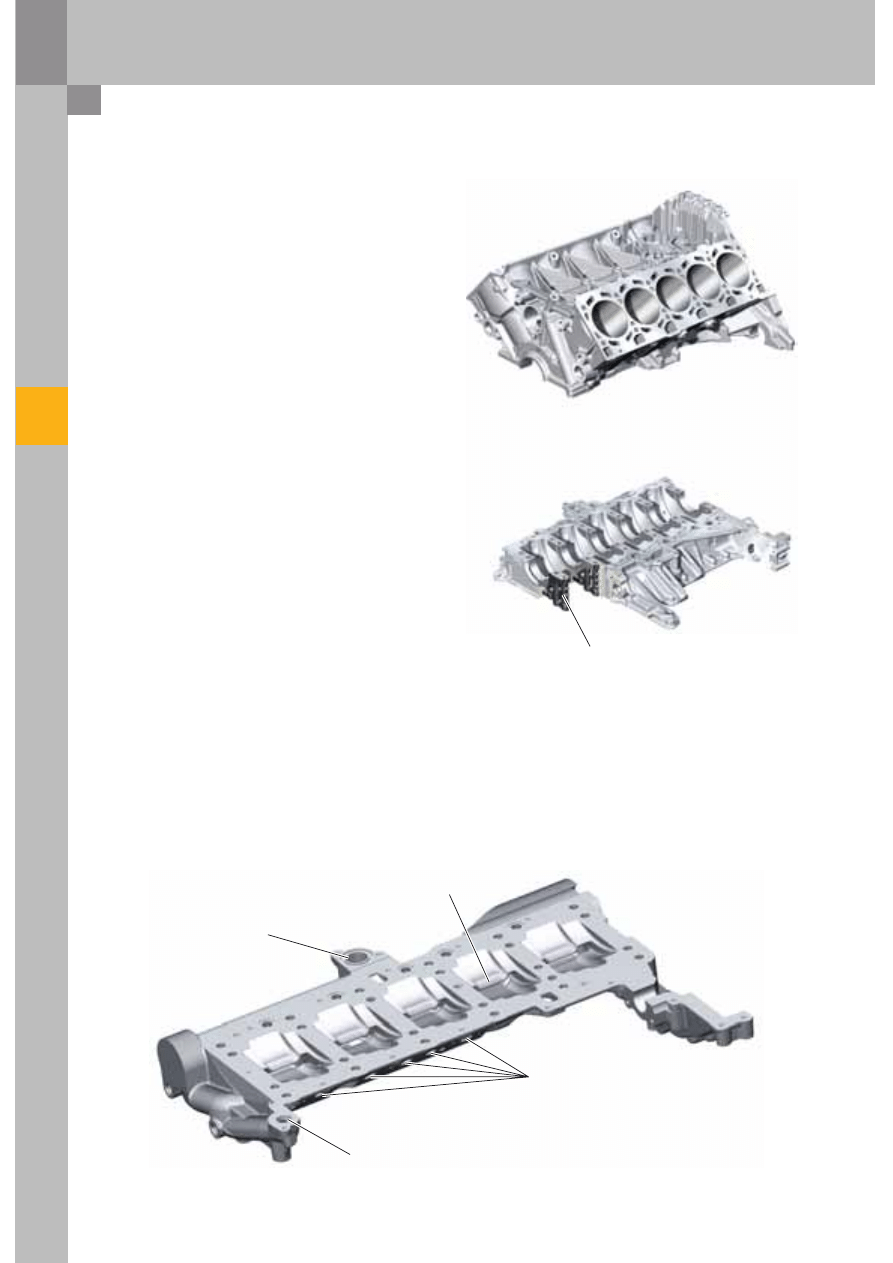

Cylinder block/crank
mechanism

The cylinder crankcase with 90° v-angle uses a
bedplate design and, thanks to a length of 685 mm
and width of 80 mm, sets new standards for com-
pactness and overall length.

The top part of the cylinder crankcase is a homo-
geneous monoblock made from AlSi17Cu4Mg by
low-pressure chill casting.
The typical properties of this combination of
materials are high strength, very low cylinder
distortion and good heat dissipation.

Cast iron insert for
crankshaft main bearing

Ladder frame (bedplate)

Cylinder crankcase

Intake module (baffle plate)

Instead of an oil pan, the engine has an intake
module which is connected directly to the external
oil pump via intake ports.

This intake module does not have a large oil
reservoir, rather serves as a baffle plate and collects
the out-flowing oil due to the rotation of the crank-
shaft.

Coolant intake for
right cylinder bank

Hydraulic oil port for
engine lubrication

Baffle plate

Intake ports

background image

11

431_042

431_066

431_044

compared to split pin
on 5.2l V10 engine

Auxiliary drive for:
-

Oil and water pump module

-

Air conditioning compressor

-

Hydraulic pump for power steering

Hydraulic tensioner
for chain drive C

Idler gear

Hydraulic tensioner
for chain drive A

3/8" simplex roller chain
for all chain drives

Hydraulic tensioner
for chain drive B

Hydraulic tensioner
for chain drive D

Deflection sprocket

Chain drive D acts as an ancillary unit drive, and
drives the oil and water pump module, the air con-
ditioning compressor and the power steering pump.
Four hydraulic tensioners with non-return valves are
used as a tensioning system.
Like the chains, they are designed for lifetime use.

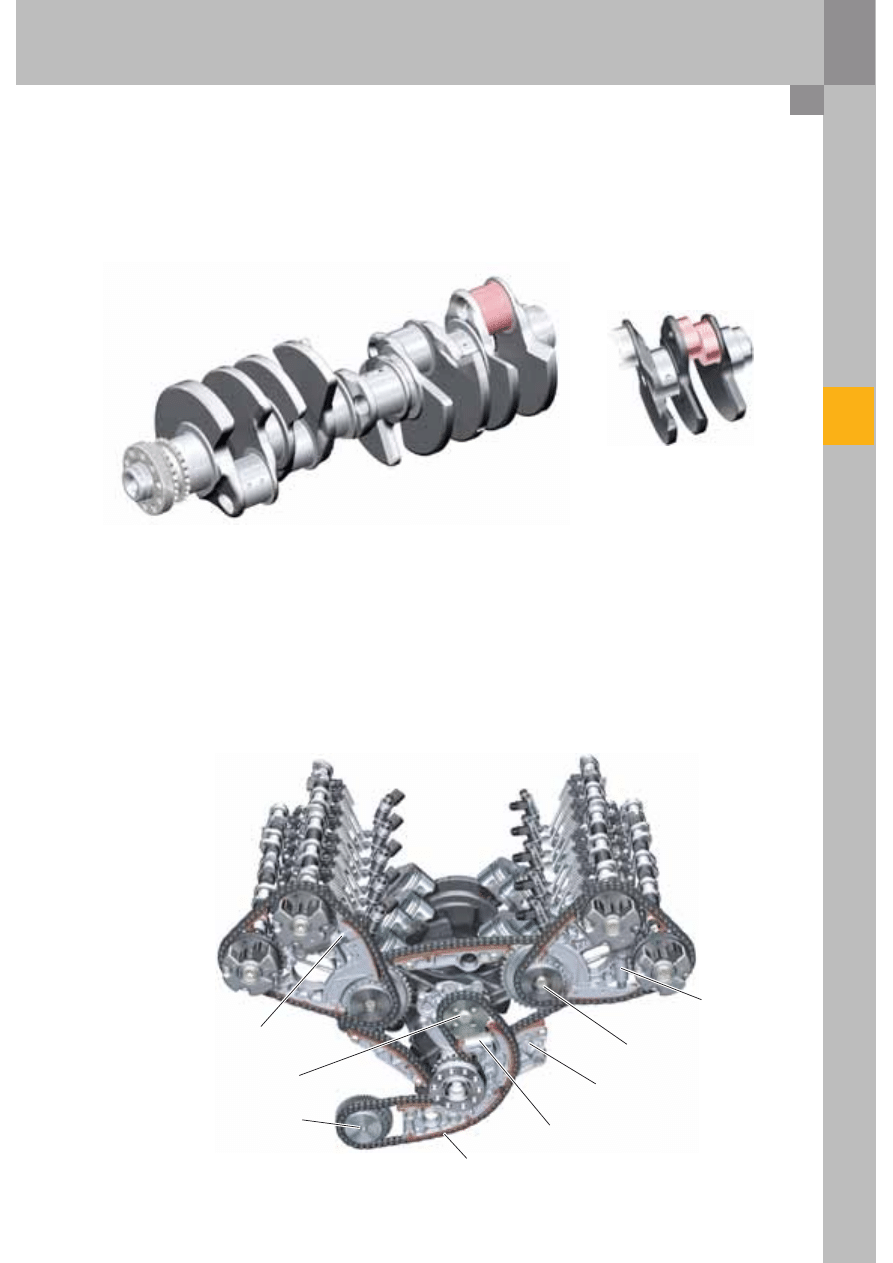

Chain drive

Chain drive is provided by four 3/8" roller chains
working on two planes.
Chain drive A acts as a distributor drive inter-
connecting the crankshaft and the idler gears.
Chain drives B and C act as cylinder head drives
interconnecting the idler gears and each of the
camshafts.

Crankshaft

For strength reasons, the crankshaft has been
designed as common-pin-type crank pin, and not
a split-pin type like on the 5.2l V10 engine.

Crankshaft with common pin
on 5.0l V10 engine

background image

12

431_020

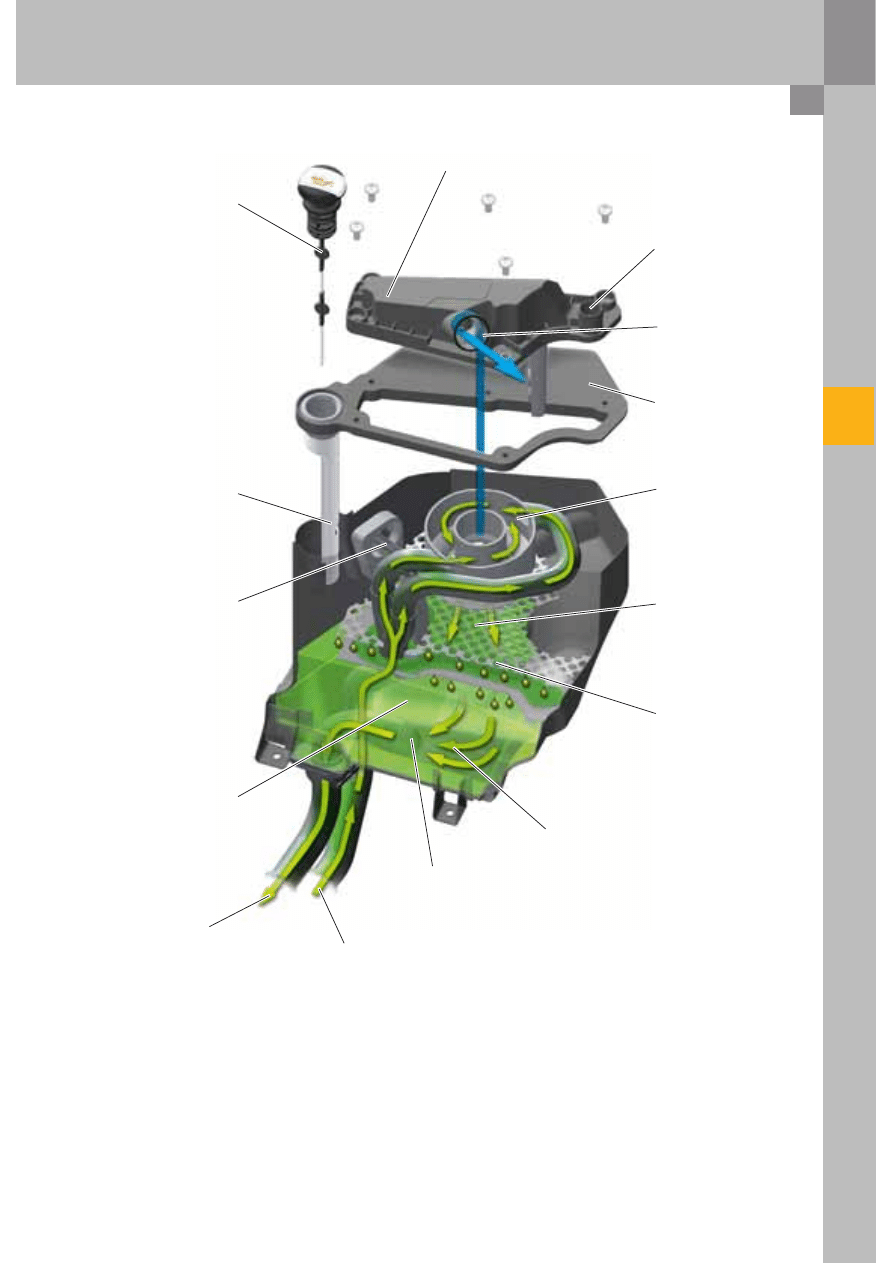

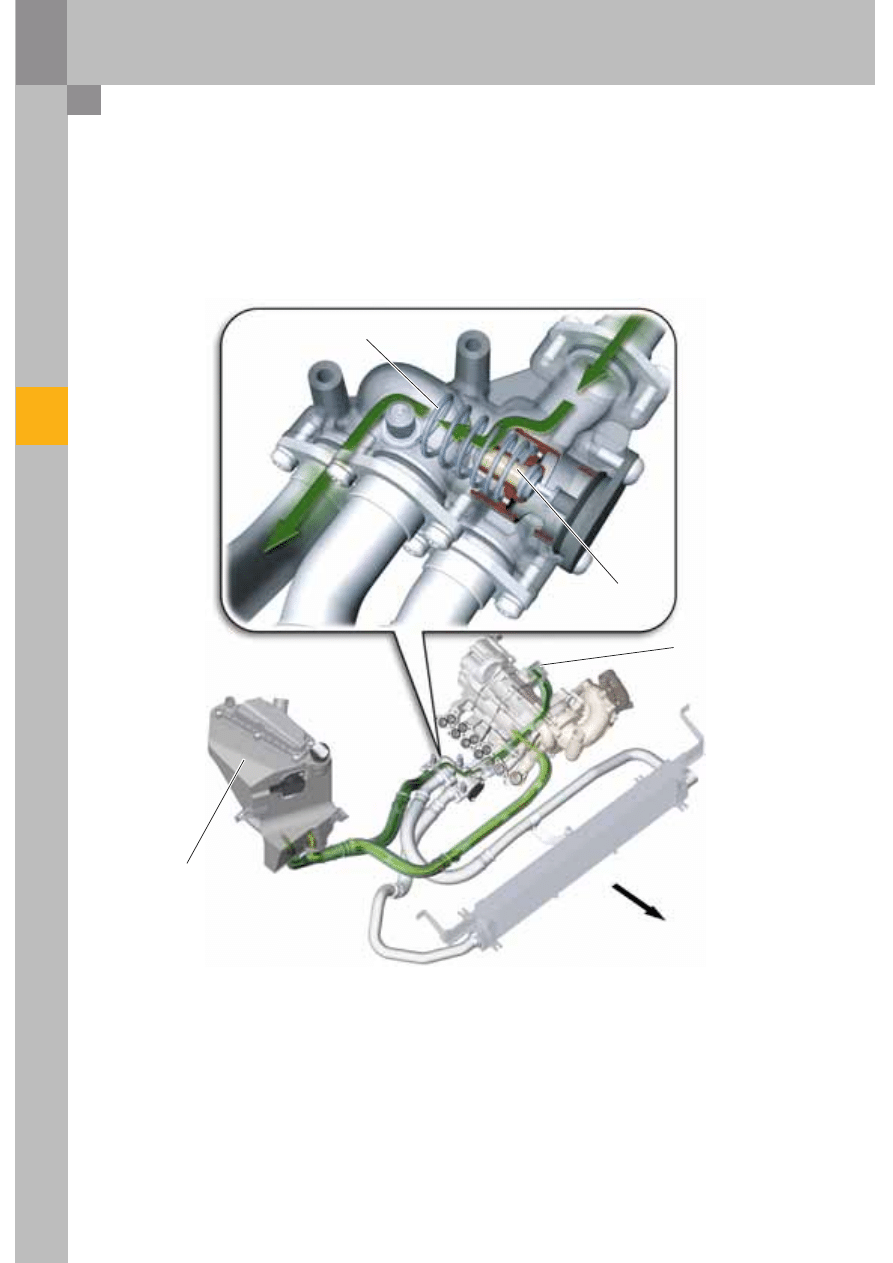

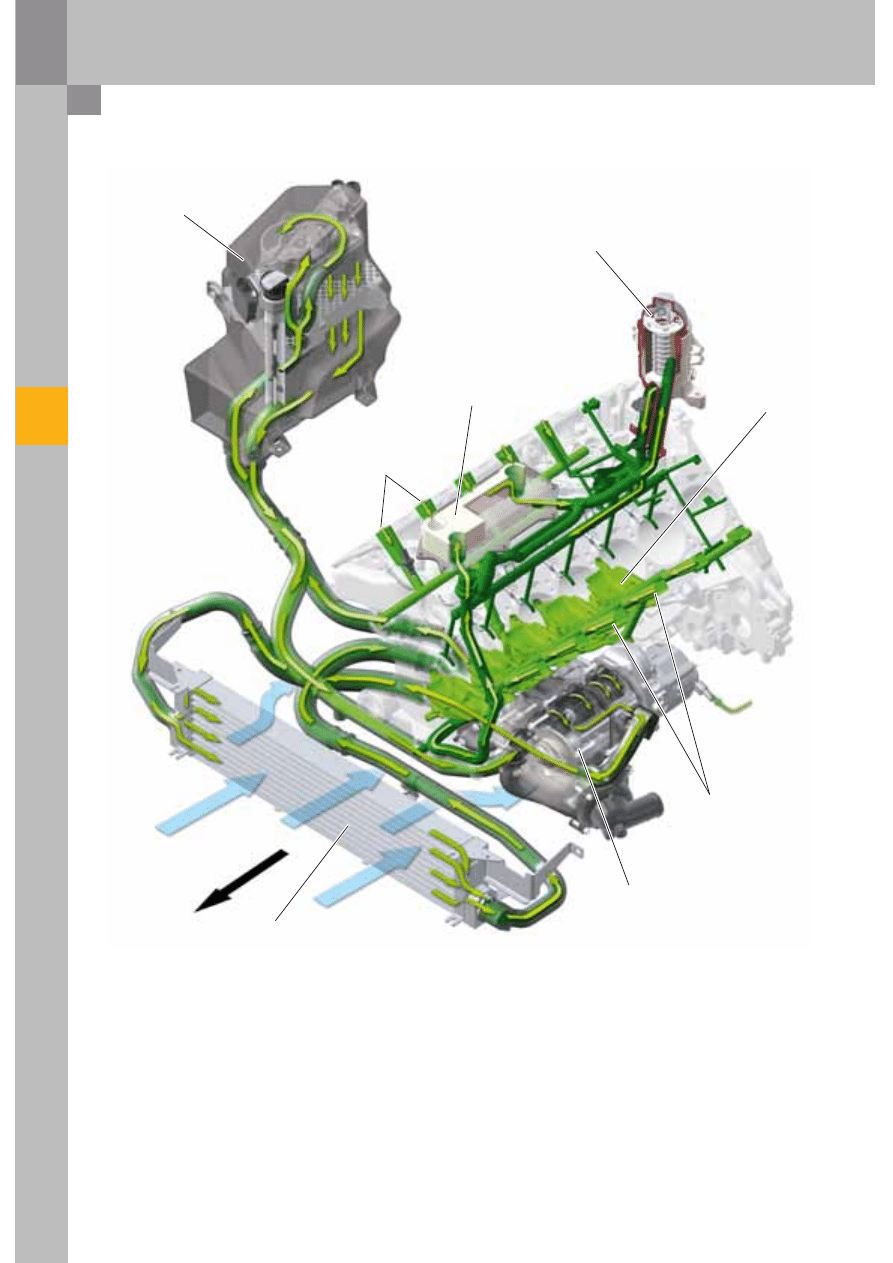

Oil circulation system

Oil and water pump
module

Baffle plate

Radiator/oil cooler

Oil filter module

Auxiliary oil cooler
(air/oil)

Direction
of travel

Oil tank with integrated
crankcase breather

Oil return line from cylinder
head, right cylinder bank

Oil return line from
cylinder head,
left cylinder bank

Turbocharger
return oil extractor

Engine mechanicals

A dry sump lubrication system is used to ensure a
reliable supply of pressurised oil to the engine in
all driving situations and when cornering at high
speeds.
Since the engine has an intake module, and not an
oil pan, the recirculated oil must be extracted from
the bearings, the cylinder heads and the chain
housing by means of suction.
The extracted oil is pumped into the oil reservoir via
an oil thermostat by the oil pump module.

The oil is again extracted from the oil reservoir and
pumped under pressure into the engine oil circuit
by the oil pump module.
Depending on the position of the oil thermostat, the
oil is pumped to the oil cooler either directly or via
the auxiliary oil cooler (air/oil).

Cooling air flow

background image

13

431_021

Defoaming
and settling chamber

Cyclone

Dip stick

to fine oil separator

Cover and housing seal

to oil pump

from oil thermostat

Extraction system

Oil filler tube

Crankcase breather of
left cylinder bank and
inner-v of engine

Oil level/oil temperature
sender G266

Oil collecting chamber

Baffle plates

Oil collecting
chamber

Oil reservoir

The oil which is pumped into the oil reservoir by
the oil pump module flows into a dual-flow oil pipe
which leads to a cyclone. When the oil is admitted
into the cyclone, it is set into rotation and
simultaneously degassed.

When the oil flows out of the oil reservoir, it passes
through baffle plates, where it is defoamed and
allowed to settle. The rising blow-by gases flow into
the oil separator at the top of the oil reservoir.
The oil filler tube, the dip stick and the oil level and
oil temperature senders G266 are integrated in the
oil reservoir.

Primary oil separator for
crankcase ventilation

background image

14

431_024

Engine mechanicals

Suction pump for the
turbocharger oil return line

Oil pumps

Coolant pump

Oil pump module driven
by chain drive D

Coolant intake port,
left cylinder bank

Connection of the oil pump
module to the intake module

Hydraulic oil port leading
into engine oil circuit

Coolant intake port,
right cylinder bank

Oil pump

The oil pump module is external to the engine and
driven via chain drive D. It consists of the suction
and feed pump for filling the oil reservoir, the suc-
tion and pressure pump for supplying oil to the
engine, and the suction pump for the recirculating
turbocharger oil.

The oil pump and the coolant pump collectively
form a unit and can only be replaced as such.
Only the thermostat housing with integrated
coolant thermostat can be replaced separately.

Thermostat housing

background image

15

431_025

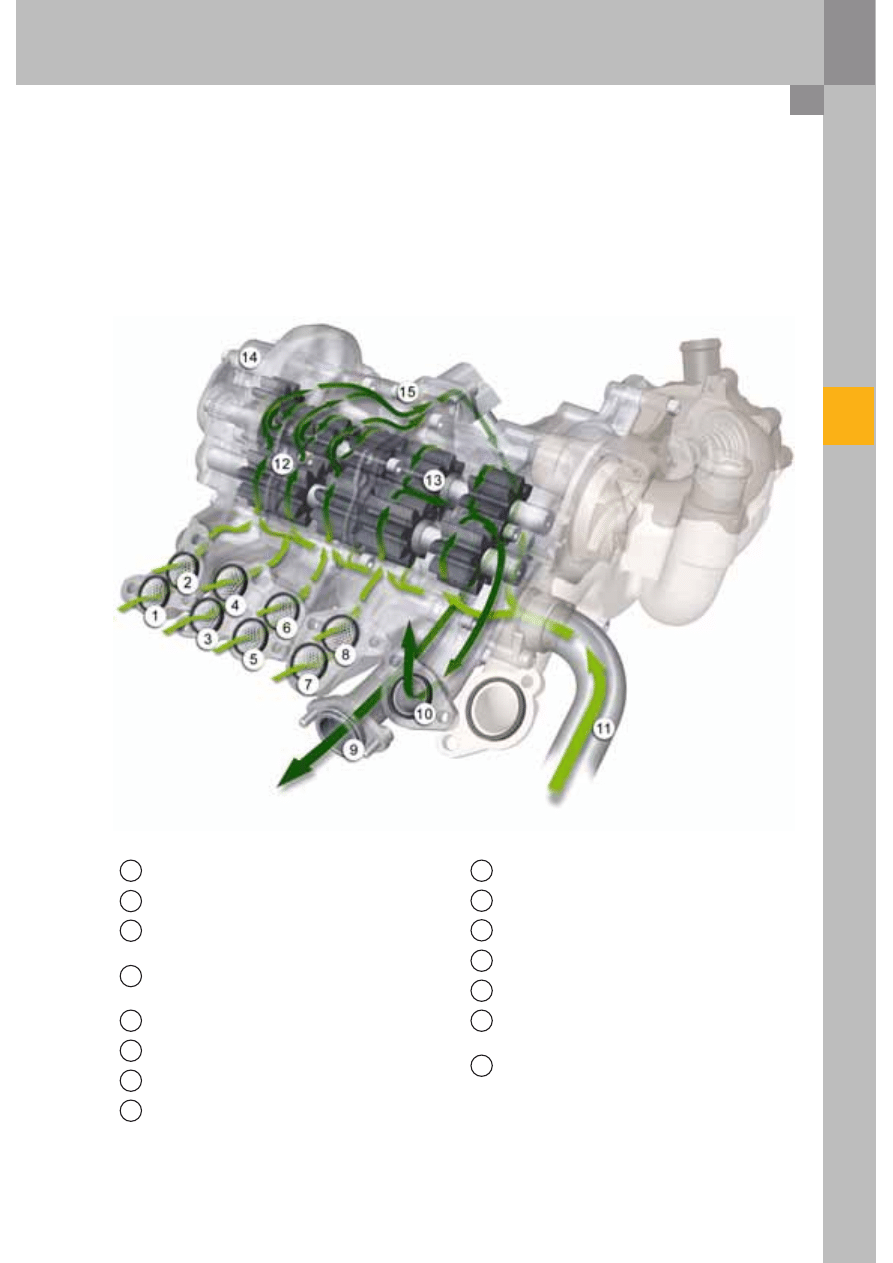

Oil flow

In the suction pump, the oil returning from the
lubrication points is drawn off as it passes through
the suction module and pumped into the oil
reservoir.

In the pressure pump, the cooled oil is extracted
from the oil reservoir and pumped into the engine
oil circuit.

Legend:

1

Crankshaft chamber 5 (K5)

2

Chain case return line

3

Oil return line from cylinder head,
right cylinder bank

4

Oil return flow from cylinder head,
left cylinder bank

5

Crankshaft chamber 4 (K4)

6

Crankshaft chamber 3 (K3)

7

Crankshaft chamber 2 (K2)

8

Crankshaft chamber 1 (K1)

9

to oil thermostat

10

to main oil port

11

from oil reservoir

12

Suction pump

13

Pressure pump

14

Suction pump for oil return from
both turbochargers

15

Crankcase divider

Oil pressure at idle min. 1.5 bar; at 2000 rpm min 3.5 bar.

background image

16

431_035

Engine mechanicals

Expansion element
thermostat

Direction of travel

Oil cooler

Oil tank

Resetting spring (relaxed)

Oil thermostat

To ensure better cooling, an auxiliary oil cooler is
integrated in the oil circulation system. Oil either
flows through it or bypasses the auxiliary oil cooler,
depending on its temperature.

from the oil pump

When the engine is cold or the engine lubricating
oil is cold, the recirculating, extracted oil is pumped
into the oil thermostat housing.
When the thermostat is in a relaxed state, it seals
off the inlet leading to the oil cooler, whereby the oil
in the thermostat housing is redirected to the oil
reservoir.

In combination with the heat exchanger (oil/water)
in the inner-v of the engine, the engine lubricating
oil is heated to operating temperature more quickly.

Thermostat closed

The auxiliary oil cooler is controlled by an oil
thermostat installed on the underside of the engine.

Oil pump module

background image

17

431_037

Oil pump module

Expansion
type
thermostat

Resetting spring (tensioned)

Oil tank

Direction of travel

Oil cooler

Thermostat open

When the temperature of the oil exceeds 100 °C,
the oil thermostat opens the inlet to the oil cooler.
An expanding element in the thermostat expands
under heating and exerts pressure against the
thermostat housing. Due to the pressure of the
expanding element, the thermostat is displaced
against the force of the spring, opening the annular
channel and simultaneously closing off the inlet
leading directly to the oil reservoir.

Annular port

The oil flows through this annular port and into the
oil cooler, returning from here to the oil thermostat
housing and entering the oil reservoir.
In the oil cooler, the engine lubricating oil is cooled
by the air stream generated by the vehicle as it
moves.

background image

18

Engine mechanicals

Crankcase ventilation

The blow-by gases produced by combustion are extracted from the left rocker cover in the inner-v of the
engine and routed to the primary oil separator of the crankcase breather, which is mounted on the oil
reservoir.

Oil reservoir with
oil separator

Turbocharger, right

Pressure regulating valve
for crankcase ventilation

Fine oil separator on
right cylinder head

After the blow-by gases have been admitted into the
primary oil separator, they pass through a labyrinth
and then through ten cyclones where the coarse oil
droplets are separated from the blow-by gases.
The gases then flow into the fine oil separator on
the right rocker cover.

The blow-by gases from the right cylinder bank are
also admitted into this fine oil separator, after which
they are directed into the combustion chamber
together with the other blow-by gases.
Since both vacuum and charging pressure (over-
pressure) are alternately present inside the intake
manifold in turbocharged engines, the oil-free blow-
by gases must flow into the combustion chamber
through different ports.

Primary oil separator

Oil level and
oil temperature sender
G266

Labyrinth

Cyclone

background image

19

431_065

Left turbocharger

Intake
manifold inlet

Port leading to left cylinder head

To prevent the admitted blow-by gases from freezing at high flow rates, the inlet port on the intake manifold
is heated with coolant from the cylinder heads.

Non-return valve in the intake line leading to
the turbocharger (open when vacuum is present
in the intake line upstream of the turbocharger)

Port leading from
inner-v of engine
block

Non-return valve on intake
manifold (open when vacuum is
present in the intake manifold)

When the engine is running at full throttle and
charge pressure is present in the intake manifold,
the non-return valve on the intake manifold is
closed and the non-return valves on the intake end
of the turbocharger are opened. The oil-free blow-by
gases now flow into the pressureless section of the
turbocharger and are directed to the combustion
chamber via the charge air line leading to the intake
manifold.

Heating of the
crankcase
breather at the
rear intake
manifold

Outflow and
distribution of
blow-by gases to
both cylinder banks in
the intake manifold

Admission of blow-by gases when charge
pressure is present in the intake manifold
located upstream of the turbocharger
turbine.

Vacuum port leading
to brake servo

Coolant port leading
from left cylinder head

Admission of oil-free
blow-by gases downstream
of the fine oil separator

Coolant return to
expansion tank

Coolant port leading
from left cylinder head

When the engine is idling and running at par t
throttle, a non-return valve on the intake manifold is
opened by vacuum, allowing the blow-by gases to
be drawn in. At the same time, the two non-return
valves on the turbochargers are closed.

background image

20

431_053

Engine mechanicals

Cooling system

Secondary cooling circuit (engine cold)

to

engine

to

engine

from

engine

When the coolant thermostat is closed, the supply from the inner-v of the engine to the coolant pump is
opened internally.
Coolant flows directly to the coolant pump and back into the engine cooling system.
This is the secondary cooling circuit, in which components such as the engine oil cooler (water/oil), the alter-
nator, the turbocharger and the heating system heat exchanger are integrated.

Direction
of travel

Main radiator

Coolant thermostat

Coolant pump

Auxiliary radiator, left

Auxiliary radiator,
bottom front

Water oil pump module
driven by chain drive D

Coolant thermostat
closed

Coolant thermostat
opened internally

background image

21

431_073

431_055

Auxiliary coolant regulator for right auxiliary
radiator

When it is in a cold state, the auxiliary coolant
regulator for the right auxiliary radiator is closed.
Coolant flows from A to C to the main radiator,
bypassing the auxiliary radiator.

Legend:

A

Coolant flows from oil the cooler (water/oil)
in the inner-v of the engine

B

closed

C

Coolant bypasses the auxiliary radiator
(short-circuit line)

Level gauge on right A-post,
visible when door is open

Expansion tank

Filler tank

Auxiliary radiator, right

Auxiliary coolant regulator
for right auxiliary radiator

Port leading to heating
return line serving as a
filler line for the coolant
system.

Port leading
from filler tank

background image

22

431_058

Engine mechanicals

from

gearbox cooler

from

radiator

from

heater

to

engine

left cylinder bank

to

engine

right cylinder bank

Primary cooling circuit (engine warm)

When the coolant thermostat is open (at a temperature of 87 °C or higher), the inlet from the inner-v of the
engine to the coolant pump is closed internally.
Coolant passes through the main radiator and, after cooling down, flows to the coolant pump.
The coolant from the inner-v of the engine is now directed via a branch line to the left auxiliary radiator.
This means that the auxiliary radiator is thermostat-controlled both on this side and on the right-hand side.
The main radiator and the left auxiliary radiator are integrated in the primary cooling circuit at the centre and
on the right, creating a large cooling surface which serves to regulate the coolant temperature.

Connection for gearbox
oil cooling supply line

Connection for
heater return line

Connection for gearbox
oil cooling return line

Port leading to heater heat exchangers
via pump/valve unit in plenum chamber

Coolant thermostat
internally closed

Coolant thermostat
activated

background image

23

412_054

431_031

Auxiliary coolant regulator for right auxiliary
radiator

When the coolant temperature exceeds 90 °C, the
auxiliary coolant regulator opens, allowing coolant
to flow unrestricted from A to B.
The coolant now passes through the right auxiliary
radiator and into the main radiator.

Legend:

A

Coolant flows from oil the cooler (water/oil)
in the inner-v of the engine

B

Coolant flows into the auxiliary radiator via
the coolant thermostat

C

closed

Port leading from filler tank
to expansion tank

Level gauge on right A-post
visible when door is open

background image

24

1

26

25

24

23

22

3

6

7

16

18

15

17

19

20

21

14

13

11

10

9

2

4

5

8

12

431_061

Engine mechanicals

Legend:

1

Right auxiliary radiator

2

Auxiliary coolant regulator

3

Filler tank

4

Alternator

5

Coolant run-on pump V51

6

Coolant expansion tank

7

Right exhaust gas turbocharger

8

Pump/valve unit

9

Right heater heat exchanger

10

Left heater heat exchanger

11

Vent screw

12

Crankcase breather heater on intake manifold

13

Top engine oil cooler (water/oil)

14

Left exhaust gas turbocharger

15

Coolant pump

16

Auxiliary coolant regulator for gearbox oil
cooling

17

Oil cooler for transfer case (water/oil)

18

Coolant thermostat

19

ATF cooler (water/oil)

20

Recirculation pump 2, V403

21

Non-return valve

22

Left auxiliary radiator

23

Main radiator

24

Gearbox radiator (water/air)

25

Bottom auxiliary radiator

26

Coolant temperature sender G62

The direction of flow arrows represent
the engine at operating temperature.

Cooling circuit diagram
(engine at operating temperature)

background image

25

5

431_076

Diagram showing the cooling system
in run-on mode

To protect the turbocharger from damage due to
heat build-up after shutting off the hot engine, the
engine control unit J623 (master) activates the
timer-controlled run-on pump V51 via the auxiliary
water pump relay J151.

Depending on the coolant temperature, the pump
runs for 540 seconds and runs on for up to 800
seconds.
The run-on pump (reversing the normal direction
of coolant flow) feeds the coolant from the main
radiator via the turbocharger into the engine block,
and then recirculates it through the main radiator
via the open coolant thermostat.

This circulation process dissipates the collected
heat from the turbochargers by utilising the large
surface area of the radiator and the radiator fan run-
on function.
If this does not happen, the hot oil can coke up in
the turbocharger bearings and damage the floating
bearings of the turbine shaft.

background image

26

Engine management

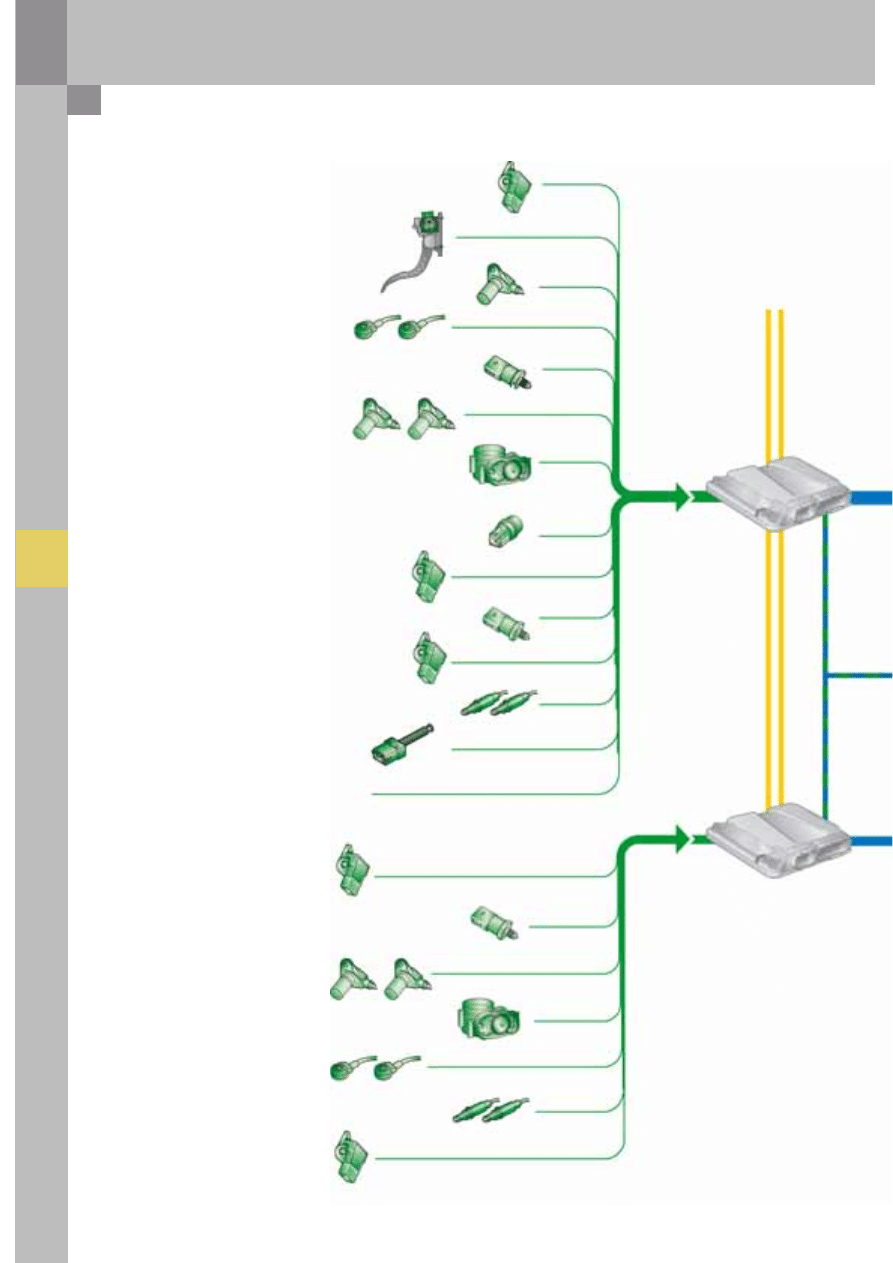

System overview

Sensors

Intake manifold pressure sender G71
Intake manifold temperature sender G72

Accelerator pedal position sender G79
Accelerator pedal position sender 2, G185

Engine speed sender G28

Fuel pressure sender G247

Hall sender G40
Hall sender 3, G300

Fuel pressure sender, low pressure G410

Throttle valve module J338
Throttle valve drive angle sender 1+2
(electric power control) G187, G188

Lambda probe G39
Lambda probe after catalytic converter G130

Brake light switch F
Brake pedal switch F47

Hall sender 2, G163
Hall sender 4, G301

Knock sensors 1+2, G61, G66

Coolant temperature sender G62

Intake manifold flap potentiometer G336

Auxiliary signals:
Cruise control system on/off
Terminal 50
Wake up door contact from convenience system
central control unit J393

Oxygen sensor 2, G108
Oxygen sensor 2 after catalytic converter G131

Intake manifold flap 2 potentiometer, G512

Knock sensors 3+4, G198, G199

CAN data bus

Drive

Engine control unit J623
(master)

Engine control unit 2, J624
(slave)

Charge pressure sender 2, G447

Throttle valve module 2, J544
Angle senders 1+2 for throttle valve
drive 2, G297, G298

Charge pressure sender G31

Fuel pressure sender 2, G624

background image

27

431_064

Actuators

Diagnostic

port

Fuel pump control unit J538
Fuel pump (pre-supply pump) G6

Injectors, cylinders 1 – 5
N30 – N33, N83

Intake manifold flap valve N316

Ignition coils N70, N127, N291, N292, N323
Cylinders 1 – 5

Activated charcoal filter solenoid valve 1 N80

Fuel metering valve N290

Throttle-valve drive for electric power control G186

Secondary air pump relay J299
Secondary air pump motor V101
Secondary air inlet valve N112

Auxiliary signals:
Engine speed
Radiator fan control units J293 and J671

Lambda probe 2 heater, Z28
Lambda probe 2 heater, after catalytic converter Z30

Fuel metering valve 2 N402

Throttle valve drive 2, G296

Electro/hydraulic engine mounting solenoid valve,
right N145

Inlet camshaft timing adjustment valve -1- N205
Exhaust camshaft timing adjustment valve 1 N318

Continued coolant circulation relay J151
Coolant run-on pump V51

Lambda probe 1 heater, Z19
Lambda probe 1 heating, after catalytic converter Z29

Variable intake manifold change-over valve N335

Ignition coils N324 – N328
Cylinders 6 – 10

Inlet camshaft timing adjustment valve 2 N208
Exhaust camshaft timing adjustment valve 2 N319

Injectors, cylinders 6 – 10
N84 – N86, N299, N300

Electro/hydraulic engine mounting solenoid valve,
left N144

Fuel system diagnostic pump (USA) V144

Engine component current supply relay J757

Motronic current supply relay J271

Starter motor relay J53
Starter motor relay 2 J695

Radiator fan 3 relay, J752
Radiator fans, left and right V402, V35

Auxiliary coolant pump relay J496
Recirculation pump 2, V403 (gearbox oil cooling)

Charge pressure control solenoid valve 1+2, N75, N274

background image

28

431_090

Engine management

Engine management

The engine management system utilises a p/n
control system without an air mass meter.

The intake manifold pressure sender G71 and the
intake manifold temperature sender G72 are
mounted on the intake manifold at the front and
directly in contact with the intake air inside the
intake manifold.

The engine control unit J623 (master) utilises the
following variables to compute the engine load:

– Engine speed (n)
– Intake manifold pressure (p)
– Intake manifold temperature
– Throttle valve angle

The control unit calculates the injection timing
and duration, and takes into account the relevant
correction factors.

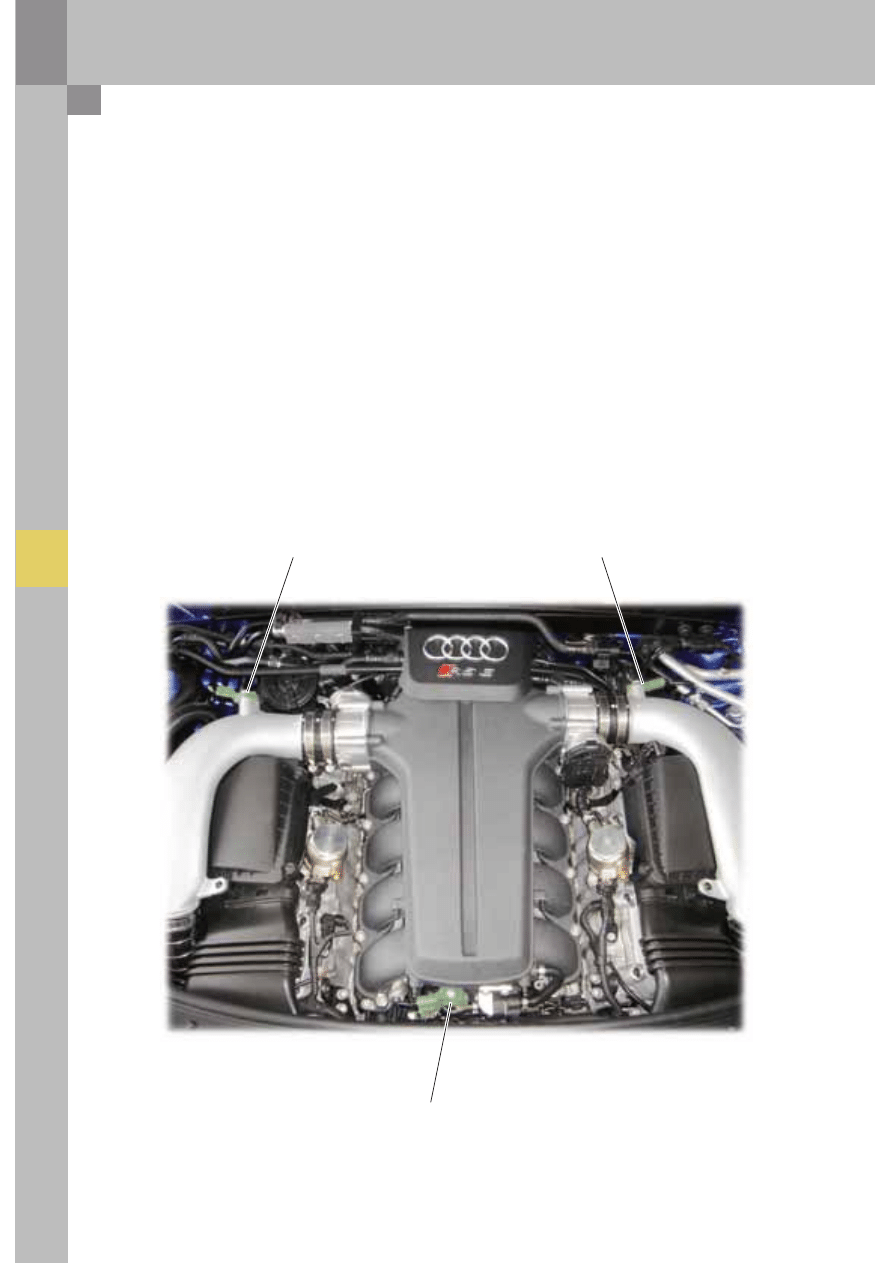

Charge pressure sender G31

Charge pressure sender 2, G447

Intake manifold pressure sender G71
Intake manifold temperature sender G72

Correction factors are:

– cylinder-selective knock control
– lambda control
– idle speed control
– activated charcoal filter control

Substitute function

If no signals are received from the intake manifold
pressure sender, the engine control unit utilises the
signal from the throttle valve potentiometer and
the engine speed signal to calculate the injection
duration and timing. If no signal is received from
the intake air temperature sender, a substitute value
of 45 °C is used.

background image

29

Note

When the charge pressure control system is
deenergised, the charge pressure acts directly
upon the vacuum actuator and against the force
of the vacuum actuator spring. The maximum
possible charge pressure is thus limited to the
basic boost pressure level.

431_072

Charge pressure (control pressure)
from the turbine

Wastegate control

Wastegate flap activation

Charge pressure control
solenoid valve N75

Charge pressure control

Each cylinder bank has its own turbocharger circuit
and consists of the following components:

– Exhaust manifold turbocharger module
– Charge-air cooler (air/air)
– Charge pressure control solenoid valve/

wastegate operation

– Charge pressure sensor
– Throttle valve part

A charge pressure sensor is integrated in each
charge air line leading from the charge-air cooler
to the intake manifold.
The engine control unit compares the signal from
the charge pressure sensors with the characteristic
map, and sends the signal via the charge pressure
control solenoid valves N75/N274 to the vacuum
actuators of the turbochargers.

A control pressure is generated from the charge
pressure and the intake pressure via the cyclically
operated charge pressure control solenoid valves
N75/N274.

The applied control pressure acts on the vacuum
actuators, which in turn actuate the wastegate flaps
via linkages. Each of the wastegate flaps opens a
bypass allowing the exhaust gases to partially by-
pass the turbines and flow into the exhaust system.
The charge pressure control system can be used to
regulate the rotational speed of the turbines and
thereby set the maximum charge pressure.

When the engine running in overrun mode, the
charge pressure control solenoid valves N75/N274
open the bypass leading from the charge air
turbines to the intake manifold upstream of the
turbochargers and thereby control the wastegate.

Exhaust manifold

Wastegate flap

Vacuum actuator
with linkage

background image

30

431_039

431_071

Engine management

Turbocharger oil extraction
system, left-hand side

Turbocharger oil extraction
system, right-hand side

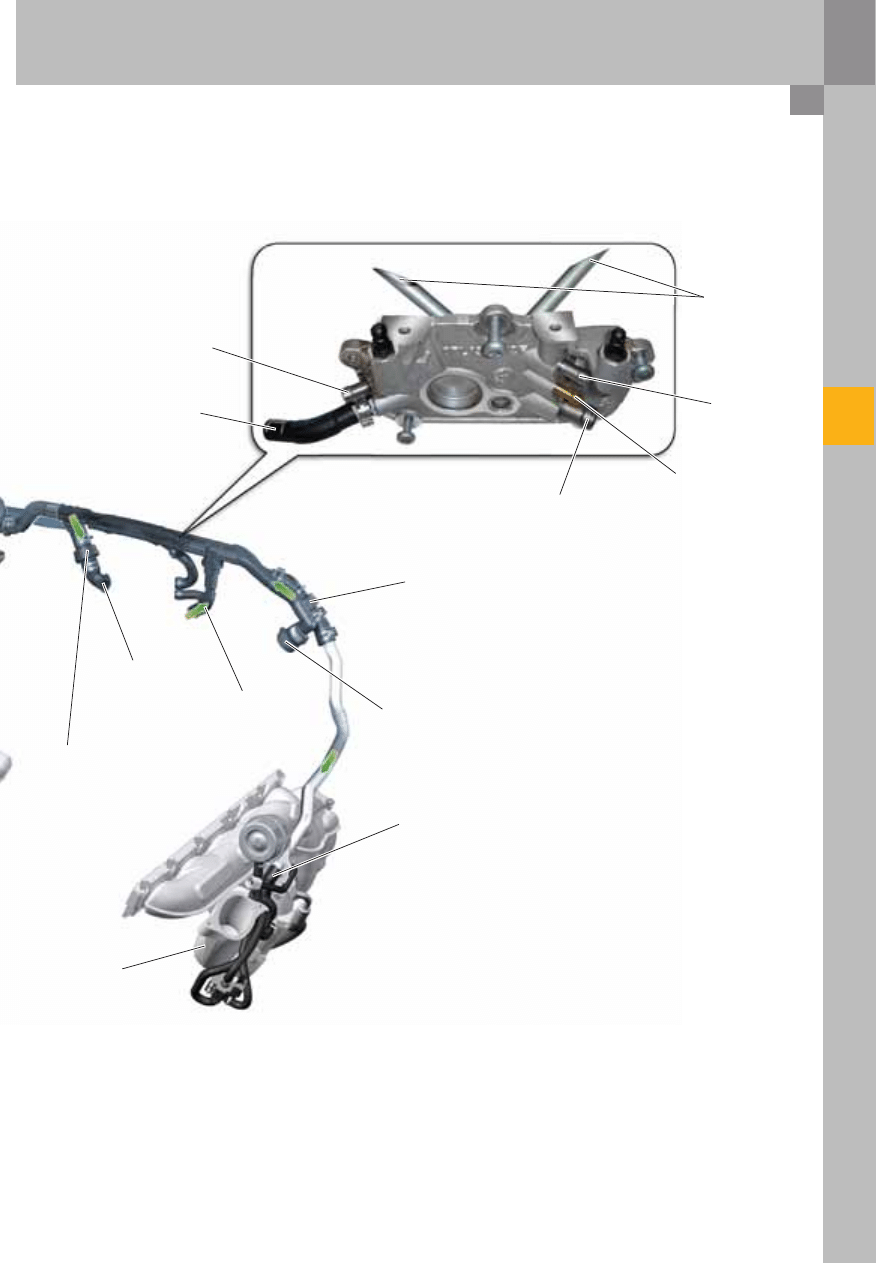

Turbocharger oil extraction system

Turbocharger, left

Extraction pump

Flow control

At high engine speeds, the high suction capacity of
the extraction pump is reduced by means of the
intake air.

The suction pump creates a so-called Venturi effect
at the connection between the oil return pipe and
the air pipe, whereby air is drawn out of the air filter
and into the oil extraction flow.
This air/oil mixture is fed internally into the oil
reservoir by the feed pump, the elements again
being separated inside the oil reservoir cyclone.

The extraction pump has a high suction capacity
due to the high engine speeds. Without volumetric
flow control, the oil could be drawn off before
reaching the lubrication point in the turbocharger.

Air pipe connection for
filtered air from the air filter

Connection between
oil return pipe and air pipe

Oil return pipe

Oil line leading to oil reservoir
via oil thermostat

The turbochargers are supplied with oil from the oil
pressure ports on the cylinder heads. The return oil
does not return to the engine block as before, but is
drawn off by a separate extraction pump.

The suction pump is integrated directly in the oil
pump module and pumps the extracted oil inter-
nally into the oil reservoir via the feed pump and the
oil thermostat.

Oil feed pipe from
cylinder head

background image

31

Reference

For more detailed information about the
new mechatronics module, please refer to
SSP 385 "Six-speed Automatic Gearbox".

431_091

431_092

431_093

Note

Please follow the instructions for checking
the oil levels and for refilling the gearbox
oil after repair work in the current service
literature ("Transfer case and final drive
with common oil supply").

Automatic gearbox 09E

The six-speed automatic gearbox 09E known from
the Audi A8 is used on the Audi RS 6.

In combination with the V10 biturbo engine, the
following special features are worth mentioning in
addition to the adjustments that have been made
with regard to torque and engine speed:

– Gearbox oil cooling for transfer case and front

axle cooling (common oil supply)

– Thermostat-controlled gearbox oil cooling with

electric recirculation pump 2, V403

– Self-locking centre differential (40/60)
– Mechatronics with shorter operating times

The hydraulic control system (mechatronics and
gearbox hardware) have been adopted from the
0B6 gearbox (Audi A4 2008).

The oil pump for the transfer case pumps gearbox
oil through the heat exchanger for gearbox oil
cooling (oil/water) via the lines connected to the
exterior of the gearbox.

Since the double oil seal ring is not installed in the
protective tube on this version of the 09E gearbo x,
gear oil from the front axle drive can enter the
transfer case through the protective tube.
This ensures that the oil from the front axle drive is
cooled. The 09E gearbox with common oil supply is
already used in the twelve-cylinder Audi A8.

Supply line

Protective tube

Oil pump for
transfer case

Return line

Heat exchanger for
gearbox oil cooling

Heat exchanger
for ATF cooling

Independent oil supply

Common oil supply

ATF oil circulation system

Gearbox oil circulation system

Automatic gearbox 09E

background image

32

431_034

Automatic gearbox 09E

Gearbox radiator

Main radiator

Main radiator
connection

Thermostat housing
of coolant pump

Auxiliary water pump for gearbox
oil cooling (recirculation pump 2, V403)

Gearbox oil cooling

Coolant for gearbox oil cooling is extracted from the main radiator at the top left and pumped into the
gearbox oil cooling circuit by a separate auxiliary water pump.

The automatic transmission fluid and the transfer case oil are cooled by separate heat exchangers (water/oil)
using coolant.

Heat exchanger
for transfer case

ATF heat exchanger
for gearbox

Coolant thermostat

The coolant thermostat must face towards
the thermostat housing of the coolant pump,
as indicated by the arrow.

background image

33

431_069

431_068

431_096

Activation of recirculation pump 2, V403

The following components are involved in the
activation of the gearbox oil cooling system:

– Motronic current supply relay J271
– Engine control unit 2, J624 (slave)
– Auxiliary coolant pump relay J496
– Recirculation pump 2, V403

Motronic current supply relay J271 supplies relay
J496 with voltage at terminals "30" and "86".
Engine control unit 2, J624 (Slave) applies an earth
signal to terminal "85" of the auxiliary coolant pump
relay J496 when a coolant temperature of 90 °C is
reached.
When relay J496 closes, it supplies recirculation
pump 2, V403 with voltage via terminal "87A". Once
energised, the recirculation pump runs until the
engine comes to a halt.

Themostat control

An additional "coolant thermostat" integrated in the
gearbox oil cooling system opens only when the
temperature of the coolant exceeds 87 °C, thereby
enabling the automatic gearbox to reach its
operating temperature quickly and ensuring that
the gearbox is provided with sufficient cooling
under load at temperatures of 87 °C and higher.

warm - open

cold - closed

background image

34

Reference

Please refer to the Computer Based
Training (CBT) relating to the
Audi RS 4.

431_077

431_078

Suspension system

Dynamic Ride Control – DRC

DRC sports suspension systems

The Audi RS 6 is fitted as standard with a sports
suspension featuring Dynamic Ride Control (DRC).
The sports suspension plus package is optional.

The DRC system is a purely mechanical system, in
which the shock absorbers are interconnected hy-
draulically by means of central valves in a diagonal
configuration. To accomplish this, the front left
shock absorber is connected to the rear right shock
absorber and the front right shock absorber to the
rear left shock absorber via a central valve with a
pressure-equalising chamber.

Pressure
equalising chamber

Uniform phase

The uniform phase occurs when the entire sus-
pension system "bumps", for example when driving
over an uneven section of motorway.

Both the shock absorbers on each axle compress
simultaneously. The increase in pressure due to the
piston rods moving downwards compresses the gas
in the pressure equalising chamber of the central
valve.

The task of the system is to reduce body roll and
pitch, which typically occur under acceleration/
braking and when cornering.

The DRC system works on a two-phase principle: 1.,
a uniform phase and 2., a counter-phase.

DRC line

Shock

absorber,
rear right

Shock

absorber,

front left

Counter-phase

The counter-phase takes place during roll and
pitch movements of the vehicle, for example when
cornering. When negotiating a right-hand curve, the
front left shock absorber bumps and the rear right
shock absorber rebounds.
The DRC system counteracts this physical principle.

Different damper movements produce different
pressure potentials in the central valve.
Both pressure potentials present at the central
valve are equal and act in precisely the opposite
directions. The forces therefore cancel each other
out, as a result of which no shock absorber move-
ment takes place and body roll is suppressed.

Shock

absorber,
rear right

Shock

absorber,

front left

Central valve

background image

35

431_079

Sports suspension plus with DRC

The optional sports suspension plus is based on the
DRC suspension, but additionally features a three-
stage adjustable shock absorber rate.
The three shock-absorber firmness settings –
"comfort", "dynamic", "sport" – can be selected by
the driver via the MMI.

These adjustments are possible due to adjuster
units with servomotors on the shock absorbers.
The adjuster unit is fitted directly to the shock
absorber. It consists of a DC motor, which actuates
a roller-shaped rotation valve, and a Hall sensor,
which signals the adjustment of the motor to
the ECD control unit (electronically controlled
damping) J250.

From a technical point of view, the adjuster units on
the shock absorbers of the sports suspension plus
represent bypasses with a variable through-flow
cross-section.

In the shock absorber setting "sport", the rotation
valve is activated in such a way that the upper
channel (6) is closed. As a result, no damping fluid
is able to flow through the adjusting element.
The piston in the adjusting element is thereby
disconnected from the hydraulic circuit. The entire
damping fluid must pass only the piston in the
shock absorber. The "sport" setting represents the
firmest damper setting.

Oilway

Piston in shock
absorber

Servomotor

Hydraulic circuit of a shock absorber of the sports
suspension plus:

1

Direction of piston movement

2

Lower port

3

Lower channel

4

Piston in the adjuster unit

5

Rotation valve

6

Upper channel

7

Channel between inner and outer tubes

8

Upper port

Additional
element

background image

36

431_080

Suspension system

In the damper setting "dynamic", the rotation valve
is activated in such a way that the bypass is "half-
open".
The damping fluid can now flow through the piston
of the adjusting element and through the piston in
the shock absorber. A softer shock absorber rate is
thereby achieved.
The "dynamic" setting, the firmness of the shock
absorbers roughly corresponds to the shock
absorber rate of a standard DRC sports suspension.

In the "comfort" damper setting, the rotation valve
is activated to the extent that the bypass is "fully
open". Even more damping fluid can now flow
through the piston of the adjusting element.
This allows the most comfortable shock absorber
set-up to be realised.

Networking of sports suspension plus with DRC

Diagnostic port

Front information

control unit

J523

Data bus

diagnostic interface

J533

ECD Control Module

(electronically controlled damping)

J250

Shock absorber

electronics,

front left

N336

Shock absorber

electronics,

front right

N337

Shock absorber

electronics,

rear left

N338

Shock absorber

electronics,

rear right

N339

Control unit with

display control unit

J285

The shock absorber adjusting elements, wheel
electronics N336 to N339, are activated by the
ECD control unit (electronically controlled damping)
J250.
The Hall sensors of the shock absorber damping
electronics signal the position of the servomotors
to control unit J250 by means of pulse width modu-
lated signals.

The ECD control unit (electronically controlled
damping) J250 on the Audi RS 6 is similar to the
adaptive suspension control unit J197 on the
Audi A6 allroad and is also installed in the same
position - behind the glove box.

The ECD control unit (electronically controlled
damping) J250 is connected to the data bus diag-
nostic interface J533 via the powertrain CAN data
bus. The driver can set the desired shock absorber
rate using the MMI.

MOST ring

D

ash panel insert CAN bus

Powertrain CAN bus

Diagnostics

CAN bus

PWM

background image

37

431_082

431_081

Note

DRC hydraulic lines on the sports
suspension plus may only be evacuated
and filled in the "comfort" shock absorber
setting.

Special tools and workshop equipment for
the DRC system

The VAS 6209 filling system known from the
Audi RS 4 can be used to fill and evacuate the
DRC hydraulic system.
The procedure for filling and evacuating hydraulic
lines between the central valve and the shock
absorbers is, in principle, identical to the procedure
for the Audi RS 4, model B7.
When repair work is needed, please follow closely
the description given in the Workshop Manual of
the RS 6.

A new item is the filling system for DRC central
valves VAS 6209/3.
Pressureless, undamaged DRC central valves, for
example valves which have become pressureless
due to a leaking shock absorber, can be refilled
using the filling system for DRC central valves
VAS 6209/3.
The hand pump integrated in the system allows
pressures of over 20 bar to be built up, thereby
enabling the pressure equalising chamber in the
DRC central valve to be compressed again.

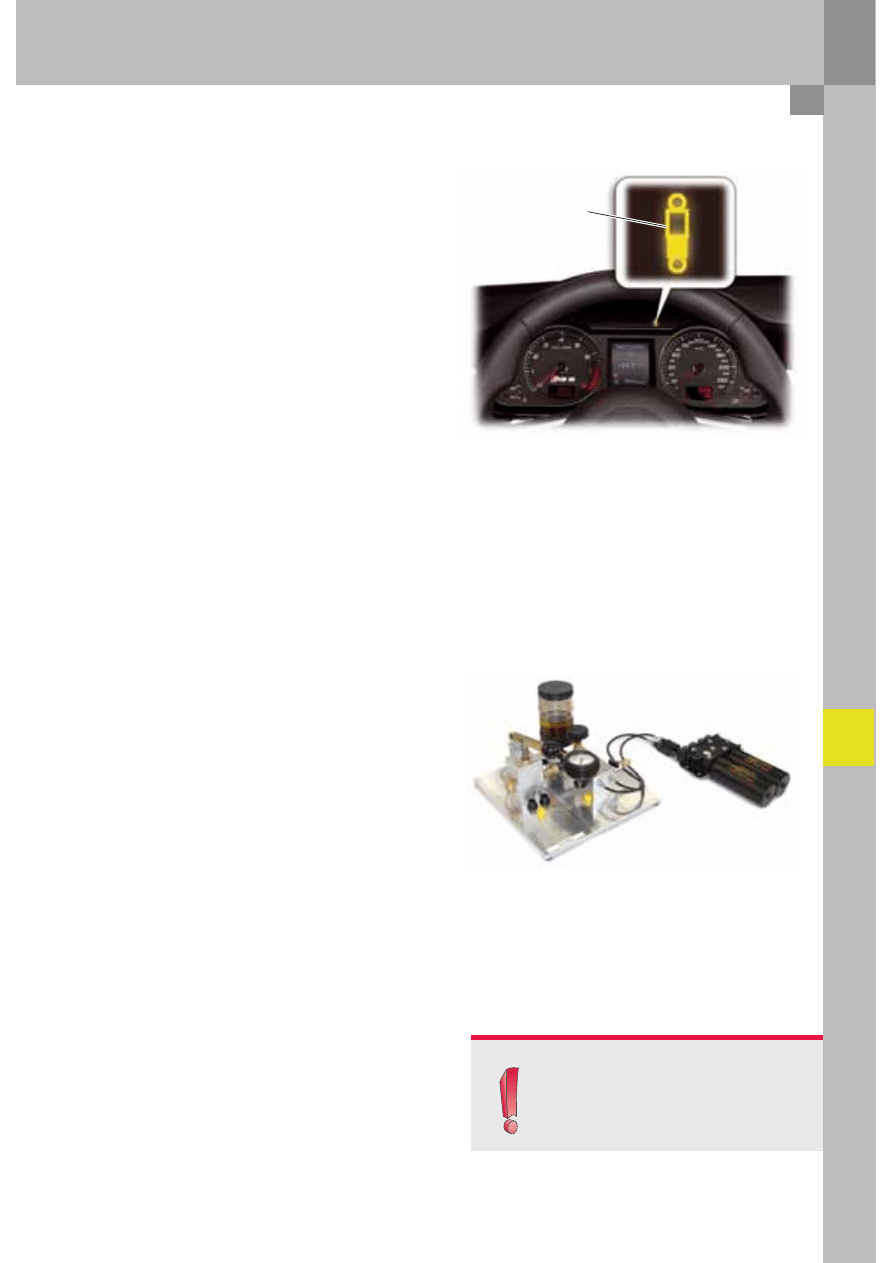

Filling system for DRC central valves VAS 6209/3

Warning lamp for sports suspension plus

When the ignition is turned on, the yellow warning
lamp of sports suspension plus lights up briefly.

When an electrical malfunction occurs in sports
suspension plus, the warning lamp lights up
continuously.
On the MMI panel, all three shock absorber rates are
greyed out so that the driver can no longer adjust
the shock absorber rate.

Warning lamp for sports
suspension plus in dash
panel insert

background image

38

Standard equipment

Optional equipment

Optional equipment

Cast aluminium wheel
10-spoke design 9J x 19
suitable for snow chains

Tyres: 255/40 R 19
also available as winter tyre

Cast aluminium wheel (silver or titanium finish)
Five-segment spoke design 9.5J x 20
unsuitable for snow chains

Tyres: 275/35 R 20
also available as winter tyre

Cast aluminium wheel
Five-segment spoke design 9J x 20
suitable for snow chains

Winter tyres: 265/35 R 20

Cast aluminium wheel
Seven double spoke design
9.5J x 20
unsuitable for snow chains

Tyres: 275/35 R 20
also available as winter tyre

431_087

Wheels and tyres

Suspension system

Brake system

The Audi RS 6 is fitted standard with a 19‘‘ steel
brake system and optionally with a 20‘‘ ceramic
brake system.
Unlike on the Audi RS 4, the optional ceramic brake
system on the Audi RS 6 has ceramic brake discs at
the front and rear.

Steel brake

– PR number 1LM (front wheel brake) and 1KJ

(rear axle brake)

– Front brake disc: 390 x 36 mm, drilled, ventilated
– Front brake caliper: Brembo 6-piston caliper

(painted black with "RS" logo)

– Rear brake disc: 356 x 28 mm, drilled, ventilated
– Rear brake caliper: TRW single-piston caliper

with electromechanical parking brake
(painted black)

The steel brake discs on the Audi RS 6 are not uni-
directional. When changing the front brake linings,
particular attention must be paid to correct fitting
of the centre guide bolt.

Fixed caliper of the steel brake
(front axle)

Centre guide bolt

background image

39

431_089

Reference

For information about the handling and
assessment of wear and damage in
ceramic brake discs, please refer to the
current service literature.

431_088

Ceramic brake

– PR number 1LN (front wheel brake) and 1KK

(rear wheel brake)

– Front brake disc: 420 x 40 mm, drilled, ventilated
– Front brake caliper: Alcon 8-piston caliper

(painted anthracite with "Audi ceramic" logo)

– Rear brake disc: 356 x 28 mm, drilled, ventilated
– Rear brake caliper: TRW single-piston caliper

with electromechanical parking brake
(painted anthracite)

The brake discs of the ceramic brake are
unidirectional, both on the front and rear axles.

The rear-axle brake calipers are identical in the steel
brake and ceramic brake versions, except that the
brake calipers are painted in different colours.
Please note that the steel and ceramic rear-wheel
brakes have different brake pads.

Designation of the ceramic brake disc on the brake
disc bowl:

1

Direction of travel

2

Audi logo

3

Supplier

4

Serial production number

5

Audi part number

6

Audi rings

7

Production date

8

Permissible minimum thickness of the
brake disc

9

Weight of the new brake disc including
brake disc bowl

The ceramic brake discs are made of carbon
reinforced silicon carbide (C/SiC).
Although this material has little in common with
household ceramics, special care is required when
handling these brake discs.

Unlike steel brake discs, where wear is indicated
by material abrasion only, ceramic brake discs are
subject to both mechanical and thermo-chemical
wear.
Thermo-chemical wear is where atomic carbon is
emitted from the carbon reinforced silicon carbide.
This can be determined either by visual inspection
or by weighing the brake discs.

Fixed caliper of the ceramic brake
(front axle)

Ceramic brake discs of the rear axle

background image

40

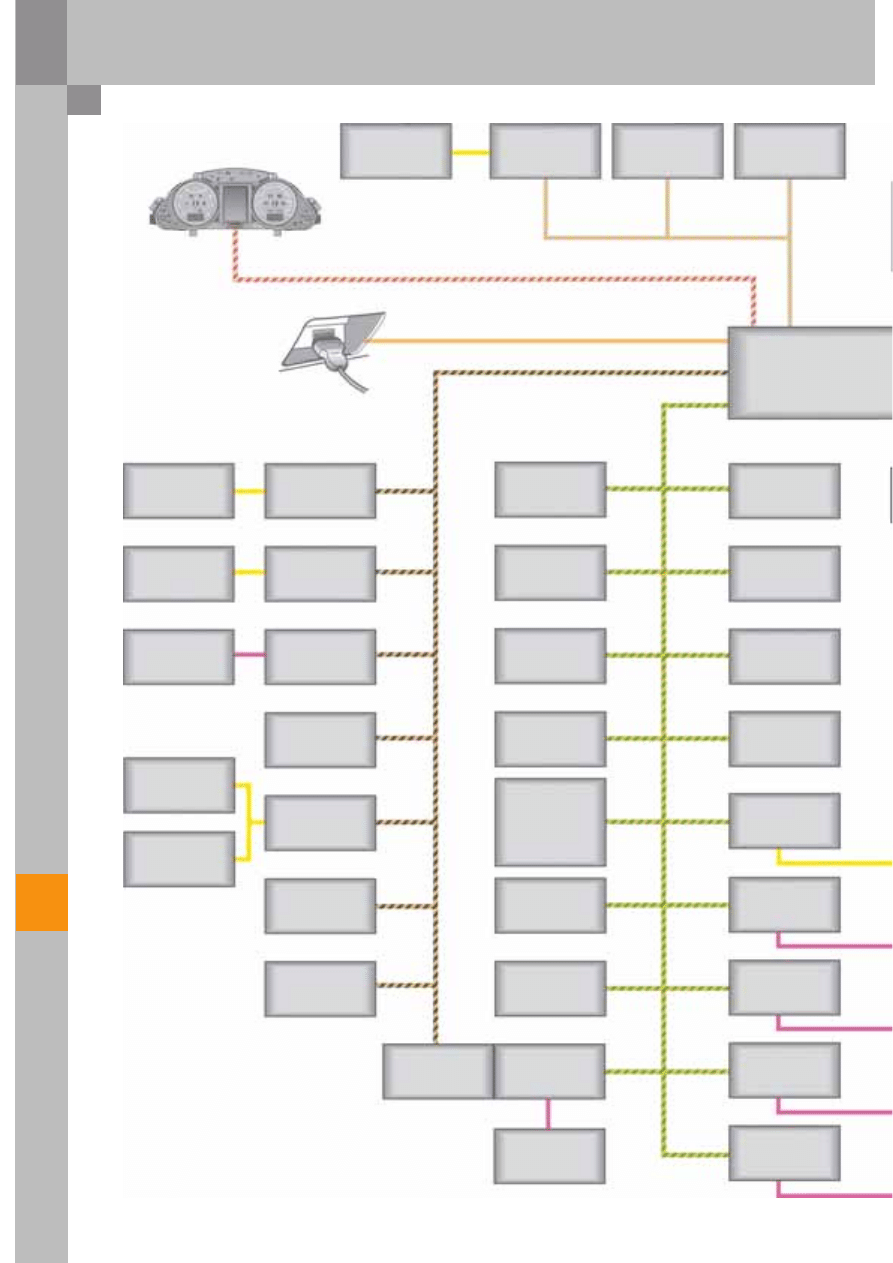

Electrical system

Engine control unit 2

J624

Yaw rate sender

G202

Seat occupied

recognition

control unit

J706*

Power output module

for left headlight

J667

Power output module

for right headlight

J668

Engine control unit

J623

ABS control unit

J104

Airbag control unit

J234

Automatic gearbox

control unit

J217

Headlight range

control, control unit

J431

Electric park and

handbrake control unit

J540

ECD Control Module

(electronically

controlled damping)

J250

Door control unit,

driver side

J386

Door control unit,

front pass. side

J387

Door control unit,

rear left

J388

Door control unit,

rear right

J389

Seat and steering

column adjustment

control unit with

memory

J136

Seat adjustment control

unit with memory,

front passenger

J521

Tailgate control unit

J605

Steering column

electronics

control unit

J527

Steering angle sender

G85

Multifunction steering

wheel control unit

J453

Energy management

control unit

J644

Rear-view camera

system control unit

J772

Parking aid

control unit

J446

Onboard power

supply control unit 2

J520

Entry and start

authorisation

control unit

J518

Onboard power supply

control unit

J519

Convenience system

central control unit

J393

Climatronic
control unit

J255

Tyre pressure monitor

control unit

J502

Adaptive cruise

control unit

J428

Control unit

with display

control unit

J285

Diagnostic port

T16

Data bus

diagnostic interface

J533

Bus topology

Multifunction

steering wheel

Lane departure

warning system

J759

Multifunction

steering wheel

Lane change assist

J769**

Lane change assist

control unit -2-

J770**

background image

41

431_095

Telephone

transmitter and

receiver unit

R36

External audio device

connection

R199

Navigation system

with CD drive

control unit

J401

TV tuner

R78

Voice input

control unit

J507

Radio

R

Digital sound package

control unit

J525

CD changer

R41

Front information

control unit

J523

Reversing

Entry and start

authorisation switch

E415

Aerial reader unit

for entry authorisation

for keyless entry system

J723

Wiper motor

control unit

J400

Rain and light

detector sensor

G397

Fresh air blower

control unit

J126

Refrigerant pressure/

temperature sender

G395

Interior monitoring

sensor

G273

Alarm horn

H12

Tyre pressure monitor

sender unit in front right

wheel housing

G432

Tyre pressure monitor

sender unit in front left

wheel housing

G431

Tyre pressure monitor

sender unit in rear left

wheel housing

G433

Tyre pressure monitor

sender unit in rear right

wheel housing

G434

Rear tyre pressure

monitor aerial

R96

MOST bus

Dash panel insert CAN bus

Diagnostics CAN bus

Powertrain CAN bus

Convenience CAN bus

CAN Extended

LIN bus

Miscellaneous subbus systems

Digital radio

R147

*

USA only

**

to be launched at a later date

background image

42

431_094

Electrical system

Headlights

The Audi RS 6 is equipped with bi-xenon headlights
and adaptive light. The fog lights are integrated in
the headlights.

The rear lights of the Audi RS 6 are identical to those of the Audi A6 in the Highline trim version.

Fog light

Dipped-beam headlights and main-beam
headlights (gas discharge lamp, bi-xenon)

Turn signals

Daytime running lights and position lights,
dimmed (ten LEDs)

Unlike on the Audi S6, the ten LEDs for the daytime
running lights and position lights are also integrated
in the headlights.

Bulbs

Type

Power output

Daytime running lights and position
lights

LED

10 watts

Dipped-beam headlights and main-
beam headlights

Gas discharge lamp D2S

35 watts

Turn signals

PY21W (silver glass)

21 watts

Fog light

H7

55 watts

background image

43

431_097

431_098

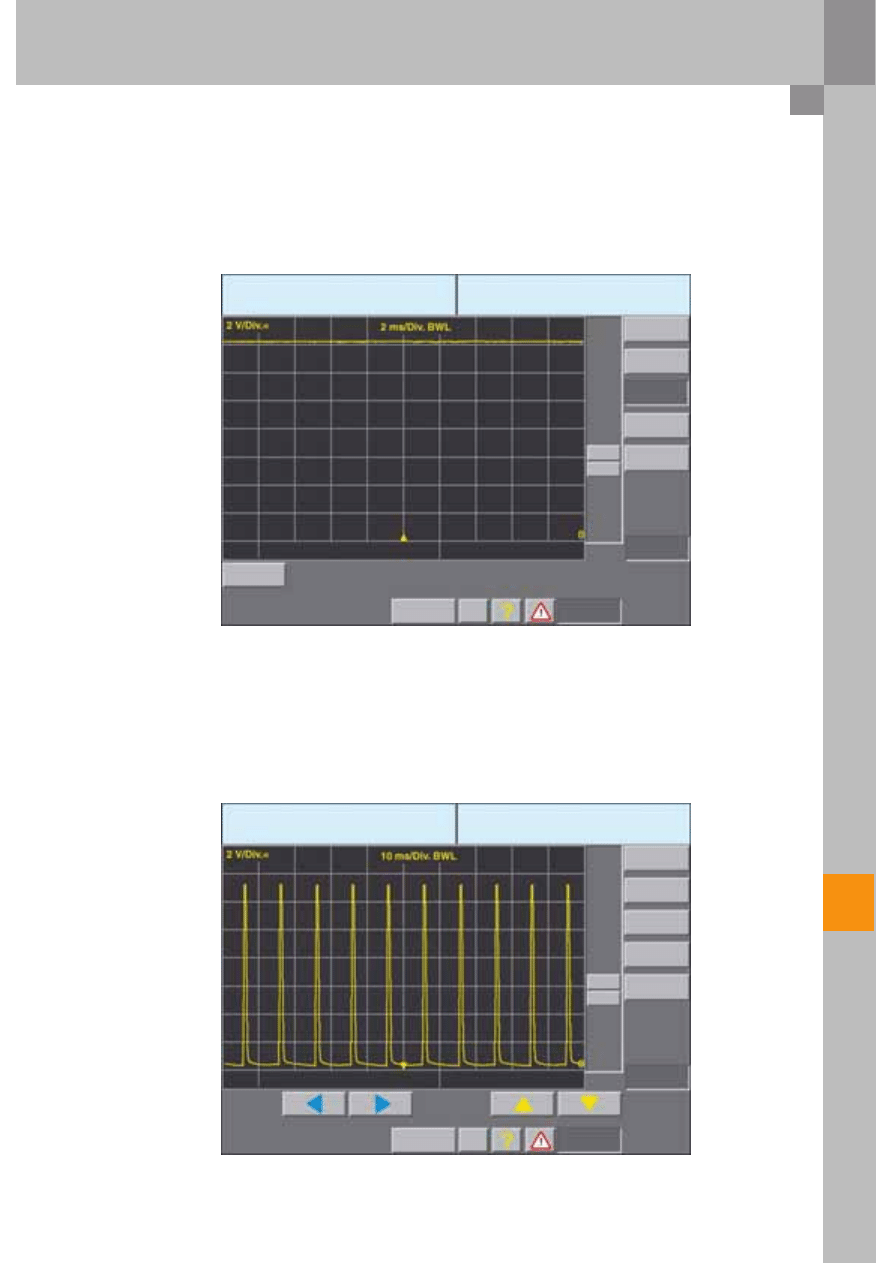

Metrology
DSO

Auto mode

Freeze frame

Channel A

Channel B

Measuring
mode

Trigger mode

Bandwidth
limitation

Channel

Skip

25.03.2008

13:32

The 10 LEDs are operated as daytime driving lights or, in the dimmed version, as position lights.

The LED units are activated by the onboard power supply control unit J519. If the onboard power supply
control unit sends a 12V signal to the LED units, the daytime running lights are switched on.

If the onboard power supply control unit J519 sends a pulsed signal, the LEDs are operated at a reduced
luminosity and deployed as position lights. The LED units are currently unsuitable for repair or replacement.

Metrology
DSO

Auto mode

Freeze frame

Channel A

Channel B

Measuring
mode

Trigger mode

Bandwidth
limitation

Position

Skip

25.03.2008

13:32

Time/div.

background image

431

All rights reserved. Technical
specifications subject to
change without notice.

Copyright
AUDI AG
N/VK-35
Service.training@audi.de
Fax +49-7132/31-88488

AUDI AG
D-85045 Ingolstadt
Technical status: 04/08

Printed in Germany
A08.5S00.47.20

Audi RS 6

Self-Study Programme 431

Vorsprung durch Technik

www.audi.co.uk

Service Training


Wyszukiwarka

Podobne podstrony:
Self Study Programme 288 Audi A8 03 distributed functions
Self Study Programme 398 Audi lane assist
Self Study Programme 365 4 2L V8 with common rail
Self Study Programme 388 4 2L V8 4V FSI engine
Self Study Programme 17 Octavia convenience electronic system
Self Study Programme 279 2 0L 110kw with petrol direct injection FSI
Self Study Programme 189 2 3L petrol engine in the LT 97
Self Study Programme 376 5 2 litre V10 FSI engine
Self Study Programme 396 Lane change assist
Self Study Programme 351 Common rail fuel injection system fitted in the 3 0l V6 TDI engine
Self Study Programme 276 Phaeton automatic proximity control
Self Study Programme 280 Phaeton auxiliary heater top c and top z
Extreme Self Care Program
ASM based Modelling of Self Replicating Programs
Audi Q3 RS Q3, od 2011
montaż elektronicznego programatora webasto do Audi A2 TDI
AUDI pilot programowanie
Programowanie klawiszy radia Audi, diagnostyka samochodu, Diagnostyka dokumety, procedury diagnostyc
Atmel Avr Self Programming

więcej podobnych podstron
