Please glue them by aligning
the red and red/blue and blue
parts if they are marked on
the paper.

2

Note

Basic working method and markings

To begin

How to assemble

Tools and materials needed

Items of Caution

-Ruler - scissors - blade cutter or "Exacto-knife" - awl or

other pointed tool (for making a folding crease) - felt pen

- pin set - glue - hand towel ( for cleaning your fingers) -

dictionary or other heavy book ( to press the papers flat).

*Take care when using sharp or pointed objects or when

using bladed cutting tools. Place a heavy sheet of paper

under the paper you want to cut.

*Use glue and other adhesives only in well-ventilated

areas.

*When printing, use a slightly reduced font size. There

may be differences in dimensions, depending on the

type of printer used.

*Follow the working method and markings carefully.

*Cut carefully along the outter line with cutting blade,

Exacto-knife or scissors.

One - point Advice

*Before beginning assembly, test adhesive amounts

on extra paper.

*Cut carefully with cutting blade, Exacto-knife or

scissors.

*Occasionally, white spots will be apparent on folds

and cuts. Use a marker or pencil to fill in these spots.

It is recommended that this be done after each stage

of assembly because coloring becomes more difficult

once parts are assembled.

*As an adhesive, white wood glue is recommended.

Avoid over application as this may cause the paper to

wrinkle.

*For folding parts, first use an awl or other pointed

tool to make a light crease along the dotted or solid

line. This will make the folds straight. Avoid making

strong creases, as this will cause the paper to tear.

Cut along these lines.

Dotted line

Fold along these lines.
The printed surface should be
on the inside of the folded shape.

Broken lines

Fold along these lines.
The printed surface should be
on the outside of the folded shape.

Solid lines

Do not fold or cut the parts
marked .

Red dots are the reference
positions for gluing surfaces.

Cut out parts marked with an
asterisk(*).

3

Indication of Working Methods

First, assemble each component by following the working
method and markings. Then, refer to the illustration and
photos below to glue the parts together.

Fold each relevant part according to the assembly symbols.
Please use the

dots on each component as reference when gluing surfaces.

Fold or Curve

Glue

8

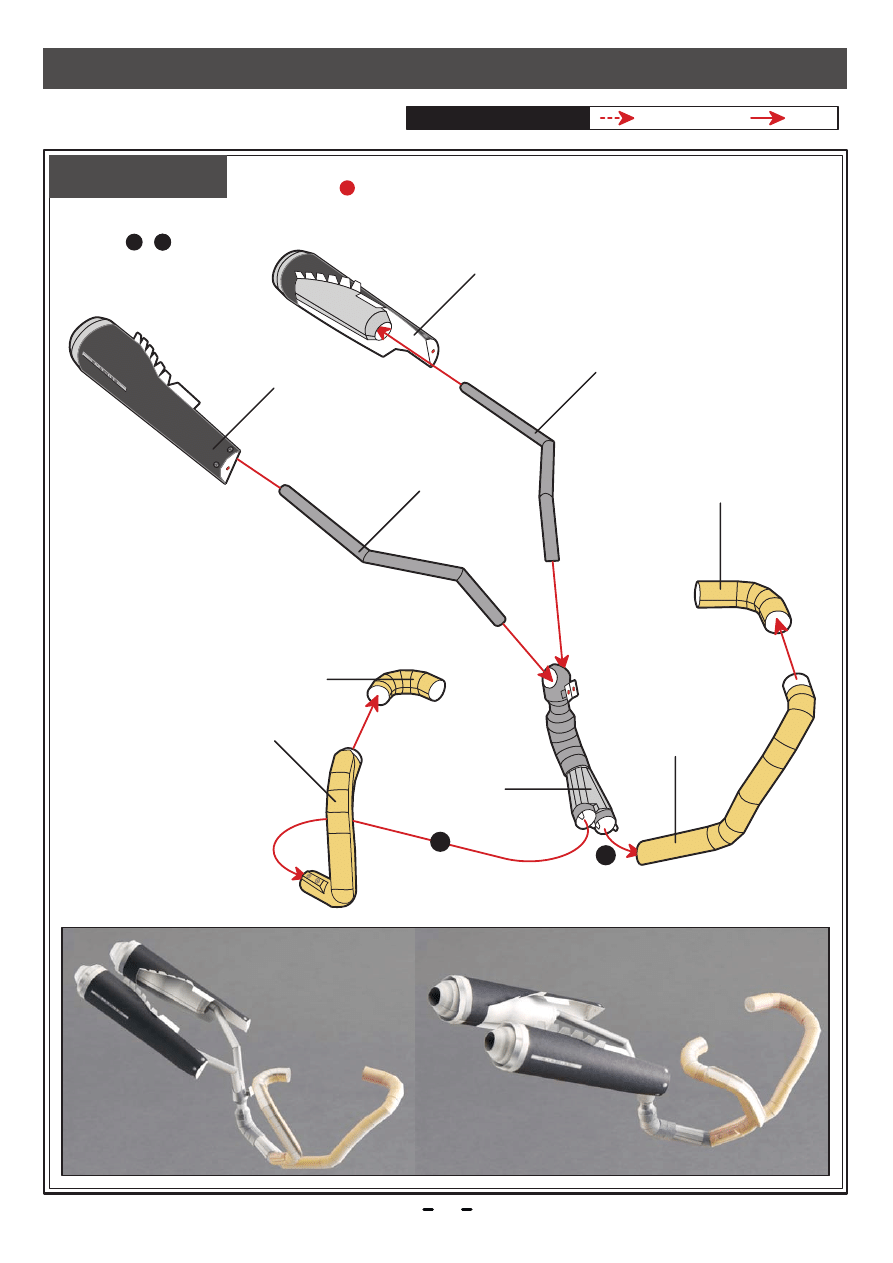

Assembling the Exhaust Pipes

Exhaust Pipes 1

Sheet H, 18 parts in total

Exhaust Pipes2

Sheet H, 8 parts in total

Reference photo

Reference photo

1

2

3

4

5

6

6

1

2

3

4

5

6

7

8

*Assemble both sides. The diagram

shows the left side. The number inside

the ( ) is for the right side.

Glue in order from to on the graphic.

1

8

Glue in order from to on the graphic.

1

6

* Do not paste H-19 & H-20.

H-

5(10)

H-

6(11)

H-

7(12)

H-

1(15)

H-

2(16)

H-

3(17)

H-

4(18)

H-

9(14)

H-

8(13)

H-

22

H-

21

H-

24

H-

26

H-

23

H-

19

H-

25

H-

20

4

Exhaust Pipes5

Sheet H, 12 parts in total

Exhaust Pipes4

Sheet H, 6 parts in total

Exhaust Pipes3

Sheet H, 9 parts in total

Indication of Working Methods

First, assemble each component by following the working
method and markings. Then, refer to the illustration and
photos below to glue the parts together.

Fold each relevant part according to the assembly symbols.
Please use the

dots on each component as reference when gluing surfaces.

Fold or Curve

Glue

8

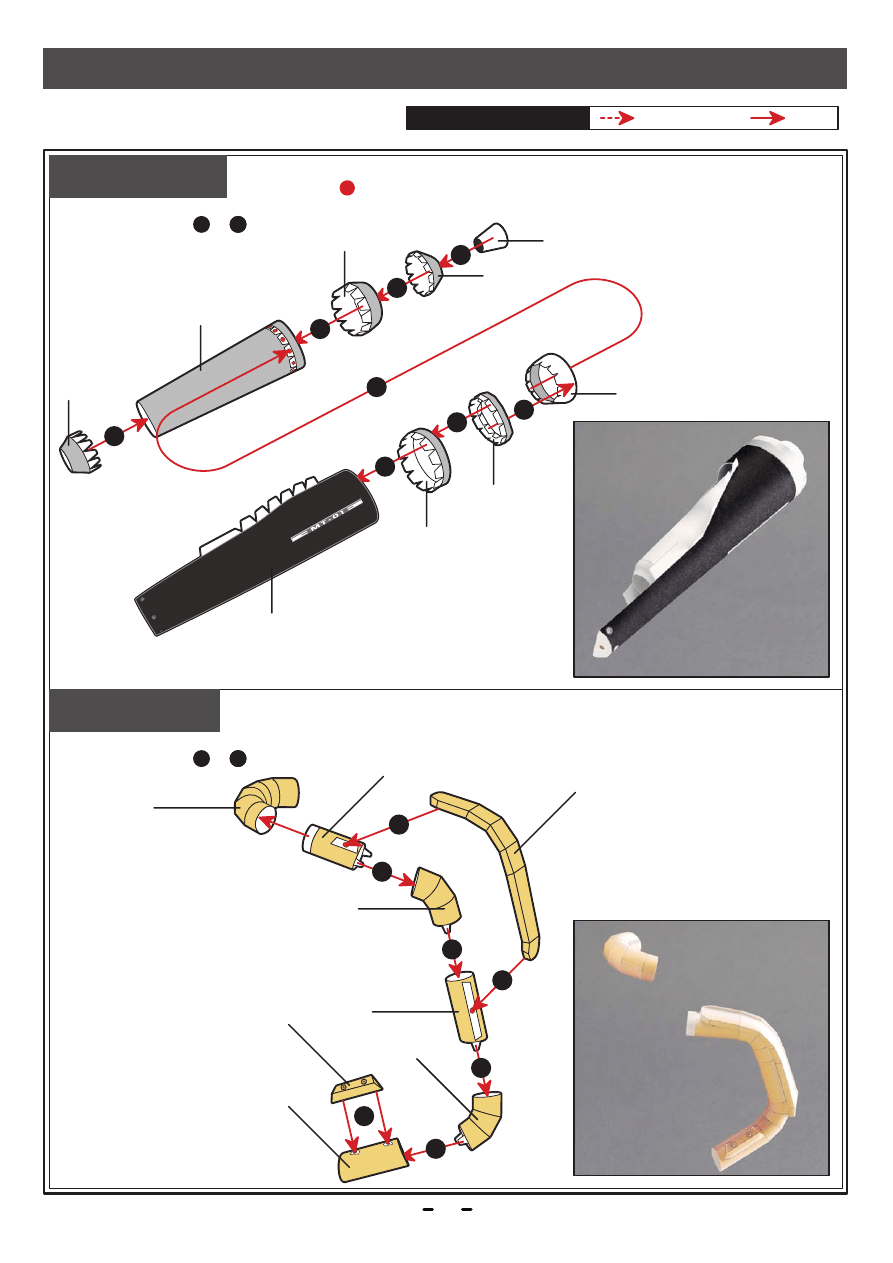

Assembling the Exhaust Pipes

Reference photo

Reference photo

Reference photo

Glue in order from to on the graphic.

1

1

2

3

4

5

6

7

1

2

3

4

5

6

7

8

9

10

7

*Assemble both sides. The diagram

shows the left side. The number inside

the ( ) is for the right side.

Glue in order from to on
the graphic.

1

10

* Do not paste H-29 & H-30.

H-

28

H-

29

H-

27

H-

30

H-

31

H-

32

H-

42

H-

53

H-

47

H-

46

H-

45

H-

44

H-

43

H-

52

H-

51

H-

50

H-

49

H-

48

H-

33

H-

34

H-

35

H-

36(39)

H-

38(41)

H-

37(40)

5

Exhaust Pipes

Sheet H, 53 parts in total

Indication of Working Methods

First, assemble each component by following the working
method and markings. Then, refer to the illustration and
photos below to glue the parts together.

Fold each relevant part according to the assembly symbols.
Please use the

dots on each component as reference when gluing surfaces.

Fold or Curve

Glue

8

Assembling the Exhaust Pipes

Reference photo

Connect each of the previously assembled parts in
order from - according to the diagram.

1

1

2

2

* Do not paste on

exhaust pipes.

* Do not paste on

exhaust pipes.

Exhaust Pipes1

Exhaust Pipes1

Exhaust Pipes2

Exhaust Pipes2

Exhaust Pipes3

Exhaust Pipes3

Exhaust Pipes4

Exhaust Pipes4

Exhaust Pipes5

* Do not paste Exhaust Pipes1

& Exhaust Pipes4.

* Do not paste Exhaust Pipes4

& Exhaust Pipes5.

6

Indication of Working Methods

First, assemble each component by following the working
method and markings. Then, refer to the illustration and
photos below to glue the parts together.

Fold each relevant part according to the assembly symbols.
Please use the

dots on each component as reference when gluing surfaces.

Fold or Curve

Glue

9

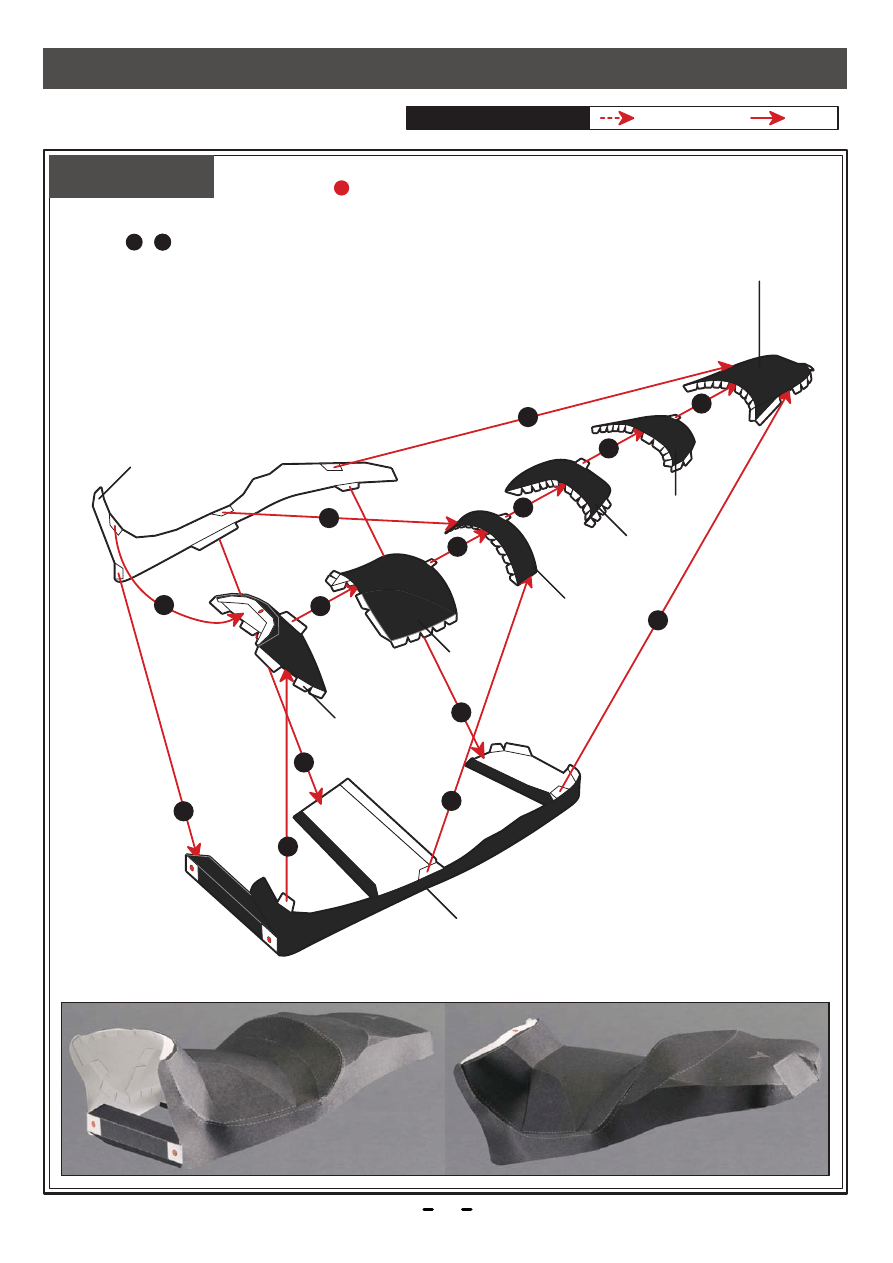

Assembling the Seat

Seat

Sheet I, 8 parts in total

Reference photo

Connect each of the previously assembled parts in
order from - according to the diagram.

1

1

2

3

4

5

6

6

6

7

7

7

8

8

8

8

I-

5

I-

8

I-

7

I-

3

I-

1

I-

6

I-

4

I-

2

7

Left footrests1

Sheet J, 5 parts in total

Right footrests2

Sheet K, 5 parts in total

Indication of Working Methods

First, assemble each component by following the working
method and markings. Then, refer to the illustration and
photos below to glue the parts together.

Fold each relevant part according to the assembly symbols.
Please use the

dots on each component as reference when gluing surfaces.

Fold or Curve

Glue

10

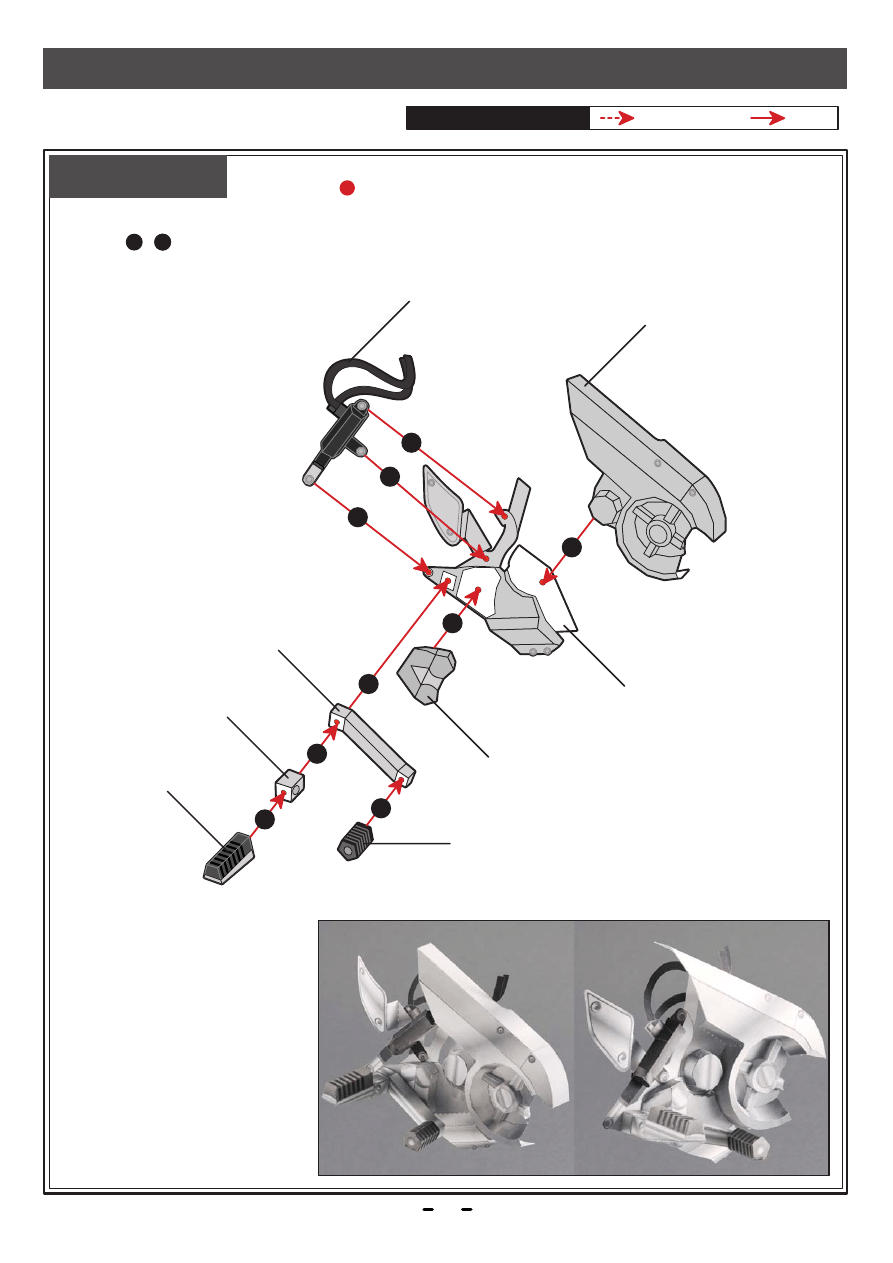

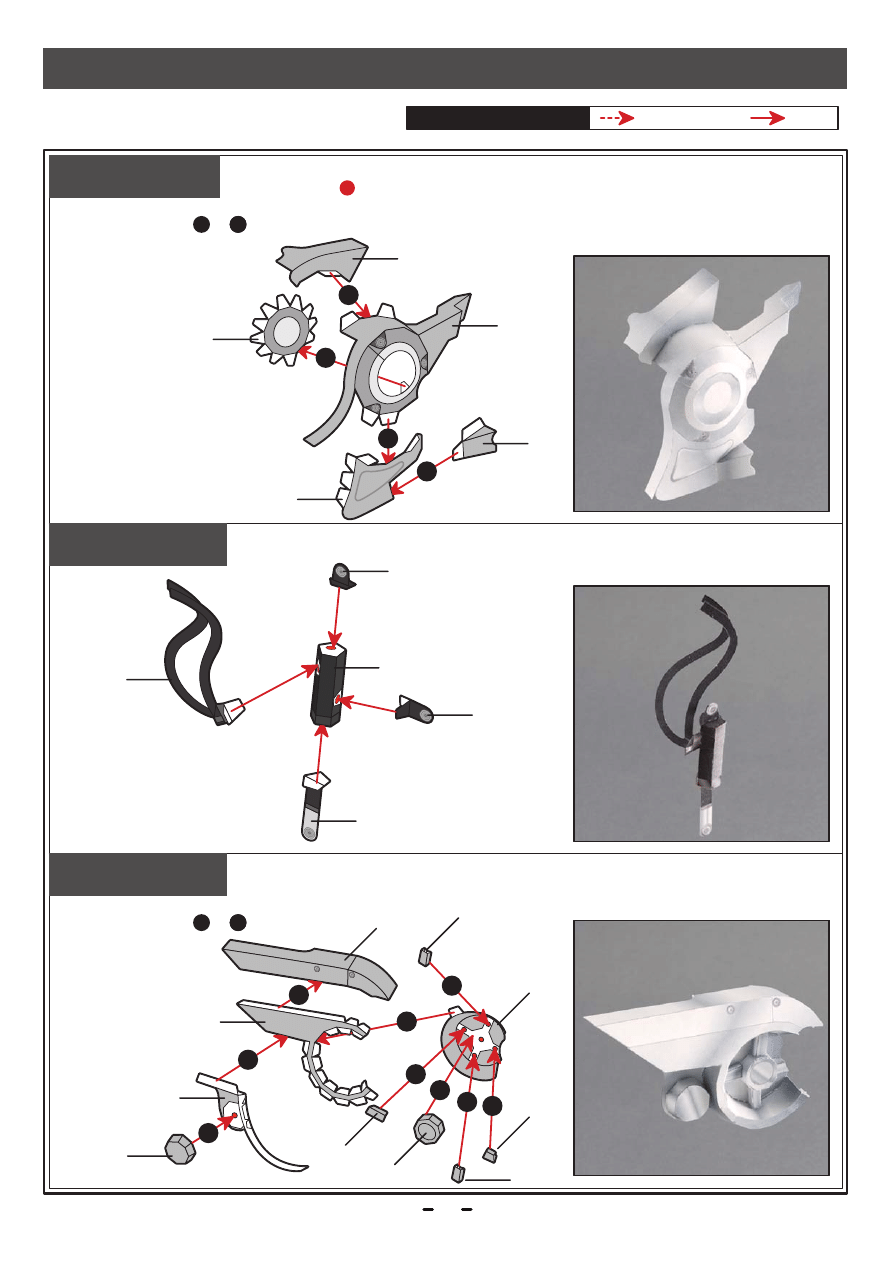

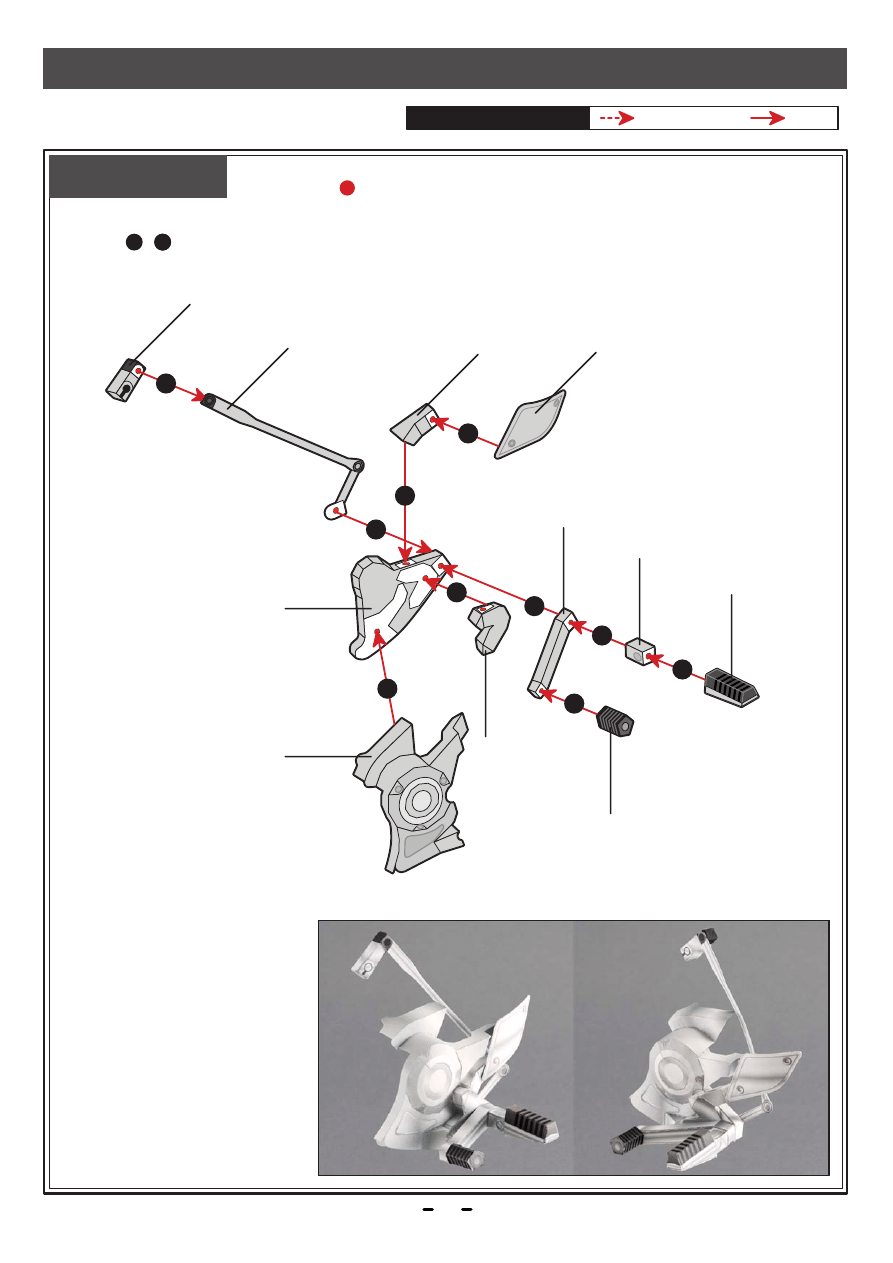

Assembling the right and left footrests

Right footrests3

Sheet K, 10 parts in total

Reference photo

Reference photo

Reference photo

Glue in order from to on the graphic.

1

Glue in order from to on the graphic.

1

1

1

2

2

3

3

4

4

5

6

7 8

9

4

9

K-

17

K-

20

K-

1

K-

4

K-

2

K-

3

J-

11

J-

12

J-

15

K-

15

K-

18

K-

21

K-

19

K-

16

K-

14

K-

13

K-

12

K-

5

J-

13

J-

14

8

Indication of Working Methods

First, assemble each component by following the working
method and markings. Then, refer to the illustration and
photos below to glue the parts together.

Fold each relevant part according to the assembly symbols.
Please use the

dots on each component as reference when gluing surfaces.

Fold or Curve

Glue

10

Assembling the right and left footrests

Left footrests

Sheet J, 15 parts in total

Reference photo

1

Connect each of the previously assembled parts in
order from - according to the diagram.

1

2

3

4

5

6

7

8

9

10

10

Left footrests1

J-

10

J-

2

J-

3

J-

4

J-

5

J-

9

J-

1

J-

8

J-

6

J-

7

9

Indication of Working Methods

First, assemble each component by following the working
method and markings. Then, refer to the illustration and
photos below to glue the parts together.

Fold each relevant part according to the assembly symbols.
Please use the

dots on each component as reference when gluing surfaces.

Fold or Curve

Glue

10

Assembling the right and left footrests

Right footrests

Sheet K, 22 parts in total

Reference photo

Connect each of the previously assembled parts in
order from - according to the diagram.

1

1

2

3

4

5

6

6

6

7

7

Right footrests3

Right footrests2

K-

11

K-

8

K-

10

K-

9

K-

7

K-

6
