Diagnostyka pojazdu SIS/CAS

Pojazd

KIA / Pride 1.3 Beta / 1999 / Limuzyna - sedan Kraj producenta

ROK

Pojemność skokowa/Moc

1.3 / 54 kW

Nr silnika

SOHC

Klucz RB

KIA 242

Zakres

Silnik

Układ

- - -

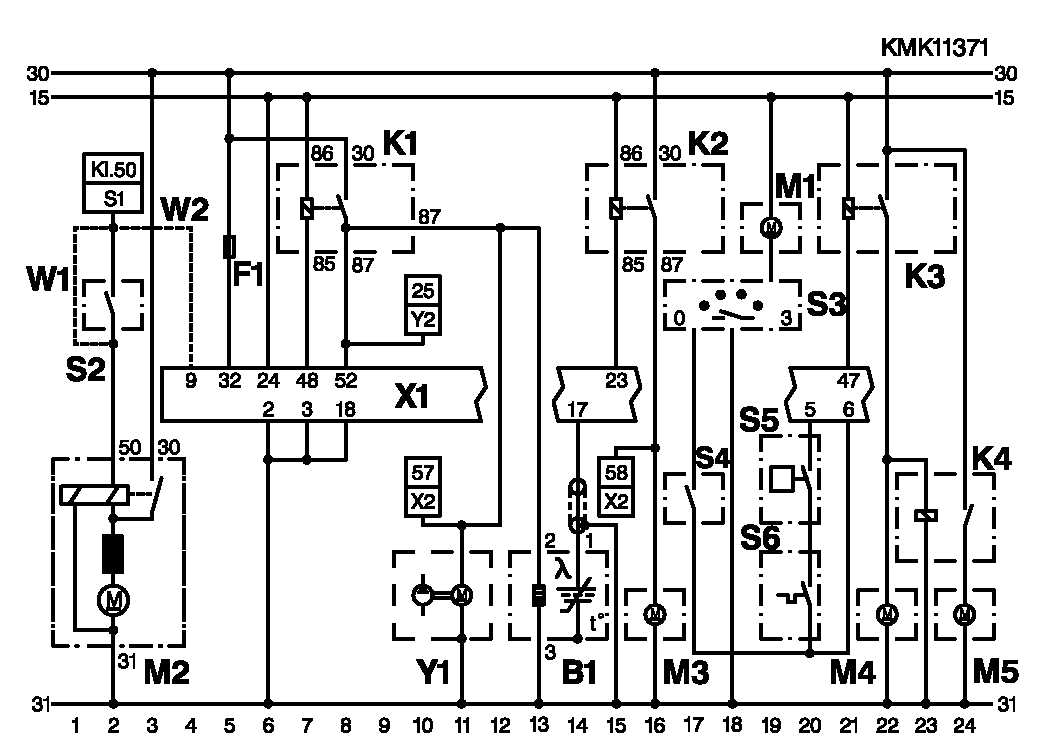

ELECTRICAL TERMINAL DIAGRAM

B1 = Lambda sensor

S2 = Inhibit switch

F1 = Fuse

S3 = Blower switch

1

Diagnostyka pojazdu SIS/CAS

2007-07-01

KIA / Pride 1.3 Beta / 1999 / Limuzyna - sedan (KIA 242) 23:25:15

K1 = Main relay

S4 = AC switch

K2 = Radiator fan relay

K3 = AC cutoff relay

S5 = AC pressure switch

K4 = Condenser fan relay

S6 = AC temperature switch M1 = Blower motor

W1 = Jumper, manual transm. (MT) only M2 = Starting motor

W2 = Jumper, automatic trans. (AT) only M3 = Radiator fan motor

X1 = Engine control-unit plug M4 = AC magnetic coupling X2 = Diagnosis plug

M5 = Condenser fan motor

Y1 = Electric fuel pump

S1 = Ignition switch

Y2 = Injection valve 1
