ABS - Vauxhall

Code:	Item:	Fault:
12	Initiation of diagnosis.	n/a
16	LH Front Solenoid	Check Relay & Connections
17	RH Front Solenoid	Check Relay & Connections
18	Rear Solenoids	Check Relay & Connections
19	Solenoids Relay Circuits	Check operation of relays
25	Faulty Sensor toothed Ring	Check condition of the teeth on crown wheel/toothed ring.
35	Pump Relay Circuits	n/a
37	Stop Lamp Switch	Check Pedal Switch and Lamp
39	LH Front Speed Sensor	Check Air Gap & Operation
41	LH Front Speed Sensor	Check Resistance & Connections
42	RH Front Speed Sensor	Check Air Gap & Operation
43	RH Front Speed Sensor	Check Resistance & Connections
44	LH Rear Speed Sensor	Check Air Gap & Operation
45	LH Rear Speed Sensor	Check Resistance & Connections
46	RH Rear Speed Sensor	Check Air Gap & Operation
47	RH Rear Speed Sensor	Check Resistance & Connections
48	System Voltage High/Low	Check Alternator & Battery
55	Faulty ABS ECU	Check connections and power

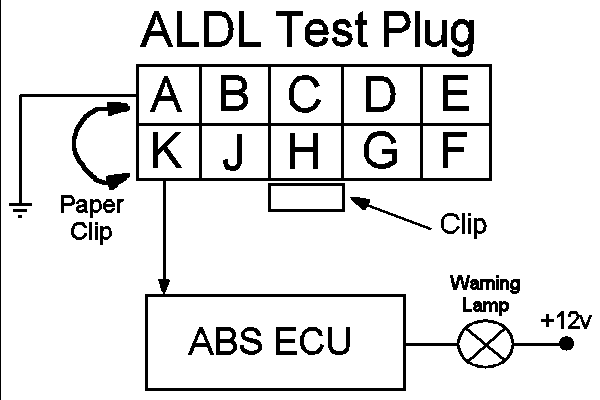

*-** (1 flash=1x, a pause=10 and another 2 flashes = +2 code 12)
*-** (12) - x3
****-* (41) - x3

---
