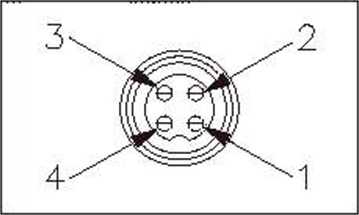

Fig. 3 Microphonc pług pin numbcrs vie\ved 1'rom rear of pin rc cc piacie.

thc back of thc pług. Bcforc soldering thc wirc lo the pins. pre-tin thc wirc receptacle of eacli pin of thc pług.

CRT FRANCE - Route de Pagny -21250 SEURRE declare that this equipment CRT SS 3900 EFT is in correspondence with the main part of the conditions and the other provisions in touch with the directive of R. TTE 1999/5/CE.

Ał. CELESTRAHO PHIUPPE

6. Be surc that thc housing and the knurłcd ring of Figurę 2 arc pushcd back onlo thc microphonc cable bcforc start i ng to solder. If thc washcr is not captivc to thc pin receptacle body. make surc that il is placcd on thc threadcd portion of thc pin receptacle body bcforc soldering,

7. If thc microphonc jack is uscd to hołd thc pin receptacle during soldering operation. best rcsults are obtaincd u hen thc connections to pin 1 and 3 arc madc First and then the connections to pins 2 and 4. Usc a minimum amounl of soldering and be earcful to pievcnt e\ecssivc solder accumulation on pins. which could causc a short bctwccn thc pin and thc microphonc pług housing.

8. Whcn all soldering connections lo thc pins of thc microphonc arc complctcd. push thc knurlcd ring and thc housing forward and screw the housing onto the threadcd portion of thc pin receptacle bod\. Notę thc location of the screw elearancc hole in the pług housing with respeet to the threadcd hole in the pin receptacle body. Whcn thc housing is complctcly threadcd into the pin receptacle body. a finał fraction of a tum either clockwisc or countcrclockwisc may bc requircd to align the serów hole with the threadcd hole in thc pin receptacle body. Whcn thcsc are aligned. thc retaining screw is then serewed into place to sccure the housing to thc pin receptacle body.

9. The two cable clamp re tai ner screws should no w be tightcncd to sccure thc housing to thc microphonc cord. If thc cutting dircctions have bccn carcfully followed. the cable clamp should sccure to thc insulation jackct of thc microphonc cable.

10. IJpon complction of thc microphonc pług wiring. conncct and sccure thc microphonc pług in thc transeeivcr.

Tbts materia! is imported and disiributed in Europę by.

C.K.T. FRANCE INTERNATIONAL S.A.R.L.

Route cle Pagny - 21250 SEURRE - FRANCE

Capital 762 500 euro*

Tćl. +33 (0)3 HO 26 91 91 - Fax : +33 (0>3 HO 26 91 00 E-mail : .supcrstar®crtfnincc.com Web sitc : www.crtfrancc.com
