06 GT i9300 Direy 6

background image

SAMSUNG Proprietary-Contents may change without notice

7. Level 2 Repair

7-1

This Document can not be used without Samsung's authorization

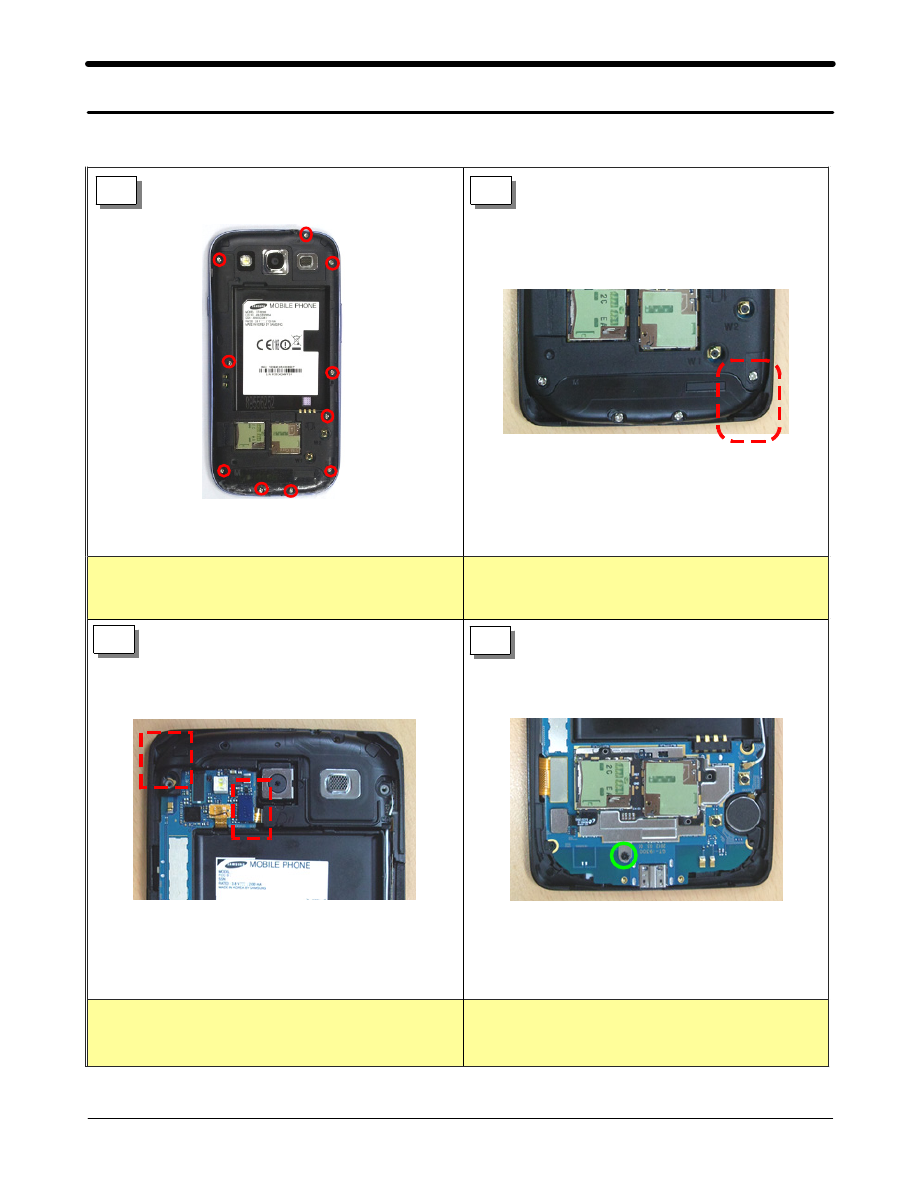

1) Disassembly Screw 10points.

1)

It dismantles an REAR side part.

1)

It dismantles a speaker connector and Module.

1) Unscrew 1points.

7-1. Disassembly and Assembly Instructions

7-1-1.

1

2

3

4

background image

SAMSUNG Proprietary-Contents may change without notice

7. Level 2 Repair

7-2

This Document can not be used without Samsung's authorization

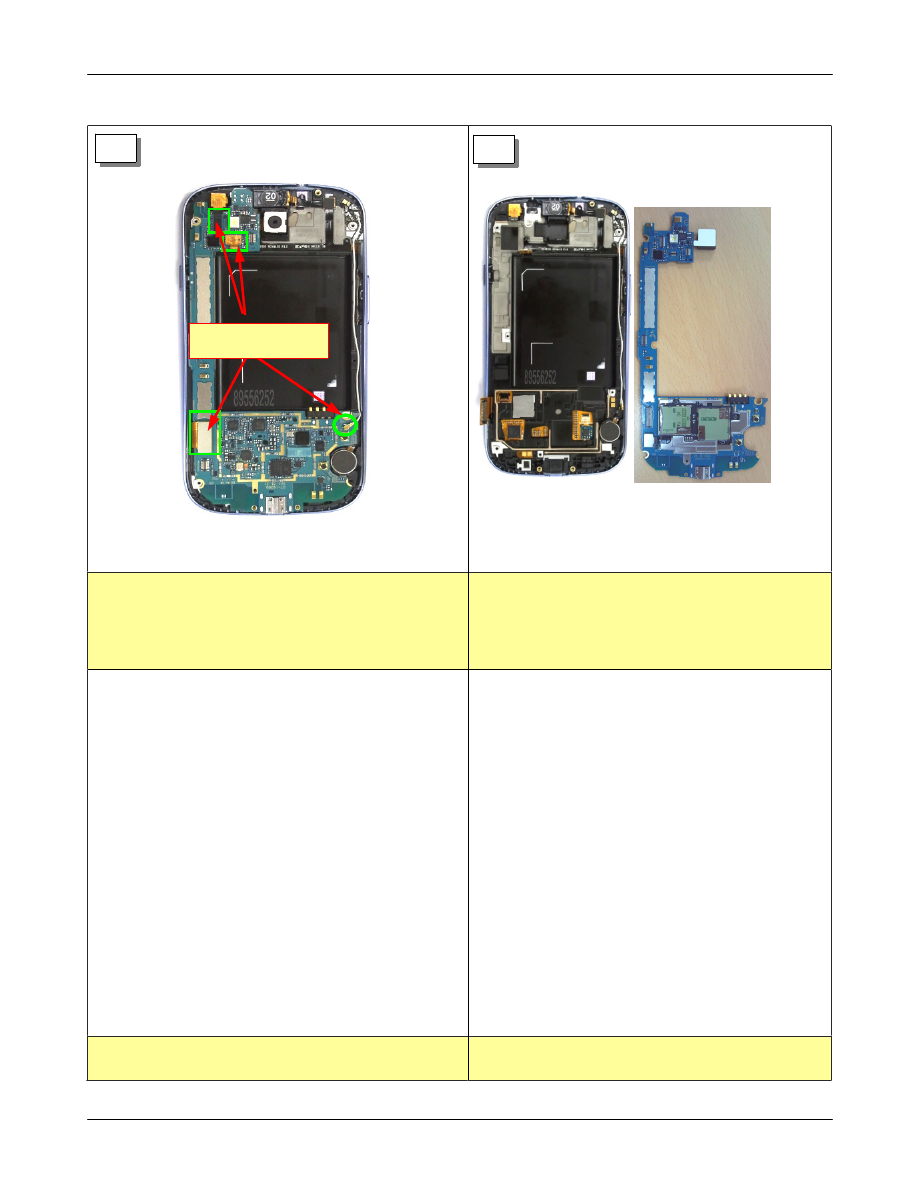

4POINT

1) Detach the Con to con and then Disassemble PBA

1) It separates PBA.

5

6

background image

SAMSUNG Proprietary-Contents may change without notice

7. Level 2 Repair

7-3

This Document can not be used without Samsung's authorization

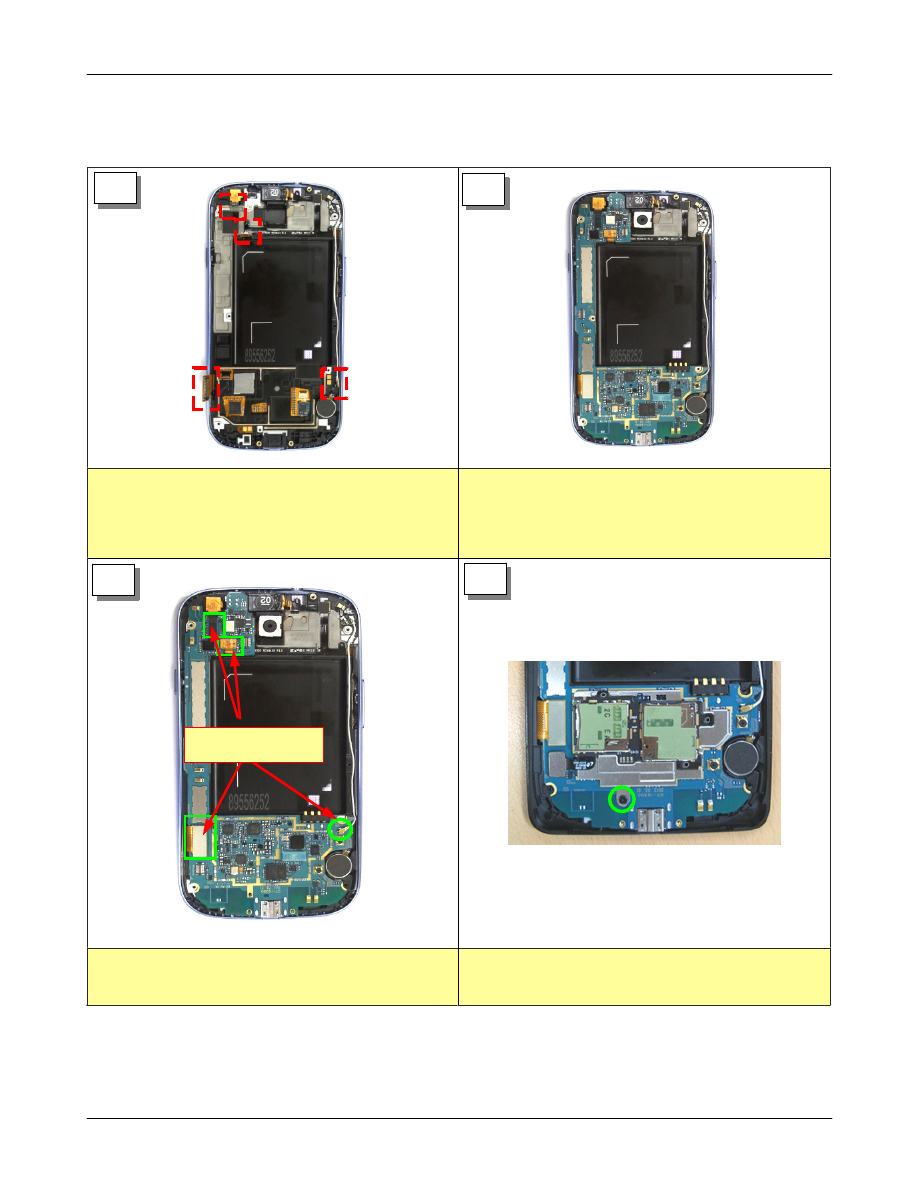

1) Stand all FPCB (LCD, Earjack, Sub Cam, Ant Cable
)

1) PBA on the front case

4POINT

1) Conect all FPCB(LCD, Earjack, Sub Cam, Ant Cable
)

1)

It assembles screw 1point.

7-1-2. Assembly

1

2

3

4

Torque :

1.0 ~ 1.2

Kgf·cm

/ Size :

1.4 * 2.5

background image

SAMSUNG Proprietary-Contents may change without notice

7. Level 2 Repair

7-4

This Document can not be used without Samsung's authorization

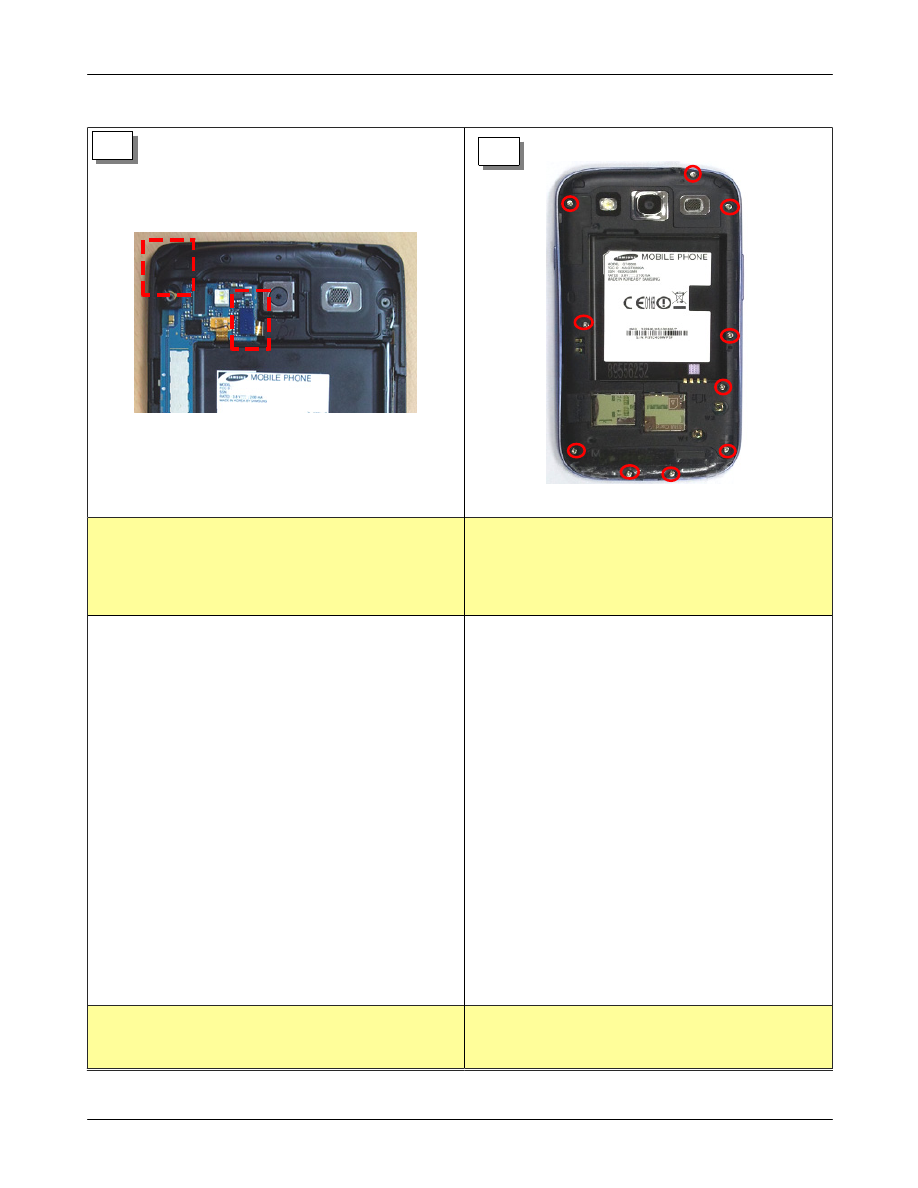

1)

It assembles SPEAKER.

1)

It assembles REAR.

2)It assembles Screw 10 Point.

5

6
