IW-U51/U71T

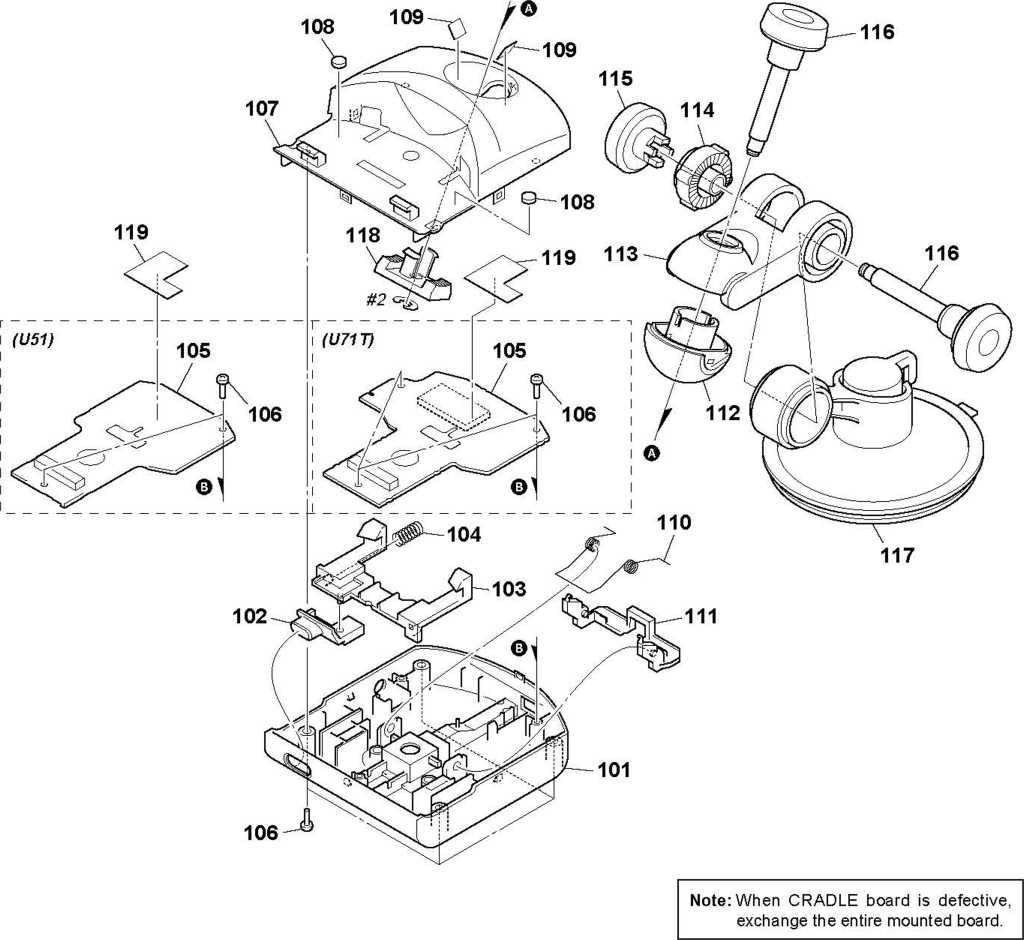

3-2. CRADLE SECTION

(NVA-CU4 : for NV-U51) (NVA-CU4T : for NV-U71T)

1. No.	Part No.	Descriotion Remark	Ref. No.	Part No.	Description
101	X-2103-070-3	CASE (CR) (LOWER) ASSY (U51)	110	2-650-777-11	SPRING (EJECT), TORSION COIL
101	X-2103-082-3	CASE (CR) (LOWER) M ASSY (U71T)	111	2-650-776-02	LEVER (EJECT)
102	2-650-774-03	BUTTON (RELEASE)	112	2-650-780-03	ARM (LOWER), BALL
103	2-650-773-02	LEVER (LOCK)	113	2-650-779-03	ARM (UPPER), BALL
104	2-650-775-11	SPRING (RELEASE), COMPRESSION	114	2-650-788-02	CLUTCH (DIAL)
105	A-1177-653-A	CRADLE BOARD, COMPLETE (U51)	115	2-650-787-02	DIAL (SUCTION CUP)
105	A-1177-924-A	CRADLE BOARD, COMPLETE (U71T)	116	2-650-785-01	DIAL (BALL JOINT)
106	3-719-601-61	SC REW (B2X5), TAPPING	117	A-1205-634-A	SUCKER BŁOCK ASSY
107	2-650-771-03	CASE (CR) (UPPER)	118	2-650-782-01	NUT, BALL
108	3-266-982-11	SPACER (MC)	119	2-650-778-11	SHEET (CR), INSULATING
109	2-662-294-01	SHEET (BALLARM)	#2	7-624-106-04	STOP RING 3.0, TYPE-E
