NV-U51/U71T

SECTION 1 GENERAL

This section is extracted from instruction manuał.

(B

m

IB

Q VOICE/POSITION button During route guidance:

Tohear the next voice guidance.

In the menu display:

To show the map.

In the map display:

To show your current car position.

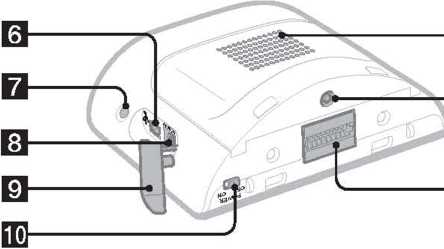

0 Display window/touch screen B Built-in GPS antenna (aerial)

Q l/(i) (on/standby) button

To tum the unit on/off.

0 CHG (battery charge) indicator

Lights up in red whiłe charging.

0 USBjack

To connect to a Computer with the U SB cable.

H Auto dimmer sensor

Detects ambient light and automatically adjusts the display brightness.

0 DC IN 5V jack

To connect to the AC power adapter.

0 Jack cover Notę

Ifyou puli offthe jack cover by accident, use a pointed object to push it back in.

[0 POWER switch

To tum the main power on/off; reset the unit.

Od Speaker

Outputs guidance and warnings.

ES Extemal GPS antenna (aerial) jack

To connect the extemal GPS antenna (aerial) to the cradłe.

ES Cradle connector

3
