IW-U51/U71T

SECTION 3 EXPLODED VIEWS

NOTĘ:

•    -XX and -X mean standardized parts, so they may have sonie difference from the original one.

•    Color Indication of Appearance Parts Example:

KNOB, BAL ANCE (WHITE) . . . (RED)

T    T

Parts Color Cabinefs Color

•    Items marked are not stocked sińce they are seldom reąuired for routine service. Some delay should be anticipated when ordering these items.

•    The mechanical parts with no reference number in the exploded views are not supplied.

Abbreviation
A	NV-U51A
B	NV-U51B
CND	Canadian model
D	NV-U51D
F	NV-U51F
G	NV-U51G
I	NV-U51I
N	NV-U51N
S	NV-U51S

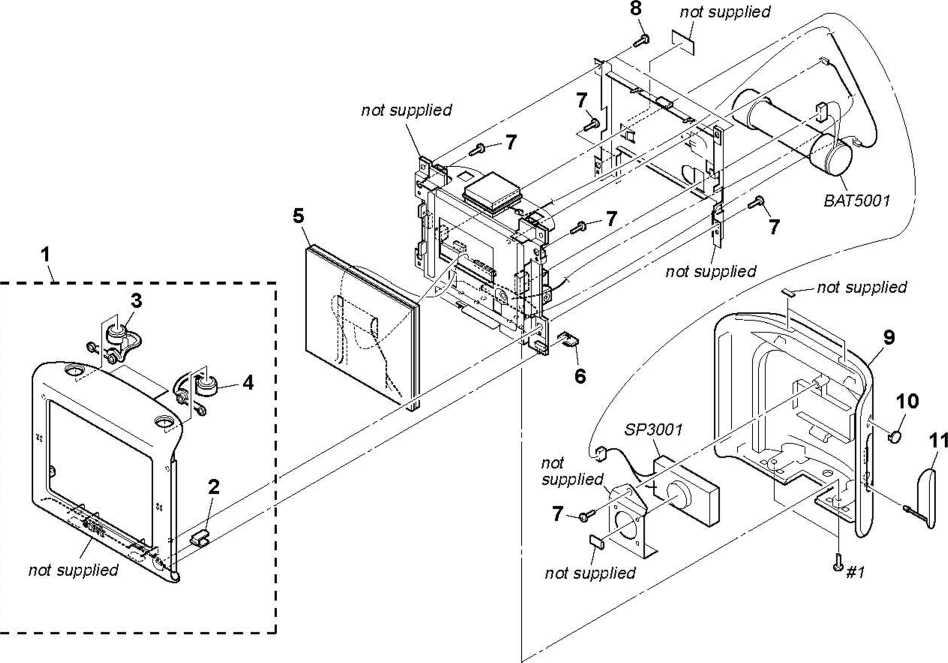

3-1. MAIN UNIT SECTION

ef. No.	Part No.	Description Remark	Ref. No.	Part No.	Descriotion Remark
1	A-1205-632-A	PANEL BŁOCK ASSY, FRONT	9	2-693-108-01	PANEL, REAR (U51: A, B, D, F, G, N, S/U71T:
		(U51: A, B, D, F, G, N, S/U71T: US, CND)			US, CND)
1	A-1217-198-A	PANEL BŁOCK ASSY, FRONT (U51:1)	9	2-693-108-11	PANEL, REAR (U71T: AEP, UK)
1	A-1217-201-A	PANEL BŁOCK ASSY, FRONT (U71T: AEP, UK)	9	2-693-108-21	PANEL, REAR (U51: l)
2	2-693-111-01	INDICATOR	10	2-650-662-02	WIN DOW
3	2-693-109-01	BUTTON PW (L)	11	2-650-661-02	COVER, CONNECTOR
4	2-693-110-01	BUTTON PW (R)	BAT5001 A-1205-775-A		BATTERY BŁOCK ASSY (U51/U71T: AEP, UK)
5	A-1217-520-A	LCD BŁOCK ASSY	BAT5001 A-1205-776-A		BATTERY BŁOCK ASSY (U71T: US, CND)
6	2-650-655-02	SWITCH (PW)	SP3001	1-826-490-21	SPEAKER (2X4 cm)
7	2-055-460-01	SPECIAL SC REW (2.6X6, B)	#1	7-685-790-01	SCREW +PTT 2.6X4 (S)
8	3-042-244-01	SCREW (T)

10
