IW-U51/U71T


Ref. l\lo. Part No, Description

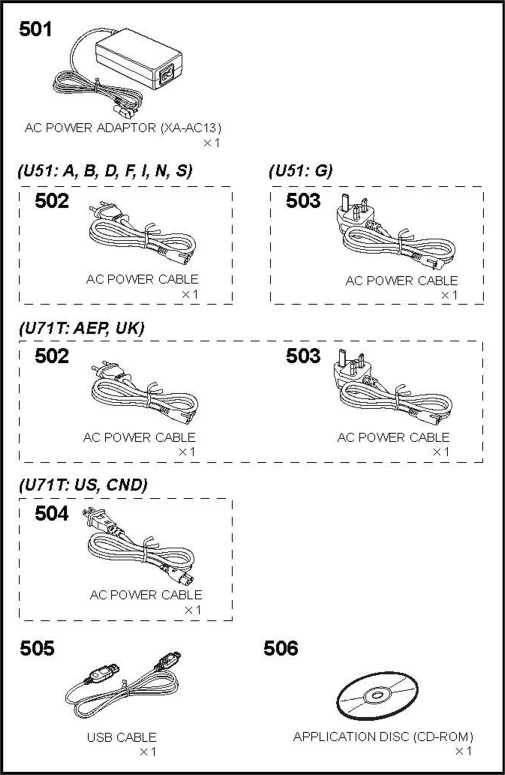

ACCESSORIES


SECTION 4 ACCESSORIES

Remark


Ref. No.


Part No. Description    Remark

PARTS FOR INSTALLATION AMD CONNECTIONS

(for MAIN UNIT)


2-886-305-12 MANUAŁ, INSTRUCTION (Ouick Start Guide)

(ENGUSH, FRENCH, SPANISH) (U71T: US, CND) 2-886-305-22 MANUAŁ, INSTRUCTION (Ouick Start Guide)

(ENGUSH, GERMAN, FRENCH, DUTCH, ITALIAN, SPANISH, SWEDISH, PORTUGUESE) (U51/U71T: AEP, UK)

2-886-306-12 MANUAŁ (READ THIS FIRST) (ENGUSH,

FRENCH, SPANISH) (U71T: US, CND) 2-886-306-22 MANUAŁ (READ THIS FIRST)

(ENGLISH, FRENCH, GERMAN, DUTCH) (U51/U71T: AER UK)

2-886-306-32 MANUAŁ (READ THIS FIRST)

(SPANISH, PORTUGUESE, ITALIAN, SWEDISH) (U51: A, i, N, S/U71T: AER UK)

A501

1-479-621-31

ADAPTOR, AC (AC power adaptor) (XA-AC13)

A502

1-827-481-21

POWER-SUPPLY CORD (for AC power adaptor) (U51: A, B, D, F, I, N, S/U71T: AER UK)

A503

1-827-946-31

CORD, POWER (for AC power adaptor)

(U51: G/U71T: AER UK)

A 504

1-829-809-11

CORD, POWER (for AC power adaptor)

(U71T: US, CND)

505

1-827-038-11

CORD, CONNECTION (USB 5P) (USB cable)

506

2-892-426-01

DISC, APPLICATION

(Application disc (CD-ROM))



Abbreviation

A

NV-U51A

B

NV-U51B

CND

Canadian model

D

NV-U51D

F

NV-U51F

G

NV-U51G

I

NV-U51I

N

NV-U51N

S

NY-U51S

The components identified by mark A or dotted linę with mark A are critical for safety. Replace only with part number specified.


Les composants identifies par une marque A sont critiąuens pour la securite.

Ne les remplacer que par une piece portant le numero specifie.


12
