IW-U51/U71T


Ref. No. Part No. Description    Remark

PARTS FOR IN STAL LAT IO N AN D CONNECTIONS (for CRADLE)

511

1-831-550-31

CORD (WITH CIGAR LIGHTER PŁUG)

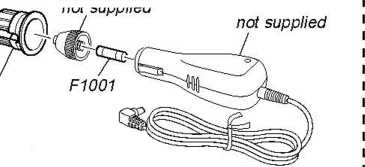

(Car battery adaptor) (XA-DC2)

512

9-885-110-39

SPACER, PŁUG

513

1-833-592-11

CORD, CONNECTION (ANTENNA)

(TMC antenna (aerial)/suction cups) (U71T)

514

2-891-214-01

SHEET (DASH BOARD), PROTECTION

515

2-655-124-11

CUSHION (CR) (Pad)

F1001

9-885-100-13

FUSE (CIS2.5A/125V)

511

r--


512

PŁUG SPACER

XI

CAR BATTERY ADAPTOR (XA-DC2) X1


(U71T)


513


TMC ANTENNA (AERIAL) x 1/ SUCTION CUPS x 2


514    515


PROTECTION SHEET    PAD

(DASH BOARD)    X1

x 1


13
