89 TransAlp Manual General Information 1 2
GENERAL INFORMATION

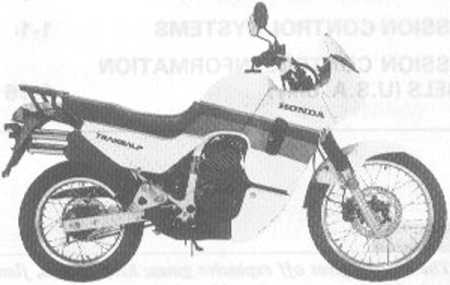

MODEL IDENTIFICATION
1) VEHICLE IDENTIFICATION NUMBER
The vehicle Identification number (VIN) is on the right side of the frame pipę.
(3) CARBURETOR IDENTIFICATION NUMBER /

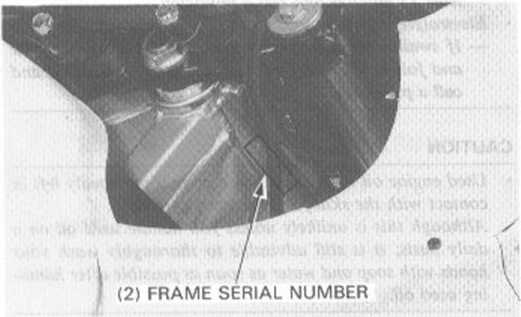

The frame serial number is stamped on the right side of the steering head.

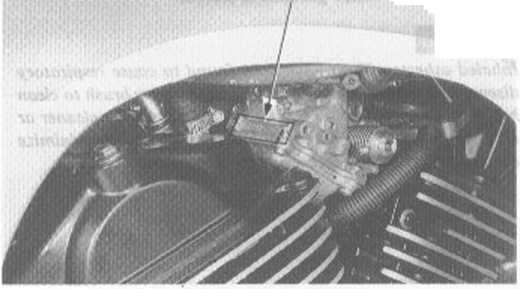

The carburetor identification number is on the front carbu-retor body (right-side).
i!4) ENGINE SERIAL NU MER
The engine serial number is stamped on the lower right side of the rear cylinder.

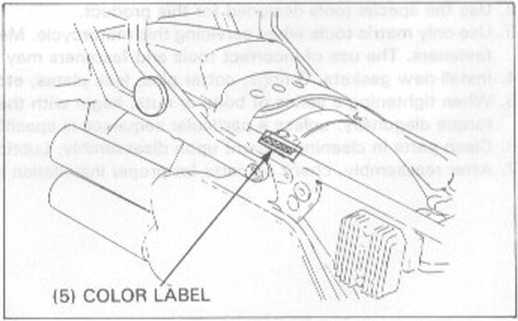

The cofor label is attached to the right frame tubę under the seat. When ordering a color coded part. always specify its designated color codę.
1-2
