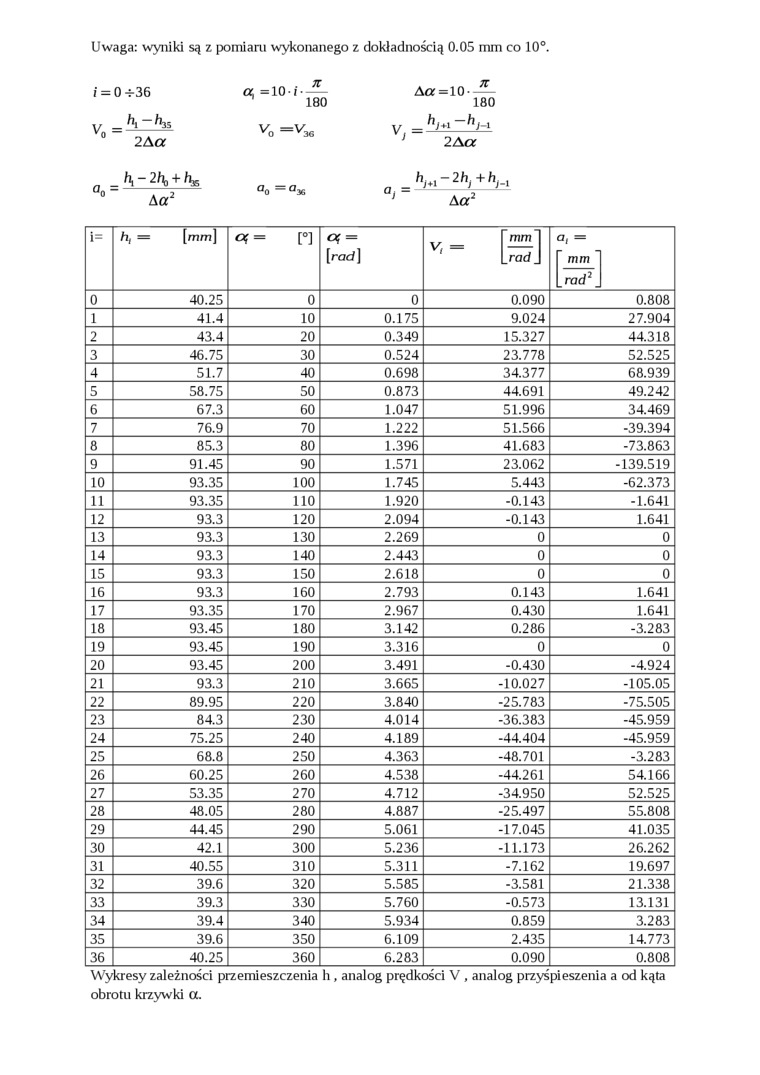

Uwaga: wyniki są z pomiaru wykonanego z dokładnością 0.05 mm co 10°.

i = 0 -r-36	a, =10/.— 180	O II S <
< 1 1 i^3" Ul		_ hj+t hj_!
^0 2Aa	0 ^y36	' ' 2Aar
_h,-2/v, + h15		^♦1 “ + /ly_,
Aa^2	“0 ^u36	^y " A a^2

i=	h, = [mm]	Of= [°]	Of = [rad]	13]	a, = T mm "1
0	40.25	0	0	0.090	0.808
1	41.4	10	0.175	9.024	27.904
2	43.4	20	0.349	15.327	44.318
3	46.75	30	0.524	23.778	52.525
4	51.7	40	0.698	34.377	68.939
5	58.75	50	0.873	44.691	49.242
6	67.3	60	1.047	51.996	34.469
7	76.9	70	1.222	51.566	-39.394
8	85.3	80	1.396	41.683	-73.863
9	91.45	90	1.571	23.062	-139.519
10	93.35	100	1.745	5.443	-62.373
11	93.35	110	1.920	-0.143	-1.641
12	93.3	120	2.094	-0.143	1.641
13	93.3	130	2.269	0	0
14	93.3	140	2.443	0	0
15	93.3	150	2.618	0	0
16	93.3	160	2.793	0.143	1.641
17	93.35	170	2.967	0.430	1.641
18	93.45	180	3.142	0.286	-3.283
19	93.45	190	3.316	0	0
20	93.45	200	3.491	-0.430	-4.924
21	93.3	210	3.665	-10.027	-105.05
22	89.95	220	3.840	-25.783	-75.505
23	84.3	230	4.014	-36.383	-45.959
24	75.25	240	4.189	-44.404	-45.959
25	68.8	250	4.363	-48.701	-3.283
26	60.25	260	4.538	-44.261	54.166
27	53.35	270	4.712	-34.950	52.525
28	48.05	280	4.887	-25.497	55.808
29	44.45	290	5.061	-17.045	41.035
30	42.1	300	5.236	-11.173	26.262
31	40.55	310	5.311	-7.162	19.697
32	39.6	320	5.585	-3.581	21.338
33	39.3	330	5.760	-0.573	13.131
34	39.4	340	5.934	0.859	3.283
35	39.6	350	6.109	2.435	14.773
36	40.25	360	6.283	0.090	0.808

Wykresy zależności przemieszczenia h , analog prędkości V , analog przyśpieszenia a od kąta obrotu krzywki a.
