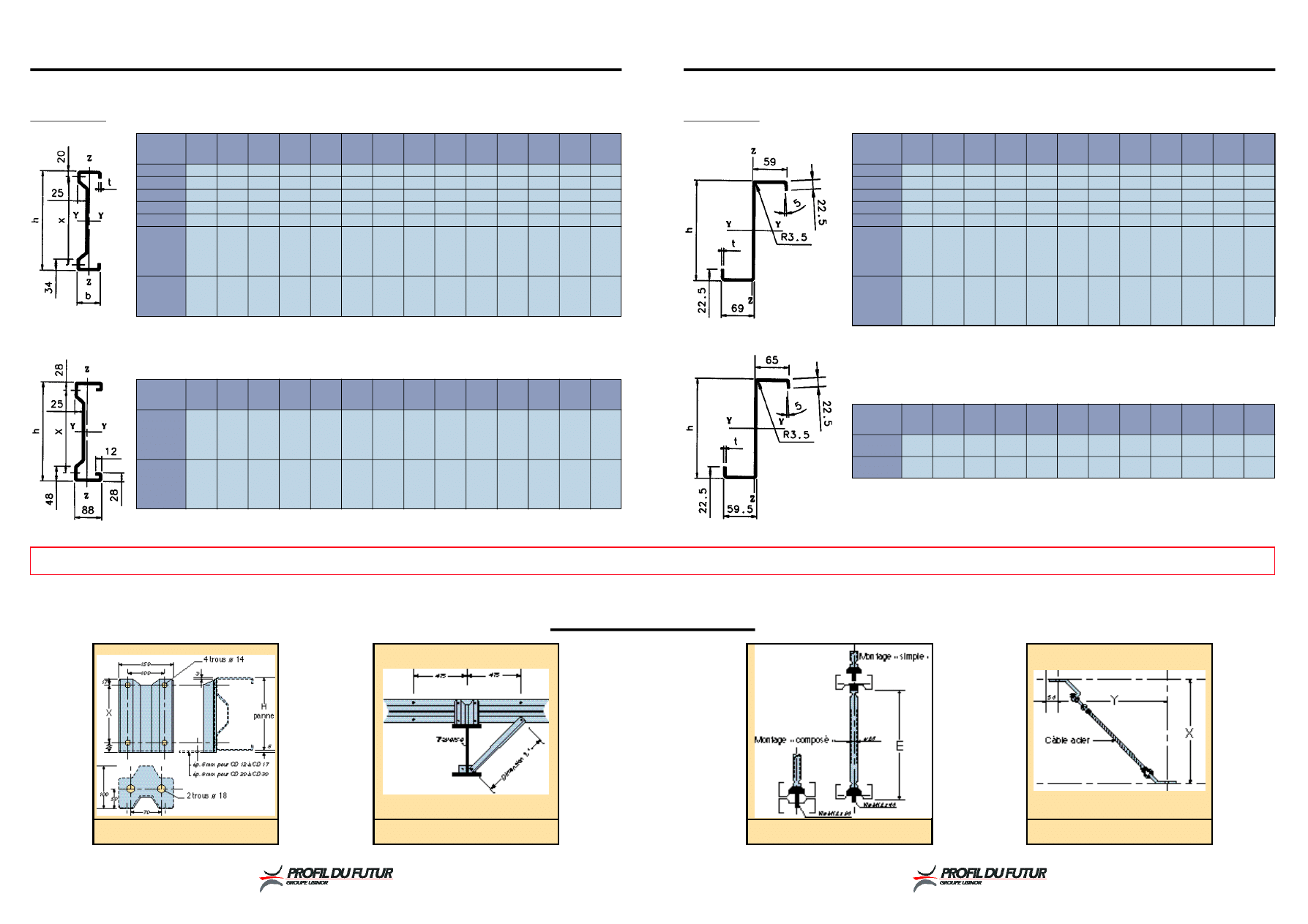

PANNES ET LISSES SYSTEME ZED
GAMME
ZED
h
t
Section Masse
Iy
Wy
W’y
iy
lz
Wz
W’z
iz
Type
mm
mm
cm2
kg/m
cm4
cm3
cm3
cm
cm4
cm3
cm3
cm
Z140150
*
140
1.50
4.650
3.650
140.7
19.870
20.350
5.576
53.14
7.618
8.772
3.427
Z170150
*
170
1.50
5.100
4.003
221.4
25.810
26.290
6.678
53.14
7.610
8.784
3.272
Z200150
*
200
1.50
5.550
4.357
324.3
32.210
32.680
7.749
53.14
7.604
8.793
3.137
Z220150*
220
1.50
5.850
4.592
406.4
36.710
37.180
8.448
53.15
7.600
8.799
3.055
Z260180
*
260
1.80
7.742
6.080
729.4
55.770
56.340
9.817
64.24
9.156
10.620
2.913
Z260200
*
260
2.00
8.602
6.753
812.2
62.050
62.700
9.816
71.67
10.200
11.830
2.916
Z260240
*
260
2.40
10.323
8.103
977.9
74.570
75.370
9.814
86.60
12.280
14.240
2.921
Z260270
*
260
2.70
11.613
9.116 1 102.0
83.940
84.860
9.812
97.87
13.850
16.050
2.924
Z260320
*
260
3.20
13.763
10.804 1 309.0
99.490 100.600
9.810
116.80
16.460
19.070
2.930
Z300180
*
300
1.80
8.462
6.643 1 030.0
68.300
68.870 11.160
64.24
9.150
10.630
2.787
Z300200
*
300
2.00
9.402
7.381 1 147.0
76.000
76.650 11.160
71.67
10.190
11.840
2.789
Z300240
*
300
2.40
11.283
8.857 1 380.0
91.370
92.170 11.150
86.61
12.280
14.250
2.794
Z300270
*
300
2.70
12.693
9.964 1 556.0 102.900 103.800 11.150
97.88
13.840
16.070
2.797
Z300320
*
300
3.20
15.044
11.810 1 848.0 122.000 123.100 11.150
116.80
16.450
19.090
2.803
* sur demande - hors délai normal
Z240180
*
240
1.80
7.382
5.795
602.4
49.860
50.430
9.136
64.24
9.160
10.610
2.983
ZED
h
t
Section Masse
Iy
Wy
W’y
iy
lz
Wz
W’z
iz
Type
mm
mm
cm2
kg/m
cm4
cm3
cm3
cm
cm4
cm3
cm3
cm
Z180150
*
180
1.50
4.95
3.90
237
25.6
26.0
7.30
35
3.84
4.44
1.77
Z180200
*
180
2.00
6.58
5.17
310
34.0
34.6
7.25
46
5.05
5.83
1.75
Z200150
*
200
1.50
5.24
4.11
311
30.9
31.4
8.00
42
4.17
4.82
1.86
Z200200
*
200
2.00
7.02
5.42
415
41.1
41.7
8.01
56
5.54
6.41
1.87
PANNES ET LISSES SYSTEME MULTIBEAM
GAMME
MULTIBEAM
h
b
t
x
Ø
b1
Section Masse
ly
Wy
iy
lz
Wz
iz
Type
mm
mm
mm
mm
mm
cm2
kg/m
cm4
cm3
cm
cm4
cm3
cm
B120/150*
120
56
1.50
80
14
35.4
3.86
3.10
82.18
13.50
4.61
12.29
3.46
1.78
B140/150
*
140
56
1.50
100
14
35.0
4.15
3.34
118.36
16.67
5.34
12.39
3.54
1.73
B170/155
*
170
56
1.55
130
14
34.4
4.75
3.82
194.77
22.68
6.41
12.97
3.75
1.65
B200/160
*
200
56
1.60
160
14
34.6
5.37
4.31
298.04
29.56
7.45
13.52
3.96
1.59
A230/180
*
230
70
1.80
190
14
44.1
7.15
5.74
543.85
46.25
8.72
27.72
6.28
1.97
A260/180
*
260
70
1.80
44.0
7.87
6.18
749.45
57.65
9.75
28.79
6.48
1.91
A260/200
*
260
70
2.00
44.2
8.55
6.85
812.66
61.84
9.75
30.98
6.99
1.90
A260/240
*
260
70
2.40
220
14
44.8
10.30
8.22
977.01
74.88
9.74
37.59
8.38
1.91
A260/270
*
260
70
2.70
45.2
11.61
9.25 1 100.04
84.48
9.74
42.60
9.42
1.92
A260/320
*
260
70
3.20
45.8
13.79
10.96 1 304.17 100.29
9.73
51.08
11.14
1.92
A300/180
*
300
70
1.80
44.8
8.59
6.74 1 059.87
70.65
11.10
28.80
6.48
1.83
A300/240
*
300
70
2.40
260
14
45.0
11.26
8.85 1 384.00
92.40
11.08
37.80
8.40
1.83
A300/270
*
300
70
2.70
45.2
12.67
9.95 1 557.00 104.00
11.08
42.60
9.42
1.83
A300/320
*
300
70
3.20
45.8
15.06
11.82 1 870.00 125.00
11.14
51.08
11.30
1.85
* sur demande
MULTIBEAM
h
b
t
x
Ø
b1
Section Masse
ly
Wy
iy
lz
Wz
iz
Type
mm
mm
mm
mm
mm
cm2
kg/m
cm4
cm3
cm
cm4
cm3
cm
C320/200
*
320
88
2.00
55.0
11.27
9.15
1 666.7 104.16
12.16
85.5
15.52
2.75
C320/240
*
320
88
2.40
55.1
13.49
10.98
1 987.2 124.20
12.13
100.4
18.22
2.72
C320/270
*
320
88
2.70
262
18
55.1
15.14
12.36
2 224.7 139.04
12.11
111.2
20.18
2.71
C320/320
*
320
88
3.20
55.1
17.87
14.64
2 613.0 163.31
12.09
128.3
23.29
2.68
C320/400
*
320
88
4.00
55.2
22.17
18.30
3 215.0 200.93
12.04
153.4
27.82
2.63
C350/200
*
350
88
2.00
55.4
11.86
9.64
2 067.2 118.12
13.20
85.8
15.49
2.69
C350/240
*
350
88
2.40
55.4
14.20
11.56
2 465.5 140.88
13.17
102.4
18.48
2.66
C350/270
*
350
88
2.70
292
18
55.4
15.94
13.01
2 760.9 157.76
13.15
111.5
20.13
2.64
C350/320
*
350
88
3.20
55.4
18.82
15.42
3 244.2 185.38
13.12
128.7
23.23
2.61
C350/400
*
350
88
4.00
55.4
23.38
19.27
4 001.1 228.63
13.08
154.7
27.92
2.57

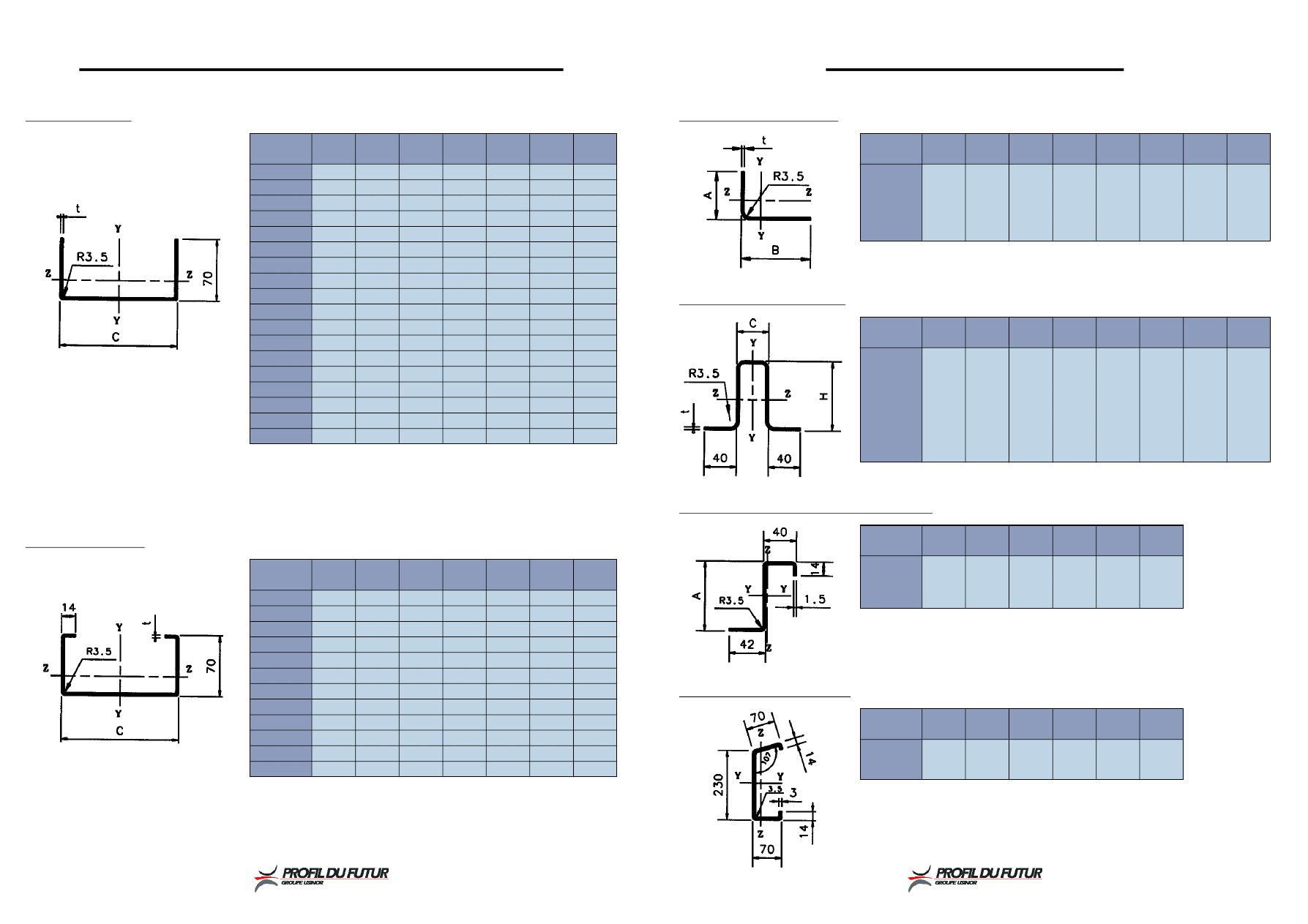

ACCESSOIRES
LES PRODUITS MULTIBEAM ET ZED ONT FAIT L’OBJET D’ENQUETES REALISEES PAR SOCOTEC ET A L’ISSUE DESQUELLES UN AVIS FAVORABLE A ETE DONNE.
ECHANTIGNOLE
BRACON
LIERNE TUBULAIRE
TIRANT AJUSTABLE
PRODUITS COMPLEMENTA I R E S
PROFILE U
REFERENCE
C
t
Masse
Iy
Wy
Iz
Wz mini
mm
mm
kg/m
cm4
cm3
cm4
cm3
U100 70 1.5
100
1.5
2.83
60.98
12.19
18.41
3.78
Toutes autres dimensions, nous consulter.
U100 70 3.2
100
3.2
5.93
123.43
24.68
37.71
7.86
U120 70 3.2
120
3.2
6.45
186.98
31.16
40.17
8.09
U120 70 1.5
120
1.5
3.07
91.77
15.29
19.58
3.89
U140 70 3.2
140
3.2
6.97
266.47
38.06
42.26
8.28
U140 70 1.5
140
1.5
3.32
130.17
18.59
20.58
3.98
U160 70 3.2
160
3.2
7.49
363.20
45.40
44.07
8.44
U160 70 2.0
160
2
.0
4.72
233.11
29.13
28.28
5.36
U170 70 3.2
170
3.2
7.75
418.43
49.22
44.88
8.50
U170 70 2.0
170
2
.0
4.89
268.26
31.56
28.79
5.40
U200 70 3.2
200
3.2
8.52
613.47
61.34
47.03
8.68
U200 70 2.0
200
2
.0
5.37
392.23
39.22
30.15
5.51
U230 70 3.2
230
3.2
9.30
855.92
74.42
48.81
8.81
U230 70 2.0
230
2
.0
5.86
546.10
47.48
31.28
5.60
U260 70 3.2
260
3.2
10.08
1 150.10
88.46
50.32
8.92
U260 70 2.0
260
2
.0
6.34
732.56
56.35
32.24
5.67
U300 70 3.2
300
3.2
11.11
1 630.30
108.68
52.01
9.04
U300 70 2.5
300
2.5
8.71
1 286.50
85.76
41.22
7.13
PROFILE CE
REFERENCE
C
t
Masse
Iy
Wy
Iz
Wz mini
mm
mm
kg/m
cm4
cm3
cm4
cm3
G120 70 1.5
120
1.5
3.34
100.09
16.68
26.80
5.76
Toutes autres dimensions, nous consulter.
G120 70 3.2
120
3.2
6.90
200.36
33.39
51.93
11.16
G140 70 1.5
140
1.5
3.58
142.07
20.29
28.25
5.88
G140 70 3.2
140
3.2
7.42
285.85
40.83
54.78
11.39
G160 70 2.0
160
2
.0
5.05
253.13
31.64
38.28
7.75
G160 70 3.2
160
3.2
7.93
389.67
48.70
57.26
11.59
G200 70 2.0
200
2
.0
5.70
425.22
42.52
41.02
7.95
G200 70 3.2
200
3.2
8.97
657.43
65.74
61.37
11.89
G260 70 2.0
260
2
.0
6.67
791.04
60.84
44.13
8.15
G260 70 3.2
260
3.2
10.52
1 228.60
94.50
66.01
12.21
G300 70 2.5
300
2.5
9.10
1 379.20
91.94
55.60
10.03
G300 70 3.2
300
3.2
11.55
1737.20
115.81
68.42
12.36
AUTRES PRODUITS
CORNIERE A 90°
REFERENCE
A
B
t
Masse
Iy
Wy mini
Iz
Wz mini
mm
mm
mm
kg/m
cm4
cm3
cm4
cm3
L 40.60.1,5
40
60
1.5
1.17
5.61
1.36
2.10
0.67
L 40.80.1,5
40
80
1.5
1.42
12.20
2.33
2.26
0.69
L 50.50.1,5
50
50
1.5
1.17
3.68
1.00
3.68
1.00
L 50.70.1,5
50
70
1.5
1.42
9.20
1.89
4.08
1.05
L 50.80.1,5
50
80
1.5
1.54
13.20
2.42
4.23
1.06
L 50.100.1,5
50
100
1.5
1.78
24.06
3.66
4.47
1.09
Toutes autres dimensions, nous consulter.
PROFILE OMEGA
REFERENCE
H
C
t
Masse
Iy
Wy
Iz
Wz mini
mm
mm
mm
kg/m
cm4
cm3
cm4
cm3
OH 40.40
40
40
1.2
1.85
20.46
3.41
5.82
2.39
OH 50.50
50
50
1.5
2.66
35.38
5.44
13.21
4.61
OH 50.65
50
65
1.5
2.85
51.67
7.12
14.85
5.52
OH 50.80
50
80
1.5
3.03
71.93
8.99
16.29
6.44
OH 50.100
50
100
1.5
3.27
105.54
11.72
17.96
6.77
OH 60.40
60
40
1.5
2.79
27.70
4.61
18.40
5.18
OH 80.40
80
40
1.5
3.27
29.92
4.98
36.50
7.89
OH 80.65
80
65
1.5
3.58
60.75
8.37
43.61
10.28
OH 80.80
80
80
1.5
3.76
85.80
10.72
47.32
11.72
OH 80.100
80
100
1.5
4.00
127.37
14.15
51.75
12.31
Toutes autres dimensions, nous consulter.
PROFILE DE SURTOITURE
REFERENCE
A
Masse
Iy
Wy mini
Iz
Wz mini
mm
kg/m
cm4
cm3
cm4
cm3
F 50
50
1.70
8.58
3.31
8.77
2.00
F 60
60
1.81
13.02
4.18
8.78
2.01
F 80
80
2.04
25.26
6.08
8.79
2.03
F 100
100
2.28
42.47
8.19
8.80
2.04
Toutes autres dimensions, nous consulter.
PROFILE DE RIVE
REFERENCE
Longueur
Masse
Iy
Wy mini
Iz
Wz mini
mm
kg/U
cm4
cm3
cm4
cm3
S1 230.30
4994
47.78
934.08
70.73
59.20
11.12
S2 230.30
5994
57.34
934.08
70.73
59.20
11.12
S3 230.30
7494
71.69
934.08
70.73
59.20
11.12
Wyszukiwarka
Podobne podstrony:
Profil du Futur Multibeam
Profil du Futur Multibeam
ćw 4 Profil podłużny cieku
Profilaktyka nowotworowa
profilaktyka przeciwurazowa
Niezawodowa profilaktyka poekspozycyjna
profilaktyka nadcisnienia(2)
PROFILAKTYKA ZDROWIA
Profilaktyka przeciwzakrzepowa w chirurgii ogólnej, ortopedii i traumatologii
Profilaktyka poekspozycyjna zakażeń HBV, HCV, HIV
PROFILAKTYKA PREWENCJA A PROMOCJA ZDROWIA
Rodzina w systemie profilaktyki na szczeblu lokalnym
Profilaktyka wirusowa dla uczniów
więcej podobnych podstron
