Chropowatość duża									r	1,19498
D = 25 [mm]
U1 [mmH2O]	M [mm alk]	D p1 [Pa]	D p2 [Pa]	vśr [m/s]	v [m/s]	Re	l	a	l śr	a śr
19	60	186,39	264,87	17,202	24,771	39696390,959054	0,012710	0,001899	0,012639	0,001888				294,3	186390
24	73	235,44	322,2585	18,974	27,323	43786156,9120704	0,013196	0,001971						358,065
28	85	274,68	375,2325	20,474	29,483	47248155,81759	0,013222	0,001975						416,925
32	108	313,92	476,766	23,079	33,233	53258297,1875117	0,011893	0,001776						529,74
37	122	362,97	538,569	24,529	35,322	56605067,725313	0,012173	0,001818						598,41
D = 35 [mm]
U1 [mmH2O]	M [mmH2O]	D p1 [Pa]	D p2 [Pa]	vśr [m/s]	v [m/s]	Re	l	a	l śr	a śr
22	15	215,82	66,2175	8,601	6,319	14177282,4853764	0,316614	0,047293	0,315864	0,047181
28	19	274,68	83,8755	9,680	7,112	15956005,0027841	0,318129	0,047520
33	22	323,73	97,119	10,416	7,653	17169541,7347961	0,323810	0,048368
39	28	382,59	123,606	11,751	8,633	19369855,4163672	0,300680	0,044913
43	29	421,83	128,0205	11,959	8,786	19712711,3329355	0,320088	0,047812
D = 45 [mm]
U1 [mmH2O]	M [mmH2O]	D p1 [Pa]	D p2 [Pa]	vśr [m/s]	v [m/s]	Re	l	a	l śr	a śr
23	6	225,63	26,487	5,440	2,418	6973945,01772925	2,907351	0,434278	3,103944	0,463644
27	7	264,87	30,9015	5,876	2,611	7532721,55080945	2,925409	0,436976
34	8	333,54	35,316	6,281	2,792	8052818,06659927	3,223368	0,481482
38	9	372,78	39,7305	6,662	2,961	8541303,39383083	3,202300	0,478336
43	10	421,83	44,145	7,023	3,121	9003324,3036772	3,261290	0,487147
Chropowatość średnia

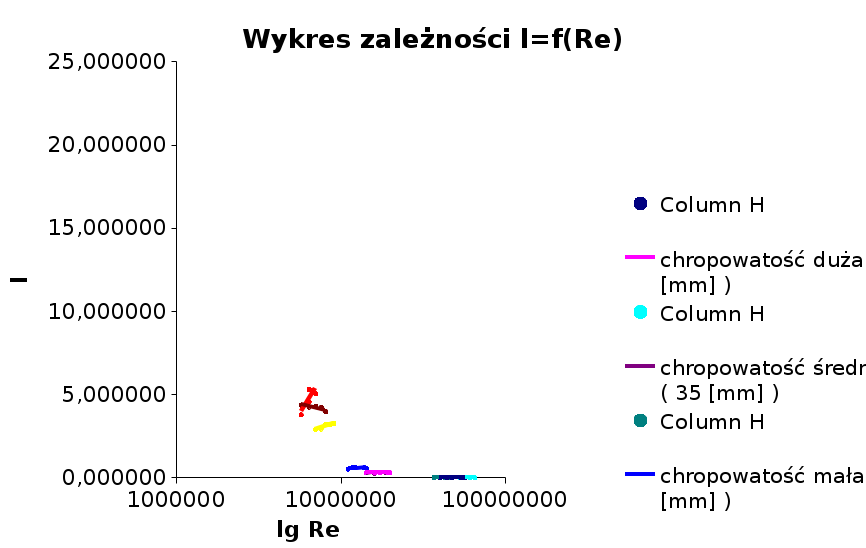

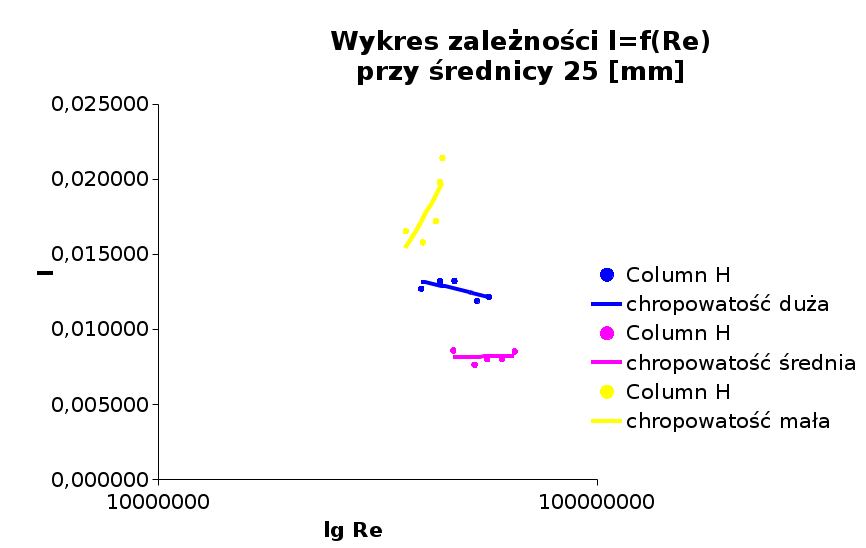

D = 25 [mm]
U1 [mmH2O]	M [mmH2O]	D p1 [Pa]	D p2 [Pa]	vśr [m/s]	v [m/s]	Re	l	a	l śr	a śr
18	84	176,58	370,818	20,353	29,309	46969403,2029756	0,008601	0,001285	0,008166	0,001220
20	105	196,2	463,5225	22,756	32,768	52513389,2122249	0,007645	0,001142
24	120	235,44	529,74	24,327	35,031	56139174,4715589	0,008028	0,001199
28	140	274,68	618,03	26,276	37,838	60637238,7954752	0,008028	0,001199
34	160	333,54	706,32	28,090	40,450	64823934,9864758	0,008529	0,001274

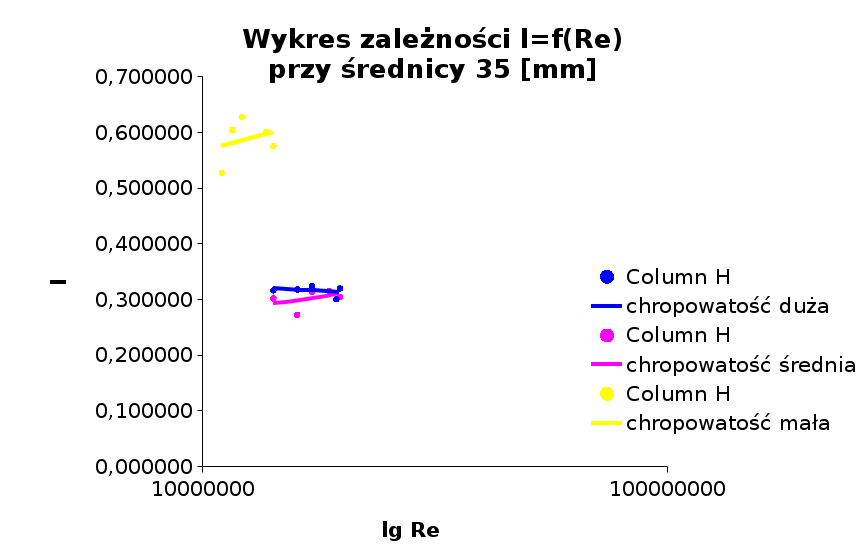

D = 35 [mm]
U1 [mmH2O]	M [mmH2O]	D p1 [Pa]	D p2 [Pa]	vśr [m/s]	v [m/s]	Re	l	a	l śr	a śr
21	15	206,01	66,2175	8,601	6,319	14177282,4853764	0,302222	0,045144	0,301922	0,045099
24	19	235,44	83,8755	9,680	7,112	15956005,0027841	0,272682	0,040731
32	22	313,92	97,119	10,416	7,653	17169541,7347961	0,313997	0,046903
38	26	372,78	114,777	11,324	8,319	18665259,7185684	0,315507	0,047128
41	29	402,21	128,0205	11,959	8,786	19712711,3329355	0,305200	0,045588

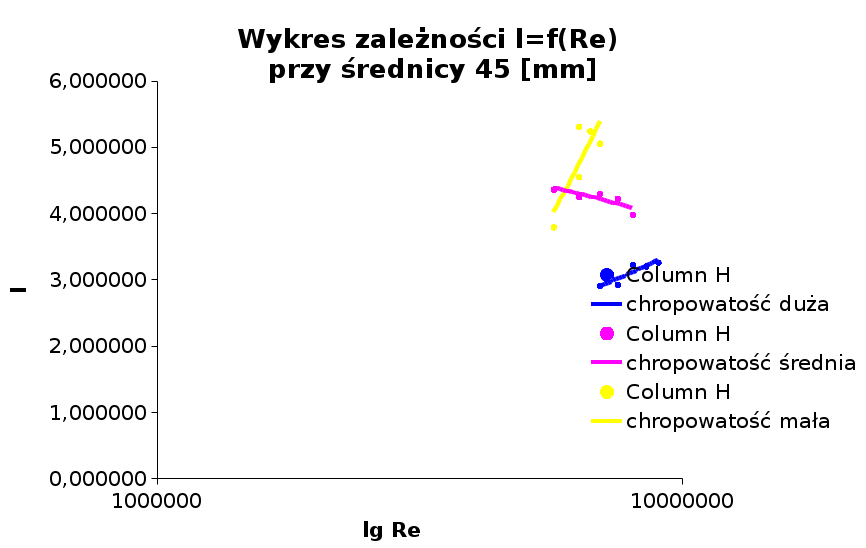

D = 45 [mm]
U1 [mmH2O]	M [mmH2O]	D p1 [Pa]	D p2 [Pa]	vśr [m/s]	v [m/s]	Re	l	a	l śr	a śr
23	4	225,63	17,658	4,441	1,974	5694202,26255389	4,361027	0,651417	4,222702	0,630756
28	5	274,68	22,0725	4,966	2,207	6366311,6683518	4,247261	0,634424
34	6	333,54	26,487	5,440	2,418	6973945,01772925	4,297824	0,641977
39	7	382,59	30,9015	5,876	2,611	7532721,55080945	4,225591	0,631187
42	8	412,02	35,316	6,281	2,792	8052818,06659927	3,981807	0,594772
Chropowatość mała
D = 25 [mm]
U1 [mmH2O]	M [mmH2O]	D p1 [Pa]	D p2 [Pa]	vśr [m/s]	v [m/s]	Re	l	a	l śr	a śr
21	51	206,01	225,1395	15,859	22,837	36598264,1241078	0,016528	0,002469	0,018145	0,002710		17,4155113689438
24	61	235,44	269,2845	17,345	24,976	40025827,2380926	0,015792	0,002359				7,60234031651204
30	70	294,3	309,015	18,580	26,755	42877002,7447085	0,017202	0,002570				7,63222441901379
36	73	353,16	322,2585	18,974	27,323	43786156,9120704	0,019794	0,002957				7,64133682906689
40	75	392,4	331,0875	19,232	27,694	44381914,3229264	0,021407	0,003198				7,64720603070251
												Err:502
D = 35 [mm]
U1 [mmH2O]	M [mmH2O]	D p1 [Pa]	D p2 [Pa]	vśr [m/s]	v [m/s]	Re	l	a	l śr	a śr
22	9	215,82	39,7305	6,662	4,895	10981675,7920682	0,527690	0,078822	0,587430	0,087746		7,04066861804808
28	10	274,68	44,145	7,023	5,159	11575702,6761564	0,604445	0,090287				7,06354736332842
32	11	313,92	48,5595	7,365	5,411	12140699,3905397	0,627995	0,093805				7,08424370590753
39	14	382,59	61,803	8,309	6,105	13696556,1155162	0,601361	0,089827				7,13661138116754
40	15	392,4	66,2175	8,601	6,319	14177282,4853764	0,575662	0,085988				7,15159299285626
												Err:502
D = 45 [mm]
U1 [mmH2O]	M [mmH2O]	D p1 [Pa]	D p2 [Pa]	vśr [m/s]	v [m/s]	Re	l	a	l śr	a śr
20	4	196,2	17,658	4,441	1,974	5694202,26255389	3,792197	0,566450	15,588680	0,715444		6,75543288956733
30	5	294,3	22,0725	4,966	2,207	6366311,6683518	4,550637	0,679740				6,80388789607136
35	5	343,35	22,0725	4,966	2,207	6366311,6683518	5,309076	0,793030				6,80388789607136
38	5,5	372,78	24,27975	5,208	2,315	6677044,00797624	5,240127	0,782731				6,82458423865048
40	6	392,4	26,487	5,440	2,418	6973945,01772925	5,056263	0,755267				6,84347851909518
												Err:502
						15,5886814

---
