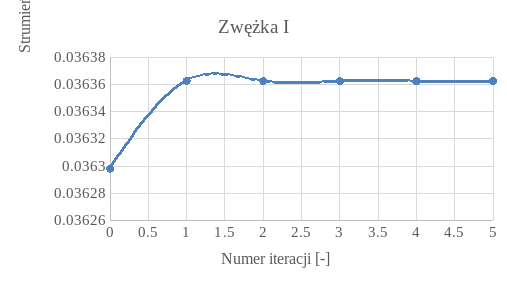

Zwężka I | |||||||
D [mm] | 50 | ||||||
d [mm] | 25 | ||||||
β | 0.5 | ||||||
T [K] | 297.3 | ||||||
p_1 [Pa] | 341150 | ||||||
Δp [Pa] | 1775 | ||||||
R [J/(kg*K)] | 288.3 | ||||||
ρ [kg/m3] | 3.980208510891 | ||||||
ν [m2/s] | 4.58582744540525E-06 | ||||||
zał. Dla I iteracji: | c_0 [m/s] | 10 | |||||
Re [-] | 109031.577387626 | ||||||
C [-] | 0.603294219313806 | ||||||
ε [-] | 0.998394970530349 | ||||||
nr iteracji [-] | 0 | 1 | 2 | 3 | 4 | 5 | |
m [kg/s] | 0.036298016823501 | 0.036362698516937 | 0.036362504580196 | 0.036362505160805 | 0.036362505159067 | 0.036362505159072 | |
c [m/s] | 4.64458786907101 | 4.65286434902707 | 4.65283953344998 | 4.65283960774298 | 4.65283960752056 | 4.65283960752122 | |
Re [-] | 50640.6741680243 | 50730.9139345069 | 50730.6433663556 | 50730.6441763838 | 50730.6441739588 | 50730.644173966 | |
C [-] | 0.604369266800152 | 0.604366043458355 | 0.604366053108412 | 0.604366053079521 | 0.604366053079608 | 0.604366053079607 | |
m_pomiar [kg/s] | 0.0374 | ||||||
δ [%] | 2.94647908154793 | 2.77353337717323 | 2.77405192460902 | 2.77405037217919 | 2.7740503768269 | 2.77405037681297 | |

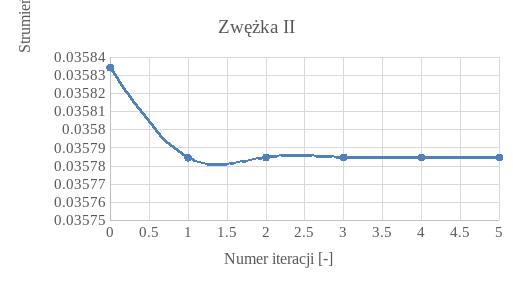

Zwężka II | |||||||
D [mm] | 50 | ||||||
d [mm] | 25 | ||||||
β | 0.5 | ||||||
T [K] | 297 | ||||||
p_1 [Pa] | 104900 | ||||||
Δp [Pa] | 5760 | ||||||
R [J/(kg*K)] | 288.3 | ||||||
ρ [kg/m3] | 1.22510805826796 | ||||||
ν [m2/s] | 1.48836920877026E-05 | ||||||
zał. Dla I iteracji: | c_0 [m/s] | 10 | |||||
Re [-] | 33593.815100026 | ||||||
C [-] | 0.605230583585397 | ||||||
ε [-] | 0.98306141903854 | ||||||
nr iteracji [-] | 0 | 1 | 2 | 3 | 4 | 5 | |
m [kg/s] | 0.035834324013613 | 0.03578460345203 | 0.035784753695112 | 0.03578475324058 | 0.035784753241955 | 0.035784753241951 | |
c [m/s] | 14.8968666347652 | 14.8761970506359 | 14.8762595089415 | 14.8762593199859 | 14.8762593205575 | 14.8762593205558 | |
Re [-] | 50044.258329805 | 49974.8213110616 | 49975.0311323383 | 49975.0304975644 | 49975.0304994848 | 49975.030499479 | |
C [-] | 0.60439081876963 | 0.604393356328543 | 0.604393348651648 | 0.604393348674873 | 0.604393348674802 | 0.604393348674802 | |
m_pomiar [kg/s] | 0.0374 | ||||||
δ [%] | 4.18629942884197 | 4.31924210687292 | 4.31884038740203 | 4.31884160272683 | 4.31884159905009 | 4.31884159906124 | |
