CRANKSHAFT/TRANSMISSION

MAIN BEARING

OIL CLEARANCE INSPECTION

Inspect the main journal visually for unusual wear.

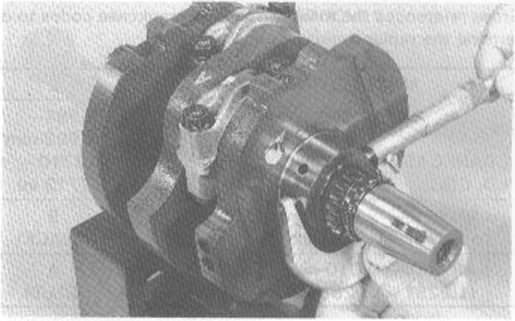

Wipe all oil off th© main journal, and measure and notę the O.D. of the main journal.

Measure the I.D. of the main journal bearing.

Calculate the clearance between the main journal and main bearing.

SERVICE LIMIT: 0.06 mm (0.002 in)

CRANKCASE SELECTION

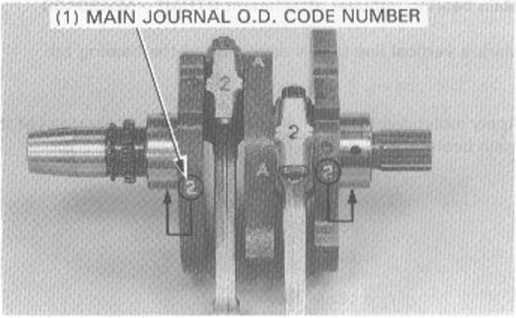

Notę the main journal O.D. codę number or measure the main journal O.D.

The crankcase main bearing I.D. codę number (A or stamped on each crankcase identifies its inside diameter.




BI


11-7
