Install the spring seat, juddor spring and clutch disc B onto the clutch center.

NOTĘ

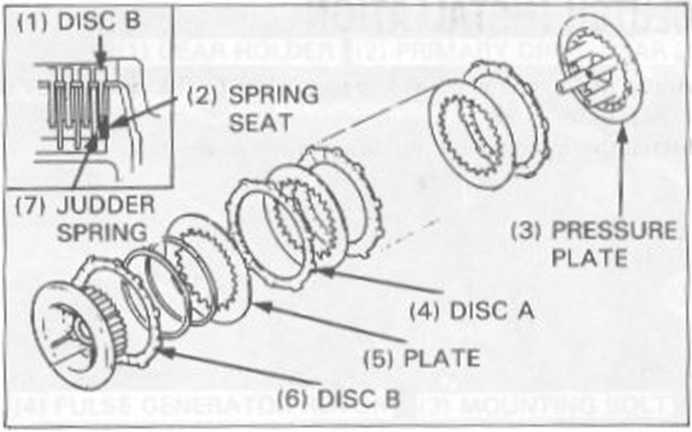

• Notę the proper positions for the spring seat. judder spring and disc B as shown at right.

Install the clutch disc A, clutch plates and pressure piąte onto the clutch center, then install them into the clutch outer as an assombly.

NOTĘ

•    Stack the discs and plates alternately as shown.

•    Coat new clutch discs with clean engine oil.

Install the lock washer onto the mainshaft.


(1 > WASHER


Hołd the clutch center with the clutch center holder, and tight-en the lock nut to the specified torgue.


1) STAKE


(2) CLUTCH CENTER HOLDER


151 LOCK NUT


TOROUE. 130 N m (13.0 kg m. 94 ft-lbl TOOLS:

Clutch center holder    07923—KE10000 or

07HGB —001000A (U.S.A. only)

Lock nut wrench, 17 x 27 mm    07716 — 0020300

Extantion bar    07716-0020500

Not availabłe In U S A.

Stake the lock nut with the center punch.


4) LOCK NUT WRENCH


(31 EXTENTION BAR


Install the clutch springs, liftor piąte and bolts.

Tighten the bolts in a crisscross pattern in 2-3 steps.

TOROUE: 10 N-m (1.0 kg-m. 7 ft-lb)

NOTĘ

• Make surę the pressure piąte firmly pushes the discs and plates.

Install the bearing into the lifter piąte.

(1) BOLTS


(2) CLUTCH LIFTER PLATĘ


(3) BEARING
