CLUTCH/GEARSHIFT LINKAGE

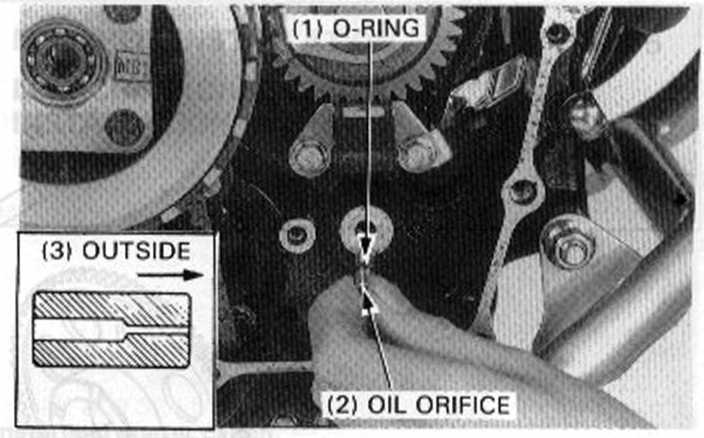

Install a new O-ring to the oil orifice.

Install the oil orifice with its smaller hole facing out.

RIGHT CRANKCASE C0VER INSTALLATION

Install the dowel pins and a new gasket.

(1) GASKET

(2) DOWEL PINS

Apply grease to the dust seal and needle bearings.

Install the spring, clutch lifter arm shaft and clutch lifter piece to the right crankcase cover.

(1 > CLUTCH LIFTEII I II l I ■! I III i llllli

V*'| alMłlliłlłiaillt Itllł l IIIUIIUtlHł* 11'UBMllkllfeMBMiaf fi *

(5) SHAFT

(3) DUST (4) SPRING    SEAL

Tighten the right crankcase cover mounting bolts in a crisscross pattern in 2-3 steps and install the clutch cable holder and oil pipę holder at the same time.

TOROUE: 12 N-m (1.2 kg-m. 9 ft-lb)

Connect the clutch cable to the clutch lifter arm.

(1) CLUTCH CABLE

Tighten the oil pipę bolt with the sealing washer and a new lock washer.

TOROUE: 23 N*m (2.3 kg-m, 17 ft-lb)

Install the exhaust pipę and muffler (page 1 2-4).

Fili the crankcase with engine oil (page 2-3).

Adjust the clutch lever free play (page 3-1 5).

(2ł OIL PIPĘ BOLT/SEALING WASHERS

(3> RIGHT CRANKCASE COVER

7-13
