CLUTCH/GEARSHIFT LINKAGE

CLUTCH INSTALLATION

Apply M0S2 pasto greaso (page 2-10> to the outside of the dutch outer guide.

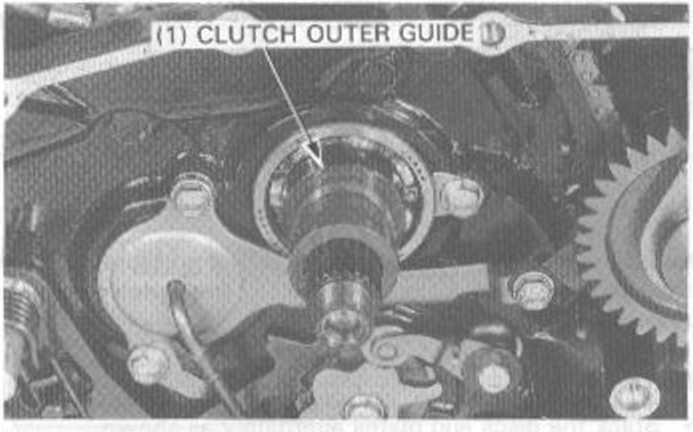

Install the clutch outer guide onto the mainshafl.

Raił the oil pump drive choin over the oil pump drive sprocket and oil pump driven sprocket with the "IN” mark on the driven sprocket facing inside.

Install the oil pump drive sprocket onto the clutch outer guide and install the oil pump driven sprocket onto the oil pump shaft.

Apply a locking agent to the threads of the oil pump driven sprocket bolt and tighten It with the washer to the specified torque.

TOROUE: 15 N-m (1.5 kg m. 11 ft-lb)

1) OIL PUMP DRIVE

(21 "IN" MARK

(4) DRIVE SPR¹

(3) BOLT/

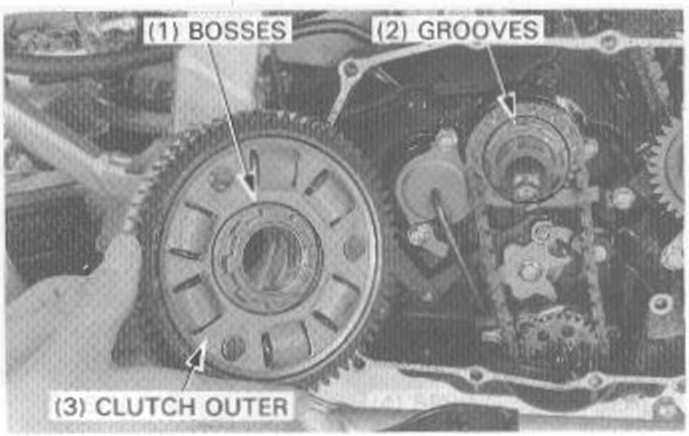

Install the clutch outer onto the oil pump drive sprocket, align-ing the bosses of the sprocket with the grooves of the clutch outer.

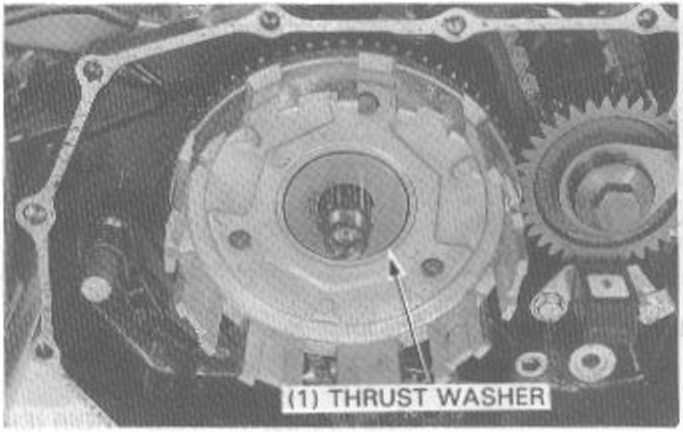

Install the thrust washer.

WASHER Fi

7-11
