89 TransAlp Manual Ignition System 7
IGNITION SYSTEM
IGNITION SYSTEM
f)
f)

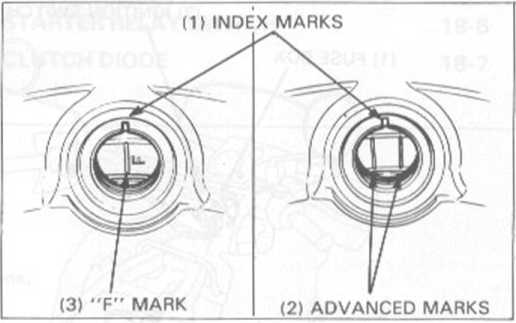

The timing is correct if the "F" mark aligns with the index mark on the left crankcase cover at 1,300 ± 100 rpm for each cylinder.
Raise the engine speed to 4,500 rpm.
The index mark should be between the advanced marks for each cylinder.
17-7
