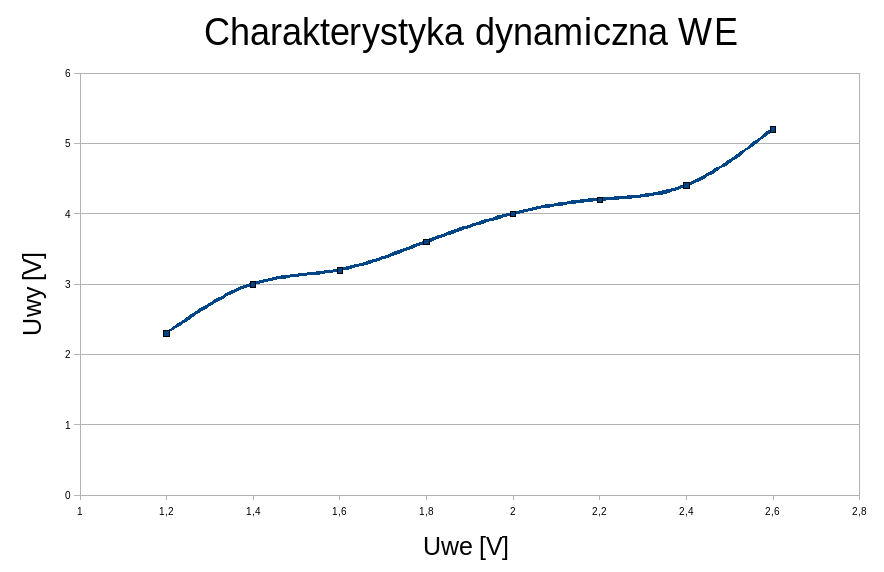

Uwe | 1.2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 |
Uwy | 2.3 | 3 | 3.2 | 3.6 | 4 | 4.2 | 4.4 | 5.2 |

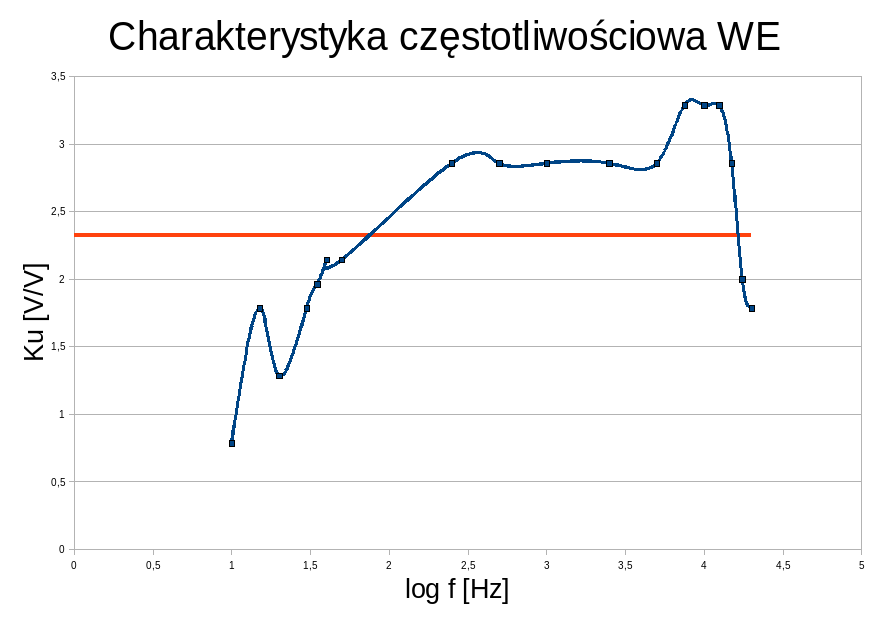

f | log f | Uwy | Ku | Ku | Ku max | 0,707*Ku max | ||
Hz | 0 | V/V | dB | 3.29 | 2.33 | |||
10 | 1 | 1.1 | 0.79 | -2.09 | 3.29 | 2.33 | ||
15 | 1.18 | 2.5 | 1.79 | 5.04 | 3.29 | 2.33 | ||
20 | 1.3 | 1.8 | 1.29 | 2.18 | 3.29 | 2.33 | ||
30 | 1.48 | 2.5 | 1.79 | 5.04 | 3.29 | 2.33 | ||
35 | 1.54 | 2.75 | 1.96 | 5.86 | 3.29 | 2.33 | ||
40 | 1.6 | 3 | 2.14 | 6.62 | 3.29 | 2.33 | ||
50 | 1.7 | 3 | 2.14 | 6.62 | 3.29 | 2.33 | ||
250 | 2.4 | 4 | 2.86 | 9.12 | 3.29 | 2.33 | ||
500 | 2.7 | 4 | 2.86 | 9.12 | 3.29 | 2.33 | ||
1000 | 3 | 4 | 2.86 | 9.12 | 3.29 | 2.33 | ||
2500 | 3.4 | 4 | 2.86 | 9.12 | 3.29 | 2.33 | ||
5000 | 3.7 | 4 | 2.86 | 9.12 | 3.29 | 2.33 | ||
7500 | 3.88 | 4.6 | 3.29 | 10.33 | 3.29 | 2.33 | ||
10000 | 4 | 4.6 | 3.29 | 10.33 | 3.29 | 2.33 | ||
12500 | 4.1 | 4.6 | 3.29 | 10.33 | 3.29 | 2.33 | ||
15000 | 4.18 | 4 | 2.86 | 9.12 | 3.29 | 2.33 | ||
17500 | 4.24 | 2.8 | 2 | 6.02 | 3.29 | 2.33 | ||
20000 | 4.3 | 2.5 | 1.79 | 5.04 | 3.29 | 2.33 | ||
45 | 1.65 | 3.2 | 2.29 | 7.18 | ||||
Uwej | 1.4 | |||||||
17782.79 |
