DUAL MODE(CDMA/AMPS)
PORTABLE TELEPHONE
SCH-A205
SERVICE
Manual
1. General Instruction
2. Specification
3. Circuit Description
4. NAM Programming
5. Test Procedure & Test Command
6. Electrical Parts List
7. Block Diagram
8. PCB Diagram
9. Schematic Diagrams
10. Exploded View & Its Part List
DUAL MODE TELEPHONE
CONTENTS
Samsung Electronics Co.,Ltd. Dec. 99
Pinted in Korea.
Code No.: GH68-02022A
ELECTRONICS
SAMSUNG Proprietary - Contents may change without notice
1-1
1. General Instruction
The SCH-A205 cellular phone functions as both analog cellular phone working in AMPS(Advanced
Mobile Phone Service) mode and Digital cellular phone working in CDMA(Code Division Multiple
Access) mode.
CDMA type digital mode applies DSSS(Direct Sequential Spread Spectrum) mode which first came
to be used in the military.
The DSSS reduces channel cross talk and allow to use one frequency channel by multiple users in
the same specific area, resulting in increase of channel capacity to about ten times compared to that
of analog mode currently used.
Soft/Sofer Handoff, Hard Handoff, and Dynamic RF Power Control technologies are combined into
this phone to reduce the call drop while usage.
CDMA digital cellular network consists of MSO(Mobile Switching Office), BSC(Base Station
Controller), BTS (Base Station Transmission System), and MS(Mobile Station). MS meets the specifi-
cations of the below :
¥ IS-95A : Mobile Station-Base Station Compatibility Standard for Dual-Mode Wideband Spread
Spectrum Cellular System
¥ IS-96A : Speech Service Option 1 Standard for Dual-Mode Wideband Spread Spectrum Cellular
System
¥ IS-98A : Standards for Dual-Mode Wideband Spread Spectrum Cellular Mobile System
¥ IS-126 : Mobile Station Loopback Service Options Standard
SCH-A205 is composed of main handset, one battery(800mAh), ear-microphone, and rapid DTC.
Travel adaptor(or travel charger) and HFK is optional. Hands-Free Kit is designed to be operated in
full-duplex mode taking turn-around delay between the phone and the system into account.
SAMSUNG Proprietary - Contents may change without notice
2-1
2. Specification
2-1 General
ITEM
Tx Freq. range
Rx Freq. range
Channel Bandwidth
Channel Spacing
Number of Channel
Duplex Separation
Type of Emission
In/Output Impedance
Tx Intermediate Freq.
Rx Intermediate Freq.
Tx Local Freq.
Rx Local Freq
TCXO freq.
Freq. Stability
Operating Temperature
CDMA
824 ~ 849MHz
869 ~ 894MHz
1.23MHz
30KHz
832
45MHz
40K0F8W,40K0F1D
50ohm
130.38MHz
85.38MHz
1st(260.76MHz)
2nd(FTX+130.38MHz)
1st(FRX+85.38MHz)
2nd(170.76MHz)
19.68MHz
(F
RX
-45MHz) ±300Hz
-30°C ~ +60°C
AMPS
824 ~ 849MHz
869 ~ 894MHz
30KHz
30KHz
832
45MHz
40K0F8W,40K0F1D
50ohm
130.38MHz
85.38MHz
1st(260.76MHz)
2nd(F
TX
+130.38MHz)
1st(F
RX
+85.38MHz)
2nd(170.76MHz)
19.68MHz
±2.5ppm
-30°C ~ +60°C
Supply Voltage
3.75V
Size and Weight
STD : 80mm X 43mm X 25.5mm, 85 g, 800 mA
SAMSUNG Proprietary - Contents may change without notice
2-2
2-2 Digital Mode
Waveform Quality
0.944 or more
Time Reference
±1uS or less
Rx Sensitivity and Dynamic Range
-104dBm, FER=0.5% or less
-25dBm, FER=0.5% or less
Maximum TX Output Power
23dBm(200mW)
TX Frequency Deviation
±300Hz or less
Occupied Band Width
1.32MHz
TX Conducted Spurious Emission
900KHz : -42dBc / 30KHz below
1.98MHz: -54dBc / 30KHz below
Minimum TX Power Control
below -50dBm
Open Loop Power Control
-25dBm: -57.0dBm ~ -38.5dBm
-65dBm: -17.5dBm ~ + 1.5dBm
-104dBm: +18.0dBm ~ +30.0dBm
Standby Output Power
below -61dBm
Colsed Loop TX Power Control Range
Test1: ±24dB or less
Test2: 0mS ~ 2.5mS
Test3: ±24dB or more
Test4: ±24dB or more
Test5: ±24dB or more
SAMSUNG Proprietary - Contents may change without notice
2-3
2-3 ANALOG MODE
TRANSMITTER
RF output power
0.6W (+2/-4dB)
Carrier ON/OFF conditions
"ON" Condition
within ±3dB of specification output (in 2mS)
"OFF" Condition
below -60dBm (in 2mS)
Compressor
Compression Rate
2:1
Attack Time
3mS
Recovery Time
13.5mS
Reference Input
Input level for producing a nominal ±2.9KHz peak
freqency deviation of transmitted carrier
Preamphasis
6dB/OCT within 0.3 ~ 3KHz
Maximum Freqency Deviation
F3 of G3
±12KHz
Supervisory Audio Tone
±2KHz (±10%)
Signaling Tone
±8KHz (±10%)
Wideband Data
±8KHz (±10%)
Post Deviation Limiter Filter
3.0 ~ 5.9KHz
above 40 LOG (F/3000) dB
5.9 ~ 6.1KHz
above 35 dB
6.1 ~ 15KHz
above 40 LOG (F/3000) dB
Over 15KHz
above 28 dB
Spectrum Noise Suppression
For all modulation
f
0
+20KHz ~ f
0
+45KHz
above 26 dB
For modulation by voice and SAT
f
0
+45KHz
above 63 +10 LOG (PY) dB
For modulation by WBD(without SAT)
and ST (with SAT)
f
0
+45KHz ~ f
0
+60KHz
above 45 dB
f
0
+60KHz ~ f
0
+90KHz
above 65 dB
f
0
+90KHz ~ 2f
0
above 63 +10 LOG (PY) dB
(where f
0
=carrier frequency
PY=mean output power in watts)
Harmonic and conducted Spurious Emissions
below 43 + 10 LOG (PY) dB
SAMSUNG Proprietary - Contents may change without notice
2-4
RECEIVER
De-Emphasis
-6dB / OCT within 0.3 ~3KHz
Expander
1:2
Expander Rate
within 3mS
Attack Time
within 13.5mS
Recovery Time
output level to a 1000Hz tone from a carrier within
Reference Input
±2.9KHz peak frequency deviation
Sensitivity
12dB SINAD / -116dBm
Intermodulation Spurious Response Attenuation
avove 65dB
RSSI Range
above 60dB
Protection Against Spurious
above 60dB
Response Interference
In Band Conducted Spurious Emission
Transmit Band
below -60dBm
Receive Band
below -80dBm
Out of Band Conducted Spurious Emissions
below -47dBm
Radiated Spurious Emission
Frequency Range
Maximum Allowable EIRP
25 ~ 70 MHz
-45dBm
70 ~ 130MHz
-41dBm
130 ~ 174 MHz
-41 ~ -32dBm
174 ~ 260 MHz
-32dBm
260 ~ 470 MHz
-32 ~ -26dBm
470 ~ 1GHz
-21dBm
SAMSUNG Proprietary - Contents may change without notice
2-5
MSC Transmitter Frequency
FA NO.
CH NO.
Center Frequency
FA NO.
CH NO.
Center Frequency
1 1011
824.64MHz 11 404 837.12MHz
2 29
825.87MHz 12
445
838.35MHz
3 70
827.10MHz 13
486
839.58MHz
4 111
828.33MHz 14
527 840.81MHz
5 152
829.56MHz 15
568 842.04MHz
6 193
830.79MHz 16
609 843.27MHz
7 234
832.02MHz 17
650 844.27MHz
8 275
833.25MHz 18
697 845.91MHz
9 316
834.48MHz 19
738 847.14MHz
10 363 835.89MHz 20 779 848.37MHz
MSC Receiver Frequency
FA NO.
CH NO.
Center Frequency
FA NO.
CH NO.
Center Frequency
1
1011 869.64MHz
11
404 882.12MHz
2 29
87.087MHz 12
445
883.35MHz
3 70
872.10MHz 13
486
884.58MHz
4 111
873.33MHz 14
527 885.81MHz
5 152
874.56MHz 15
568 887.04MHz
6 193
875.79MHz 16
609 888.27MHz
7 234
877.02MHz 17
650 889.27MHz
8 275
878.25MHz 18
697 890.91MHz
9 316
879.58MHz 19
738 892.14MHz
10 363 880.89MHz 20 779 893.37MHz
SAMSUNG Proprietary - Contents may change without notice
2-6
2-4 CDMA Debug Display Information (menu 9 000000 1)
IN IDLE MODE
Sxxxxx : SID (System Identification) toggle
Nxxxxx : NID (Network Identification) toggle
• SIx : Slot cycle index (lowest between the system and the
phone will be used)
• Handset Status : 0-Acquisition
1-Synchronization
2-Paging(Idle)
3-Traffic Initialization
4-Traffic Mode
5-Exit
• T-xx : Tx adjust, Value ranges from +63~-63dB
• Dxxx : sector power in dBm
• -xx : Ec/Io
• Pxxx : PN offset
• CHxxxx : channel number
• TEx : Tx vocoder rate (8 is full rate, 1 is 1/8th rate)
E : Echo canceler
• REx : Rx vocoder rate (8 is full rate, 1 is 1/8th rate)
• xx : Walsh code used in traffic channel
• SIDxxxxx : FM Home System ID
• PWRx : Power Level 0~7
• SATx : Supervisory Audio Tone code (0~3)
• x (Using Frequency Band) : A Band or B Band
• RSSIxxx : RSSI value
• CHxxx : Using Channel
S xxxxx SI x x
T-xx D xxx -xx
P xxx CH xxxx
2-5 FM Debug Display Information (menu 9 000000 1)
SID xxxxx x
PWR x RSSI xxx
SAT x CH xxxx
TE x RE x xx x
T-xx D xxx -xx
P xxx CH xxxx
IN CONVERSATION MODE
SAMSUNG Proprietary - Contents may change without notice
4-1
4. NAM Programming
NAM feature can be programmed as follows
1. Press Menu+6+0 to enter the NAM programming mode, and enter the service code.
2. If you enter the NAM programming mode, each item shows the currently stored data
Go to the next item by pressing the OK key
3. You can modify the data by entering a new data and store it by pressing the OK key
4. If you enter a wrong digit press the CLR key to delete the last digit.
Press and hold the CLR key to delete all digits
5. To scroll items backwards or forwards without changing, push the OK(scroll) key to the up or down.
6. After finishing the NAM programming, press the END key to exit the NAM pragramming mode
.
LCD Display
Key Input
Function
Menu+6+0+
service code
Enter the NAM programming mode
NAM program
1:Setup NAM1
1
Chose 'Setup NAM1'
2:Setup NAM2
NAM1
New data
Phone number is displayed.
Phone #
or
To change the phone number, enter the new one.
3003003000
OK
Press the OK key to store it.
NAM1
New data
Directory number is displayed.
Directory #
or
To change the directory number, enter the new one.
3003003000
OK
Press the OK key to store it.
NAM1
The roaming list is enabled or not.
Activate PRL
OK
To change sytem selection operaiton push the OK(scroll) key
No
to the right or left. Press the OK key to store it.
NAM1
New data
Analog home system ID, current status is displayed.
Anlg HomeSID
or
To change the SID, enter the new one.
32768
OK
Press the OK key to store it
NAM1
New data
1
st
CDMA home system ID, current status is displayed.
Dgtl HomeSID
or
To change the SID, enter the new one.
32768
OK
Press the OK key to store it
NAM1
To program the more NAM item push the OK(scroll) key to
More Prog.?
OK
the right or left. Press the OK key.
No
If service code prompt is displayed, you have to enter the
service code.
SAMSUNG Proprietary - Contents may change without notice
4-2
LCD Display
Key Input
Function
More NAM programming mode
NAM program
1:General
1 Chose
'General'
2:Setup NAM1
3:Setup NAM2
General
ESN
OK
Electronic Serial Number of the phone is displayed.
B0000000
General
CAIversion
OK
Common Air Interface version is displayed.
3
General
To change Vocoder rate, push the OK(scroll) key to the right
VOC Select
OK
or left.
SO_EVRC_FORC
Press the OK(scroll) key to store it
General
SCM
OK
Station Class Mark is displayed.
00101010
General
6-digit code
Service Code
OK
Service Programming Code is displayed.
626626
General
4-digit code
Security(Menu+0) lock code is displayed.
Lock Code
OK
To changed the lock code, enter the new lock code.
0000
Press the OK key to store it.
General
Slot mode operation is enabled or not
Slot Mode
OK
To change Slot mode opration, push the OK(scroll) key to the
Yes
right or left.
Press the OK key to store it.
General
New data
Slot Cycle Index
Slot Index or
The higher, the longer sleeping time
2
OK
To change Slot Cycle Index, enter the new data from 0 to 7
Press the OK key to store it.
SAMSUNG Proprietary - Contents may change without notice
4-3
LCD Display
Key Input
Function
General
Roundup Timer
Roundup Timer
OK
To change Slot mode opration, push the OK(scroll) key to
No
the right or left.
Press the OK key to store it.
NAM program
1:General
2
Chose 'Setup NAM1'
2:Setup NAM1
3:Setup NAM2
NAM1 Digital
New data
IMSI Mobile Country Code, current code is displayed.
IMSI_MCC
or
To change the MCC, enter the new one.
454
OK
Pres the OK key to store it.
NAM1 Digital
New data
IMSI Mobile Network Code, current code is displayed.
IMSI_MNC
or
To change the MNC, enter the one.
05
OK
Press the OK key to store it.
NAM1 Digital
New data
Phone number is displayed.
Phone #
or
To change the phone number, enter the new one.
8520000000
OK
Press the OK key to store it.
NAM1 Digital
New data
Directory number is displayed.
Directory #
or
To change the directory number, enter the new one.
8520000000
OK
Press the OK key to store it.
NAM1 Digital
New data
Primary CDMA channel for system A
Pchn Sys A or
To change the channel, enter the new one.
283
OK
Press the OK key to store it.
NAM1 Digital
New data
Primary CDMA channel for system B
Pchn Sys B or
To change the channel, enter the new one.
384
OK
Press the OK key to store it.
NAM1 Digital
New data
Secondary CDMA channel for system A
Schn Sys A or
To change the channel, enter the new one.
691
OK
Press the OK key to store it.
NAM1 Digital
New data
Secondary CDMA channel for system B
Schn Sys B or
To change the channel, enter the new one.
777
OK
Press the OK key to store it.
SAMSUNG Proprietary - Contents may change without notice
4-4
LCD Display
Key Input
Function
NAM1 Digital
New data
1
st
CDMA home system ID, current status is displayed.
Home SID 01
or
To change the SID, enter the new one.
10641
OK
Press the OK key to store it
NAM1 Digital
New data
1
st
CDMA home network ID, current status is displayed.
Home NID 01
or
To change the NID, enter the new one.
65535
OK
Press the OK key to store it
Repeated to the SID 20 and NID 20
NAM1 Digital
New data
1
st
lockout system ID, current status is displayed.
LockoutSID01
or
To change the lockout SID, enter the new one.
8103
OK
Press the OK key to store it.
Repeated to the lockout SID 10
NAM1 Digital
CDMA HomeSID
OK
Yes
NAM1 Digital
CDMA fSID
OK
Yes
NAM1 Digital
CDMA fNID
OK
Yes
NAM1 Digital
OK
CDMA Access Overload Class, current status is displayed.
ACCOLC
0
NAM program
Scroll
1:General
and
You can programm the NAM2 by chosing 'Setup NAM2'.
2:Setup NAM1
OK
3:Setup NAM2
Autonomous registeration status indicator, current status is
displayed.
To change sytem selection operaiton push the OK(scroll) key
to the right or left.
Press the OK key to store it.
SAMSUNG Proprietary - Contents may change without notice
5-1
5. Test Procedure
5-1 Configuration of Test
Spectrum Analyzer
RF In
HP8924C
RF
In/Out
Directional
Coupler
Test Jig
To A-Out
To A-In
DC Power Supply
(+3.93V)
Audio
Out
Audio
In
CAUTION : The test jig and data cable has a voltage drop of 0.18V at FM Max power output you’d for normal
test condition.
(Nominal voltage of battery is 3.75V at cellular phone)
5-2
5-2 List of Equipment
- DC Power Supply
- Test Jig
- Test Cable
- CDMA Mobile Station Test Set HP8924C, HP83236A, CMD-80, etc
- Spectrum Analyzer(include CDMA Test Mode) HP8596E
Test Jig
T
E
S
T
A
U
T
O
P
A
C
K
UP:AUTO POWER ON
DOWN:NOT USE
AUDIO SELECT
LEPT:AUDIO IN
RIGHT:AUDIO OFF
DH25 CONNECTOR
CONNECT TO
DB25 CONNECTOR
OP TEST CABLE
CONNECT TO
AUDIO OUT PORT
OF TEST
EQUIPMENT
CUSE BNC CABLE
CONNECT TO
AUDIO IN PORT
OF TEST
EQUIPMENT
CUSE BNC CABLE
NOT USED
DES CONNECTOR
CONNECT TO JEN
PC SERIAL PORT
BJ11 CONNECTOR
CONNECT TO HP
SERIAL PORT
DC POWER INPUT PORT
CHANGE VOLTAGE LEVEL
BY MODEL(6dr? avde)
RED:+
BLACK : END
SAMSUNG Proprietary - Contents may change without notice
5-3

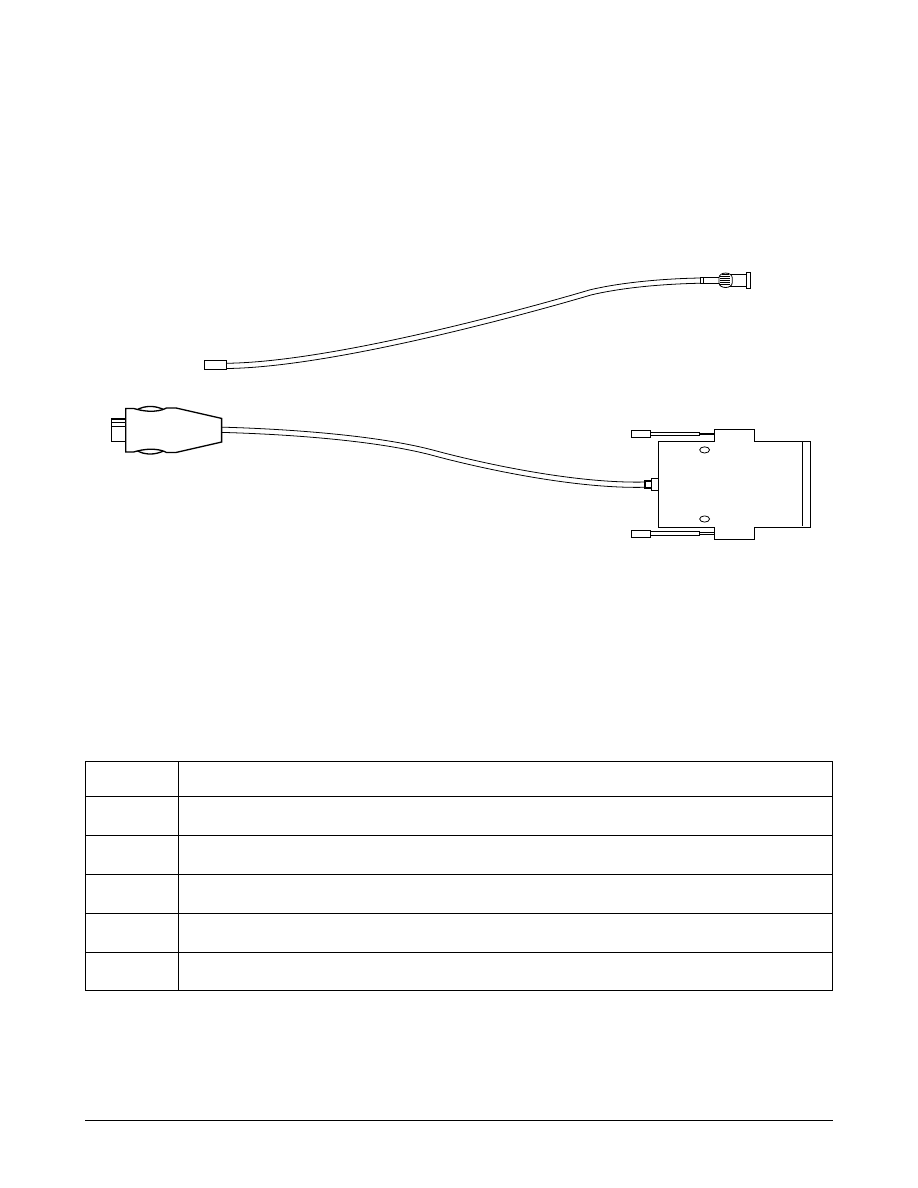

5-3 TEST CABLE DESCRIPTION FOR SCH-A205
1. TEST CABLE
2. TEST CABLE CONNECTIONS
1 MHC
172
2
RF CABLE (1.4 dB Loss in 800MHz)
3
BNC CONNECTOR (RF)
4
PLUG CONNECT TO SCH-N100/N101/N105
5 DATA CABLE
6
Dsub 25PIN CONNECTOR (DATA)
SAMSUNG Proprietary - Contents may change without notice
5-4

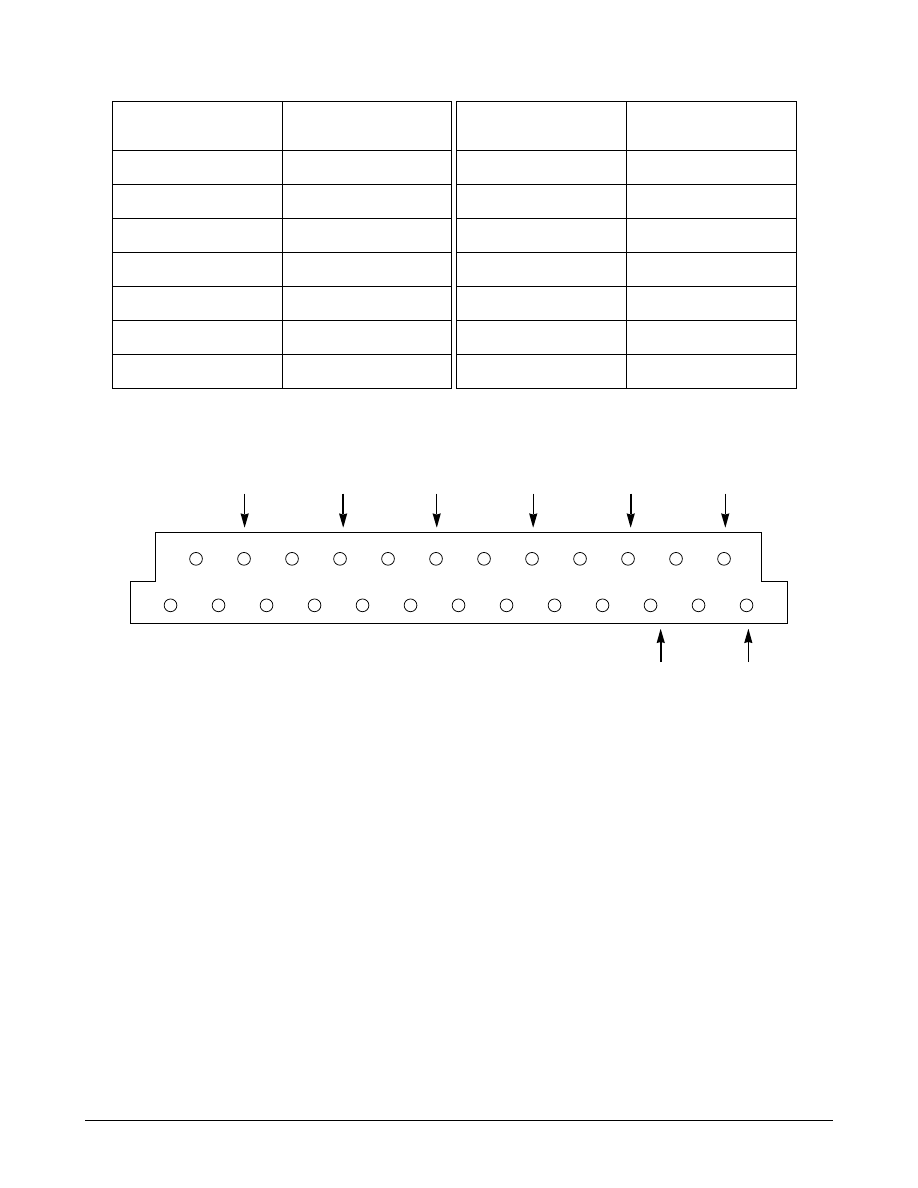

3. Dsub 25 PIN CONNECTOR PIN DESCRIPTION (TEST CABLE 1, BACK SIDE)
DATA
Dsub CONN.
DESCRIPTION
PIN NO.
V_F
12
DGND
2, 4, 6, 13, 19
BATT
15, 16, 22
C_F
3, 20
TX_AUDIO
5
DP_TX_DATA
7
RX_AUDIO
1
DATA
Dsub CONN.
DESCRIPTION
PIN NO.
DP_RX_DATA
21
HP_PWR
7
RI
CD
RTS
CTS
DTR
14
16
18
20
22
24
15
17
19
21
23
25
1
2
3
4
5
6
7
8
9
10
11
13
12
SAMSUNG Proprietary - Contents may change without notice
5-5
5-4 Test Procedure
1. Change to Test Mode
A. To change the phone's state from Normal Mode to Test Mode, You should enter the following keys.
"* 7 5 9 # 8 1 3 5 8 0"
B. The command “0 1” is Suspend.
C. The command "21" is mode and channel change.
"10000" or "10001" : AMPS's Sytem A or Sytem B
"20363"
and Push the Navigation key to save.
C. The command "21" is mode and channel change.
"20363" : CDMA 363CH
and Push the Navigation key to save.
D. To finish the Test Mode, You should enter the command "0 2".
2. CDMA Channel Selection and Tx Power Output Level Control
2-1 CDMA
A. Enter to Test Mode ( "* 7 5 9 # 8 1 3 5 8 0" ).
B. "0 1" : Suspend.
C. The command "21" is mode and channel change , press "OK" to save.
"20363"
D. To finish the Test Mode, You should enter the command "0 2",
and enter to Test Mode ("* 7 5 9 # 8 1 3 5 8 0").
"0 1" : Suspend.
Channel number
Mdoe : CDMA
Channel number
Mdoe : CDMA
SAMSUNG Proprietary - Contents may change without notice
5-6
E. "0 9 0 3 6 3 #" : Set to '0363' channel.
F. "0 7" : Carrier On.
G. The command "73" is ON/OFF of Tx drive Amp.
In case of Tx PWR output bellow - 6dBm, set to "0".
In case of Tx PWR output above - 6dBm, set to "1".
H. "3 4" : Spread spectrum to 1.23MHz band width.
I. "7 1 * * * " : Adjust RF power level.
"* * *" means AGC level and AGC level range is f rom 000 to 511.
2-2.AMPS(FM)
A. Enter to Test Mode ("* 7 5 9 # 8 1 3 5 8 0").
B. "0 1" : Suspend.
C. The command "21" is mode and channel change
"10000" or "10001" : AMPS's Sytem A and Sytem B
and Push the Navigation key to save.
D. To finish the Test Mode, You should enter the command "0 2",
and enter to Test Mode ("* 7 5 9 # 8 1 3 5 8 0").
"0 1" : Suspend.
E. "4 6" : Vocoder initial to Analog mode.
F. "0 9 0 3 6 3 #" : Set to '0363' channel.
G. "0 7" : Carrier On.
H. The command "73" is ON/OFF of Tx drive Amp. In case of AMPS, set to "1".
I. "7 2 * * * " : Output RF power level is set as power level 2
"* * *" means AGC level and AGC level range is f rom 0 to 511.
J. "1 0 2" : RF Power level control, 2(0~7) means power level .
SAMSUNG Proprietary - Contents may change without notice
5-7
3. CDMA
TEST ITEMS PROCEDURE
1. PREPARANCE
Set test equipments up.
"* 7 5 9 # 8 1 3 5 8 0" : Enter the Test Mode
"0 1" : Suspend
"0 4" : Current Mode Check
Conf irm that the phone is in the "CDMA Mode".
(If not CDMA Mode, Use Test Command "21""2XXXX" and Push
the Navigation Key to "OK", and enter "0 2" to restart)
If you select a wrong key, press "#", then enter new command.
To exit the Test Mode at any time, just press [0 2].
2. FREQUENCY
"0 1" : Suspend.
ACCURACY
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"7 3" : ON/OFF of Tx drive Amp.
In case of Tx PWR output bellow - 6dBm, set to "0".
In case of Tx PWR output above - 6dBm, set to "1".
"7 1 3 6 0 #" : Set AGC level.
Measure the TX f requency : 835.89MHz°æ300Hz.
3. OCCUPIED CDMA
"0 1" : Suspend.
BANDWIDTH
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"3 4" : Spread spectrum.
"7 3" : ON/OFF of Tx drive Amp.
In case of Tx PWR output bellow - 6dBm, set to "0".
In case of Tx PWR output above - 6dBm, set to "1".
"7 1 X X X #" : Enter AGC Code(XXX) to adjust RF Output Power.
Measure the bandwidth (spec: 1.32MHz).
4. LIMITATIONS ON
"0 1" : Suspend.
EMISSIONS
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"7 3" : ON/OFF of Tx drive Amp.
In case of Tx PWR output bellow - 6dBm, set to "0".
In case of Tx PWR output above - 6dBm, set to "1".
"3 4" : Spread spectrum.
"7 1 X X X #" : Enter AGC Code(XXX) to adjust RF Output Power.
Measure the spurious at FC ±900kHz, FC ±1.98MHz, 2FC, 3FC, 1/2FC.
spec: FC ±900kHz below 42dBc/30kHz
FC ±1.98MHz below 54dBc/30kHz
Outside Receive Band 43+10log (PY)
PY: Mean Output Power in watts.
SAMSUNG Proprietary - Contents may change without notice
5-8
TEST ITEMS PROCEDURE
5. GATED POWER &
Set the service option 2.
TIME
Set the data rate Eighth (1200bps).
Registering: HHP ~ HP8924C.
Call : HP8924C~ HHP.
Measure the Gated Power & Time.
spec : Gated Power - at least 20dB
Gated Time - Rising Time : below 6
µs
Falling Time : below 6
µs
Burst Time : below 1.25
µs
SAMSUNG Proprietary - Contents may change without notice
5-9
4. AMPS(FM)
TEST ITEMS PROCEDURE
1.
Set test equipments up.
PREPARATION
"* 7 5 9 # 8 1 3 5 8 0" : Enter the Test Mode
"0 1" : Suspend
"0 4" : Current Mode Check
Confirm that the phone is in the "AMPS Mode".
( If not AMPS Mode, Use Test Command "21", "10000" or "10001"
and Enter "0 2" to restart)
"4 6" : Initialize Vocoder in Analog mode
If a wrong key would be selected, press "#", and then enter new command.
To exit the Test Mode at any time, just press "0 2".
"731" : Drive Amp "ON".
2. RF
"0 1" : Suspend.
POWER
"4 6" : Initialize Vocoder in Analog mode.
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"731" : Drive Amp "ON".
"1 0 2" : RF Power level selection, "2" means one of the power levels
(0~7).
Measurement of the Power Output Levels
Level
RF Power
0 ~ 2 + 28 dBm +2/- 4 dB
3 + 24 dBm +2/- 4 dB
4 + 20 dBm +2/- 4 dB
5 + 16 dBm +2/- 4 dB
6 + 12 dBm +2/- 4 dB
7 + 8 dBm +2/- 4 dB
"0 8" : Carrier off
Note 1 : In case of using the antenna cable, compensation for the cable loss
should be added (about 1.5dB).
Note 2 : To prevent phones from being damaged, they must be measured only
by calibrated test equipments.
Warning !
Adjustments without calibrated equipments can cause phones to be heated
excessively and would void the warranty.
3. TX
"0 1" : Suspend.
FREQUENCY
"4 6" : Initialize Vocoder in Analog mode.
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"731" : Drive Amp "ON".
Measure the TX frequency : 835.89 MHz ±.5ppm.
SAMSUNG Proprietary - Contents may change without notice
5-10
TEST ITEMS PROCEDURE
4. VOICE
"0 1" : Suspend.
DEVIATION
"4 6" : Initialize Vocoder in Analog mode.
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"731" : Drive Amp "ON".
"1 4" : TX Audio unmute.
Set the audio generator output to 1kHz, 1.0Vrms.
Measure the Tx voice deviation by using the HPF of
20Hz and the LPF of 99kHz (spec : less than ±12kHz).
5. ST DEVIATION
"0 1" : Suspend.
"4 6" : Initialize Vocoder in Analog mode.
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"731" : Drive Amp "ON".
"1 6" : ST on.
Measure the Tx ST deviation by using the HPF of 50Hz
(spec : 8kHz ±10%).
"1 7" : ST off.
6. SAT
"0 1" : Suspend.
DEVIATION
"4 6" : Initialize Vocoder in Analog mode.
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"731" : Drive Amp "ON".
"3 2" : SAT on.
Set the equipment as following.
RF frequency : 880.89MHz
Input RF level : -80dBm
Modulation frequency : 6kHz
Frequency deviation : 2kHz
Measure the Tx SAT deviation by using the HPF of 50Hz
and the LPF of 6kHz (spec : 2kHz ±10%).
"3 3" : SAT off.
SAMSUNG Proprietary - Contents may change without notice
5-11
TEST ITEMS PROCEDURE
7. WBD
"0 1" : Suspend.
DEVIATION
"4 6" : Initialize Vocoder in Analog mode.
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"731" : Drive Amp "ON".
"3 4" : WBD on.
Measure the WBD deviation by using the HPF of 50Hz and
the LPF of 20kHz (spec : 8kHz ±10%).
8. RX AUDIO
"0 1" : Suspend.
"4 6" : Initialize Vocoder in Analog mode.
"0 9 0 3 6 3 #" : Set channel to 363.
"0 7" : Carrier On.
"731" : Drive Amp "ON".
"1 2" : RX Audio unmute.
Set the equipment as following.
RF frequency
: 880.89MHz
Input RF level
: -80dBm
Modulation frequency : 1kHz
Frequency deviation
: ±8kHz
Measure audio AC level.
SAMSUNG Proprietary - Contents may change without notice
5-12
5-5 Test Command Table
1. Test Command table
To changed the phone from the normal mode to the test mode, you should enter the following keys:
Press *759#813580
Command No
Command SW Name
Description
01(1F,0,0)
02(3F,0,0)
04(1D,0,1)
07(81,0,0)
08(82,0,0)
09(83,4,0)
10(84,1,0)
11(85,0,0)
12(86,0,0)
13(87,0,0)
14(88,0,0)
15(89,1,0)
16(8F,0,0)
17(90,0,0)
18(92,2,0,63)
19(93,0,0,0)
20(9E,3,0,511)
21(9C,5,0,31175)
22(91,96,96)
23(95,3,4)
24(9F,7,8)
25(92,0,0)
26(93,0,0)
27(96,0,0)
28(97,0,0)
30(9D,15,0)
31(00,1,0,1)
32(A0,1,0)
33(A1,0,0)
34(A2,0,0)
37(A5,3,0,511)
38(A6,0,0,0)
39(A7,0,0,0)
40(A8,4,0,1023)
41(A9,3,0,255)
42(AA,1,0)
43(AB,0,0)
44(B0,0,0)
45(B1,0,0)
T_SUSPEND_I
T_RESTART_I
T_GET_MODE_I
T_CARRIERON_I
T_CARRIEROFF_I
T_LOADSYN_I
T_PWRLEVEL_I
T_RXMUTE_I
T_RXUNMUTE_I
T_TXMUTE_I
T_TXUNMUTE_I
T_VOC_ESEC_I
T_STON_I
T_STOFF_I
T_LCD_CONTRAST_I
T_INDEX_DECR_I
T_LNA_GAIN_WR_I
T_TEST_SYS_I
T_SNDNAM_I
1)
T_SNDVERSION_I
1)
T_SNDESN_I
1)
T_BACKLIGHT_ON_I
T_BACKLIGHT_OFF_I
T_DATASVC_ON_I
T_DATASVC_OFF_I
T_PLINE_I
T_AUTOANSWER_I
T_SATON_I
*2)
T_SATOFF_I
*
T_CDATA_I
T_CDMA_PDM1_I
T_PA_R0_ON_I
T_PA_R0_OFF_I
T_VOC_CDMA_UNITY_GAIN_I
T_VOC_FM_HFRX_UPGAIN_I
T_DTMFON_I
2)
T_DTMFOFF_I
T_COMPANDORON_I
T_COMPANDOROF_I
Enter the test menu
Escape from test menu
Get mode CDMA/FM
Turn on the carrier
Turn off the carrier
Load the synthesizer for locking
Change RF power level
Mute rx audio
Unmute rx audio
Mute tx audio
Unmute tx audio
Echo Canceller On/Off
Transmit a continuous Signaling Tone(ST)
Stop transmit a continuous Signaling Tone(ST)
Tune LCD contrast
Index dn key
write LNA gain for IMD test
set test system & Channel
Display & Send NAM Information
Display & Send Software Version
Display & return ESN
Backlight on
Backlight off
Enable CD pin for the data service
Disable CD pin for the data service
Display and return production date
Enable Auto-answer mode
Enable the transmission of SAT
Disable the transmission of SAT
Continuously send TX Control data
set PDM1 value for CDMA TX
PA_RO ON
PA_RO OFF
Vocoder CDMA unity gain
Vocoder fm hfrx upgain
Turn on DTMF
Turn off DTMF
Turn on compandor
Turn off compandor
SAMSUNG Proprietary - Contents may change without notice
5-13
Command No
Command SW Name
Description
46(B2,0,0)
47(B3,3,0)
48(B4,0,0)
49(B5,0,0)
50(B6,0,4)
53(BA,3,0,255)
54(BB,7,8,0)
55(AC,1,0)
56(AD,0,0,0)
60(BF,3,0)
61(C0,3,0)
62(C1,3,0)
63(C2,3,0)
64(C3,3,0)
65(C4,3,0)
66(C5,3,0)
67(C6,0,6)
68(C8,0,3)
69(C9,0,3)
70(CA,3,0)
71(D1,3,0)
72(D2,3,0)
73(D3,1,0,3)
75(D5,0,3)
76(D6,0,3,255)
77(D7,0,3)
78(D8,0,3,255)
79(D9,1,0)
80(DA,0,0)
81(E3,0,0)
82(E4,0,0)
87(E9,0,0)
88(EA,3,0)
89(EB,3,0)
91(F1,1,1,1)
92(D4,5,0)
93(F3,4,0)
94(F4, 4, 0,1023)
95(F5, 4, 0,1023)
96(F6,4,0)
97(F2,4,0)
99(FC,4,0)
T_FM_VCLINE_I
*
T_FM_AUD_GAIN_I
T_VIBRATOR_ON_I
T_VIBRATOR_OFF_I
T_BATT_TYPE_I
T_CARRIER_I
T_SNDPINFO_I
T_EXT_AUDIO_I
T_LOOP_BACK_I
T_FM_TX_GAIN_I
2)3)
T_FM_RX_GAIN_I
2)3)
T_DTMF_VOL_TX_I
2)3)
T_TX_LIMITER_I
2)3)
T_FM_SAT_LEVEL_I
2)3)
T_FM_FREQ_SGAIN_I
2)3)
T_FM_ST_GAIN_I
2)3)
T_READ_BATT_I
1)
T_VBATT1_I
3)
T_VBATT2_I
3)
T_WRITE_BATT_I
3)3)
T_CDMA_TXADJ_I
2)
T_FM_TXADJ_I
2)
T_SET_PA_R_I
T_READ_RSSI_I
3)
T_READ_PWR_DET_I
T_READ_TEMP_I
T_RXRAS_AUTO_I
T_BUZZER_ON_I
2)
T_BUZZER_OFF_I
T_VOC_PCMLPON_I
T_VOC_PCMLPOFF_I
T_FM_LOOP_TEST_I
T_TRK_ADJ_I
3)
T_CDTRK_ADJ_I
T_SVC_LED_I
T_TXRAS_ADJ_I
T_RXRAS_ADJ_I
T_MAXP_LIMIT_I
T_SW_CHANFLAT_I
T_CH_FLATNESS_I
T_FM_TX_PWR_I
T_SND_GAIN_I
Enter FM voice state
FM audio gain
Activate a vibrator
Inactivate a vibrator
Battery Type
Target Carrier option (Change banner)
Procuct information
External Audio Path On/Off
Loop Back Service On
AMPS Tx Audio Gain Control
AMPS Rx Audio Gain Control
AMPS Tx DTMF Gain Control
AMPS Tx Limiter Gain Control
AMPS Tx SAT level Control
AMPS Tx Master Gain Control
AMPS Tx ST Gain Control
Saved Low battery value read
Set the low battey position in the standby
Set the low battey position in the talking
write a BATT
Sets tx_agc_adj for CDMA mode
Sets tx_agc_adj for AMPS mode
Set PA R1, R0 range bits
Read a RSSI
read a POWER DETECTOR
Read a TEMP
Adjust RXRAS using the HP8924C
Buzzer on
Buzzer off
Turn on to play a PCM LOOP BACK
Turn off to play a PCM LOOP BACK
FM loop back
TRK LOCAL ADJUST
CDMA TRK LOCAL ADJUST
SVC_LED indicator enable or not
CDMA TX high power RAS table( adjustable )
CDMA RX RAS table( not adjustable )
Tx MAX Power Limit Adjust
Tx MAX Power Limit Adjust with CH compensation
Adjust TX high power RAS
Adjust FM Power level 2 ~ 7
Mic/Speaker Gain control
SAMSUNG Proprietary - Contents may change without notice
5-14
2. CONVERSION TABLE OF FREQUENCY vs CHANNEL
T Y P E CHANNEL
CONVERSION
EQUATION
REMARK
TX FREQUENCY
1
≤
N
≤
799
F=0.03 X N + 825.00
N ; CH NUMBER
991
≤
N
≤
1023
F=0.03 X (N- 1023) + 825.00
F ; FREQUENCY
RX FREQUENCY
1
≤
N
≤
799
F=0.03 X N + 870.00
991
≤
N
≤
1023
F=0.03 X (N- 1023) + 870.00
SAMSUNG Proprietary - Contents may change without notice
6-1
6. Electrical Parts List
GH41-00140A
PCB-SCHA205
SCH-A205,FR-4,8L,REV.07,0.8T,118X138,-,-,-,-
C101
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C102
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C103
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C104
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C105
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C106
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C107
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C108
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C109
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C110
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C111
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C112
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C113
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C114
2203-000995
C-CERAMIC,CHIP
0.047nF,5%,50V,NP0,TP,1005
C115
2203-000995
C-CERAMIC,CHIP
0.047nF,5%,50V,NP0,TP,1005
C116
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C120
2404-001100
C-TA,CHIP
33uF,20%,6.3V,GP,TP,3719,-
C121
2404-001100
C-TA,CHIP
33uF,20%,6.3V,GP,TP,3719,-
C122
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C123
2404-001100
C-TA,CHIP
33uF,20%,6.3V,GP,TP,3719,-
C124
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C126
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C127
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C128
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C129
2203-005480
C-CERAMIC,CHIP
33nF,10%,10V,X7R,TP,1005,-
C130
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C131
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C140
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C142
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C143
2203-000940
C-CERAMIC,CHIP
470pF,10%,50V,X7R,TP,1005,-
C144
2203-000940
C-CERAMIC,CHIP
470pF,10%,50V,X7R,TP,1005,-
C145
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C146
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C147
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C148
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C151
2203-001405
C-CERAMIC,CHIP
22nF,+80-20%,25V,Y5V,TP,1005
C154
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C155
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C157
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C158
2203-001210
C-CERAMIC,CHIP
8.2nF,10%,16V,X7R,TP,1005,-
C159
2203-001210
C-CERAMIC,CHIP
8.2nF,10%,16V,X7R,TP,1005,-
C160
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C161
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C162
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-2
C163
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C164
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C165
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C180
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C181
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C182
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C183
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C184
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C185
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C186
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C187
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C188
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C189
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C190
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C191
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C192
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C193
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C194
2203-001153
C-CERAMIC,CHIP
0.068nF,5%,50V,NP0,TP,1005
C196
2203-000854
C-CERAMIC,CHIP
0.039nF,5%,50V,NP0,TP,1005
C197
2203-000359
C-CERAMIC,CHIP
0.15nF,5%,50V,NP0,TP,1005
C200
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C201
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C202
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C205
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C206
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C210
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C220
2203-005065
C-CERAMIC,CHIP
1000nF,+80-20%,10V,Y5V,TP,1608
C230
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C231
2203-000489
C-CERAMIC,CHIP
2.2nF,10%,50V,X7R,TP,1005,-
C250
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C252
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C260
2203-005148
C-CERAMIC,CHIP
100nF,10%,16V,X7R,TP,1608,-
C263
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C270
2404-001100
C-TA,CHIP
33uF,20%,6.3V,GP,TP,3719,-
C271
2203-000995
C-CERAMIC,CHIP
0.047nF,5%,50V,NP0,TP,1005
C272
2203-000995
C-CERAMIC,CHIP
0.047nF,5%,50V,NP0,TP,1005
C273
2203-005065
C-CERAMIC,CHIP
1000nF,+80-20%,10V,Y5V,TP,1608
C274
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C275
2203-005065
C-CERAMIC,CHIP
1000nF,+80-20%,10V,Y5V,TP,1608
C280
2203-000489
C-CERAMIC,CHIP
2.2nF,10%,50V,X7R,TP,1005,-
C281
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C282
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C284
2203-005065
C-CERAMIC,CHIP
1000nF,+80-20%,10V,Y5V,TP,1608
C286
2203-000812
C-CERAMIC,CHIP
0.033nF,5%,50V,NP0,TP,1005
C287
2203-005065
C-CERAMIC,CHIP
1000nF,+80-20%,10V,Y5V,TP,1608
C288
2203-000812
C-CERAMIC,CHIP
0.033nF,5%,50V,NP0,TP,1005
C289
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C290
2203-000940
C-CERAMIC,CHIP
470pF,10%,50V,X7R,TP,1005,-
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-3
C291
2203-000940
C-CERAMIC,CHIP
470pF,10%,50V,X7R,TP,1005,-
C301
2203-000940
C-CERAMIC,CHIP
470pF,10%,50V,X7R,TP,1005,-
C302
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C303
2203-000330
C-CERAMIC,CHIP
0.012nF,5%,50V,NP0,TP,1005
C304
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C305
2203-000330
C-CERAMIC,CHIP
0.012nF,5%,50V,NP0,TP,1005
C306
2203-001405
C-CERAMIC,CHIP
22nF,+80-20%,25V,Y5V,TP,1005
C307
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C308
2203-001432
C-CERAMIC,CHIP
47nF,+80-20%,16V,Y5V,TP,1005
C311
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C312
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C313
2203-000359
C-CERAMIC,CHIP
0.15nF,5%,50V,NP0,TP,1005
C314
2203-005480
C-CERAMIC,CHIP
33nF,10%,10V,X7R,TP,1005,-
C315
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C316
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C317
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C318
2203-005393
C-CERAMIC,CHIP
0.005nF,0.1pF,50V,NP0,TP,1005
C319
2203-005480
C-CERAMIC,CHIP
33nF,10%,10V,X7R,TP,1005,-
C320
2203-001405
C-CERAMIC,CHIP
22nF,+80-20%,25V,Y5V,TP,1005
C321
2203-005444
C-CERAMIC,CHIP
0.003nF,0.1pF,50V,NP0,TP,1005
C322
2203-005393
C-CERAMIC,CHIP
0.005nF,0.1pF,50V,NP0,TP,1005
C323
2203-001178
C-CERAMIC,CHIP
0.006nF,0.5pF,50V,NP0,TP,1005
C324
2203-001178
C-CERAMIC,CHIP
0.006nF,0.5pF,50V,NP0,TP,1005
C325
2203-001259
C-CERAMIC,CHIP
0.008nF,0.5pF,50V,NP0,TP,1005
C326
2203-001259
C-CERAMIC,CHIP
0.008nF,0.5pF,50V,NP0,TP,1005
C327
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C328
2203-000330
C-CERAMIC,CHIP
0.012nF,5%,50V,NP0,TP,1005
C329
2203-000330
C-CERAMIC,CHIP
0.012nF,5%,50V,NP0,TP,1005
C330
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C331
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C332
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C333
2203-001405
C-CERAMIC,CHIP
22nF,+80-20%,25V,Y5V,TP,1005
C334
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C335
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C336
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C337
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C338
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C339
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C340
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C341
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C342
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C343
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C344
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C345
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C346
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C348
2203-005393
C-CERAMIC,CHIP
0.005nF,0.1pF,50V,NP0,TP,1005
C349
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C350
2203-000940
C-CERAMIC,CHIP
470pF,10%,50V,X7R,TP,1005,-
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-4
C351
2203-000585
C-CERAMIC,CHIP
220pF,10%,50V,X7R,TP,1005,-
C352
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C355
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C356
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C357
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C359
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C360
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C361
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C362
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C363
2203-005483
C-CERAMIC,CHIP
68nF,10%,10V,X5R,TP,1005,-
C364
2404-001095
C-TA,CHIP
470nF,20%,20V,GP,TP,2012,-
C365
2203-001432
C-CERAMIC,CHIP
47nF,+80-20%,16V,Y5V,TP,1005
C366
2203-005480
C-CERAMIC,CHIP
33nF,10%,10V,X7R,TP,1005,-
C369
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C370
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C371
2203-005480
C-CERAMIC,CHIP
33nF,10%,10V,X7R,TP,1005,-
C372
2404-001086
C-TA,CHIP
4.7uF,20%,6.3V,GP,TP,2012,-
C373
2203-000885
C-CERAMIC,CHIP
4.7nF,10%,25V,X7R,TP,1005,-
C374
2203-000311
C-CERAMIC,CHIP
0.12nF,5%,50V,NP0,TP,1005
C375
2203-003054
C-CERAMIC,CHIP
0.009nF,0.25pF,50V,NP0,TP,1005
C376
2203-000311
C-CERAMIC,CHIP
0.12nF,5%,50V,NP0,TP,1005
C377
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C378
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C379
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C380
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C381
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C382
2203-000585
C-CERAMIC,CHIP
220pF,10%,50V,X7R,TP,1005,-
C383
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C384
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C394
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C395
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C398
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C399
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C402
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C403
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C404
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C405
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C406
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C407
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C408
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C409
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C410
2203-001405
C-CERAMIC,CHIP
22nF,+80-20%,25V,Y5V,TP,1005
C411
2203-002987
C-CERAMIC,CHIP
0.062nF,5%,50V,NP0,TP,1005
C412
2203-002987
C-CERAMIC,CHIP
0.062nF,5%,50V,NP0,TP,1005
C413
2203-003054
C-CERAMIC,CHIP
0.009nF,0.25pF,50V,NP0,TP,1005
C414
2203-000940
C-CERAMIC,CHIP
470pF,10%,50V,X7R,TP,1005,-
C416
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C417
2203-005065
C-CERAMIC,CHIP
1000nF,+80-20%,10V,Y5V,TP,1608
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-5
C418
2203-001405
C-CERAMIC,CHIP
22nF,+80-20%,25V,Y5V,TP,1005
C420
2203-001405
C-CERAMIC,CHIP
22nF,+80-20%,25V,Y5V,TP,1005
C421
2203-001405
C-CERAMIC,CHIP
22nF,+80-20%,25V,Y5V,TP,1005
C422
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C431
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C432
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C433
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C441
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C442
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C443
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C444
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C445
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C446
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C447
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C448
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C449
2203-000696
C-CERAMIC,CHIP
0.002nF,0.25pF,50V,NP0,TP,1005
C450
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C452
2203-005288
C-CERAMIC,CHIP
0.001nF,0.1pF,50V,NP0,TP,1005
C453
2203-001178
C-CERAMIC,CHIP
0.006nF,0.5pF,50V,NP0,TP,1005
C454
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C455
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C457
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C459
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C460
2203-005065
C-CERAMIC,CHIP
1000nF,+80-20%,10V,Y5V,TP,1608
C461
2203-000359
C-CERAMIC,CHIP
0.15nF,5%,50V,NP0,TP,1005
C462
2203-005444
C-CERAMIC,CHIP
0.003nF,0.1pF,50V,NP0,TP,1005
C463
2203-000359
C-CERAMIC,CHIP
0.15nF,5%,50V,NP0,TP,1005
C464
2203-000359
C-CERAMIC,CHIP
0.15nF,5%,50V,NP0,TP,1005
C465
2203-005065
C-CERAMIC,CHIP
1000nF,+80-20%,10V,Y5V,TP,1608
C466
2203-002668
C-CERAMIC,CHIP
0.0005nF,0.1pF,50V,NP0,TP,1005
C467
2203-000359
C-CERAMIC,CHIP
0.15nF,5%,50V,NP0,TP,1005
C470
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C471
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C472
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C473
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C474
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C475
2203-001432
C-CERAMIC,CHIP
47nF,+80-20%,16V,Y5V,TP,1005
C476
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C477
2203-000696
C-CERAMIC,CHIP
0.002nF,0.25pF,50V,NP0,TP,1005
C479
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C481
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C482
2203-001405
C-CERAMIC,CHIP
22nF,+80-20%,25V,Y5V,TP,1005
C483
2203-000438
C-CERAMIC,CHIP
1nF,10%,50V,X7R,TP,1005,-
C484
2203-000359
C-CERAMIC,CHIP
0.15nF,5%,50V,NP0,TP,1005
C485
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C492
2203-001432
C-CERAMIC,CHIP
47nF,+80-20%,16V,Y5V,TP,1005
C493
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C494
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-6
C495
2203-000254
C-CERAMIC,CHIP
10nF,10%,16V,X7R,TP,1005,-
C496
2203-000233
C-CERAMIC,CHIP
0.1nF,5%,50V,NP0,TP,1005
C50
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
C501
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C502
2203-001385
C-CERAMIC,CHIP
0.0015nF,0.25pF,50V,NP0,TP,1005
C506
2404-001105
C-TA,CHIP
10UF,20%,6.3V,GP,TP,2012
C51
2203-005061
C-CERAMIC,CHIP
100nF,+80-20%,16V,Y5V,TP,1005
D240
0407-000115
DIODE-ARRAY
DAN202U,80V,100mA,CA2-3,SC-70,
D301
0409-000108
DIODE-PIN
RN731V,50V,50mA,SOD-323,TP
D302
0409-001016
DIODE-PIN
BAR63-02W,50V,100mA,SCD-80,TP
D380
0405-001035
DIODE-VARACTOR
1SV279,15V,3nA,USC,TP
D381
0405-001035
DIODE-VARACTOR
1SV279,15V,3nA,USC,TP
D401
0405-001035
DIODE-VARACTOR
1SV279,15V,3nA,USC,TP
D402
0405-001035
DIODE-VARACTOR
1SV279,15V,3nA,USC,TP
F301
2909-001124
FILTER-DUPLEXER
881.5MHz,836.5MHz,4/2.5dB,TP,824-849MHz/50dB,869-894MHz/35dB
F320
2904-001136
FILTER-SAW
881.5MHz,25MHz,+-12.5MHz/1.6dB,TP,+-12.5MHz/3.5,0-779MHz/50dB
F330
2904-001287
FILTER-SAW
85.38MHz,1.26MHz,+-0.3MHz/0.7dB,TP,+-0MHz/12dB,+-0.9MHz/33dB
F340
2904-001253
FILTER-SAW
85.38MHz,0.03MHz,+-0.01MHz/1.5dB,TP,+-0MHz/5dB,85.32-85.44MHz/25dB
F401
3301-001342
CORE-FERRITE BEAD
AB,1.5KOHM,1X0.5X0.5MM,100MA,TP,M,1.4OHM
F402
3301-001342
CORE-FERRITE BEAD
AB,1.5KOHM,1X0.5X0.5MM,100MA,TP,M,1.4OHM
F403
3301-001342
CORE-FERRITE BEAD
AB,1.5KOHM,1X0.5X0.5MM,100MA,TP,M,1.4OHM
F443
3301-001342
CORE-FERRITE BEAD
AB,1.5KOHM,1X0.5X0.5MM,100MA,TP,M,1.4OHM
F444
3301-001342
CORE-FERRITE BEAD
AB,1.5KOHM,1X0.5X0.5MM,100MA,TP,M,1.4OHM
F445
2904-001171
FILTER-SAW
836.5MHz,25MHz,+-12.5MHz/2dB,TP,+-12.5MHz/3.5dB
F446
2904-001172
FILTER-SAW
836.5MHz,25MHz,+-12.5MHz/1.5,TP,+-12.5MHz/2.5dB
F448
4709-001201
FREQ-ISOLATOR
824-849MHz,13dB,0.65dB,1.5
J100
3710-001559
CONNECTOR-SOCKET
24P,2R,0.5mm,SMD-S,AUF
J110
3711-004382
CONNECTOR-HEADER
BOX,24P,2R,0.5MM,SMD-S,AUF
J200
3710-001634
CONNECTOR-SOCKET
24P,1R,0.5mm,SMD-A,AUF
J210
3722-001456
JACK-PHONE
2P,2.6PI,AUF,BLK,-
J501
3705-001239
CONNECTOR-COAXIAL
-,JACK,50mohm,50ohm,0.3dB
L280
3301-001342
CORE-FERRITE BEAD
AB,1.5KOHM,1X0.5X0.5MM,100MA,TP,M,1.4OHM
L281
3301-001342
CORE-FERRITE BEAD
AB,1.5KOHM,1X0.5X0.5MM,100MA,TP,M,1.4OHM
L301
2703-001222
INDUCTOR-SMD
150nH,10%,1.6x0.8x0.8mm
L302
2703-001748
INDUCTOR-SMD
5.6nH,0.3nH,1.0x0.5x0.5mm
L303
2703-001172
INDUCTOR-SMD
100nH,5%,1.6x0.8x0.8mm
L310
2703-001173
INDUCTOR-SMD
12nH,5%,1.6x0.8x0.8mm
L312
2703-001730
INDUCTOR-SMD
15nH,5%,1x0.5x0.5mm
L313
2703-001726
INDUCTOR-SMD
27nH,5%,1x0.5x0.5mm
L320
2703-001733
INDUCTOR-SMD
8.2nH,5%,1x0.5x0.5mm
L321
2703-001913
INDUCTOR-SMD
220nH,5,1.8x1.12x1.02mm
L322
2703-000301
INDUCTOR-SMD
2.7uH,10%,0.8x1.6x0.8mm
L323
2703-000301
INDUCTOR-SMD
2.7uH,10%,0.8x1.6x0.8mm
L324
2703-000301
INDUCTOR-SMD
2.7uH,10%,0.8x1.6x0.8mm
L325
3301-001105
CORE-FERRITE
AB,1.6x0.8x0.8mm,-,-
L331
2703-001913
INDUCTOR-SMD
220nH,5,1.8x1.12x1.02mm
L332
2703-001913
INDUCTOR-SMD
220nH,5,1.8x1.12x1.02mm
L334
3301-001105
CORE-FERRITE
AB,1.6x0.8x0.8mm,-,-
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-7
L335
3301-001105
CORE-FERRITE
AB,1.6x0.8x0.8mm,-,-
L336
2703-000213
INDUCTOR-SMD
470nH,10%,0.8x1.6x0.8mm
L370
3301-001105
CORE-FERRITE
AB,1.6x0.8x0.8mm,-,-
L371
2703-001172
INDUCTOR-SMD
100nH,5%,1.6x0.8x0.8mm
L372
2703-001732
INDUCTOR-SMD
56nH,5%,1.8x1.12x1.02mm
L401
2703-000300
INDUCTOR-SMD
1uH,10%,0.8x1.6x0.8mm
L402
2703-000300
INDUCTOR-SMD
1uH,10%,0.8x1.6x0.8mm
L403
2703-001907
INDUCTOR-SMD
27nH,2%,1.8x1.12x1.02mm
L441
2703-001409
INDUCTOR-SMD
12nH,10%,1x0.5x0.5mm
L442
2703-001701
INDUCTOR-SMD
6.8nH,10%,1.0x0.5x0.5mm
L443
2703-001701
INDUCTOR-SMD
6.8nH,10%,1.0x0.5x0.5mm
L444
2703-001733
INDUCTOR-SMD
8.2nH,5%,1x0.5x0.5mm
L449
2703-001952
INDUCTOR-SMD
8.2nH,5%,1.0x0.5x0.5mm
L450
2703-001180
INDUCTOR-SMD
15nH,5%,1x0.5x0.5mm
L501
2703-001409
INDUCTOR-SMD
12nH,10%,1x0.5x0.5mm
L502
2203-001385
C-CERAMIC,CHIP
0.0015nF,0.25pF,50V,NP0,TP,1005
Q110
0501-000676
TR-SMALL SIGNAL
2SA1774-R,PNP,150mW,EM3,TP,180
Q111
0501-000676
TR-SMALL SIGNAL
2SA1774-R,PNP,150mW,EM3,TP,180
Q120
0505-001165
FET-SILICON
SI3443DV,P,-20V,+-3.5mA,65mohm
Q121
0501-000218
TR-SMALL SIGNAL
2SC4081,NPN,200mW,UMT,TP,180-3
Q122
0504-000168
TR-DIGITAL
RN1104,NPN,100MW,47K/47K,SSM,TP
Q220
0501-000462
TR-SMALL SIGNAL
MMBT2907A,PNP,350mW,SOT-23,TP,100-300
Q221
0504-000167
TR-DIGITAL
RN1102,NPN,100MW,10K/10K,SSM,TP
Q222
0501-002202
TR-SMALL SIGNAL
MMBT2222AWT1,NPN,150mW,SOT-323
Q240
0501-002202
TR-SMALL SIGNAL
MMBT2222AWT1,NPN,150mW,SOT-323
Q241
0504-001084
TR-DIGITAL
-,NPN,200mW,2.2K,SOT-323,TP
Q301
0501-000218
TR-SMALL SIGNAL
2SC4081,NPN,200mW,UMT,TP,180-3
Q380
0506-001004
TR-ARRAY
UMC5N,NPN/PNP,2,50V,-,-100mA,3
Q390
0506-001004
TR-ARRAY
UMC5N,NPN/PNP,2,50V,-,-100mA,3
Q441
0505-001423
FET-SILICON
FDG6323L,N/P,-,-,-,0.3W,SC70-6
Q442
0505-001484
FET-SILICON
2SK2035,N,20V,100mA,8ohm,0.1W,SC-90
Q444
1001-001145
IC-ANALOG SWITCH
MAX4599EXT,-,SC70,6P,49MIL,SINGLE,5.5V,-40to+85C
Q445
0501-002182
TR-SMALL SIGNAL
AT32032,NPN,200mW,SOT-323,TP,7
Q481
0505-001484
FET-SILICON
2SK2035,N,20V,100mA,8ohm,0.1W,SC-90
Q483
0501-000162
TR-SMALL SIGNAL
2SA1576,PNP,200MW,SOT-323,TP,180-390
R100
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R102
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R103
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R104
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R105
2007-001156
R-CHIP
750ohm,5%,1/16W,DA,TP,1005
R106
2007-000148
R-CHIP
10Kohm,5%,1/16W,DA,TP,1005
R109
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R121
2007-000157
R-CHIP
47Kohm,5%,1/16W,DA,TP,1005
R122
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R123
2007-000141
R-CHIP
2.2Kohm,5%,1/16W,DA,TP,1005
R124
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R125
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R126
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-8
R127
2007-000143
R-CHIP
4.7Kohm,5%,1/16W,DA,TP,1005
R128
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R140
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R141
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R142
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R143
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R144
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R145
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R146
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R147
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R148
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R149
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R150
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R151
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R152
2007-000159
R-CHIP
56Kohm,5%,1/16W,DA,TP,1005
R153
2007-000152
R-CHIP
20Kohm,5%,1/16W,DA,TP,1005
R154
2007-000143
R-CHIP
4.7Kohm,5%,1/16W,DA,TP,1005
R155
2007-000143
R-CHIP
4.7Kohm,5%,1/16W,DA,TP,1005
R157
2007-001325
R-CHIP
3.3Kohm,5%,1/16W,DA,TP,1005
R158
2007-000152
R-CHIP
20Kohm,5%,1/16W,DA,TP,1005
R159
2007-000152
R-CHIP
20Kohm,5%,1/16W,DA,TP,1005
R160
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R161
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R162
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R163
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R164
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R165
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R166
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R167
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R168
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R169
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R170
2007-000932
R-CHIP
470ohm,5%,1/16W,DA,TP,1005
R180
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R181
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R182
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R183
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R184
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R185
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R186
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R187
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R188
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R189
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R190
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R191
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R192
2007-000137
R-CHIP
2Kohm,5%,1/16W,DA,TP,1005
R200
2007-000148
R-CHIP
10Kohm,5%,1/16W,DA,TP,1005
R201
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R202
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-9
R220
2007-007001
R-CHIP
3.9KOHM,5%,1/16W,DA,TP,1005
R221
2007-000140
R-CHIP
1Kohm,5%,1/16W,DA,TP,1005
R223
2007-001325
R-CHIP
3.3Kohm,5%,1/16W,DA,TP,1005
R224
2007-001294
R-CHIP
36ohm,5%,1/16W,DA,TP,1005
R225
2007-001294
R-CHIP
36ohm,5%,1/16W,DA,TP,1005
R230
2007-000566
R-CHIP
220Kohm,5%,1/16W,DA,TP,1005
R231
2007-000141
R-CHIP
2.2Kohm,5%,1/16W,DA,TP,1005
R232
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R233
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R240
2007-002970
R-CHIP
56OHM,5%,1/16W,DA,TP,1005
R252
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R260
2007-000141
R-CHIP
2.2Kohm,5%,1/16W,DA,TP,1005
R261
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R262
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R263
2007-000758
R-CHIP
330Kohm,5%,1/16W,DA,TP,1005
R264
2007-000153
R-CHIP
22Kohm,5%,1/16W,DA,TP,1005
R270
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R273
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R280
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R281
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R301
2007-002796
R-CHIP
510ohm,5%,1/16W,DA,TP,1005
R310
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R311
2007-003019
R-CHIP
430OHM,5%,1/16W,DA,TP,1005
R312
2007-000140
R-CHIP
1Kohm,5%,1/16W,DA,TP,1005
R324
2007-000140
R-CHIP
1Kohm,5%,1/16W,DA,TP,1005
R330
2007-000140
R-CHIP
1Kohm,5%,1/16W,DA,TP,1005
R341
2007-000140
R-CHIP
1Kohm,5%,1/16W,DA,TP,1005
R342
2007-000775
R-CHIP
33Kohm,5%,1/16W,DA,TP,1005
R343
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R344
2007-000170
R-CHIP
1Mohm,5%,1/16W,DA,TP,1005
R350
2007-000173
R-CHIP
22ohm,5%,1/16W,DA,TP,1005
R360
2007-001288
R-CHIP
18ohm,5%,1/16W,DA,TP,1005
R361
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R362
2007-001288
R-CHIP
18ohm,5%,1/16W,DA,TP,1005
R370
2007-000173
R-CHIP
22ohm,5%,1/16W,DA,TP,1005
R371
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R372
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R373
2007-001317
R-CHIP
910ohm,5%,1/16W,DA,TP,1005
R374
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R375
2007-000148
R-CHIP
10Kohm,5%,1/16W,DA,TP,1005
R376
2007-000148
R-CHIP
10Kohm,5%,1/16W,DA,TP,1005
R377
2007-000140
R-CHIP
1Kohm,5%,1/16W,DA,TP,1005
R378
2007-003019
R-CHIP
430OHM,5%,1/16W,DA,TP,1005
R380
2007-000172
R-CHIP
10ohm,5%,1/16W,DA,TP,1005
R381
2007-000172
R-CHIP
10ohm,5%,1/16W,DA,TP,1005
R391
2007-000143
R-CHIP
4.7Kohm,5%,1/16W,DA,TP,1005
R401
2007-007107
R-CHIP
100Kohm,1%,1/16W,DA,TP,1005
R402
2007-002796
R-CHIP
510ohm,5%,1/16W,DA,TP,1005
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-10
R403
2007-000147
R-CHIP
8.2Kohm,5%,1/16W,DA,TP,1005
R404
2007-002796
R-CHIP
510ohm,5%,1/16W,DA,TP,1005
R405
2007-007771
R-CHIP
0OHM,5%,1/16W,DA,TP,1005
R406
2007-003023
R-CHIP
62KOHM,5%,1/16W,DA,TP,1005
R407
2007-000147
R-CHIP
8.2Kohm,5%,1/16W,DA,TP,1005
R408
2007-007139
R-CHIP
47Kohm,1%,1/16W,DA,TP,1005
R409
2007-000148
R-CHIP
10Kohm,5%,1/16W,DA,TP,1005
R410
2007-000148
R-CHIP
10Kohm,5%,1/16W,DA,TP,1005
R411
2007-007309
R-CHIP
12Kohm,1%,1/16W,DA,TP,1005
R412
2007-001311
R-CHIP
270ohm,5%,1/16W,DA,TP,1005
R414
2007-007697
R-CHIP
2.4Kohm,1%,1/16W,DA,TP,1005
R415
2007-007136
R-CHIP
4.7Kohm,1%,1/16W,DA,TP,1005
R416
2007-007308
R-CHIP
33Kohm,1%,1/16W,DA,TP,1005
R417
2007-007791
R-CHIP
9.1KOHM,1%,1/16W,DA,TP,1005
R418
2007-007137
R-CHIP
1.2Kohm,1%,1/16W,DA,TP,1005
R419
2007-007529
R-CHIP
91Kohm,1%,1/16W,DA,TP,1005
R420
2007-007107
R-CHIP
100Kohm,1%,1/16W,DA,TP,1005
R443
2007-000138
R-CHIP
100ohm,5%,1/16W,DA,TP,1005
R444
2007-000173
R-CHIP
22ohm,5%,1/16W,DA,TP,1005
R445
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R446
2007-000149
R-CHIP
12Kohm,5%,1/16W,DA,TP,1005
R447
2007-000140
R-CHIP
1Kohm,5%,1/16W,DA,TP,1005
R448
2007-001298
R-CHIP
51ohm,5%,1/16W,DA,TP,1005
R449
2007-000140
R-CHIP
1Kohm,5%,1/16W,DA,TP,1005
R450
2007-000148
R-CHIP
10Kohm,5%,1/16W,DA,TP,1005
R451
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R452
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R453
2007-000157
R-CHIP
47Kohm,5%,1/16W,DA,TP,1005
R454
2007-007588
R-CHIP
1.8Kohm,1%,1/16W,DA,TP,1005
R455
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R456
2007-007318
R-CHIP
1Kohm,1%,1/16W,DA,TP,1005
R457
2007-003022
R-CHIP
62OHM,5%,1/16W,DA,TP,1005
R458
2007-000159
R-CHIP
56Kohm,5%,1/16W,DA,TP,1005
R459
2703-001737
INDUCTOR-SMD
2.7nH,0.3nH,1x0.5x0.5mm
R460
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R481
2007-007334
R-CHIP
200Kohm,1%,1/16W,DA,TP,1005
R482
2007-000140
R-CHIP
1Kohm,5%,1/16W,DA,TP,1005
R483
2007-007135
R-CHIP
18Kohm,1%,1/16W,DA,TP,1005
R484
2007-007334
R-CHIP
200Kohm,1%,1/16W,DA,TP,1005
R486
2007-007142
R-CHIP
10Kohm,1%,1/16W,DA,TP,1005
R489
2007-000162
R-CHIP
100Kohm,5%,1/16W,DA,TP,1005
R490
2007-007107
R-CHIP
100Kohm,1%,1/16W,DA,TP,1005
TH401
1404-001152
THERMISTOR-NTC
10KOHM,5%,3380K,1MW/C,TP
U100
1205-001883
IC-TRANSCEIVER
MSM3000,BGA,196P,-,PLASTIC,4.6V,-,-40to+85C,TR,-
U110
1109-001153
IC-ETC. MEMORY
1349,2Mx16Bit,CSP,72P,-,90nS,3.3V,-,PLASTIC
U111
0801-002345
IC-CMOS LOGIC
7S04,INVERTER,SOT-353,5P,49MIL,SINGLE,TP,PLASTIC
U112
0801-000796
IC-CMOS LOGIC
7S32,OR GATE,SOT-353,5P,63MIL,SINGLE,TP,PLASTIC
U113
0801-000796
IC-CMOS LOGIC
7S32,OR GATE,SOT-353,5P,63MIL,SINGLE,TP,PLASTIC
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
6-11
U114
1106-001347
IC-SRAM
62S2048,256Kx8Bit,CSP,36P,-,70nS,3V,10%,PLASTIC
U120
1203-001908
IC-VOLTAGE REGULATOR
76928,SOT-23,5P,-,PLASTIC,2.716/2.884V
U121
1203-001835
IC-RESET
3470,SOT23,5P,-,PLASTIC,0.99/1.01V,300mW
U150
0801-002345
IC-CMOS LOGIC
7S04,INVERTER,SOT-353,5P,49MIL,SINGLE,TP,PLASTIC
U200
1204-001678
IC-AUDIO PROCESSOR
TWL1103PBSR,QFP,32P,196MIL,PLASTIC
U210
1103-001184
IC-EEPROM
24C256,32Kx8Bit,dBGA,8P,92MIL,-,2.7V,-,PLASTIC
U230
1202-001022
IC-VOLTAGE COMP.
75W56,SSOP,8P,110MIL,DUAL,7V,C
U250
1203-001910
IC-VOLTAGE REGULATOR
76930,SOT-23,5P,70MIL,PLASTC,2.910/3.090,437mW
U310
1201-001517
IC-RF AMP
2361,SOT23-5,5P,-,SINGLE,20dB,PLASTIC
U330
1205-001773
IC-MIXER
RF2466,MLP,-,PLASTIC,4V,-,-45to+85C,CDMA/FM MIXER
U340
1204-001581
IC-IF CIRCUIT
IFR3000-48BCCF-TR,BCC,48P,-,PLASTIC,3.5V,TR,RX
U350
2806-001227
OSCILLATOR-VCO
967.5MHz,-,-,TP,2.7V,7mA
U370
1209-001282
IC-PLL/SYNTHESISER
S1M8821,QFN,24P,-,PLASTIC,5.5V,-,-40to+85C,TR
U380
2809-001245
OSCILLATOR-VCTCXO
19.68MHz,1ppm,10Kohm/10pF,TP,2.8V,-
U390
1203-001285
IC-SWITCH VOL. REG.
5205,SOT-23,5P,150MIL,PLASTIC,
U391
1203-001910
IC-VOLTAGE REGULATOR
76930,SOT-23,5P,70MIL,PLASTC,2.910/3.090,437mW
U401
1204-001582
IC-IF CIRCUIT
IFT3000-48BCCF-TR,BCC,48P,-,PLASTIC,3.5V
U402
1001-001145
IC-ANALOG SWITCH
MAX4599EXT,-,SC70,6P,49MIL,SINGLE,5.5V,-40to+85C
U441
1205-001770
IC-MIXER
RF2638TR13,SOP,8P,118MIL,PLASTIC,3V,75mW,-30TO+80C
U442
1201-001514
IC-MMIC AMP
MGA-72543,SOT-343,4P,51MIL,SINGLE,13dB,PLASTIC
U443
1201-001491
IC-POWER AMP
912,LCC,7P,226MIL,SINGLE,28dB,PLASTIC,4.2V
U445
1209-001350
IC-DETECTOR
AD8314ARM-REEL7,SOP,8P,118MIL,PLASTIC,5.5V,12mW
U481
1201-001348
IC-OP AMP
821,SOT23-5,5P,63MIL,SINGLE,-,
U482
1201-001348
IC-OP AMP
821,SOT23-5,5P,63MIL,SINGLE,-,
U491
1203-001285
IC-SWITCH VOL. REG.
5205,SOT-23,5P,150MIL,PLASTIC,
X100
2801-003856
CRYSTAL-SMD
0.032786MHz,20ppm,28-ACP,7pF,65kohm,TP
X110
2802-001104
RESONATOR-CERAMIC
27MHZ,0.5%,TP,2.5X2X1.2
ZD160
0406-001084
DIODE-TVS
SMF05,6/-/-V,200W,-
ZD161
0406-001084
DIODE-TVS
SMF05,6/-/-V,200W,-
ZD162
0406-001084
DIODE-TVS
SMF05,6/-/-V,200W,-
ZD163
0406-001084
DIODE-TVS
SMF05,6/-/-V,200W,-
ZD180
0406-001084
DIODE-TVS
SMF05,6/-/-V,200W,-
ZD181
0406-001084
DIODE-TVS
SMF05,6/-/-V,200W,-
ZD200
0406-001084
DIODE-TVS
SMF05,6/-/-V,200W,-
ZD210
0406-001084
DIODE-TVS
SMF05,6/-/-V,200W,-
ZD220
0406-001084
DIODE-TVS
SMF05,6/-/-V,200W,-
Ref.
SEC Code
Description
Spec
SAMSUNG Proprietary - Contents may change without notice
7-1
7. Block Diagram
7-1 Main (with EVRC option) Block Diagram
R
X
AGC
R
X
AGC
PL
L
VC
T
CX
O
TX
A
G
C
A/
D
F
ILT
ER
D/
A
FIL
T
E
R
PL
L
MS
M
3
0
0
0
VC
O
VC
O
DI
VI
DE
2
DI
VI
DE
2
I
I
Q
Q
LNA
PA
VC
O
AMPS & CDMA
DUPLEXER
ANT
CDMA 869~894MHz
AMPS 869~894MHz
CDMA / AMPS
CDMA 85.38MHz
AMPS 85.38MHz
IS
O
IF
R
3
0
0
0
PCS/
CDMA
AMPS
IFT3
0
0
0
PCS/CDMA/AMPS
13
0.3
8M
H
z
DA
PCS
Me
m
o
ry
[32M & 6M]
Co
de
c
Ke
y
p
a
d
LCD
Rx
ta
n
k
Tx
Ta
nk
PA
CDMA 824~849MHz
AMPS 824~849MHz
CDMA/AMPS
CDMA/AMPS
A/
D
F
ILT
ER
Q/I
SAMSUNG Proprietary - Contents may change without notice
8-1
8. PCB Diagram

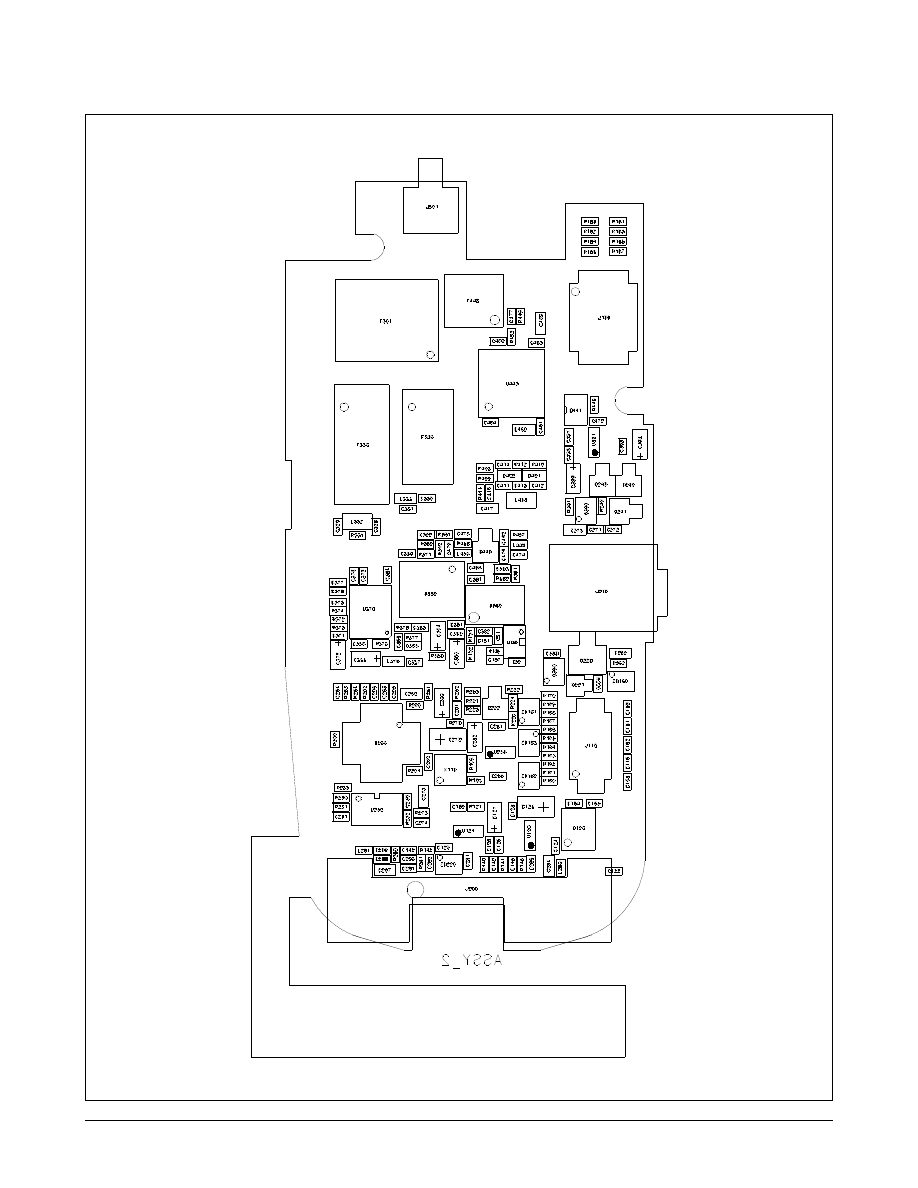

8-1 Top View
SAMSUNG Proprietary - Contents may change without notice
8-2
8-2 Bottom View
9. Schematic Diagrams

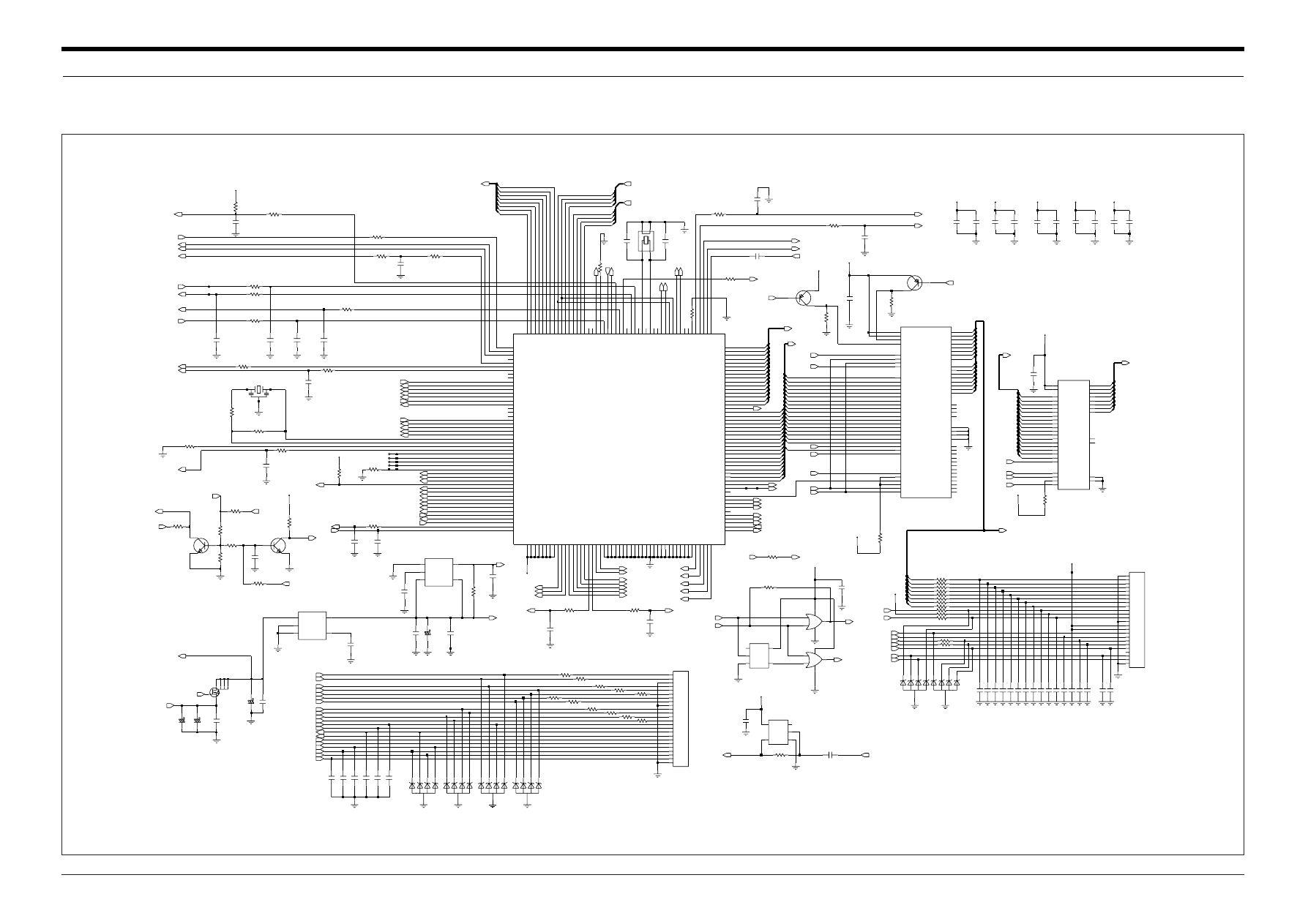

9-1 Logic Circuit Diagram (1)
SAMSUNG Proprietary - Contents may change without notice
9-1
DP_RX_DATA
CONFIDENTIAL
DP_TX_DATA
NC
T1
SMF05.TB
ZD163
2
1 3
4 5
R109
100K
+3.0V
100K
R141
68PF
C181
+3.0V
100NF
C112
NC
R108
VCC1
1E
6D VCC2
3G _CE1
_OE
2G
_WE
3B
+3.0V
6C
I/O2
I/O3 6F
6G
I/O4
I/O5 1B
1C
I/O6
1F
I/O7
I/O8 1G
3C
NC1
NC2 3F
5B A7
A8
6A
1H A9
CE2
3A
GND1 1D
6E
GND2
I/O1 6B
5G A15
A16
4G
4F A17
A2
2B
4A A3
A4
4B
4C A5
A6
5A
A0
1A
2A A1
A10
2H
3H A11
A12
4H
5H A13
A14
6H
NC
U114
C125
Q110
2
3
1
R102
2SA1774R-TL
C103
100NF
100K
NC
T2
R168
470
2.2K
R123
100K
68PF
R126
NC
V_TCXO
C183
R107
2
1
3
4
5
SMF05.TB
ZD181
R122
100K
C115
47PF
2K
R185
100PF
C148
+3.0V
100K
R124
C187
100NF
C51
C124
100NF
68PF
C158
8.2NF
_RAM_CS1
12L
_RAM_CS2
11L
_RD
11M
9M
_RESIN
5N
_RFR
_ROM_CS1
14M
_ROM_CS2
14N
_SLEEP
1D
_TEST
8C
_TX_CLK
4H
10J
VDD7
12B
WDOGSTB_PCMSCS
10L
WDOG_EN
10M
XTAL_IN
12P
XTAL_OUT
4M
Y
AMN1
_CTS
5M
3M
_GP_CS
13N
_HWR
2M
_IDLE
12N
_LWR
TX_IQD
A
T
A
4
TX_IQD
A
T
A
5
3H
1J
TX_IQD
A
T
A
6
2J
TX_IQD
A
T
A
7
VDD0
5F
5J
VDD1
6E
VDD2
VDD3
6K
9E
VDD4
VDD5
9K
VDD6
10F
7A
TDO
TMODE
4D
TMS
5B
TRK_LO_ADJ
3N
3K
TX_AGC_ADJ
TX_CLK
1H
1L
TX_IQD
A
T
A
0
TX_IQD
A
T
A
1
3J
2K
TX_IQD
A
T
A
2
TX_IQD
A
T
A
3
1K
4J
PDM2
3P
Q_OFFSET
2D
RESOUT
11P
RINGER
4N
1M
RX_AGC_ADJ
SLEEP_XT
AL_IN
11N
10K
SLEEP_XT
AL_OUT
SYNTH_LOCK
4K
7C
TCK
2L
TCX0
8A
TDI
14A
14P
NC3
PA_ON
4L
12M
PA_ON2
3L
PA_R0
PA_R1
1N
11B
PCM_CLK
12A
PCM_DIN
PCM_DOUT
13A
PCM_SYNC
11C
PDM1
2P
KEYSENSE3
5E
KEYSENSE4
3A
10A
LCD_CS
LCD_E
13P
13M
LNA_GAIN
LNA_RANGE
2N
MODE0
2B
3C
MODE1
1A
NC0
NC1
1P
NC2
GPIO8
GPIO9
7D
9P
GPIO_INT0
8M
GPIO_INT1
GPIO_INT2
9L
10P
GPIO_INT3
GPIO_INT4
10N
3D
I_OFFSET
2A
KEYSENSE0
KEYSENSE1
4C
3B
KEYSENSE2
GPIO25
GPIO26
8N
GPIO27
8L
8P
GPIO28
GPIO29
9N
GPIO3
4A
GPIO30
5K
GPIO4
6C
5A
GPIO5
GPIO6
6D
GPIO7
6A
6B
GPIO16
9D
5P
GPIO17
GPIO18
6L
6M
GPIO19
GPIO2
5D
6N
GPIO20
6P
GPIO21
7L
GPIO22
GPIO23
7M
GPIO24
7N
7P
7F
7G
GND8
GND9
7H
GPIO0
5C
GPIO1
4B
GPIO10
7B
8B
GPIO11
GPIO12
8D
9A
GPIO13
GPIO14
9B
GPIO15
9C
GND18
GND19
9G
6F
GND2
GND20
9H
9J
GND21
GND22
10G
GND23
10H
GND3
6G
GND4
6H
GND5
6J
GND6
7E
GND7
5G
GND0
GND1
5H
GND10
7J
GND11
7K
8E
GND12
GND13
8F
8G
GND14
8H
GND15
8J
GND16
GND17
8K
9F
D5
D6
11J
12J
D7
D8
13J
14J
D9
5L
DP_RX_D
A
T
A
4P
DP_TX_D
A
T
A
FM_RX_CLK
2E
4E
FM_RX_ID
A
T
A
FM_RX_QD
A
T
A
3E
FM_RX_STB
1E
13L
14L
D1
D10
11H
12H
D11
D12
13H
14H
D13
D14
13G
11G
D15
11K
D2
D3
12K
13K
D4
14K
10C
AUX_PCM_SYNC
2H
CHIPX8
1G
C_RX_ID
A
T
A
0
C_RX_ID
A
T
A
1
2G
3G
C_RX_ID
A
T
A
2
C_RX_ID
A
T
A
3
4G
C_RX_QD
A
T
A
0
1F
2F
C_RX_QD
A
T
A
1
3F
C_RX_QD
A
T
A
2
4F
C_RX_QD
A
T
A
3
D0
A5
13E
A6
12F
A7
14D
A8
11E
A9
ADC_CLK_SBCK
1C
ADC_DATA_SBDT
1B
ADC_ENA_SBST
2C
AUX_PCM_CLK
10B
AUX_PCM_DIN
10D
AUX_PCM_DOUT
11A
A12
10E
A13
A14
13C
12D
A15
A16
14B
A17
13B
A18
12C
11D
A19
A2
14F
12G
A3
A4
11F
14E
MSM3000-196PBGA-MT
U100
A0
14G
13F
A1
13D
A10
12E
A11
14C
C146
100PF
R103
+3.0V
+3.0V
100K
100PF
20K
R159
C142
100NF
C192
68PF
C194
X100
MC-146(32.768KHz,20ppm)
2
3
4
1
+3.0V
68PF
C191
10NF
C104
C189
68PF
R104
100K
Q111
2SA1774R-TL
2
3
1
R153
20K
R188
2K
R165
470
1
3
2
_TRST
_LWR
Q122
DTC144EE/TR
R161
470
10NF
C102
10NF
C155
8.2NF
C159
0
NC
R151
RXD
R101
470
R170
C184
68PF
10NF
C110
C107
100NF
100NF
C105
TRST
R164
470
C123
33UF
6.3V
R145
+3.0V
100
R146
100
R167
470
R182
2K
+3.0V
100K
R125
+3.0V
68PF
C188
3
5
4
3
5
4
TC7S32FU
U113
2
1
U112
TC7S32FU
2
1
TMS
C128
100PF
R184
2K
R106
10K
2K
R190
C113
100NF
C131
1NF
_TDO
R192
2K
+3.0V
47K
TDI
TCK
R121
R160
470
C157
100NF
R162
100NF
C122
470
TXD
2
1
SRT
4
VCC1
VCC2
3
5
_RESET
LP3470IM5X-2.63
U121
GND
R157
3.3K
R169
2K
R183
SMF05.TB
2
1
3
4
5
+3.0V
470
ZD162
R128
100K
3
GND
2 IN
NC
1
OUT
4
VCC 5
TC7S04FU(TE85L)
U111
R140
LWR
6
6
7
7
8
8
9
9
100
20
20
21
21
22
22
23
23
24
24
3
3
4
4
5 5
13
13
14
14
15
15
16 16
17
17
18
18
19
19
2
2
J110
AXK6F24345J
1 1
10
10
11
11
12 12
68PF
33NF
C129
C190
0
R100
22NF
C151
470
R144
8
8
9
9
16V
C116
10NF
22
22
23 23
24
24
3
3
4
4
5
5
6
6
7
7
15
15
16
16
17
17
18
18
19
19
2
2
20
20
21
21
AXK5F24345J
J100
1
1
10
10
11
11
12
12
13
13
14
14
SMF05.TB
2
1
3
4
5
4.7K
ZD161
68PF
C186
R154
100PF
C160
10NF
+3.0V
C154
R155
4.7K
R143
+3.0V
100
_TCK
R166
470
750
0
R105
R150
C144
470PF
2K
R180
6.3V
10UF
C127
3 4
5
+3.0V
ZD160
SMF05.TB
2
1
100PF
C147
_TMS
100PF
C140
100NF
C130
100
100PF
R142
20K
R158
C161
R187
2K
2K
R191
R181
2K
C163
100PF
R148
100
C197
150PF
68PF
C182
C193
C145
100PF
68PF
6.3V
33UF
C121
4.7K
C108
R127
100K
10NF
C180
R149
68PF
C126
10NF
5
3
6
2
4
1
X110
CSTCW2700MX03
470PF
C143
NC
R156
6
G
3
4
C165
100PF
SI3443DV-T1
Q120
1 2 5
68PF
C185
C196
39PF
2K
R186
TPS76928DBVR
U120
2
GND
1
IN
NC/FB
4
5
OUT
_EN
3
C162
2
1
3
4
5
100PF
GND 3
IN 2
1
NC
4 OUT
5 VCC
SMF05.TB
ZD180
S-/WE
C3
T1
T2
D6
E6
T3
T4
E7
U150
TC7S04FU(TE85L)
NC
NC
H2
H9
S-A18
S-/CE1
B8
S-CE2
B3
E10
S-GND
A7
S-/OE
S-VCC
D4
B4
NC
NC
H12
A2
NC
NC
A3
NC
A10
NC
A11
NC
A12
NC
F6
H1
E4
F-/WP
F-/BE0
H7
F-/BE1
C6
D7
F-/BYTE
NC
A1
H3
NC
NC
H10
H11
F10
F-GND
A8
D3
F-GND
F-GND
G7
H8
F-/OE
C5
F-/RP
F-VCC
D10
E3F-VCCW
F-/WE
C4
F-A19
F-DQ10
E9
F-DQ11
D8
C7
F-DQ12
C9
F-DQ13
B10
F-DQ14
A9
F-DQ15
F-DQ8
G9
F-DQ9
DQ1
DQ2
F8
E8
DQ3
DQ4
D9
C10
DQ5
DQ6
C8
B9
DQ7
F-A18
F3
E5
A3
A4
G5
G4
A5
A6
G3
F5
A7
A8
D5
B6
A9
DQ0
G10
F9
A11
A12
A5
A6
A13
A14
F7
G8
A15
A16
B7
A17
F4
A2
H5
H4
U110
LRS1349
A0
H6
G6
A1
A10
B5
A4
C111
100NF
100NF
C50
100PF
C164
R152
56K
2SC4081BRT106
Q121
1
3
2
TDO
+3.0V
100K
R189
10NF
C106
100NF
C101
+3.0V
100
R147
C114
47PF
C120
33UF
6.3V
R163
470
_TDI
C109
GND
A0
A(0:19)
_LWR
_RD
_RAM_CS2
_F_BE0
_ROM_CS2
_F_BE1
RESOUT
100NF
AD(4)
AD(5)
AD(6)
AD(7)
AD(0:15)
A(17)
A(16)
A(15)
A(14)
A(13)
A(12)
A(11)
A(10)
A(9)
A(8)
A(7)
A(6)
A(5)
A(3)
A(2)
AD(6)
AD(8)
AD(9)
AD(10)
AD(11)
AD(12)
AD(13)
AD(14)
AD(0:15)
AD(7)
AD(5)
AD(3)
AD(1)
A(1)
A(4)
AD(0)
AD(1)
AD(2)
AD(3)
A0
FROM_WP
A21
_ROM_CS1
_F_BE1
V_DC
SDA
AD(15)
AD(0)
AD(2)
AD(4)
A(8)
A(7)
A(6)
A(5)
A(4)
A(3)
A(2)
A(1)
RESOUT
_WP_ROM
A20
_RD
_LWR
_F_BE0
_F_BE1
V_BATT
V_DC
ON_SW
SCAN_2
RX_DATA2
TX_DATA2
C_RX_IDATA(1)
C_RX_IDATA(0)
TCXO
A(18)
A(17)
A(16)
A(15)
A(14)
A(13)
A(12)
A(11)
A(10)
A(9)
KEY_0
KEY_3
SCAN_0
KEY_2
SCAN_1
BUZZER-
SCAN_5
SCAN_4
SCAN_6
MIC+
+3.0V
LED_ON
Q_OFFSET
RESOUT
+3.0V
FROM_WP
MODE_SEL
SCL
ALT_LED
SVC_LED
HALL_ON
CODEC_SDA
_RX_ON
PS_HOLD
SCAN_3
KEY_1
_WP_ROM
EL_ON1
SCAN_2
GATE
HP_PWR
PS_HOLD
ON_SW_SENSE
ON_SW
TCXO_N
MOTOR
KEY_2
_IDLE
LCD_CS1
KEYLED_ON
TCXO_N
_ROM_CS2
A(0:19)
A(19)
_RAM_CS2
A(1)
_LWR
EL_ON1
KEY_0
KEY_1
CODEC_SCL
RD
SCAN_6
SCAN_0
A21
HALL_ON
PLL_DATA
TX_AGC_ADJ
SPK-
SPK+
_RESIN
AD(6)
AD(7)
PDM1
LCD_CS1
LCD_CS2
AD(5)
AD(1)
AD(3)
LCD_CS2
AD(4)
AD(2)
AD(0)
RINGER_ON
SVC_LED
ALT_LED
CTS
TD
DTR
AD(15)
C_RX_QDATA(3)
C_RX_QDATA(2)
C_RX_QDATA(1)
C_RX_QDATA(0)
C_RX_IDATA(3)
C_RX_IDATA(2)
CHIPX8
ADC_ENA_SBST
ADC_DATA_SBDT
ADC_CLK_SBCK
A(19)
_RD
_LWR
TCXO_CON
DSR
RI
RTS
PCM_SYNC
PCM_DOUT
PCM_DIN
PCM_CLK
PA_R0
PA_ON
ON_SW_SENSE
KEY_3
A20
SEND_END
EAR_DET
SCAN_5
SCAN_4
SCAN_1
VIBRATOR
SCAN_3
FM_RX_STB
FM_RX_CLK
CD
TX_IQDATA(1)
RX_AGC_ADJ
SYNTH_LOCK
TRK_LO_ADJ
TX_CLK
_SLEEP
_ROM_CS1
TX_IQDATA(7)
TX_IQDATA(6)
TX_IQDATA(5)
TX_IQDATA(4)
TX_IQDATA(3)
TX_IQDATA(2)
TX_IQDATA(0)
_TX_CLK
A(9)
A(10)
A(11)
A(12)
A(13)
A(14)
A(15)
A(16)
A(17)
A(18)
AD(0)
AD(1)
AD(2)
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)
AD(8)
AD(9)
AD(10)
AD(11)
AD(12)
AD(13)
AD(14)
AD(0:15)
RX_EN
PLL_CLOCK
TX_IQDATA(0:7)
LNA_GAIN
_RESIN
V_BATT
V_BATT
GATE
I_OFFSET
C_RX_QDATA(0:3)
C_RX_IDATA(0:3)
A0
A(1)
A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
A(8)
SAMSUNG Proprietary - Contents may change without notice
9-2

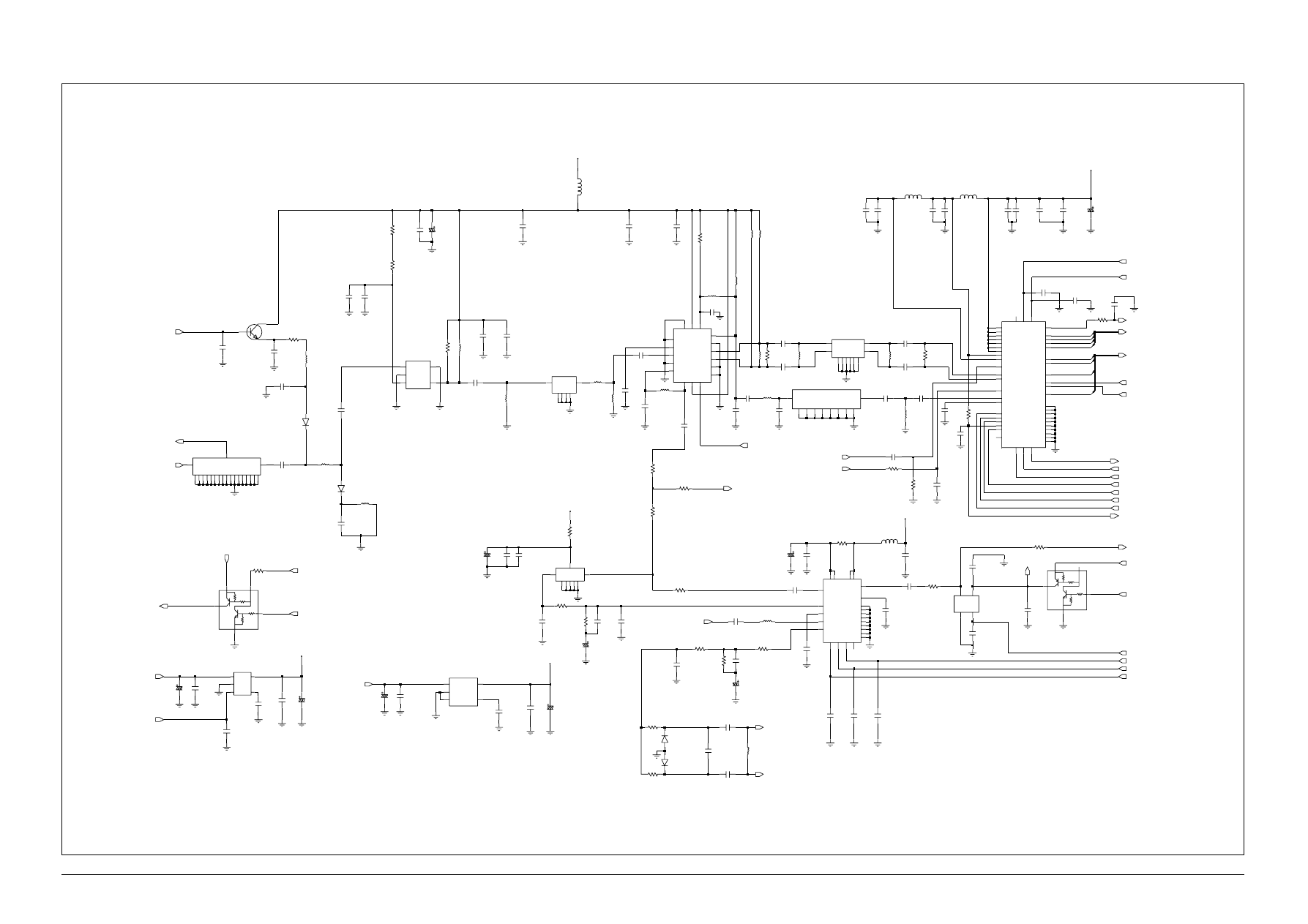

9-2 Logic Circuit Diagram (2)
CONFIDENTIAL
0
R262
100K
R232
SMF05.TB
ZD200
2
1
3
4
5
+3.0V
R220
36
3.9K
R225
220K
R230
C284
1UF
R261
0
NC
C201
100NF
R222
100K
R201
C264
100NF
NC
L280
ACZ1005M-152-T
C274
100NF
C250
Q222
MMBT2222AWT1
1
3
2
10K
R200
2.2NF
4
GND
SCL
6
5
SDA
8
VCC
7
WP
C231
AT24C256-10UI-2.7-T.R
U210
1
A0
A1
2
A2
3
+3.0EAR
NC
R210
R233
100K
C286
1UF
C275
33PF
Q221
2
3
1
2
3
1
DTC114EE/TR
R281
DTC323TU-T106
Q241
R224
36
100
C273
1UF
R280
100
R221
1K
V_DC
7
TX_AUDIO
11
VBATT1
21
22
VBATT2
28
VBATT3
V/F2
27
15
NC
6
NC
29
30
NC
1
RESERVED0
RESERVED1
2
RI
16
RTS
20
RX_AUDIO
DSR
3
24
DTR
8
GND1
10
GND2
GND3
12
GND4
19
GND5
25
HP_PWR
17
CD
CHG+
4
5
CHG+
CTS
23
9
C/F1
26
C/F2
DP_RX_DATA
13
14
DP_TX_DATA
SD
A
11
23
VSS
21
/RESET
J200
1000-0024-301
PCMI
15
16
PCMO
18
PCMSYN
25
PLL
VDD
24
PLLVSS
20
PWRUPSEL
REXT
6
12
SCL
3
MIC1N
2
MIC1P
5
MIC2N
4
MIC2P
7
NC1
9
NC2
NC3
10
17
PCMCLK
D
VSS
14
EAR1ON
27
29
EAR1OP
EAR2O
31
28
EAR
VDD
EAR
VSS1
26
EAR
VSS2
30
1
MBIAS
22
MCLK
U200
32
A
VDD
AVSS
8
19
BUZZCON
13
D
VDD
2.2NF
C280
TWL1103PBSR
2.2K
R231
1
3
2
6.3V
33UF
C270
MMBT2222AWT1
Q240
V_TCXO
+3.0V
NC
R253
V_DC
+3.0EAR
D240
3
1
2
100NF
DAN202UT106
C210
3.3K
C251
NC
C288
33PF
R223
2
+3.0V
MMBT2907A
Q220
1
3
100NF
C202
C282
10NF
2
1
3
4
5
V_DC
6.3V
ZD210
SMF05.TB
100NF
+3.0V
C252
10UF
C262
NC
C260
HP_PWR
100NF
C206
C205
+3.0AUD
100NF
C271
C263
100NF
C272
47PF
R240
56
47PF
1UF
C287
1
NC/FB
4
OUT
5
_EN
3
U250
TPS76930DBVR
GND
2
IN
R263
470PF
C291
10NF
330K
C281
C230
100NF
1UF
10V
C220
R202
100K
100NF
C289
7
R273
0
TC75W56FU-TE12L
U230-2
5
6
+3.0AUD
2.2K
C290
470PF
R260
V_BATT
22K
R264
U230-1
4
3
2
8
1
0
R270
TC75W56FU-TE12L
6.3V
10UF
C200
EPJ1-5-A-D1
J210
1
2
3
4
5
R252
ACZ1005M-152-T
L281
0
SCL
SDA
ZD220
SMF05.TB
2
1
3
4
5
CODEC_SDA
BUZZER-
RX_DATA2
RX_AUDIO
TX_AUDIO
TX_AUDIO
RX_AUDIO
V_F
V_BATT
PCM_CLK
PCM_DIN
PCM_SYNC
CODEC_SCL
_RESIN
SPK+
SPK-
VIBRATOR
MOTOR
KEYLED_ON
LED_ON
C_F
HP_PWR
CTS
DTR
TD
SPK+
EAR_DET
SEND_END
TX_DATA2
V_DC
C_F
MIC+
RINGER_ON
RTS
RD
RI
CD
PCM_DOUT
DSR
+3.0AUD
SAMSUNG Proprietary - Contents may change without notice
9-3
9-3 Receiver Circuit Diagram
CONFIDENTIAL
SAWTEK
KSS
C362
10NF
C351
220PF
C382
220PF
R372
0
R378
430
33K
R342
1NF
C304
6.3V
C501
10UF
470PF
C350
R361
100
NC
C347
6.3V
10UF
C312
6PF
C323
1M
R344
1K
R312
1K
R377
C338
C349
10NF
1
2
3
4
5
1NF
Q390
UMC5NTL
2
C377
100PF
2SC4081BRT106
Q301
1
3
BLM11A102SPT
L325
RN731V
D301
47NF
C365
NC
C397
47NF
C308
C329
12PF
UMC5NTL
Q380
1
2
3
4
5
NC
L311
10
R380
C352
10NF
C317
C305
12PF
100PF
100PF
C334
100PF
C359
L322
2.7uH
C339
6PF
C324
10NF
_EN
3
100NF
C315
TPS76930DBVR
2
GND
1
IN
NC/FB
4
5
OUT
120PF
C376
U391
NC
L330
1K
R341
R362
18
5
VT
C375
9PF
G1
2
G2
3
4
G3
G4
6
G5
8
OUT
1
VCC
7
+3.0IF
UCVW4X103A
U350
GND4
10
GND5
14
GND6
17
IF_SALECT
2
4
LO+
5
LO-
MIXER_IN
7
PD
3
11
VCC
CDMA+
15
16
CDMA-
13
FM+
12
FM-
1
GND1
6
GND2
GND3
9
RF2466TR13
U330
8
BYP
1NF
C330
12PF
C328
C344
10UF
6.3V
L312
15nH
100PF
C335
R324
1K
C301
100PF
C379
470PF
18
R360
100PF
C384
C302
68NF
C363
430
1NF
R311
C398
10NF
6.3V
3PF
C321
0
R343
C394
10UF
470nH
C325
8PF
33NF
L336
C316
C371
1 RFIN
4
RFOUT
3
VPD
100NF
U310
RF2361TR13
GND1
2
GND2
5
100PF
C378
VDD6
VDD7
24
VDD8
35
44
VDDM
33NF
C314
TCXO/N
37
7
VCONTROL
4
VDD1
VDD2
6
VDD3
14
VDD4
15
17
VDD5
20
RXVCO_OUT
25
21
RXVCO_T1
RXVCO_T2
22
SBCK_SLEEP/
32
SBDT_FM/
31
26
SBI_EN
30
SBST_IDLE/
TCXO
36
GND9
I_OFFSET
28
27
Q_OFFSET
RXID2
46
45
RXID3
RXQD0
42
RXQD1
41
40
RXQD2
RXQD3
39
5
GND2
8
GND3
GND4
13
16
GND5
GND6
18
19
GND7
GND8
23
34
9
FM_IF/
1
RM_RX_CLK
FM_RX_IDATA_RXID1
47
48
FM_RX_QDATA_RXID0
FM_RX_STB
2
FM_SLOT
29
GND1
3
GND10
43
U340
IFR3000-48BCCF-TR
11
CDMA_IF
12
CDMA_IF/
CHIPX8
38
DNC
33
FM_IF
10
C356
10NF
TCO-5812U1(19.68MHZ)
U380
GND
2
OUT
3
vc
1
4
VCC
100NF
C311
100
R371
C336
10NF
+3.0VCO
100PF
C346
10UF
6.3V
C506
C373
4.7NF
L331
220nH
1NF
C340
10
R381
NC
R331
G8
9
IN
10
5
OUT
5.6nH
L302
MSFB27-85-030K0
1
G1
2
G2
3
G3
G4
4
6
G5
G6
7
8
G7
F340
4.7K
BAR63-02W-E6327
D302
L301
R391
L323
150nH
2.7uH
6.3V
4.7UF
C372
C332
L371
100nH
R330
1K
10NF
L334
BLM11A102SPT
C320
22NF
100NF
C380
+3.0VR
C383
100PF
33NF
C366
10K
R376
8PF
C326
C395
10NF
C348
5PF
+3.0IF
6.3V
C399
10UF
470NF
20V
C364
220nH
L321
C303
7
GG
8
IN
10
9
IN
5
OUT
OUT 4
12PF
OUT
5
855845
F330
G
1 2
GG
3
G
6
FAR-F5CE-881M50-D233-W
F320
1
G
3
G
4
G
6
G
IN
2
L313
27NH
TX
4
5
G
G
6
7
G
G
9
10
G
G
11
13
RX
3
14
15
G
G
16
G
17
G
18
19
G
G
20
2
G
G
F301
EFSD836MB1Z1
8
ANT
G
1
12
G
G
EN
3
2 GND
1 IN
5
OUT
4
REF_BYP
U390
MIC5205-3.0BM5/TR
C369
100PF
8.2nH
L320
0
C322
5PF
R374
L372
+3.0IF
L324
0603CS-56NXJBC
C331
2.7uH
C341
1NF
220nH
L332
10NF
C381
10NF
NC
+3.0VR
910
L333
R373
1SV279-TPH3
D380
100NF
C361
1NF
C327
1SV279-TPH3
D381
C343
BLM11A102SPT
L370
C342
10NF
L303
1NF
C337
100nH
R370
22
100NF
10K
R375
C370
VP
2
22
VP1
_IF_IN
17
6
_RX_IN
10NF
GND7
16
19
GND8
GND9
21
18
IF_IN
5
RX_IN
TCXO_IN
8
23
VCC
24
VCC1
EN
15
11
FOLD
GND1
1
GND2
4
GND3
7
9
GND4
10
GND5
GND6
13
S1M8821X02-G0T0
U370
CLK
12
D
ATA
14
20
DOIF
3 DO_RF
R350
22
BLM11A102SPT
L335
22NF
C306
L310
C313
150PF
C374
12nH
120PF
100PF
C345
33NF
C319
5PF
C318
10UF
6.3V
C355
C360
10UF
6.3V
C307
10NF
510
R301
22NF
C333
0
R310
TX_1ST_LO
V_DC
10NF
C357
PLL_DATA
PLL_CLOCK
V_TCXO
+3.0VCO
_RX_ON
V_DC
MODE_SEL
MODE_SEL
+3.0IF
_RX_ON
RX_EN
SBI_EN
CHIPX8
TX_OUT
+3.0IF
RX_AGC_ADJ
TCXO
Q_OFFSET
I_OFFSET
TCXO_CON
_SLEEP
RF_DUP
ADC_CLK_SBCK
RXVCO_OUT
ADC_ENA_SBST
ADC_DATA_SBDT
C_RX_QDATA(3)
C_RX_QDATA(2)
C_RX_QDATA(1)
C_RX_QDATA(0)
C_RX_IDATA(3)
C_RX_IDATA(2)
FM_RX_STB
C_RX_IDATA(0)
C_RX_IDATA(1)
FM_RX_CLK
RX_VCO2
RX_VCO1
RXVCO_OUT
LNA_GAIN
TCXO
C_RX_IDATA(0:3)
RX_VCO2
RX_VCO1
C_RX_QDATA(0:3)
TRK_LO_ADJ
SAMSUNG Proprietary - Contents may change without notice
9-4

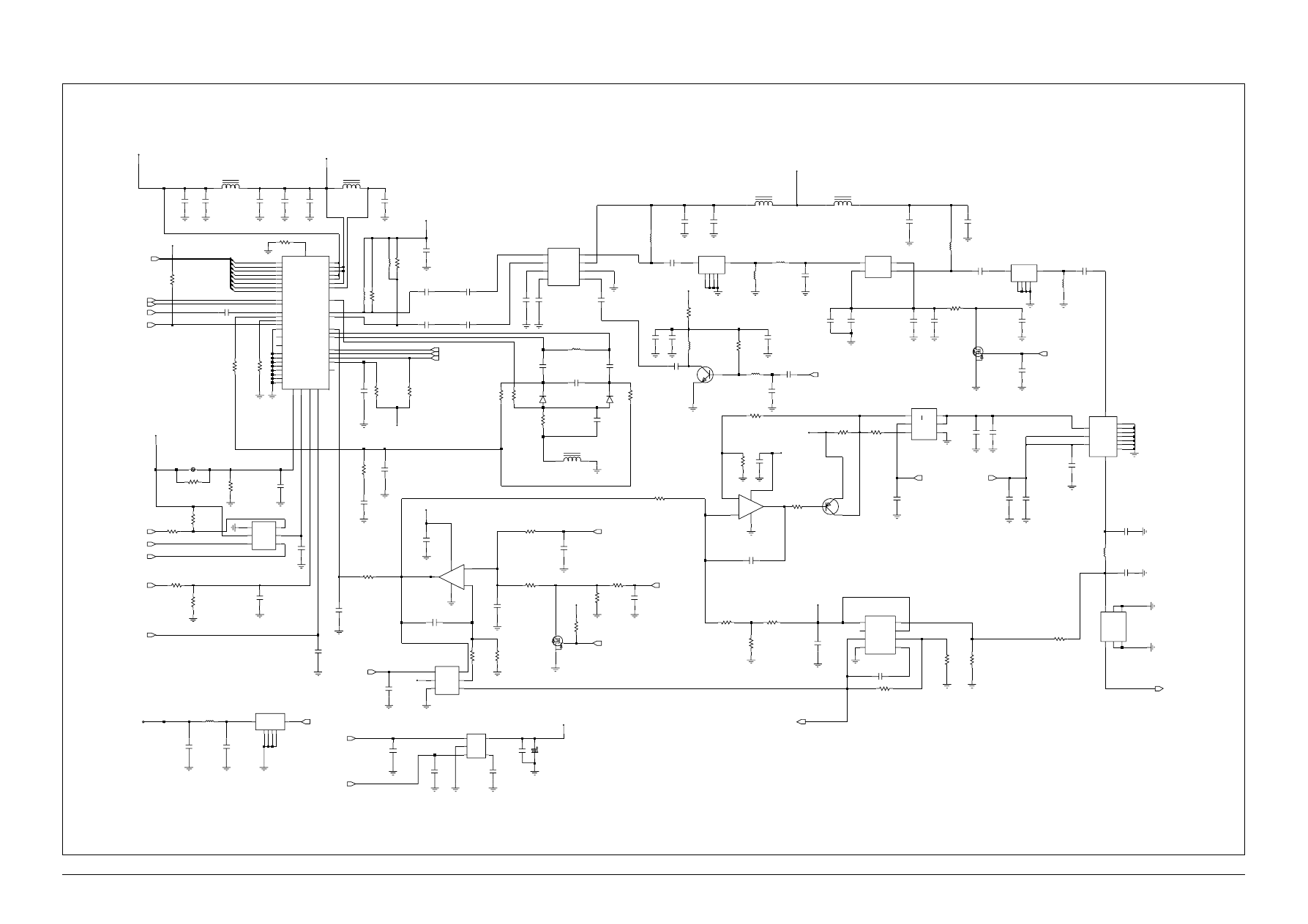

9-4 Transmitter Circuit Diagram
CONFIDENTIAL
C443
1NF
C457
ACZ1005M-152-T
1NF
D401
1SV279-TPH3
F444
1NF
C444
1.5PF
L502
L442
C403
1NF
6.8nH
R407
8.2K
100K,1%
R401
9
21
VDDM2
15nH
L450
19
20
TX_CLK/
VCONTROL
4
VDD1
6
23
VDD2
40
VDD3
45
VDD4
VDD5
47
VDDM1
15
16
TXD5
TXD6
17
18
TXD7
2
TXIF_OUT
TXIF_OUT/
1
43
TXVCO_T1
TXVCO_T2
42
TX_CLK
31
SBSK_IDLE/
33
SEL1_P
A_ON
30
TCXO
35
TXD0
11
12
TXD1
TXD2
13
14
TXD3
TXD4
48
10
GNDD
LOCK_DET
36
PD_ISET
37
38
PD_OUT
8
RBIAS
34
SBCK_SEL2
32
SBDT_FM/
SBI_EN
46
DNC
FM_MOD
41
GND1
3
5
GND2
GND3
7
22
GND4
GND5
39
44
GND6
GND7
U401
IFT3000-48BCCF-TR
26
ADC_CLK
ADC_DATA
25
24
ADC_ENABLE
27
ADC_IN1
28
ADC_IN2
ADC_IN3
29
1NF
C447
100K
R455
R417
9.1K,1%
R459
2.7nH
C477
2PF
NC
C469
8.2nH
L449
22NF
C421
C451
NC
C474
100PF
470PF
C414
U442
MGA-72543-TR1
GND
4
1
GND.C
3
IN
2
OUT
7
6
V_UP
1uH
L402
U445
AD8314ARM-REEL7
COMM
5
ENBL
2
FLTR
4
1
RFIN
8
VPOS
3
VSET
V_DN
100PF
150PF
C467
C454
0.5PF
C466
6.3V
10UF
C493
2SK2035
Q481
3
1
2
C496
100PF
R482
1K
2SA1576FRT106
Q483
1
3
2
3
100K
R445
10
G
G
11
12
G
LABEL
7
RFIN
2
5
RFOUT
1 VCC1
VCC2
4
VREF
RM912
U443
6
G
G
8
9
G
+3.0IF_D
100PF
C472
R490
100K,1%
R446
12K
100PF
C479
ANT1
R444
F403
ACZ1005M-152-T
Q442
D 3
G
1
S
2
22
C445
1NF
2SK2035
C494
R412
+3.0IF
100PF
+3.0IF_D
270
NTH5G1M33B103J04TH
TH401
C495
10NF
1UF
C465
10V
C406
1NF
27nH
L403
1NF
C432
10NF
C473
NC
C486
12nH
L501
C409
10NF
1NF
C485
3.0VT
C402
R452
100K
100NF
C450
5 ON/OFF
R1,C1
6
R2
1
2
V.C1-1
3
V.C1-2
4
VIN,R1
1NF
Q441
FDG6323L
62PF
1PF
C452
C412
1NF
C448
200K,1%
R484
L443
6.8nH
C470
10NF
1K
R447
1NF
C442
C404
C405
10NF
NC
10NF
100
R443
+3.0IF_D
C458
22NF
R456
C482
R418
1.2K,1%
1K,1%
D402
1SV279-TPH3
NC 4
NO
6
V+
2
3.0VT
12K,1%
R411
U402
MAX4599EXT-T
5
COM
3
GND
IN
1
510
R402
3.0VT
10V
R403
1UF
C460
62PF
C411
8.2K
NC
2
3.0VT
C456
Q445
AT-32032-TR1
1
3
150PF
C464
C455
100PF
R489
1NF
C422
100K
F443
ACZ1005M-152-T
33K,1%
R416
R406
62K
+3.0IF
47NF
C475
F448
CE053R836DCA
2
GND1
5
GND2
3
GND3
GND4
4
IN
1
OUT
6
L444
3.0VT
8.2nH
C407
10NF
510
R404
OUT
R450
10K
D836LH
F445
1
G
3
G
4
G G
6
2
IN
5
L445
NC
R454
1.8K,1%
C413
3.0VT
9PF
R448
51
C408
10NF
6PF
C453
C484
150PF
C471
0
R405
10NF
5
COM
3
GND
IN
1
NC 4
NO
6
V+
2
+3.0IF
3.0VT
Q444
MAX4599EXT-T
C410
22NF
ACZ1005M-152-T
F402
IN
1
OUT
2
C461
150PF
J501
MHC-175
3705-001178
GND1
3
4
GND2
GND3
5
6
GND4
1NF
+3.0IF
U491
EN
3
GND
2
IN
1
OUT
5
REF_BYP
4
C416
MIC5205-3.0BM5/TR
R457
C433
1NF
F401
ACZ1005M-152-T
62
L441
12nH
R408
47K,1%
47NF
56K
R458
1UF
C417
C492
OUT
5
10K
R410
10V
D836MH
F446
G
1 3
G G
4 6
G
2
IN
R481
150PF
50V
C463
200K,1%
R451
100K
91K,1%
R419
10K
R409
U482
LMV821M7
2
1
3
5
4
2.4K
R414
22NF
R420
100K,1%
1
3
5
4
C418
C481
LMV821M7
U481
2
10NF
L401
47K
R453
1uH
10K,1%
R486
R483
18K,1%
10NF
C446
C449
2PF
R449
1K
VCC
7
R415
4.7K,1%
U441
BYP
3
6
GND
IF+
2
1
IF-
5
LO+
4
LO-
8
RFOUT
22NF
C420
RF2638TR13
ANT2
C476
1NF
3.0VT
C502
1.5PF
1NF
C483
100K
R460
1NF
C441
100PF
C459
3PF
C462
PDM1
1NF
C431
PA_ON
MODE_SEL
_IDLE
PA_R0
H_DET
PA_R0
TX_1ST_LO
H_DET
TX_AGC_ADJ
V_BATT
V_DC
_IDLE
SYNTH_LOCK
ADC_CLK_SBCK
ADC_ENA_SBST
ADC_DATA_SBDT
TCXO
_TX_CLK
TX_CLK
TX_IQDATA(0:7)
V_F
TX_OUT
RF_DUP
PA_ON
TX_IQDATA(0)
TX_IQDATA(1)
TX_IQDATA(2)
TX_IQDATA(3)
TX_IQDATA(4)
TX_IQDATA(5)
TX_IQDATA(6)
TX_IQDATA(7)
V_BATT
SAMSUNG Proprietary - Contents may change without notice
10-1

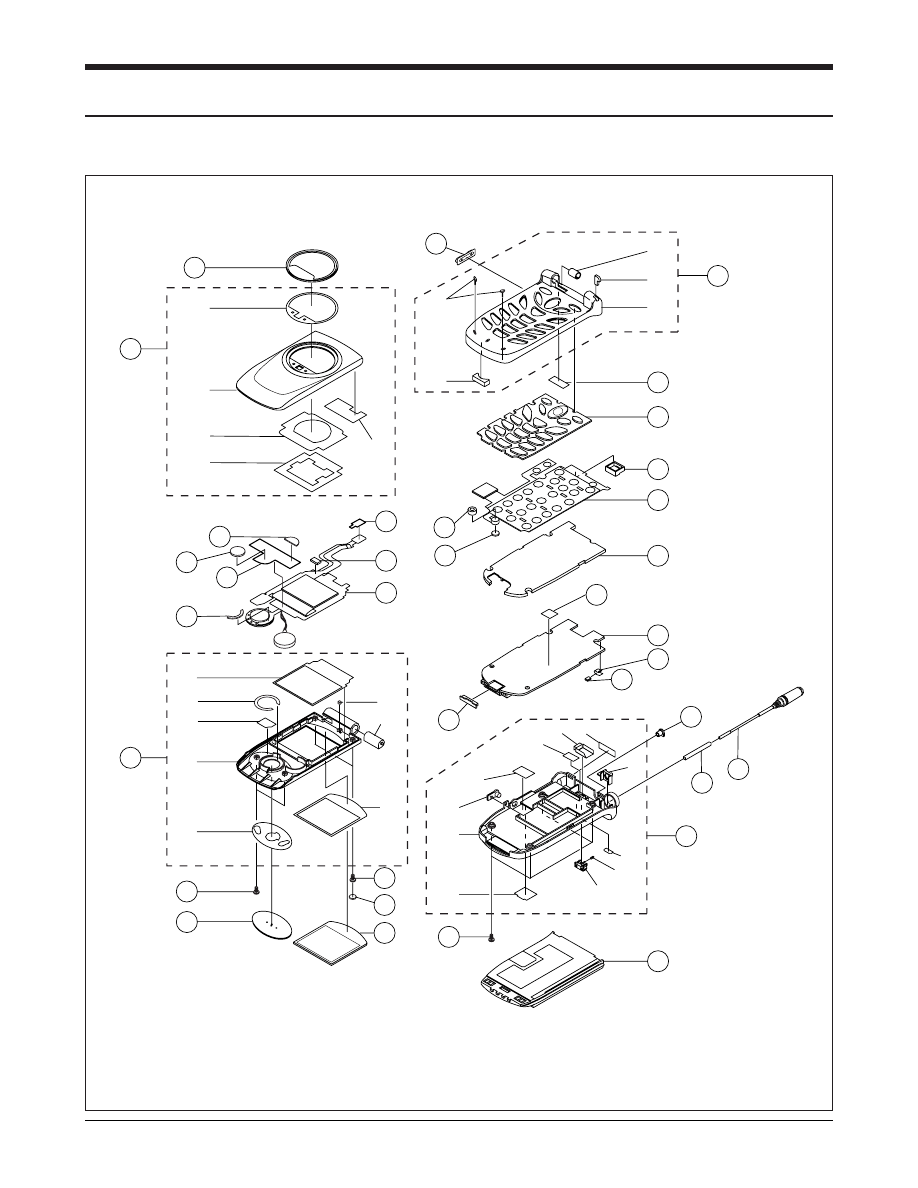

10. Exploded View & Its Parts Lists
1-2
1-1
3-4
3-5
3-2
3-3
3-1
1-3
1-4
2-2
2-5
2-8
4-2
4-3
4-4
4-5
4-6
4-1
4-7
4-11
4-10
4-9
2-6
2-3
1-5
1
5
2
13
15
17
3
4
18
19
22
23
24
25
31
32
26
34
27
28
30
33
29
20
21
7
12
6
8
2-4
2-1
2-7
9
11
10
16
13
14
SAMSUNG Proprietary - Contents may change without notice
10-2
NO
DESCRIPTION
SEC CODE
COLOR
Q’TY
SVC
REMARKS
1
MEC-FOLDER UPPER
GH75-00980B
SILVER
SA
1-1
MPR-TAPE WATCH WINDOW
GH74-00307A
1
SA
1-2
PMO-FOLDER UPPER
GH72-01915B
1
SNA
1-3
MPR-MASKING SHEET UPPER
GH74-00635A
1
SNA
1-4
MPR-SPONGE WATCH WINDOW
GH74-00308A
1
SA
1-5
MPR-SPONGE WATCH
GH74-00632A
1
SA
2
MEC-FOLDER LOWER
GH75-00981B
SILVER
SA
2-1
MPR-SPEAKER TAPE
GH74-01124A
1
SA
2-2
MPR-SPONGE MAIN LCD
GH74-00309A
1
SA
2-3
MPR-TAPE COIL
GH74-00721A
1
SNA
2-4
ICT-MAGNETIC
GH70-00039A
1
SNA
2-5
MEC-HINGE ASSY
GH75-00367A
1
SNA
2-6
PMO-FOLDER LOWER
GH72-01916B
1
SNA
2-7
MPR-TAPE SPEAKER COVER
GH74-01125A
1
SNA
2-8
MPR-TAPE MAIN WINDOW
GH74-00310A
1
SA
3
MEC-FRONT COVER
GH75-00982B
SILVER
SA
3-1
RMO-DAMPER
GH73-00625A
2
SNA
3-2
PMO-HINGE DUMMY
GH72-01707A
1
SA
3-3
PMO-REFLECTOR LED
GH72-00642A
1
SNA
3-4
PMO-FRONT COVER
GH72-01913B
1
SNA
3-5
MPR-I/F DUMMY
GH73-00265A
1
SNA
4
MEC-REAR COVER
GH75-00983B
SILVER
SA
4-1
NPR-BRACKET ANT
GH71-00096A
1
SA
4-2
LABEL(R)-QUALCOMM
GH68-00973A
1
SNA
4-3
NPR-SHIELD FINGER
GH71-00228A
1
SNA
4-4
MPR-FINGER SHEET
GH74-00578A
1
SNA
4-5
MPR-TAPE IN EARPHONE
GH74-00584A
1
SNA
4-6
RMO-EARPHONE COVER
GH73-00204C
1
SA
4-7
PMO-REAR COVER
GH72-01914B
1
SNA
4-8
MPR-TAPE EARPHONE
GH74-00409C
1
SNA
4-9
MPR-TAPE MOBILE
GH74-00410D
1
SNA
4-10 SPRING-LOCKER
GH61-00008A
1
SNA
4-11 PMO-LOCKER BATT
GH72-02213B
1
SNA
5
PMO-WATCH WINDOW
GH72-02212B
1
SA
SCH-A205 Handset Main
NO
DESCRIPTION
SEC CODE
COLOR
Q’TY
SVC
REMARKS
6
MPR-SPONGE VIBRATOR
GH74-00412A
1
SA
7
MPR-SPONGE SPEAKER
GH74-00413A
1
SA
8
MPR-SHIELD TAPE LOWER
GH74-00576A
1
SNA
9
MPR-SHIELD CONNECTOR
GH74-00577A
1
SNA
10
MPR-SPONGE FOLDER GND
GH74-00589A
1
SNA
11
LCD
GH07-00047A
1
SA
12
MPR-SPEAKER MASK SHEET
GH74-00979A
1
SNA
13
SCREW
6001-001402
4
SA
MACHINE,BH,M1.4,L3
14
MPR-SCREW CAP
GH74-00611C
SILVER
2
SA
15
PMO-SPEAKER COVER
GH72-01917B
1
SA
16
PCT-WINDOW LCD
GH72-00602D
1
SA
17
PMO-KEY VOLUME
GH72-00940A
1
SA
18
MPR-DUMMY SHEET
GH74-00587A
1
SNA
19
RMO-KEYPAD
GH73-00527B
1
SA
20
RMO-HOLDER MIC
GH73-00529A
1
SA
21
MPR-SPONGE CMIC
GH74-00445A
1
SA
22
RMO-HOLDER BUZZER
GH73-00206A
1
SA
23
KEY PBA
GH59-00145A
1
SA
24
PMO-SHIELD COVER
GH72-00747B
1
SA
25
MPR-SPONGE IFR
GH74-00608A
1
SNA
26
MAIN PBA
GH92-00962A
1
SA
27
NPR-CONTACT ANT
GH71-00095A
1
SA
28
MPR-ANT SPONGE
GH74-01005A
1
SNA
29
RMO-CONNECTOR COVER
GH73-00202C
1
SA
30
RMO-MOBILE CAP
GH73-00203B
SILVER
1
SA
31
ANTENNA
GH42-00086A
1
SA
32 ANTENNA TUBE
33
SCREW
6001-000464
4
SA
MACHINE,BH,M1.4,L4
34
BATTERY
GH43-00196F
1
SA
SAMSUNG Proprietary - Contents may change without notice
10-3
Wyszukiwarka
Podobne podstrony:
Samsung SCH A101 service manual
Samsung SCH 8500 service manual
Samsung SCH 880 service manual
Samsung SCH 470 service manual
Samsung SCH A212 service manual
Samsung SCH X359 service manual
Samsung SCH A302 service manual
Samsung SCH 850 service manual
Samsung SCH 6100 service manual
Samsung SCH 570 service manual
Samsung SCH 870 service manual
Samsung SCH A105 service manual
Samsung SGH R200 service manual
Samsung SGH E710 service manual
Samsung SGH T500 service manual
Samsung SGH A408 service manual
Samsung SGH Q208 service manual
Samsung SGH N288 service manual
Samsung SGH A288 service manual
więcej podobnych podstron
