Samsung SCH 8500 service manual

background image

ELECTRONIC

DUAL BAND(PCS+AMPS)
PORTABLE TELEPHONE

SCH-8500

Manual

DUAL MODE TELEPHONE

CONTENTS

1. Specification

2. Nam Programming

3. Test Commands & Test Procedure List

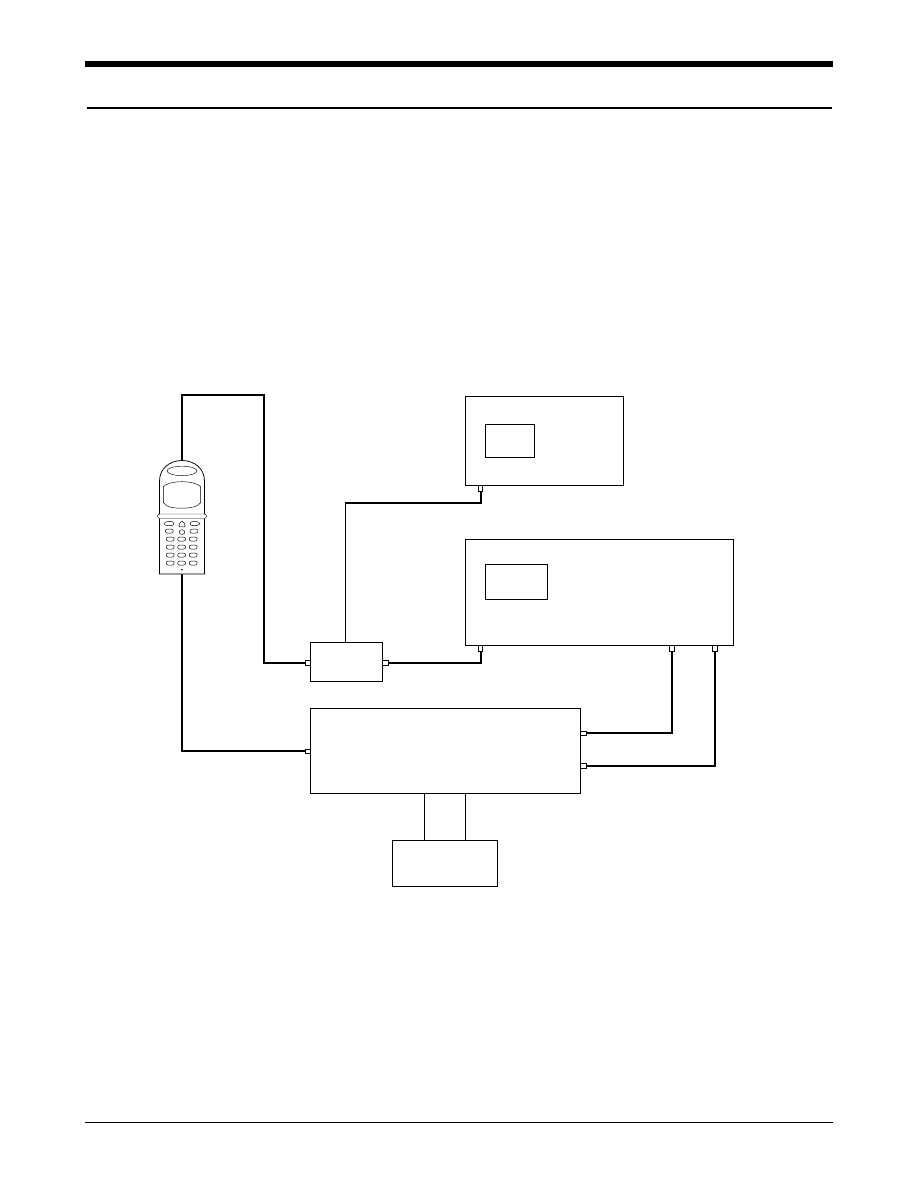

4. Test Procedure

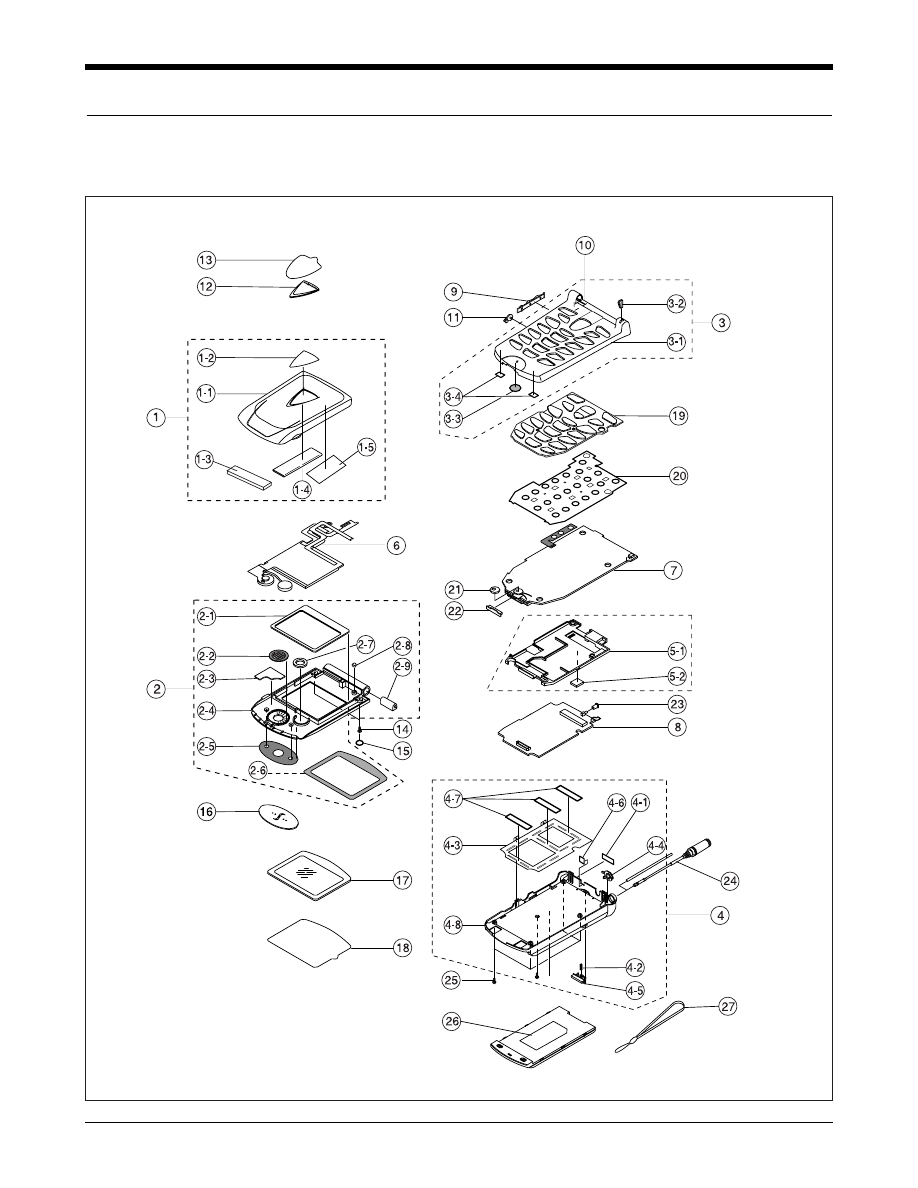

5. Exploded View & its Parts List

6. Electrical Parts List

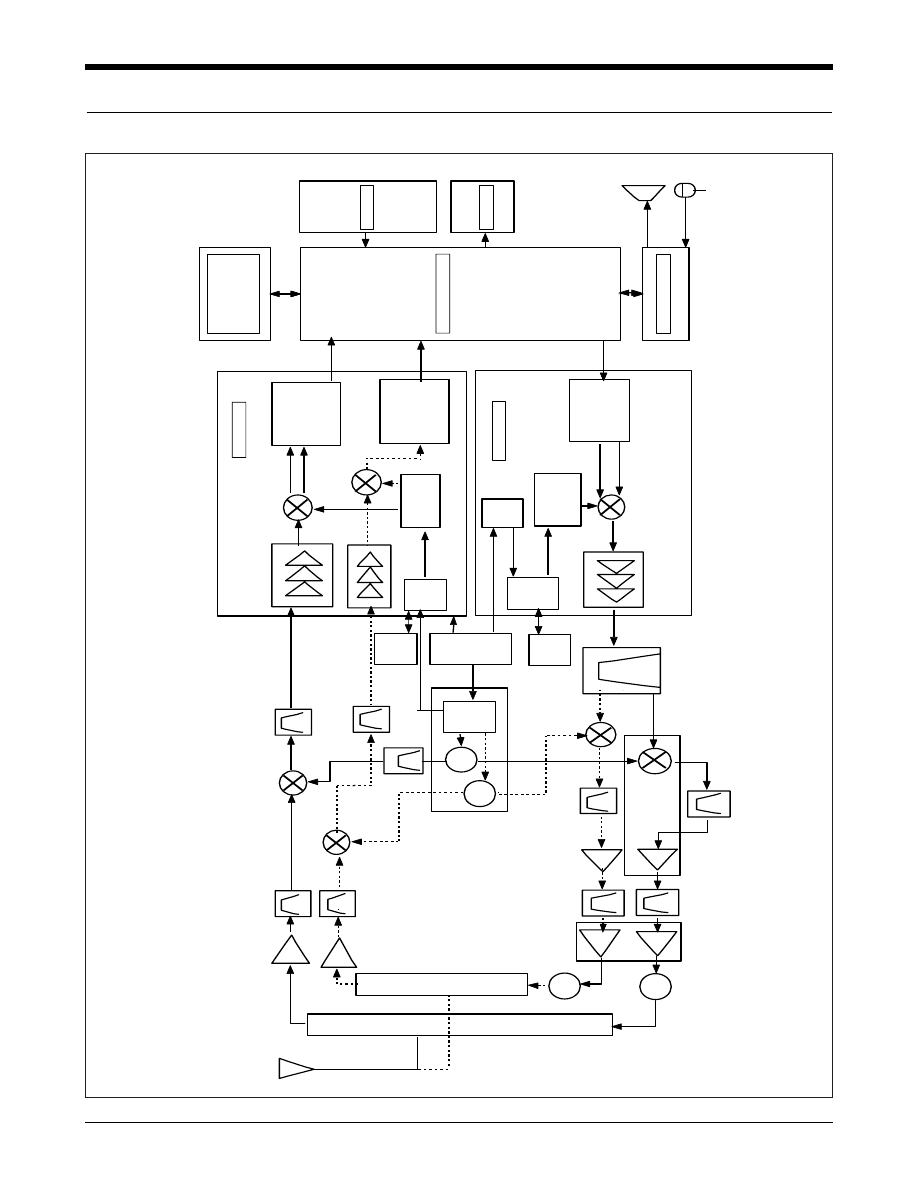

7. Block Diagram

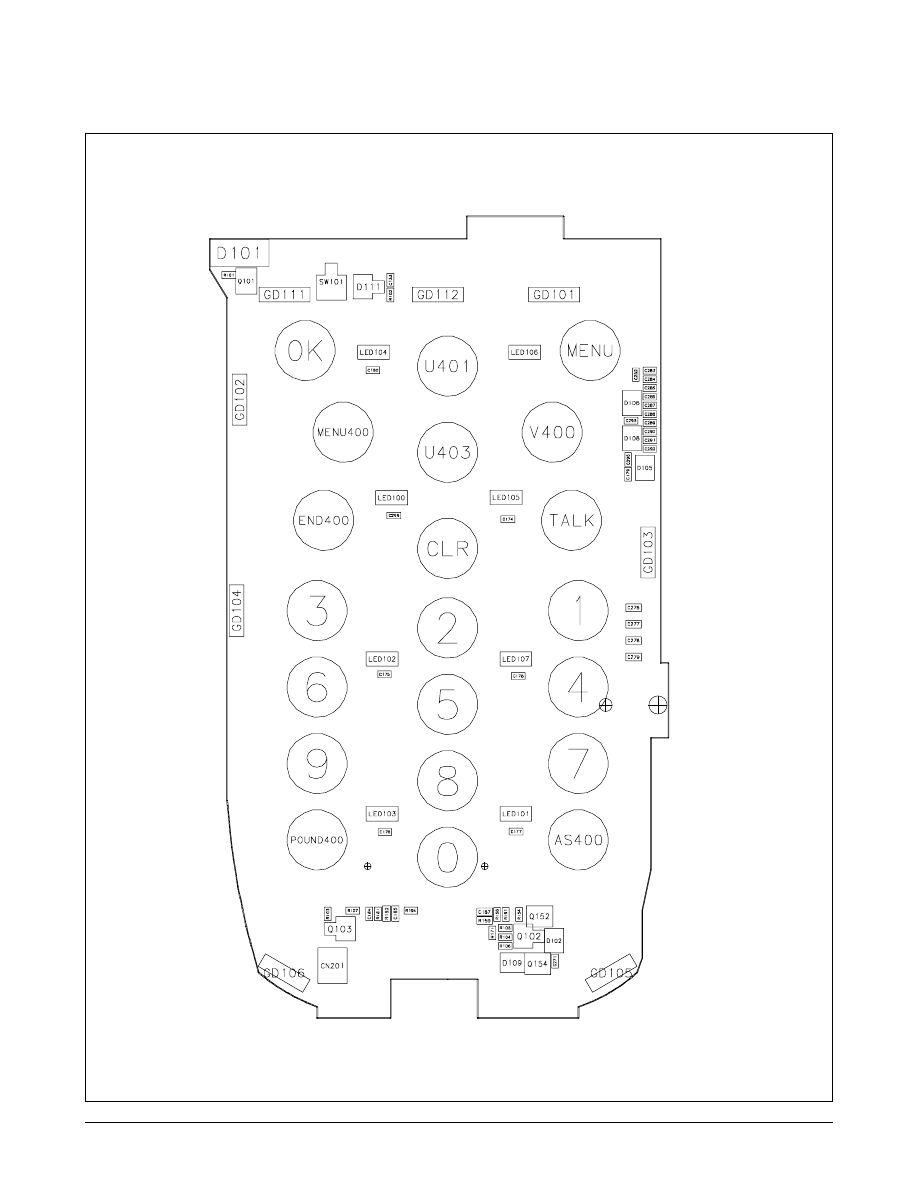

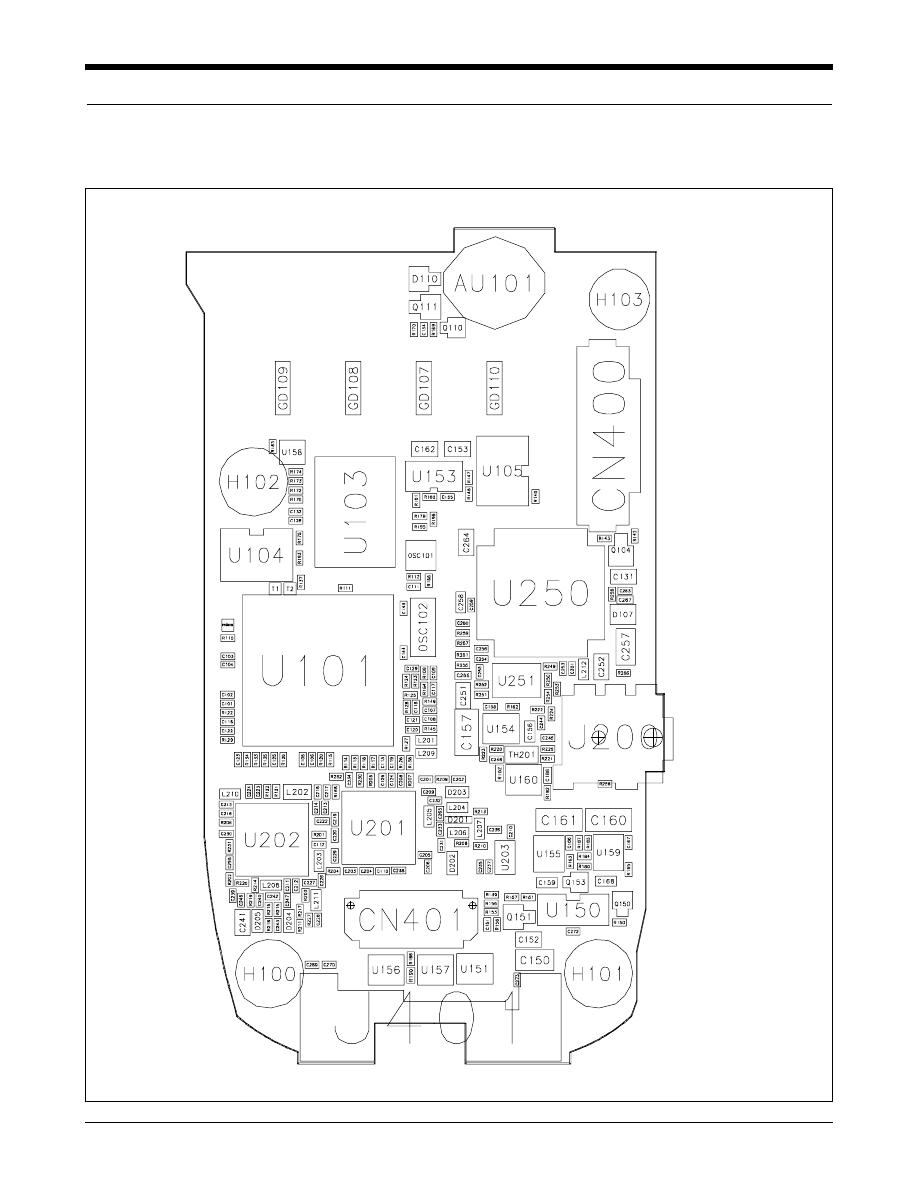

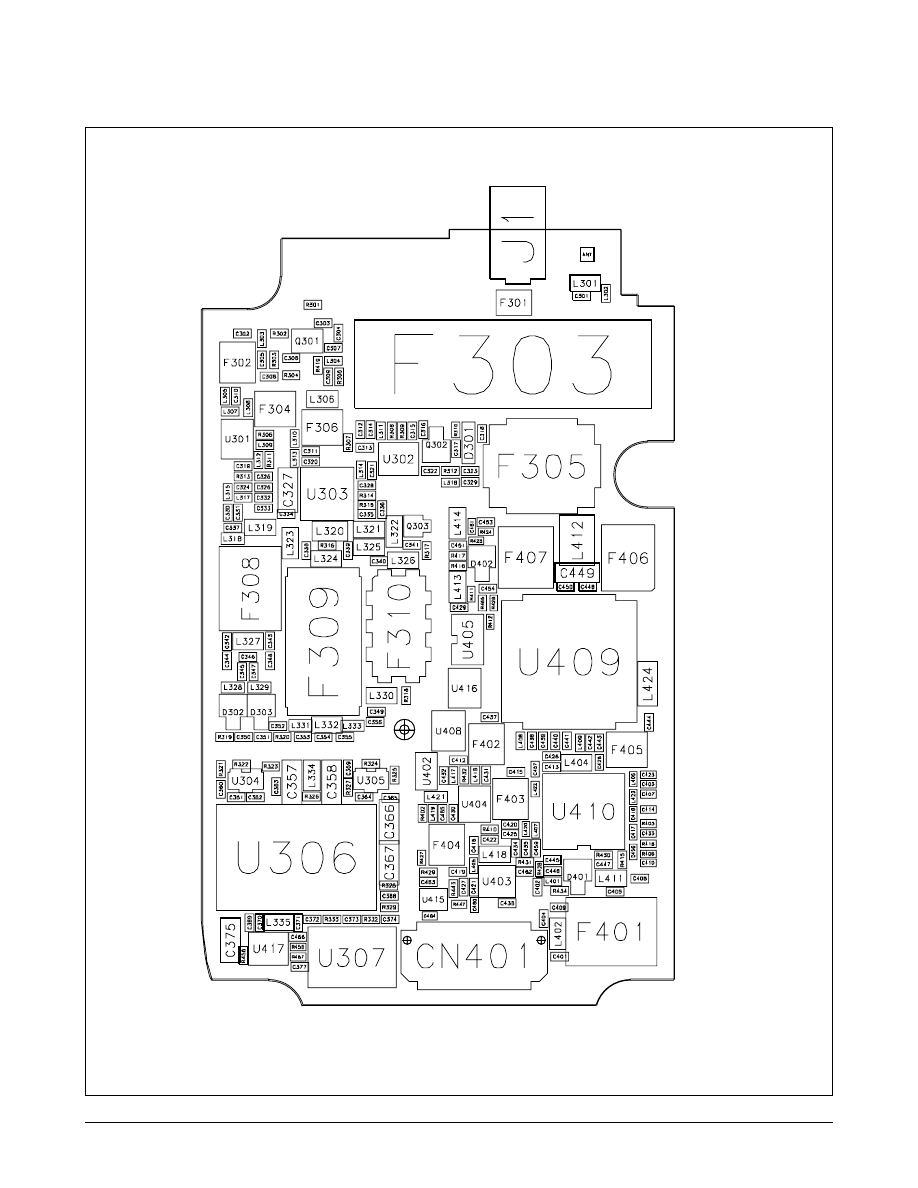

8. PCB Diagram

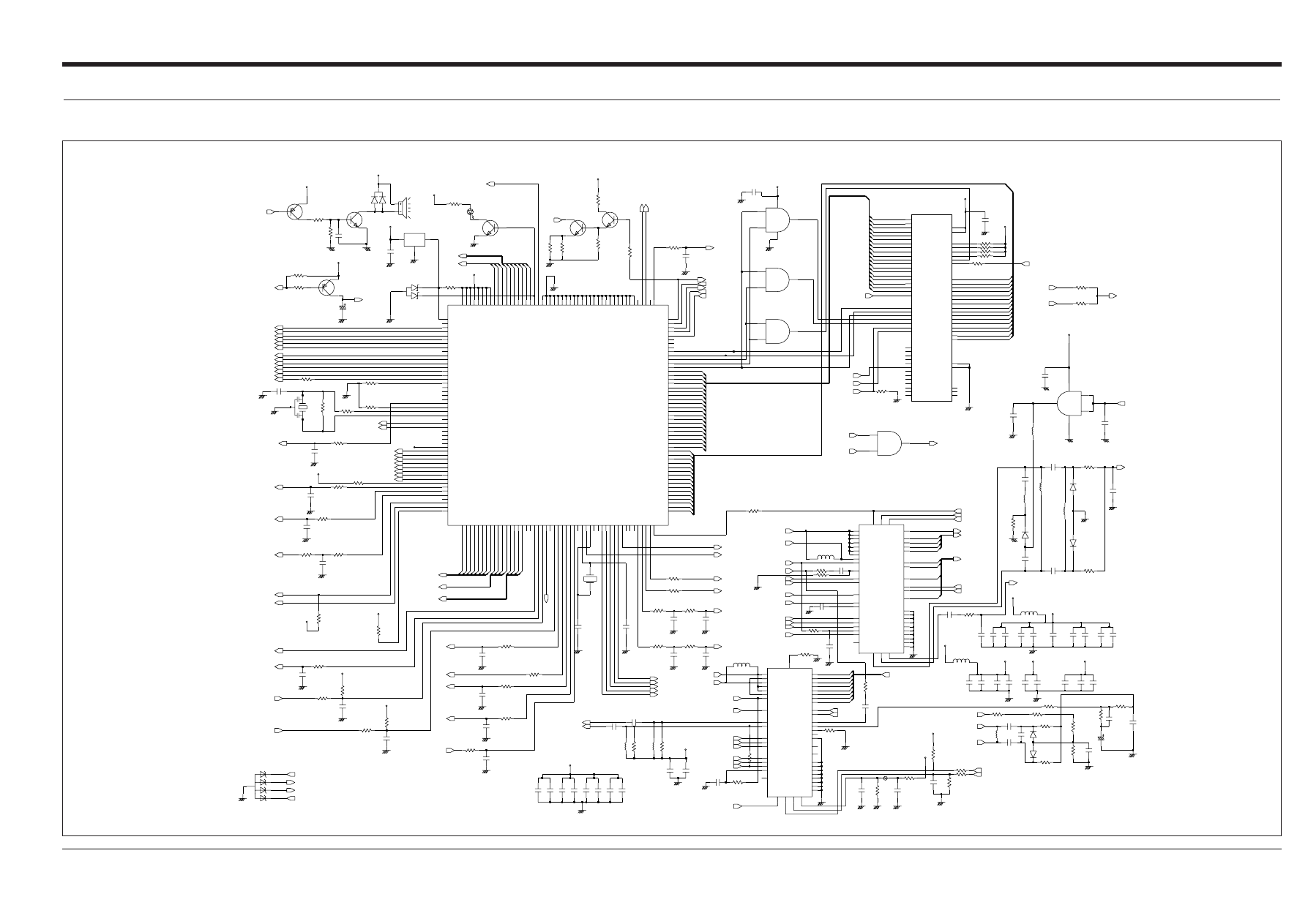

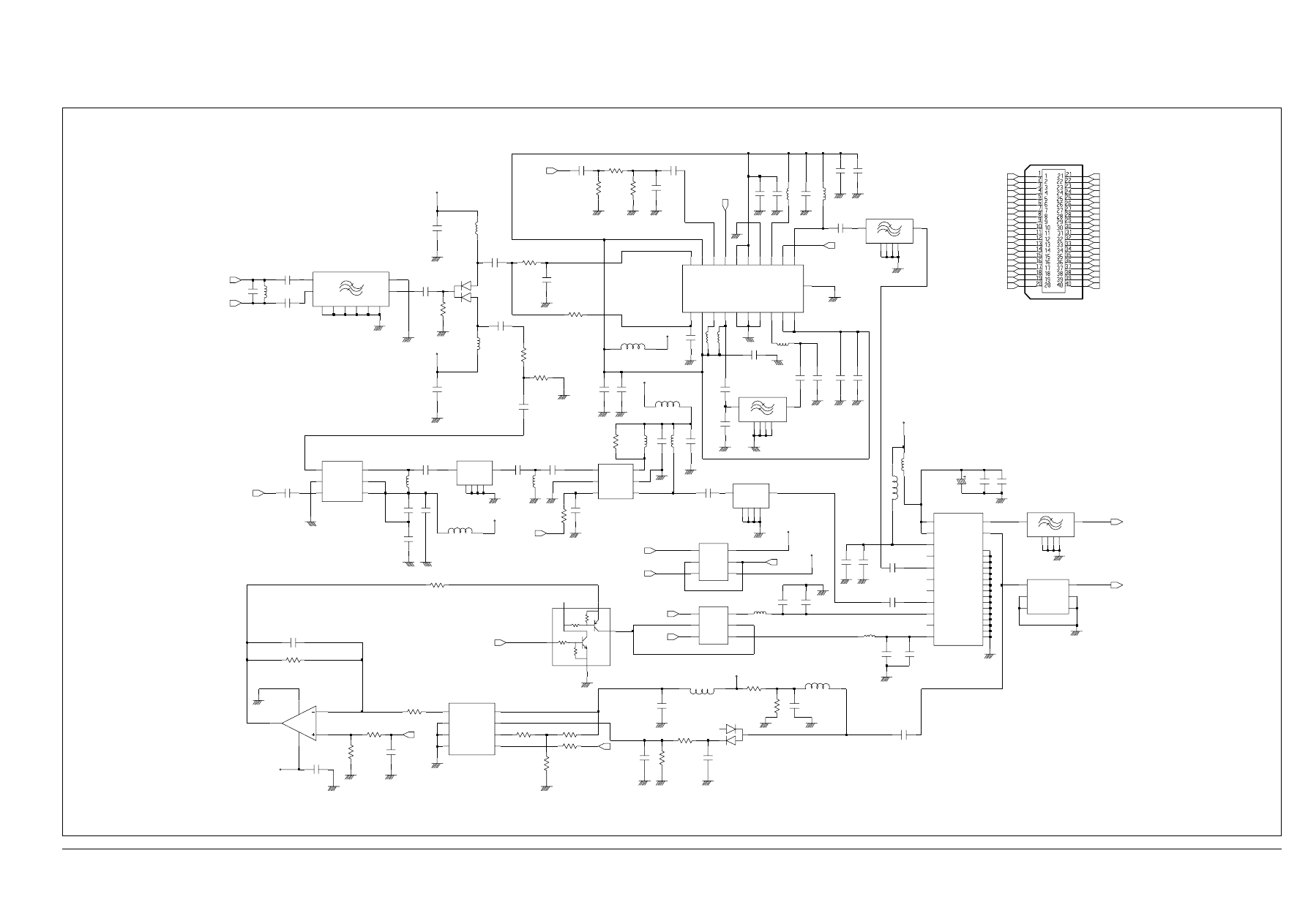

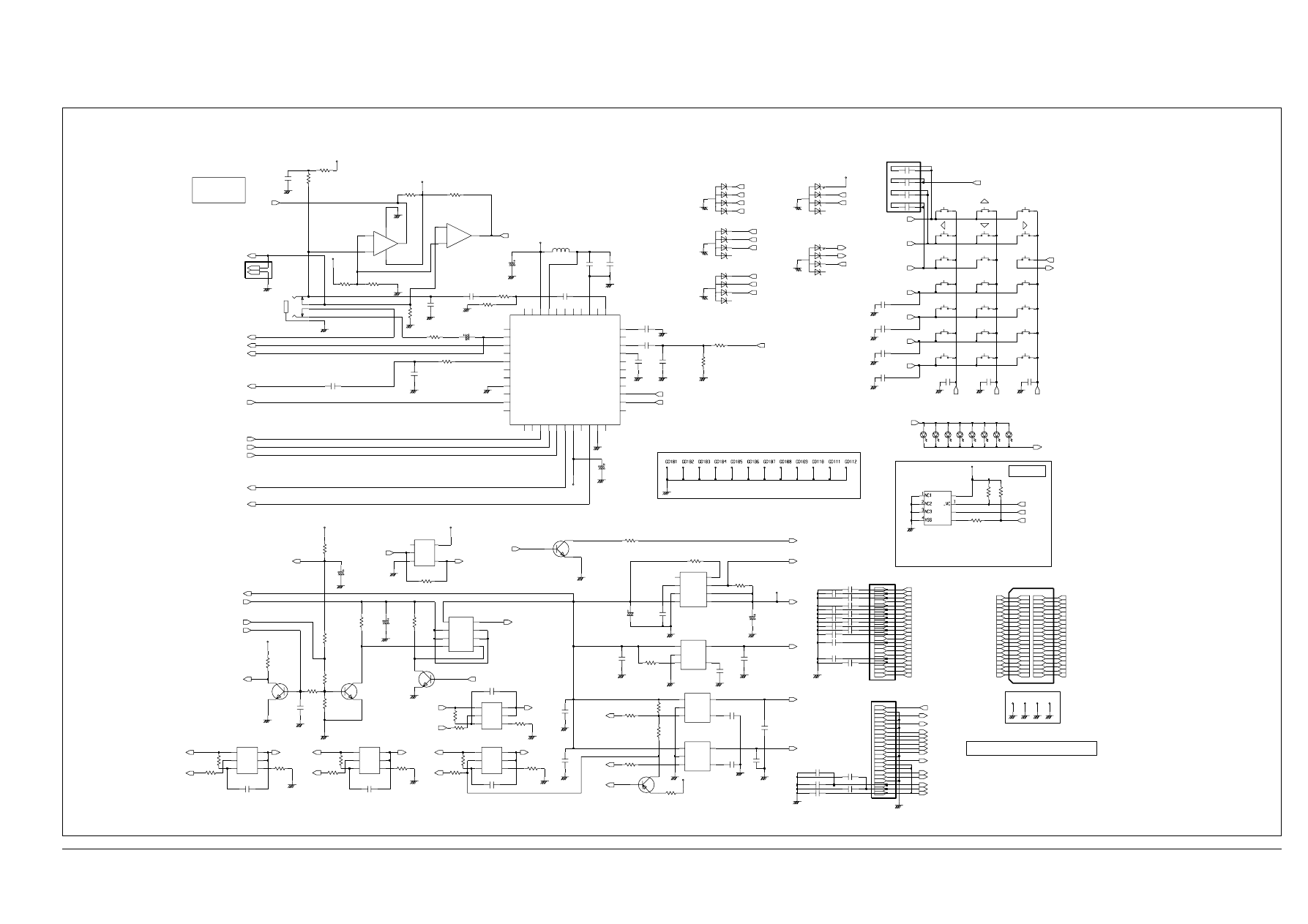

9. Schematic Diagrams

SERVICE

background image

Samsung Electronics Co.,Ltd. Dec. 99

Pinted in Korea.

Code No.: GH68-00949A

ELECTRONICS

background image

Samsung Electronics

1-1

1. Specification

1-1 General

ITEM

Tx Freq. range

Rx Freq. range

Channel Bandwidth

Channel Spacing

Number of Channel

Duplex Separation

Type of Emission

In/Output Impedance

Tx Intermediate Freq.

Rx Intermediate Freq.

Tx Local Freq.

Rx Local Freq

TCXO freq.

Freq. Stability

Operating Temperature

CDMA

1850 ~ 1910MHz

1930 ~ 1990MHz

1.23MHz

50KHz

1200

80MHz

1M25F9W

50

130.38MHz

210.38MHz

1st (FTX-130.38MHz)
2nd (260.76MHz)

1st (420.76MHz)
2nd (FRX-210.38MHz)

19.68MHz

(FRX-80MHz)±150Hz

-30°C ~ +60°C

AMPS

824 ~ 849MHz

869 ~ 894MHz

30KHz

30KHz

832

45MHz

40K0F8W,40K0F1D

50

130.38MHz

85.38MHz

1st (FTX+130.38MHz)
2nd (260.76MHz)

1st (170.76MHz)
2nd (FRX+85.38MHz)

19.68MHz

±2.5ppm

-30°C ~ +60°C

Supply Voltage

3.6V

Size and Weight

Slim : 88mm X 50mm X 23.5mm, 105 g, 500 mA
STD : 88mm X 50mm X 25.7mm, 135 g, 1000 mA
EXT : 88mm X 50mm X 27.5mm, 151 g, 1600 mA

background image

1-2. 1.9GHz CDMA(US PCS)

1) General

Frequency Range

• Transmitter : 1850-1910MHz

• Receiver : 1930-1990MHz

Channel Bandwidth : 1.23MHz

Channel Spacing :

50kHz

Number of Channels : 1200

Duplex Seperation : 80 MHz

Type of Emission : 1M25F9W

Input/Output Impedance : 50

Intermediate Frequency

• Transmitter : 130.38MHz

• Receiver : 210.38MHz

Local Frequency

• Transmitter : 1st(FTX-130.38), 2nd(260.76MHz),

• Receiver : 1st(FRX-210.38MHz), 2nd(420.76MHz),

TCXO Frequency : 19.68MHz

Frequency Stability : (FRX-80MHz) ±150Hz

Operation Temperature : -30°C ~ 60°C

Supply Voltage : +3.6V

2) Transmitter

Waveform Quality :0.944 or more

Open Loop Power Control Range

• -25dBm : -60.5dBm ~ -41.5dBm

• -65dBm : -20.5dBm ~ +1.5dBm

• -104dBm : +15.0dBm ~ +30dBm

Minimum Tx Power Control : below -50dBm

Closed Loop Power Control Range : ±24dB

Maximum RF Output Power : 200mW(+23dBm)

Occupied Bandwidth : 1.23MHz

Conducted Spurious Emission @1.25 MHz: -42dBc/30kHz

Samsung Electronics

1-2

background image

3) Receiver

Rx Sensitivity and Dynamic Range : -104dBm, FER = 0.5% or less

: - 25dBm, FER = 0.5% or less

Conducted Spurious Emission

• 1930 ~ 1990MHz : <-81dBm

• 1850 ~ 1910MHz : <-61dBm

• All Other Frequencies : <-47dBm

Single Tone Desensitization : lower than 1 %

Rx power = -101dBm

Tone power = -30dBm

Tone offset from carrier = ±1.25 MHz

Intermodulation Spurious Response Attenuation : lower than 1 %

Rx power = -101dBm

Tone 1 power = -43dBm

Tone 2 power = -43dBm

Tone 1 : offset from carrier = ± 1.25 MHz

Tone 2 : offset from carrier = ± 2.05 MHz

1-3

Samsung Electronics

background image

1-3. 800MHz AMPS

1) General

Frequency Range

• Transmitter : 824~849 MHz

• Receiver : 869~894MHz

Channel Spacing : 30kHz

Number of Channels : 832

Duplex Spacing : 45MHz

Frequency Stability : ±2.5ppm(-30°C ~ 60°C, -22°F ~ 140°F)

Modulation/Demodulation

• Voice : PM

• Data : FM

Operating Temperature :-30°C ~ 60°C, -22°F ~ 140°F

Supply Voltate : 3.6V

2) Transmitter

RF output power : 0.6W(+2/-4dB)

Carrier ON/OFF conditions

“ON” Condition : within ±3dB of specification output(in 2 ms)

“OFF” Condition : below -60dBm(in 2ms)

Compresssor

Compression Rate : 2 : 1

Attack Time

: 3ms

Recovery Time

: 13.5ms

Reference Input

: input power level for producing a nominal ±2.9kHz

: peak frequency deviation of transmitted carrier

Preamphasis

: 6dB/OCT within 0.3 ~ 3 kHz

Maximum Frequency Deviation

F3 of G3 :±12 kHz

Supervisory Audio Tone : ±2 kHz(±10%)

Signaling Tone

: ±8 kHz(±10%)

Wideband Data

: ±8 kHz(±10%)

Post Deviation Limiter Filter

3.0 ~ 5.9 kHz : above 40 LOG(F/3000)dB

5.9 ~ 6.1 kHz : above 35dB

6.1 ~ 15 kHz : above 40 LOG(F/3000)dB

Over 15 kHz : above 28 dB

Samsung Electronics

1-4

background image

Spectrum Noise Suppression

For all modulation

fo +20 kHz ~ fo + 45 kHz

: above 26dB

For modulation by voice and SAT

fo + 45 kHz

: above 63dB+10LOG(PY)dB

For modulation by WBD(without SAT) and ST(with SAT)

fo +45 kHz ~ fo + 60 kHz

: above 45 dB

fo +60 kHz ~ fo + 90 kHz

: above 65 dB

fo +90 kHz ~ 2 fo

: above 63 dB + 10 LOG(PY) dB

(where fo = carrier frequency

PY = mean output power in watts)

Harmonic and conducted Spurious Emissions : below 43 + 10 LOG(PY) dB

3) Receiver

De-emphasis

: -6dB/OCT within 0.3 ~ 3 kHz

Expandor

Expandor Rate

: 1 : 2

Attack time

: within 3 ms

Recovery Time : within 13.5 ms

Reference input : output power level to a 1000Hz tone from a carrier within ±2.9 kHz

peak frequency deviation

Sensitivity

: 12 dB SINAD/-116dBm

Intermodulation Spurious Response Attenuation

: above 65dB

RSSI Range

: above 60dB

Protection Against Spurious Response Interference : above 60dB

In Band Conducted Spurious Emission

Transmit Band

: below -60 dBm

Receive Band

: below -80 dBm

Out of Band Conducted Spurious Emissions

: below -47dBm

Radiated Spurious Emission

Frequency Range : Maximum Allowable EIRP

25 ~ 70MHz

: -45dBm

70 ~ 130MHz

: -41dBm

130 ~ 174 MHz

: -41 ~ -32dBm

174 ~ 260 MHz

: -32 dBm

260 ~ 470 MHz

: -32 ~ -26 dBm

470 ~ 1G MHz

: -21 dBm

1-5

Samsung Electronics

background image

2. Nam Programming

LCD Display

Key in

Function

MENU, 8,2,0

- Selects NAM programming

Enter Lock 222222

- Enter random 6-digit code(MSL)

??????

SVC Menu

1

- Choose ‘Phone #’

1: Phone #

2: General

3: NAM

Phone #

- Phone number setup

1234567890

keypad

- To change phone number, enter phone #.

OK

- Store it.

Mobile ID #

- Mobile ID setup

1234567890

keypad

- To change phone number, enter phone #.

OK

- Store it.

SVC Menu

2

- Choose ‘GENERAL’

1: Phone #

2: General

3: NAM

ESN

- Electronic Serial Number of the phone is

B0000000

OK

displayed

CAI version

- Common Air Interface version is displayed

1

OK

SCM

- Station Class Mark displays the power class,

00001010

OK

transmission, slotted class, dual mode.

Lock Code

Lock code, current status is displayed

0000

4-digit code

- to change, enter new code.

OK

- stores it

Slot Mode

Slot mode. ‘Yes’ indicates the slot mode.

No

* or #

- changes the status.

OK

- stores it.

Slot Index

Slot mode index. The higher,the longer sleeping

time

20-7

- to change,enter new one.

OK

- stores it.

Samsung Electronics

2-1

background image

Svc Menu

3

- Choose ‘Setup NAM’

1: Phone #
2: General

3: NAM

IMSI_MCC

IMSI Moble Country Code,current code is

displayed.

310

number

- To change,enter new one.

OK

- Sstores it.

IMSI_MNC

IMSI Mobile Network Code,current code is

displayed.

00

number

- To change,enter new one.

OK

- Stores it.

CDMA ACCOLC

CDMA Access Overload Class,current status is

displayed.

0

class number

- To change,enter new one.

OK

- Stores it.

CDMA Home SID

CDMA Home system ID,current status is displayed

Yes

* or #

- Changes the status.

OK

- Stores it.

CDMA fSID

CDMA foreign SID,current status is displayed.

Yes

* or #

- Changes the system.

OK

- Stores it.

CDMA fNID

CDMA foreign NID,current status is displayed.

Yes

* or #

- Changes the system.

OK

- Stores it.

HOME SID

SID written in the list,current status is displayed.

number

- To change,enter new one.

1700

OK

- Stores it.

NID

NID written in the list,current status is displayed.

1

number

- To change,enter new one.

OK

- Stores it.

AMPS ACCOLC

AMPS Access Overload Class,current status is

displayed.

0

class number

- To change,enter new one.

OK

- Stores it.

2-2

Samsung Electronics

LCD Display

Key in

Function

background image

NAM program

3

choose ‘Setup NAM2’

1. General

2. Setup NAM1

3. Setup NAM2

NAM2 Digital

IMSI_MCC

IMSI Moble Country Code, current code is displayed.

000

number

- To change, enter new one.

OK

- Store it.

NAM2 Digital

IMSI_MNC

IMSI Mobile Network Code, current code is displayed.

00

number

- To change, enter new one.

OK

- Store it.

NAM2 Digital

Phone #

- Phone number

1234567890

Phone number

- To change, enter new one.

OK

- Store it.

NAM2 Digital

Directory #

- Directory number

1234567890

Phone number

- To change, enter new one.

OK

- Store it.

NAM2 Digital

Home SID 01

1st CDMA Home system ID, current status is displayed

1

Phone number

- To change, enter new one.

OK

- Store it.

NAM2 Digital

Home NID 01

1st CDMA Home Network ID, current status is displayed

65535

Phone number

- To change, enter new one.

OK

- Store it.

NAM2 Digital

Home SID 02

2nd CDMA Home system ID, current status is displayed

1

Phone number

- To change, enter new one.

OK

- Store it.

NAM2 Digital

Home NID 02

2nd CDMA Home Network ID, current status is displayed

65535

Phone number

- To change, enter new one.

OK

- Store it.

————— repeated to SID 20 & NID 20——————————

NAM2 Digital

Lockout SID01

1st lock system ID,current status is displayed.

0

ID number

- To change, enter new one.

OK

- Store it.

Samsung Electronics

2-3

LCD Display

Key in

Function

background image

NAM2 Digital

Lockout SID02

2nd lock system ID,current status is displayed.

0

ID number

- To change, enter new one.

OK

- Store it.

—————- repeated to Lockout SID10————————————-

NAM2 Digital

CDMA Home SID

CDMA Home system ID, current status is displayed

Yes

< or >

- Changes the status.

OK

- Store it.

NAM2 Digital

CDMA fSID

CDMA foreign SID, current status is displayed.

Yes

< or >

- Changes the system.

OK

- Store it.

NAM2 Digital

CDMA fNID

CDMA foreign NID, current status is displayed.

Yes

< or >

- Changes the system.

OK

- Store it.

NAM2 Digital

CDMA ACCOLC

CDMA Access Overload Class, current status is displayed.

6

class number

- To change, enter new one.

OK

- Store it.

NAM2 Analog

Phone #

-Phone number

1234567890

Phone number

- To change, enter new one.

OK

- Store it.

NAM2 Analog

Directory #

- Directory number

1234567890

Phone number

- To change, enter new one.

OK

- Store it.

NAM2 Analog

Home SID

Analog Home system ID, current status is displayed

1

Phone number

- To change, enter new one.

OK

- Store it.

NAM2 Analog

Auto Reg

Auto Registration, current status is displayed

Yes

< or >

- Changes the status.

OK

- Store it.

NAM2 Analog

ACCOLC

Analog Access Overload Class, current status is displayed.

6

class number

- To change, enter new one.

OK

- Store it

2-4

Samsung Electronics

LCD Display

Key in

Function

background image

4. Test Procedure

4-1 List of Equipment

- DC Power Supply
- Test Jig
- Test Cable
- CDMA Mobile Station Test Set

HP8924C, HP83236A, CMD-80, etc

- Spectrum Analyzer(include CDMA Test Mode) HP8596E

4-2 Configuration of Test

❈ CAUTION : The test jig and data cable has a voltage drop of 0.33V at FM Max power output,

you’d better set the DC power supply to 3.93V for normal test condition.
(Nominal voltage of battery is 3.6V at cellular phone)

Samsung Electronics

4-1

Spectrum Analyzer

RF In

HP8924C

RF

In/Out

Directional

Coupler

Test Jig

To A-Out

To A-In

DC Power Supply

(+3.93V)

Audio

Out

Audio

In

background image

4-3

TEST CABLE DESCRIPTION FOR SCH-8500

1. TEST CABLE

2. TEST CABLE CONNECTIONS

1

MHC 172

2

RF CABLE (1.4 dB Loss for AMPS, 2.2dB for PCS)

3

BNC CONNECTOR (RF)

4

PLUG CONNECT TO SCH-8500

5

DATA CABLE

6

Dsub 25PIN CONNECTOR (DATA)

4-2

Samsung Electronics

1

4

5

6

2

3

background image

3. Dsub 25 PIN CONNECTOR PIN DESCRIPTION (TEST CABLE 1, BACK SIDE)

DATA

Dsub CONN.

DESCRIPTION

PIN NO.

V_F

12,21

DGND

2, 4, 6, 13, 19

BATT

15, 16, 22

C_F

3,20

TX_AUDIO

5

DP_TX_DATA

7

RX_AUDIO

1

DATA

Dsub CONN.

DESCRIPTION

PIN NO.

DP_RX_DATA

8

HP_PWR

9

RI

10

CD

11

RTS

14

CTS

17

DTR

18

4. CONVERSION TABLE OF FREQUENCY vs CHANNEL

T Y P E

CHANNEL

CONVERSION EQUATION

REMARK

TX 1

N

799

F=0.03 X N + 825.00

N ; CH NUMBER

FREQUENCY

990

N

1023

F=0.03 X (N-1023) + 825.00

F ; FREQUENCY

RX

1

N

799

F=0.03 X N + 870.00

(AMPS)

FREQUENCY

990

N

1023

F=0.03 X (N-1023) + 870.00

TX

0

N

1199

F=0.05 X N + 1850.00

N ; CH NUMBER

FREQUENCY

F ; FREQUENCY

RX

0

N

1199

F=0.05 X N + 1930.00 2. CDMA

(PCS)

FREQUENCY

Samsung Electronics

4-3

14

15

16

17

18

19

20

21

22

23

24

25

1

2

3

4

5

6

7

8

9

10

11

12

13

background image

4-4 Test Procedure

4-4-1 Change to Test Mode

A. To change the phone’s state from Normal Mode to Test Mode, You should enter the following keys.

“4 7 * 8 6 9 # 1 2 3 5”

B.The command “20” is mode and channel change , press “OK” to save.

“10000” or “10001” : AMPS’s Sytem A and Sytem B

“30600”

C. The command “0 1” is Suspend.

D. To finish the Test Mode, You should enter the command “0 2”.

4-4-2 Channel Selection and Tx Power Output Level Control

1. AMPS(FM)

A. Enter to Test Mode (4 7 * 8 6 9 # 1 2 3 5).

B.The command “20” is mode and channel change

“10000” or “10001” : AMPS’s Sytem A and Sytem B

C. To finish the Test Mode, You should enter the command “0 2”.

D. “0 1” : Suspend.

E. “4 6” : Vocoder initial to Analog mode.

F. “0 9 0 3 6 3 #” : Set to ‘0363’ channel.

G. “0 7” : Carrier On.

H. “9 2 * * * “ : Output RF power level is set as power level 2

“* * *” means AGC level and AGC level range is from 0 to 511.

I. “1 0 2” : RF Power level control, 2(0~7) means power level .

4-4

Samsung Electronics

Channel number

Mdoe : CDMA

background image

2. PCS

A. Enter to Test Mode ( 4 7 * 8 6 9 # 1 2 3 5 ).

B.The command “20” is mode and channel change

“30600”

C. To finish the Test Mode, You should enter the command “0 2”.

D. “0 1” : Suspend.

E. “0 9 0 6 0 0 #” : Set to ‘0600’ channel.

F. “0 7” : Carrier On.

G. “3 4” : Spread spectrum to 1.23MHz band width.

H. “84” : High Power-mode On

I. “7 4 * * * “ : Output RF power level is set max power

“* * *” means AGC level and AGC level range is from 000 to 511.

Channel number

Mdoe : CDMA

Samsung Electronics

4-5

background image

4-5 Channel number

1. AMPS(FM)

TEST ITEMS

PROCEDURE

1. PREPARATION

Set test equipments up.

Confirm that the phone is in the Analog Mode!
( “10000” or “10001” at Test Command “2 0”.)

“4 7 * 8 6 9 # 1 2 3 5 “ : Enter the Test Mode
“0 1” : Suspend
“4 6” : Initialize Vocoder in Analog mode

If a wrong key would be selected, press “#”, and then enter new command.
To exit the Test Mode at any time, just press [0 2].

2. RF

“0 1” : Suspend.

POWER

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“1 0 2” : RF Power level selection, “2” means one of the power levels (0~7).
Measurement of the Power Output Levels

Level

RF Power

0 ~ 2

+ 26 dBm +0.3/-4 dB

3 + 23 dBm +2/-4 dB
4 + 19 dBm +2/-4 dB
5 + 15 dBm +2/-4 dB
6 + 12 dBm +2/-4 dB
7 + 9 dBm +2/-4 dB

“0 8” : Carrier off

Note 1 : In case of using the antenna cable, compensation for the

cable loss should be added (about 1.5dB).

Note 2 : To prevent phones from being damaged, they must be

measured only by calibrated test equipments.

Warning !

Adjustments without calibrated equipments can cause phones to be

heated excessively and would void the warranty.

3. TX

“0 1” : Suspend.

FREQUENCY

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
Measure the TX frequency : 835.89 MHz ±2.5ppm.

4. VOICE

“0 1” : Suspend.

DEVIATION

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“1 4” : TX Audio unmute.

Set the audio generator output to 1kHz, 3.0Vrms.
Measure the Tx voice deviation by using the HPF of
20Hz and the LPF of 99kHz (spec : less than ±12kHz).

4-6

Samsung Electronics

background image

TEST ITEMS

PROCEDURE

5. ST DEVIATION

“0 1” : Suspend.
“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“1 6” : ST on.
Measure the Tx ST deviation by using the HPF of 50Hz
(spec : 8kHz±10%).

“1 7” : ST off.

6. SAT

“0 1” : Suspend.

DEVIATION

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“3 2” : SAT on.
Set the equipment as following.

RF frequency : 880.89MHz

Input RF level : -80dBm

Modulation frequency : 6kHz

Frequency deviation

: 2kHz

Measure the Tx SAT deviation by using the HPF of 50Hz
and the LPF of 6kHz (spec : 2kHz±10%).

“3 3” : SAT off.

7. WBD

“0 1” : Suspend.

DEVIATION

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“3 4” : WBD on.
Measure the WBD deviation by using the HPF of 50Hz and
the LPF of 20kHz (spec : 8kHz±10%).

8. RX AUDIO

“0 1” : Suspend.
“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“1 2” : RX Audio unmute.
Set the equipment as following.

RF frequency : 880.89MHz
Input RF level : -80dBm
Modulation frequency : 1kHz
Frequency deviation

: ±8kHz

Measure audio AC level.

Samsung Electronics

4-7

background image

2. PCS

TEST ITEMS

PROCEDURE

1. PREPARANCE

Set test equipments up.

Confirm that the phone is in the PCS Mode.
(“3XXXX” at Test Command “0 2”)

“* 4 7 * 8 6 9 # 1 2 3 5 “ : Enter the Test Mode
“0 1” : Suspend
If you select a wrong key, press “#”, then enter new command.
To exit the Test Mode at any time, just press [0 2].

2. FREQUENCY

“0 1” : Suspend.

ACCURACY

“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“9 2” :You can read the number.(the code) and the push the
“7 1 2 6 0 #” : Set AGC level to the numer of reading(about 188).
Measure the TX frequency : 835.89MHz±300Hz.

3. OCCUPIED CDMA

“0 1” : Suspend..

BANDWIDTH

“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“3 4” : Spread spectrum.
“9 2” :You can read the number.(the code) and the push the
“7 1 2 6 0 #” : Set AGC level to the numer of reading(about 188).
Measure the bandwidth (spec: 1.32MHz).

4. LIMITATIONS ON

“0 1” : Suspend.

EMISSIONS

“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“3 4” : Spread spectrum.
“9 2” :You can read the number.(the code) and the push the
“7 1 2 6 0 #” : Set AGC level to the numer of reading(about 188).

Measure the spurious at FC±900kHz, FC±1.98MHz, 2FC, 3FC, 1/2FC.
spec: FC±900kHz below 42dBc/30kHz

FC±1.98MHz below 54dBc/30kHz
Outside Receive Band 43+10log (PY)
PY: Mean Output Power in watts

5. GATED POWER &

Set the service option 2.

TIME

Set the data rate Eighth (1200bps).
Registering: HHP ➝ HP8924C.
Call : HP8924C ➝ HHP.
Measure the Gated Power & Time.

spec : Gated Power - at least 20dB

Gated Time - Rising Time : below 6µs

Falling Time : below 6µs

Burst Time : below 1.25µs

4-8

Samsung Electronics

background image

5. Exploded View & its Parts List

5-1 Main Set Exploded View

Samsung Electronics

5-1

background image

5-2 Main Set Parts List

5-2

Samsung Electronics

NO

Level

SEC CODE

Description

Remark

1

GH75-00307A

MEA-FOLDER UPPER

1-1

GH72-00491A

PMO-FOLDER UPPER

SNA

1-2

GH74-10772A

MPR-TAPE DECORATION

SNA

1-3

GH74-00318A

MPR-SHIELD GASKET(B)

SNA

1-4

GH74-00483A

MPR-SHIELD GASKET(C)

SNA

1-5

GH74-00510A

MPR-TAPE SHIELD(D)

SNA

2

GH75-00376B

MEC-FOLDER LOWER

2-1

GH74-00319A

MPR-SPONGE LCD

SNA

2-2

GH74-10777A

MPR-TAPE SPEAKER

SNA

2-3

GH74-00322A

MPR-SPONGE EAR PIECE

SNA

2-4

GH72-00671B

PMO-FOLDER LOWER

SNA

2-5

GH74-00321A

MPR-TAPE EAR PIECE

SNA

2-6

GH74-10775A

MPR-TAPE WINDOW LCD

SNA

2-7

GH74-00304A

MPR-TAPE MOTOR

SNA

2-8

GH70-00036A

ICT-MAGNETIC

SNA

2-9

GH75-00414A

MEC-HINGE ASSY

SNA

3

GH75-00374B

MEC-FRONT COVER

3-1

GH72-00669B

PMO-FRONT COVER

SNA

3-2

GH72-41801A

PMO-REFLECTOR LED

SNA

3-3

GH74-00378A

MPR-FRONT GRILL

SNA

3-4

GH74-00440A

MCT-FRONT GASKET

SNA

4

GH75-00377A

MEC-REAR COVER

4-1

GH68-30846A

LABEL(R)-QUALCOMM

SNA

4-2

GH70-10516A

IPR-SPRING LOCKER

SNA

4-3

GH71-00010A

NPR-GROUND PLATE

SNA

4-4

GH71-00100A

NPR-BRACKET ANT

SNA

4-5

GH72-00127A

PMO-BATT LOCKER

SNA

4-6

GH72-00673A

PMO-REAR COVER

SNA

4-7

GH74-00027A

MPR-SHIELD TAPE

SNA

4-8

GH74-00377A

MPR-BUZZER GRILL

SNA

5

GH75-00394A

MEC-SHIELD COVER

5-1

GH72-00666A

PMO-SHIELD COVER

SNA

5-2

GH74-00362A

MCT-SHIELD DUPLEX

SNA

6

GH96-00862A

ELA-GRAPHIC LCD

7

GH92-00859A

PBA MAIN-LOGIC

8

GH92-00763A

PBA MAIN-RF

9

GH72-00487A

PMO-KNOB VOLUME

10

GH72-00667A

PMO-HINGE DUMMY

11

GH73-00217A

RMO-EAR JACK COVER

12

GH72-00668A

PMO-DECORATION

13

GH74-00084A

MPR-DECO BOHO VINYL

14

6001-001300

SCREW-MACHINE

15

GH74-00313B

MPR-SCREW CAP

16

GH72-00672B

PMO-EAR PIECE

17

GH72-00283E

PCT-WINDOW LCD

18

GH72-10001A

PPR-TAPE WINDOW BOHO

19

GH73-00216B

RMO-KEY PAD

20

GH72-00489A

PPR-KEYPAD DOME

21

GH73-00218A

RMO-HOLDER MIC

22

GH73-40704A

RMO-CONNECTOR COVER

23

GH73-40705A

RMO-MOBILE CAP

24

GH42-00040A

ANTENNA

25

6001-001140

SCREW-MACHINE

4PCS

26

GH43-00161A

BATTERY-STD

1000mAh

27

GH75-00223E

MEC-HANGER ROPE

BLACK

background image

6. Electrical Parts List

GH41-00066A

PCB-VOLUME KEY

SCH-8500,POLYIMIDE

GH42-00040A

ANT.

ANTENNA-SCH8500/850 SCH-8500,824~894/1850~1990Mhz

GH43-00161A

BATTERY-SCH850,8500(USA) 3.6V,1000mAh,-,0.5C,3.6V

GH44-00099A

CHARGER-DTC850(USA) SCH-850/8500,AC/DC,12W,85/264V

GH96-00862A

ELA ETC-LCD ASS’Y

SCH-8500,GRAPHIC LCD

GH41-00060A

PCB-LOGIC

SCH-8500,FR-4,-,0.8t,118 X 104mm

GH41-00061A

PCB-RF

SCH-8500,FR-4,6L,0.8t,118 X 155

0404-001093

D402

DIODE-SCHOTTKY

HSMS-282C,1V,30mA,SOT-323,TP

0409-001001

D301

DIODE-PIN

BAR63-03W,50V,100mA,SOT-23,TP

0409-001025

D302

DIODE-PIN

HSMP-389F,100V,1000mA,SOT-323,TP

0409-001025

D303

DIODE-PIN

HSMP-389F,100V,1000mA,SOT-323,TP

0409-001025

D401

DIODE-PIN

HSMP-389F,100V,1000mA,SOT-323,TP

0501-000218

Q302

TR-SMALL SIGNAL

2SC4081,NPN,200mW,UMT,TP,180-3

0504-000167

Q303

TR-DIGITAL

RN1102,NPN,100MW,10K/10K,SSM,TP

0505-001361

Q301

FET-SILICON

ATF35143,-,5.5V,80MA,-,-,SOT-343

0505-001376

U417

FET-SILICON

FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74

0505-001408

U408

FET-SILICON

FDC6306,P,-20V,0.16ohm,SSOT-6

0505-001408

U416

FET-SILICON

FDC6306,P,-20V,0.16ohmSSOT-6

0506-001004

U402

TR-ARRAY

UMC5N,NPN/PNP,2,50V,-,-100mA,3

0803-003010

U405

IC-TTL

4W53,MUX/DEMUX,SOP,8P,110MIL,S

1201-001175

U404

IC-PREAMP

01037,SOP,6P,59MIL,SINGLE,-,PL

1201-001348

U415

IC-OP AMP

821,SOT23-5,5P,63MIL,SINGLE,-,

1201-001517

U302

IC-RF AMP

2361,SOT23-5,5P,-,SINGLE,20dB

1201-001518

U409

IC-POWER AMP

QCPM9804,MULTIPAK,14P,-,TRIPLE

1204-001013

U403

IC-MODULATOR

UPC8106T,SOT-23,6P,59MIL

1205-001710

U301

IC-MIXER

NJG1553F,MTP,6P,-,EPOXY RESIN,5V

1205-001773

U303

IC-MIXER

RF2466,MLP,16P,-,PLASTIC,4V

1205-001775

U410

IC-MIXER

MRFIC1854,TSSOP,20P,173MIL

2007-000138

R310

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R322

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R324

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000141

R456

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000142

R314

R-CHIP

2.7Kohm,5%,1/16W,DA,TP,1005

2007-000143

R315

R-CHIP

4.7Kohm,5%,1/16W,DA,TP,1005

2007-000159

R457

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

2007-000169

R429

R-CHIP

510Kohm,5%,1/16W,DA,TP,1005

2007-000172

R333

R-CHIP

10ohm,5%,1/16W,DA,TP,1005

2007-000174

R323

R-CHIP

47ohm,5%,1/16W,DA,TP,1005

2007-000242

R328

R-CHIP

1.5Kohm,5%,1/16W,DA,TP,1005

2007-000899

R455

R-CHIP

430Kohm,5%,1/16W,DA,TP,1005

2007-000982

R410

R-CHIP

5.6Kohm,5%,1/16W,DA,TP,1005

2007-001217

R313

R-CHIP

82ohm,5%,1/16W,DA,TP,1005

2007-001284

R302

R-CHIP

4.7ohm,5%,1/16W,DA,TP,1005

2007-001284

R303

R-CHIP

4.7ohm,5%,1/16W,DA,TP,1005

2007-001288

R418

R-CHIP

18ohm,5%,1/16W,DA,TP,1005

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

Samsung Electronics

6-1

background image

2007-001298

R305

R-CHIP

51ohm,5%,1/16W,DA,TP,1005

2007-001298

R432

R-CHIP

51ohm,5%,1/16W,DA,TP,1005

2007-001317

R417

R-CHIP

910ohm,5%,1/16W,DA,TP,1005

2007-001320

R434

R-CHIP

1.8Kohm,5%,1/16W,DA,TP,1005

2007-002970

R301

R-CHIP

56OHM,5%,1/16W,DA,TP,1005

2007-002970

R304

R-CHIP

56OHM,5%,1/16W,DA,TP,1005

2007-003019

R306

R-CHIP

430OHM,5%,1/16W,DA,TP,1005

2007-007001

R329

R-CHIP

3.9KOHM,5%,1/16W,DA,TP,1005

2007-007001

R416

R-CHIP

3.9KOHM,5%,1/16W,DA,TP,1005

2007-007014

R427

R-CHIP

51KOHM,5%,1/16W,DA,TP,1005

2007-007107

R317

R-CHIP

100Kohm,1%,1/16W,DA,TP,1005

2007-007107

R443

R-CHIP

100Kohm,1%,1/16W,DA,TP,1005

2007-007133

R403

R-CHIP

300ohm,1%,1/16W,DA,TP,1005

2007-007133

R406

R-CHIP

300ohm,1%,1/16W,DA,TP,1005

2007-007137

R332

R-CHIP

1.2Kohm,1%,1/16W,DA,TP,1005

2007-007139

R412

R-CHIP

47Kohm,1%,1/16W,DA,TP,1005

2007-007142

R411

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R424

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R426

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R447

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R458

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007517

R311

R-CHIP

240ohm,1%,1/16W,DA,TP,1005

2007-007588

R319

R-CHIP

1.8Kohm,1%,1/16W,DA,TP,1005

2007-007588

R320

R-CHIP

1.8Kohm,1%,1/16W,DA,TP,1005

2007-007771

R307

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R309

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R312

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R318

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R321

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R325

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R326

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R327

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R402

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R425

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R428

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R430

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2203-000233

C312

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C316

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C326

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C331

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C369

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C370

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C373

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C410

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C421

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C431

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C465

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000254

C314

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C315

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

6-2

Samsung Electronics

background image

2203-000254

C342

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C343

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C349

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C350

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C351

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C372

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C374

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C377

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C402

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C408

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C413

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C414

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C416

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C423

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C429

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C435

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C437

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C448

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C451

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C460

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C464

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000278

C332

C-CERAMIC,CHIP

0.01nF,0.5pF,50V,NP0,TP,1005

2203-000278

C341

C-CERAMIC,CHIP

0.01nF,0.5pF,50V,NP0,TP,1005

2203-000330

C318

C-CERAMIC,CHIP

0.012nF,5%,50V,NP0,TP,1005

2203-000330

C430

C-CERAMIC,CHIP

0.012nF,5%,50V,NP0,TP,1005

2203-000386

C442

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000425

C344

C-CERAMIC,CHIP

0.018nF,5%,50V,NP0,TP,1005

2203-000425

C348

C-CERAMIC,CHIP

0.018nF,5%,50V,NP0,TP,1005

2203-000438

C308

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C310

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C317

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C322

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C325

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C333

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C336

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C361

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C364

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C371

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C405

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C417

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C427

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C436

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C446

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C447

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C455

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C462

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000466

C307

C-CERAMIC,CHIP

0.001nF,0.25pF,50V,NP0,1005

2203-000466

C337

C-CERAMIC,CHIP

0.001nF,0.25pF,50V,NP0,1005

2203-000466

C365

C-CERAMIC,CHIP

0.001nF,0.25pF,50V,NP0,1005

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

Samsung Electronics

6-3

background image

2203-000466

C420

C-CERAMIC,CHIP

0.001nF,0.25pF,50V,NP0,1005

2203-000466

C457

C-CERAMIC,CHIP

0.001nF,0.25pF,50V,NP0,1005

2203-000696

C302

C-CERAMIC,CHIP

0.001nF,0.25pF,50V,NP0,1005

2203-000696

C362

C-CERAMIC,CHIP

0.001nF,0.25pF,50V,NP0,1005

2203-000812

C403

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000812

C415

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000812

C418

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000812

C426

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000812

C434

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000812

C441

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000812

C444

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000812

C450

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000812

C459

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000854

C323

C-CERAMIC,CHIP

0.039nF,5%,50V,NP0,TP,1005

2203-000995

C407

C-CERAMIC,CHIP

0.047nF,5%,50V,NP0,TP,1005

2203-000995

C438

C-CERAMIC,CHIP

0.047nF,5%,50V,NP0,TP,1005

2203-000995

C461

C-CERAMIC,CHIP

0.047nF,5%,50V,NP0,TP,1005

2203-001017

C313

C-CERAMIC,CHIP

0.004nF,0.25pF,50V,NP0,1005

2203-001017

C428

C-CERAMIC,CHIP

0.004nF,0.25pF,50V,NP0,1005

2203-001259

C324

C-CERAMIC,CHIP

0.008nF,0.5pF,50V,NP0,TP,1005

2203-001412

C303

C-CERAMIC,CHIP

0.03nF,5%,50V,NP0,TP,1005

2203-001412

C306

C-CERAMIC,CHIP

0.03nF,5%,50V,NP0,TP,1005

2203-001416

C311

C-CERAMIC,CHIP

33nF,10%,16V,Y5V,TP,1005,1.0mm

2203-001416

C320

C-CERAMIC,CHIP

33nF,10%,16V,Y5V,TP,1005,1.0mm

2203-001416

C334

C-CERAMIC,CHIP

33nF,10%,16V,Y5V,TP,1005,1.0mm

2203-001437

C340

C-CERAMIC,CHIP

5pF,0.25pF,50V,X7R,TP,1005,1.0

2203-002525

C319

C-CERAMIC,CHIP

0.56nF,10%,50V,X7R,TP,1005

2203-002525

C466

C-CERAMIC,CHIP

0.56nF,10%,50V,X7R,TP,1005

2203-002677

C301

C-CERAMIC,CHIP

0.75pF,0.1pF,50V,CH,TP,1005,-

2203-002968

C401

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-002968

C409

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-002968

C412

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-002968

C422

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-002968

C432

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-005057

C305

C-CERAMIC,CHIP

0.0082nF,0.25pF,50V,NP0,1005

2203-005057

C309

C-CERAMIC,CHIP

0.0082nF,0.25pF,50V,NP0,1005

2203-005061

C345

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C347

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C352

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C356

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C363

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C368

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C439

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C440

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C443

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005281

C404

C-CERAMIC,CHIP

0.0015nF,0.1pF,50V,NP0,TP,1005

2203-005281

C433

C-CERAMIC,CHIP

0.0015nF,0.1pF,50V,NP0,TP,1005

2203-005288

C419

C-CERAMIC,CHIP

0.001nF,0.1pF,50V,NP0,TP,1005

2203-005288

C454

C-CERAMIC,CHIP

0.001nF,0.1pF,50V,NP0,TP,1005

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

6-4

Samsung Electronics

background image

2203-005393

C328

C-CERAMIC,CHIP

0.005nF,0.1pF,50V,NP0,TP,1005

2203-005393

C330

C-CERAMIC,CHIP

0.005nF,0.1pF,50V,NP0,TP,1005

2203-005444

C321

C-CERAMIC,CHIP

0.003nF,0.1pF,50V,NP0,TP,1005

2203-005481

C463

C-CERAMIC,CHIP

47nF,10%,10V,X7R,TP,1005,-

2404-001017

C367

C-TA,CHIP

1uF,20%,10V,GP,TP,2012,2,0

2404-001086

C327

C-TA,CHIP

4.7uF,20%,6.3V,GP,TP,2012,-

2404-001105

C357

C-TA,CHIP

10UF,20%,6.3V,GP,TP,2012

2404-001105

C358

C-TA,CHIP

10UF,20%,6.3V,GP,TP,2012

2404-001105

C366

C-TA,CHIP

10UF,20%,6.3V,GP,TP,2012

2404-001105

C375

C-TA,CHIP

10UF,20%,6.3V,GP,TP,2012

2404-001105

C449

C-TA,CHIP

10UF,20%,6.3V,GP,TP,2012

2703-000190

L326

INDUCTOR-SMD

330nH,10%,0.8x1.6x0.8mm

2703-000213

L330

INDUCTOR-SMD

470nH,10%,0.8x1.6x0.8mm

2703-000310

L328

INDUCTOR-SMD

1.8uH,10%,0.8x1.6x0.8mm

2703-000310

L329

INDUCTOR-SMD

1.8uH,10%,0.8x1.6x0.8mm

2703-000310

L331

INDUCTOR-SMD

1.8uH,10%,0.8x1.6x0.8mm

2703-000310

L333

INDUCTOR-SMD

1.8uH,10%,0.8x1.6x0.8mm

2703-001165

L301

INDUCTOR-SMD

4.7nH,10%,1.6x0.8X0.8mm

2703-001178

L304

INDUCTOR-SMD

3.3nH,0.3nH,1x0.5x0.5mm

2703-001178

L407

INDUCTOR-SMD

3.3nH,0.3nH,1x0.5x0.5mm

2703-001178

L420

INDUCTOR-SMD

3.3nH,0.3nH,1x0.5x0.5mm

2703-001180

L406

INDUCTOR-SMD

15nH,5%,1x0.5x0.5mm

2703-001259

L327

INDUCTOR-SMD

47NH,5%,1.6X0.8X0.8MM

2703-001293

L411

INDUCTOR-SMD

82nH,5%,1.6x0.8x0.8mm

2703-001543

L318

INDUCTOR-SMD

33nH,5%,1.8x1.12x1.02mm

2703-001595

L409

INDUCTOR-SMD

47nH,5%,1.0x0.5x0.5mm

2703-001595

L416

INDUCTOR-SMD

47nH,5%,1.0x0.5x0.5mm

2703-001595

L417

INDUCTOR-SMD

47nH,5%,1.0x0.5x0.5mm

2703-001701

L405

INDUCTOR-SMD

6.8nH,10%,1.0x0.5x0.5mm

2703-001726

L313

INDUCTOR-SMD

27nH,5%,1x0.5x0.5mm

2703-001726

L316

INDUCTOR-SMD

27nH,5%,1x0.5x0.5mm

2703-001726

L317

INDUCTOR-SMD

27nH,5%,1x0.5x0.5mm

2703-001728

L423

INDUCTOR-SMD

1.5nH,0.3nH,1x0.5x0.5mm

2703-001730

L310

INDUCTOR-SMD

15nH,5%,1x0.5x0.5mm

2703-001730

L419

INDUCTOR-SMD

15nH,5%,1x0.5x0.5mm

2703-001747

L312

INDUCTOR-SMD

4.7nH,0.3nH,1.0x0.5x0.5mm

2703-001748

L305

INDUCTOR-SMD

5.6nH,0.3nH,1.0x0.5x0.5mm

2703-001751

L303

INDUCTOR-SMD

3.9nH,0.3nH,1.0x0.5x0.5mm

2703-001751

L307

INDUCTOR-SMD

3.9nH,0.3nH,1.0x0.5x0.5mm

2703-001752

L315

INDUCTOR-SMD

39nH,5%,1.0x0.5x0.5mm

2703-001798

L422

INDUCTOR-SMD

2.2NH,0.3NH,1.0X0.5X0.5MM

2703-001868

L401

INDUCTOR-SMD

82NH,5%,1005

2703-001868

L408

INDUCTOR-SMD

82NH,5%,1005

2703-001916

L402

INDUCTOR-SMD

100nH,2%,1.6x0.8x0.8mm

2703-001918

L322

INDUCTOR-SMD

150nH,2%,1.6x0.8x0.8mm

2703-001920

L412

INDUCTOR-SMD

2.2uH,20%,3.2x2.5x2.0mm

2703-001943

L308

INDUCTOR-SMD

10nH,5%,1.0x0.5x0.5mm

2703-001943

L309

INDUCTOR-SMD

10nH,5%,1.0x0.5x0.5mm

2703-001952

L314

INDUCTOR-SMD

8.2nH,5%,1.0x0.5x0.5mm

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

Samsung Electronics

6-5

background image

2809-001228

U307

OSCILLATOR-VCTCXO

19.68MHZ,2PPM,-,TP,2.8V,2MA

2904-001020

F403

FILTER-SAW

1.88GHz,60MHz,+-30MHz/2.5dB

2904-001020

F405

FILTER-SAW

1.88GHz,60MHz,+-30MHz/2.5dB

2904-001021

F302

FILTER-SAW

1.96GHz,60MHz,+-30MHz/2dB

2904-001109

F304

FILTER-SAW

1747.5MHz,+-30MHz,1.2dB,TP,2.5

2904-001123

F401

FILTER-SAW

130.38MHz,1.25MHz,+-0MHz/8dB

2904-001136

F306

FILTER-SAW

881.5MHz,25MHz,+-12.5MHz/1.6dB

2904-001138

F402

FILTER-SAW

836.5MHz,25MHz,+-12.5MHz/2dB

2904-001138

F404

FILTER-SAW

836.5MHz,25MHz,+-12.5MHz/2dB

2904-001148

F310

FILTER-SAW

85.38MHz,0.026MHz,+-0.013MHz/1.5dB

2904-001191

F308

FILTER-SAW

210.38MHz,0.6MHz,+-0.3MHz/1.3dB

2909-001082

F305

FILTER-DUPLEXER

881.5MHZ,836.5MHZ,3.8/2DB

2909-001115

F303

FILTER-DUPLEXER

1.96GHz,1.88GHz,4.2/3.6dB

3301-001105

L306

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L319

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L323

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L334

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L335

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L404

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L413

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L414

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L418

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L421

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001120

L424

CORE-FERRITE BEAD

AB,2.0x1.25x0.9mm,-,-

3705-001163

J1

CONNECTOR-COAXIAL

SMC,JACK,100mohm,50ohm,0.5dB

3710-001535

CN401

CONNECTOR-SOCKET

40P,2R,0.5MM,SMD-S,AUF

4709-001080

U304

RF POWER SPLITTER

2WAY,955-979MHz,12dB,-,TP

4709-001119

U305

RF POWER SPLITTER

2WAY,1.5-1.9GHz,12dB,4.0dB,TP

4709-001145

F301

FREQ-SEPARATOR

824-894MHz,1850-1990MHz,1W,3.2

4709-001200

F406

FREQ-ISOLATOR

1850-1910 MHz,14dB,0.6dB,1.6

4709-001201

F407

FREQ-ISOLATOR

824-849MHz,13dB,0.65dB,1.5

4719-001049

U306

MODULE

PLL MODULE,1720-1780MHz,510MHz

0405-001035

D202

DIODE-VARACTOR

1SV279,15V,3nA,USC,TP

0405-001035

D203

DIODE-VARACTOR

1SV279,15V,3nA,USC,TP

0405-001035

D204

DIODE-VARACTOR

1SV279,15V,3nA,USC,TP

0405-001035

D205

DIODE-VARACTOR

1SV279,15V,3nA,USC,TP

0406-001005

D111

DIODE-TVS

SM05,6V/1mA,300,SOT-23

0406-001084

D102

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084

D105

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084

D106

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084

D107

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084

D108

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084

D109

DIODE-TVS

SMF05,6/-/-V,200W,-

0407-000115

D110

DIODE-ARRAY

DAN202U,80V,100mA,CA2-3,SC-70,

0409-001016

D201

DIODE-PIN

BAR63-02W,50V,100mA,SCD-80,TP

0501-000162

Q104

TR-SMALL SIGNAL

2SA1576,PNP,200MW,SOT-323,TP,180-390

0501-000218

Q103

TR-SMALL SIGNAL

2SC4081,NPN,200mW,UMT,TP,180-3

0501-000218

Q151

TR-SMALL SIGNAL

2SC4081,NPN,200mW,UMT,TP,180-3

0501-002202

Q102

TR-SMALL SIGNAL

MMBT2222AWT1,NPN,150mW,SOT-323

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

6-6

Samsung Electronics

background image

0501-002202

Q111

TR-SMALL SIGNAL

MMBT2222AWT1,NPN,150mW,SOT-323

0504-000167

Q150

TR-DIGITAL

RN1102,NPN,100MW,10K/10K,SSM,TP

0504-000168

Q101

TR-DIGITAL

RN1104,NPN,100MW,47K/47K,SSM,TP

0504-000168

Q152

TR-DIGITAL

RN1104,NPN,100MW,47K/47K,SSM,TP

0504-000172

Q110

TR-DIGITAL

RN2104,PNP,100MW,47K/47K,SSM,TP

0504-000172

Q153

TR-DIGITAL

RN2104,PNP,100MW,47K/47K,SSM,TP

0505-001037

U150

FET-SILICON

-,P,-12V,+-2.5A,0.1ohm,1W,TSSO

0505-001376

U151

FET-SILICON

FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74

0505-001376

U156

FET-SILICON

FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74

0505-001376

U157

FET-SILICON

FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74

0505-001376

U160

FET-SILICON

FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74

0601-000355

D101

LED

CHIP,RED,2.0x1.6mm,660nm

0601-001343

LED100

LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343

LED101

LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343

LED102

LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343

LED103

LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343

LED104

LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343

LED105

LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343

LED106

LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343

LED107

LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0801-000794

U203

IC-CMOS LOGIC

7S08,AND GATE,SOT-25,5P,63MIL,

0801-002345

U158

IC-CMOS LOGIC

7S04FU,INVERTER,SOP,5P,-,-,TP,

0801-002403

U104

IC-CMOS LOGIC

74LCX08,AND GATE,TSSOP,14P,173

1009-001006

SW101

IC-HALL EFFECT S/W

A3210ELH,SC-74A,3P

1103-001147

U105

IC-EEPROM

24256,256KBIT,SOP,8P

1109-001138

U103

IC-ETC. MEMORY

84VD2219,4MX8 OR 2MX16BIT,BGA

1202-001022

U251

IC-VOLTAGE COMP.

75W56,SSOP,8P,110MIL,DUAL,7V,C

1203-001767

U153

IC-VOLTAGE REGULATOR 2988,SOP,8P,118MIL,3.0V

1203-001850

U154

IC-VOLTAGE REGULATOR 7082,SOT-23,5P

1203-001850

U155

IC-VOLTAGE REGULATOR 7082,SOT-23,5P

1203-001850

U159

IC-VOLTAGE REGULATOR 7082,SOT-23,5P

1204-001375

U250

IC-ENCODER/DECODER

ST5092TQFPTR,QFP,44P,-,PLASTIC

1204-001581

U201

IC-IF CIRCUIT

IFR3000-48BCCF-TR,BCC,48P

1204-001582

U202

IC-IF CIRCUIT

IFT3000-48BCCF-TR,BCC,48P

1205-001670

U101

IC-TRANSCEIVER

MSM3000,PBGA,196P,3.5V,30TO+85C

1404-001040

TH201

THERMISTOR-NTC

10Kohm,5%,3650K,-,TP

2007-000137

R259

R-CHIP

2Kohm,5%,1/16W,DA,TP,1005

2007-000138

R109

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R122

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R124

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R125

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R128

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R129

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R131

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R132

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R149

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138

R209

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000140

R148

R-CHIP

1Kohm,5%,1/16W,DA,TP,1005

2007-000140

R169

R-CHIP

1Kohm,5%,1/16W,DA,TP,1005

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

Samsung Electronics

6-7

background image

2007-000140

R180

R-CHIP

1Kohm,5%,1/16W,DA,TP,1005

2007-000140

R252

R-CHIP

1Kohm,5%,1/16W,DA,TP,1005

2007-000141

R152

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000141

R153

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000141

R159

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000141

R190

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000141

R192

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000141

R251

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000143

R110

R-CHIP

4.7Kohm,5%,1/16W,DA,TP,1005

2007-000143

R126

R-CHIP

4.7Kohm,5%,1/16W,DA,TP,1005

2007-000145

R261

R-CHIP

6.2Kohm,5%,1/16W,DA,TP,1005

2007-000147

R142

R-CHIP

8.2Kohm,5%,1/16W,DA,TP,1005

2007-000147

R205

R-CHIP

8.2Kohm,5%,1/16W,DA,TP,1005

2007-000148

R112

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R115

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R120

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R138

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R165

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R206

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R207

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R210

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R213

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R215

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R216

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R220

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R226

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R249

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148

R250

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000151

R147

R-CHIP

15Kohm,5%,1/16W,DA,TP,1005

2007-000152

R133

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000152

R134

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000152

R135

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000152

R136

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000152

R254

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000153

R107

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153

R113

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153

R123

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153

R145

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153

R164

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153

R173

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153

R174

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153

R175

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153

R176

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153

R179

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000154

R257

R-CHIP

24Kohm,5%,1/16W,DA,TP,1005

2007-000156

R225

R-CHIP

30Kohm,5%,1/16W,DA,TP,1005

2007-000157

R117

R-CHIP

47Kohm,5%,1/16W,DA,TP,1005

2007-000157

R118

R-CHIP

47Kohm,5%,1/16W,DA,TP,1005

2007-000159

R150

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

6-8

Samsung Electronics

background image

2007-000159

R158

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

2007-000159

R181

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

2007-000159

R182

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

2007-000159

R186

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

2007-000162

R151

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162

R154

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162

R155

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162

R156

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162

R160

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162

R162

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162

R170

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162

R183

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162

R184

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000163

R256

R-CHIP

120Kohm,5%,1/16W,DA,TP,1005

2007-000164

R253

R-CHIP

150Kohm,5%,1/16W,DA,TP,1005

2007-000165

R157

R-CHIP

200Kohm,5%,1/16W,DA,TP,1005

2007-000170

R262

R-CHIP

1Mohm,5%,1/16W,DA,TP,1005

2007-000172

R230

R-CHIP

10ohm,5%,1/16W,DA,TP,1005

2007-000172

R231

R-CHIP

10ohm,5%,1/16W,DA,TP,1005

2007-000242

R166

R-CHIP

1.5Kohm,5%,1/16W,DA,TP,1005

2007-000758

R161

R-CHIP

330Kohm,5%,1/16W,DA,TP,1005

2007-000932

R114

R-CHIP

470ohm,5%,1/16W,DA,TP,1005

2007-001291

R266

R-CHIP

30ohm,5%,1/16W,DA,TP,1005

2007-001305

R101

R-CHIP

120ohm,5%,1/16W,DA,TP,1005

2007-001319

R221

R-CHIP

1.2Kohm,5%,1/16W,DA,TP,1005

2007-001320

R219

R-CHIP

1.8Kohm,5%,1/16W,DA,TP,1005

2007-001325

R106

R-CHIP

3.3Kohm,5%,1/16W,DA,TP,1005

2007-001333

R255

R-CHIP

18Kohm,5%,1/16W,DA,TP,1005

2007-003010

R104

R-CHIP

20OHM,5%,1/16W,DA,TP,1005

2007-003010

R105

R-CHIP

20OHM,5%,1/16W,DA,TP,1005

2007-003010

R258

R-CHIP

20OHM,5%,1/16W,DA,TP,1005

2007-003019

R218

R-CHIP

430OHM,5%,1/16W,DA,TP,1005

2007-007021

R202

R-CHIP

75KOHM,5%,1/16W,DA,TP,1005

2007-007092

R143

R-CHIP

1.1KOHM,5%,1/16W,DA,TP,1005

2007-007137

R227

R-CHIP

1.2Kohm,1%,1/16W,DA,TP,1005

2007-007142

R127

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R187

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R191

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R193

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R194

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R214

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R217

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142

R222

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007309

R223

R-CHIP

12Kohm,1%,1/16W,DA,TP,1005

2007-007311

R102

R-CHIP

22Kohm,1%,1/16W,DA,TP,1005

2007-007311

R201

R-CHIP

22Kohm,1%,1/16W,DA,TP,1005

2007-007318

R103

R-CHIP

1Kohm,1%,1/16W,DA,TP,1005

2007-007491

R224

R-CHIP

11.3Kohm,1%,1/16W,DA,TP,1005

2007-007588

R208

R-CHIP

1.8Kohm,1%,1/16W,DA,TP,1005

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

Samsung Electronics

6-9

background image

2007-007771

R168

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R196

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771

R211

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2203-000189

C258

C-CERAMIC,CHIP

100nF,+80-20%,25V,Y5V,TP,1608,

2203-000233

C109

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C116

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C117

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C118

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C201

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C240

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C244

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233

C247

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000254

C101

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C103

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C105

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C107

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C108

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C120

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C128

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C158

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C166

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C167

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C203

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C205

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C209

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C211

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C213

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C215

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C217

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C219

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C223

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C234

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C253

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C263

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254

C298

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000386

C179

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C231

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C232

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C282

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C283

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C284

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C285

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C286

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C287

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C288

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C289

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C290

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C291

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C292

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

6-10

Samsung Electronics

background image

Samsung Electronics

6-11

2203-000386

C293

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386

C295

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000425

C202

C-CERAMIC,CHIP

0.018nF,5%,50V,NP0,TP,1005

2203-000438

C151

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C174

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C176

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C177

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C178

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C180

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C204

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C206

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C210

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C212

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C214

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C216

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C218

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C220

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C222

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C224

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C226

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C227

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C233

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C235

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C237

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C238

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C239

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C265

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438

C299

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000489

C236

C-CERAMIC,CHIP

2.2nF,10%,50V,X7R,TP,1005,-

2203-000679

C143

C-CERAMIC,CHIP

0.027nF,5%,50V,NP0,TP,1005

2203-000679

C144

C-CERAMIC,CHIP

0.027nF,5%,50V,NP0,TP,1005

2203-000836

C243

C-CERAMIC,CHIP

390pF,10%,50V,X7R,TP,1005,-

2203-000885

C228

C-CERAMIC,CHIP

4.7nF,10%,25V,X7R,TP,1005,-

2203-000885

C229

C-CERAMIC,CHIP

4.7nF,10%,25V,X7R,TP,1005,-

2203-000940

C121

C-CERAMIC,CHIP

470pF,10%,50V,X7R,TP,1005,-

2203-000940

C122

C-CERAMIC,CHIP

470pF,10%,50V,X7R,TP,1005,-

2203-000940

C129

C-CERAMIC,CHIP

470pF,10%,50V,X7R,TP,1005,-

2203-001124

C255

C-CERAMIC,CHIP

680pF,10%,50V,X7R,TP,1005,-

2203-001178

C242

C-CERAMIC,CHIP

0.006nF,0.5pF,50V,NP0,TP,1005

2203-001210

C123

C-CERAMIC,CHIP

8.2nF,10%,16V,X7R,TP,1005,-

2203-001210

C124

C-CERAMIC,CHIP

8.2nF,10%,16V,X7R,TP,1005,-

2203-001210

C125

C-CERAMIC,CHIP

8.2nF,10%,16V,X7R,TP,1005,-

2203-001210

C126

C-CERAMIC,CHIP

8.2nF,10%,16V,X7R,TP,1005,-

2203-001416

C112

C-CERAMIC,CHIP

33nF,10%,16V,Y5V,TP,1005,1.0mm

2203-001432

C110

C-CERAMIC,CHIP

47nF,10%,16V,Y5V,TP,1005

2203-001432

C248

C-CERAMIC,CHIP

47nF,10%,16V,Y5V,TP,1005

2203-001724

C157

C-CERAMIC,CHIP

4700NF,+80-20%,16V,Y5V,TP,3216

2203-001724

C160

C-CERAMIC,CHIP

4700NF,+80-20%,16V,Y5V,TP,3216

2203-001724

C161

C-CERAMIC,CHIP

4700NF,+80-20%,16V,Y5V,TP,3216

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

background image

Samsung Electronics

6-12

2203-002494

C251

C-CERAMIC,CHIP

470nF,10%,16V,X7R,TP,2012

2203-002525

C184

C-CERAMIC,CHIP

0.56nF,10%,50V,X7R,TP,1005

2203-002525

C185

C-CERAMIC,CHIP

0.56nF,10%,50V,X7R,TP,1005

2203-002525

C186

C-CERAMIC,CHIP

0.56nF,10%,50V,X7R,TP,1005

2203-002525

C187

C-CERAMIC,CHIP

0.56nF,10%,50V,X7R,TP,1005

2203-005061

C102

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C104

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C106

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C113

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C119

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C132

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C133

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C155

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C245

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C246

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C254

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C256

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C259

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C266

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C267

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C269

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C273

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061

C301

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005065

C156

C-CERAMIC,CHIP

1000nF,+80-20%,10V,Y5V,TP,1608

2203-005065

C159

C-CERAMIC,CHIP

1000nF,+80-20%,10V,Y5V,TP,1608

2203-005065

C168

C-CERAMIC,CHIP

1000nF,+80-20%,10V,Y5V,TP,1608

2203-005138

C270

C-CERAMIC,CHIP

1.8nF,10%,50V,X7R,TP,1005,-

2203-005138

C271

C-CERAMIC,CHIP

1.8nF,10%,50V,X7R,TP,1005,-

2203-005138

C272

C-CERAMIC,CHIP

1.8nF,10%,50V,X7R,TP,1005,-

2203-005496

C208

C-CERAMIC,CHIP

220nF,+80-20%,10V,Y5V,TP,1005

2203-005496

C230

C-CERAMIC,CHIP

220nF,+80-20%,10V,Y5V,TP,1005

2404-001017

C131

C-TA,CHIP

1uF,20%,10V,GP,TP,2012,2,0

2404-001086

C162

C-TA,CHIP

4.7uF,20%,6.3V,GP,TP,2012,-

2404-001088

C153

C-TA,CHIP

2.2uF,20%,6.3V,GP,TP,2012,-

2404-001088

C241

C-TA,CHIP

2.2uF,20%,6.3V,GP,TP,2012,-

2404-001088

C252

C-TA,CHIP

2.2uF,20%,6.3V,GP,TP,2012,-

2404-001088

C264

C-TA,CHIP

2.2uF,20%,6.3V,GP,TP,2012,-

2404-001100

C150

C-TA,CHIP

33uF,20%,6.3V,GP,TP,3719,-

2404-001100

C257

C-TA,CHIP

33uF,20%,6.3V,GP,TP,3719,-

2703-000300

L203

INDUCTOR-SMD

1uH,10%,0.8x1.6x0.8mm

2703-000300

L211

INDUCTOR-SMD

1uH,10%,0.8x1.6x0.8mm

2703-001231

L204

INDUCTOR-SMD

10uH,10%,1.6x0.8x0.8mm

2703-001512

L208

INDUCTOR-SMD

27nH,5%,1.8x1.12x1.02mm

2703-001914

L205

INDUCTOR-SMD

180nH,2%,1.6x0.8x0.8mm

2703-001914

L207

INDUCTOR-SMD

180nH,2%,1.6x0.8x0.8mm

2703-001926

L206

INDUCTOR-SMD

27nH,2%,1.6x0.8x0.8mm

2801-003747

OSC102

CRYSTAL-SMD

.032768MHZ,30PPM,28-ACM,9PF

2802-001104

OSC101

RESONATOR-CERAMIC

27MHZ,0.5%,TP,2.5X2X1.2

3002-001094

AU101

BUZZER-MAGNETIC

93dB,3.6V,90mA,2630Hz,TP

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

background image

6-13

Samsung Electronics

3301-001105

L201

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L202

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L209

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L210

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105

L212

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3708-001295

CN400

CONNECTOR-FPC/FC/PIC

22P,0.5mm,SMD-A,SN

3710-001510

J401

CONNECTOR-SOCKET

18P,1R,0.5MM,SMD-A,AUF

3711-004367

CN401

CONNECTOR-HEADER

BOX,40P,2R,0.5MM,SMD-S,AUF

3722-001172

J200

JACK-AC POWER

2P,2.6PI,AU,BLK,NO

GH71-00002A

GD101

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD102

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD103

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD104

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD105

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD106

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD107

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD108

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD109

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD110

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD111

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A

GD112

NPR-GROUNDING TERMINAL

SCH-510,C1720,T0.1,-

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

background image

7-1

7. Block Diagram

Samsung Electronics

S

C

H

-850

0(

DB

DM

)

B

L

O

CK

DI

AG

R

A

M

LN

A

RX

AG

C

VC

O

AM

P

S

D

U

P

LE

XER

PL

L

VC

T

CXO

TX

AG

C

A/

D

FI

LT

E

R

A/

D

FI

LT

E

R

D/

A

FI

LT

E

R

PL

L

MS

M3

0

0

0

VC

O

VC

O

DI

VI

DE

2

DI

VI

DE

2

I

I

Q

Q

LN

A

PA

PA

DA

VC

O

PC

S

D

U

P

LE

XER

ANT

PC

S

1

9

3

0

~

19

90

M

H

z

A

M

PS

86

9~

8

9

4

M

H

z

PC

S

2

1

0

.38

M

H

z

A

M

PS

85

.38

M

H

Z

PC

S

1

8

5

0

~

19

10

M

H

z

A

M

PS

82

4~

8

4

9

M

H

z

ISO

IF

R

300

0

PC

S

/CDM

A

AM

P

S

ISO

IF

T

3000

PC

S

/A

M

PS

13

0.

38

M

H

z

DA

P

L

L

m

odul

e

RX

AG

C

PCS

AM

P

S

Q/

I

PCS

PCS

PCS

AM

P

S

AM

P

S

AM

P

S

Me

m

o

ry

[32M

&

4

M

]

C

o

de

c

K

e

yp

ad

LC

D

Rx

ta

n

k

Tx

T

ank

MR

F

IC

185

4

PA

M

o

du

le

background image

Samsung Electronics

8-1

8. PCB Diagram

8-1 Logic Top View

background image

Samsung Electronics

8-2

8-2 Logic Bottom View

background image

Samsung Electronics

8-3

8-3 RF Bottom View

background image

Samsung Electronics

9-1

9. Schematic Diagrams

9-1 Logic Circuit Diagram (1)

SCH-8500(DBTM) Rev10C

R142
8.2K

20K

R136

20

R104

VDD

3.3K

R106

R149

100

R135

20K

1NF

C216

C241

2.2UF

1NF

C204

C107
10NF

100PF

C109

Q111

MMBT2222AWT1

1

3

2

VAA_L

C133
10NF

100

D201

BAR63-02W-E6327

R209

10NF

C219

1SV279-TPH3

10K

D204

R206

100NF

C132

VDD

100

R109

VCONTROL

6

VDD1
VDD2

23

VDD3

40

VDD4

45
47

VDD5

9

VDDM1

21

VDDM2

TXD6

TXD7

18

TXIF_OUT

2
1

TXIF_OUT/

TXVCO_T1

43
42

TXVCO_T2

19

TX_CLK

20

TX_CLK/

4

SEL1_PA_ON

35

TCXO

11

TXD0

TXD1

12

13

TXD2

TXD3

14

15

TXD4

16

TXD5

17

36

37

PD_ISET

PD_OUT

38

RBIAS

8

SBCK_SEL2

34

SBDT_FM/

32
31

SBI_EN

33

SBSK_IDLE/

30

3

GND2

5
7

GND3
GND4

22
39

GND5
GND6

44
48

GND7

GNDD

10

LOCK_DET

ADC_DATA

25

ADC_ENABLE

24

ADC_IN1

27

ADC_IN2

28

29

ADC_IN3

DNC

46

41

FM_MOD

GND1

10

IFT3000-48BCCF-TR

U202

ADC_CLK

26

R231

R203
NC

22K

R173

1uH

L203

1NF

C210

NC

R137

10K

R213

R126

47NF

C110

100NF

4.7K

C215

C102

10NF

C108

10NF

10NF

C101

C116

100PF

220NF

C208

1.8K

C202

VAA_L

R219

8.2NF

C125

18PF

1SV279-TPH3

D205

C203
10NF

C222
1NF

R224

11.3K

C144
27PF

75K

R202

74LCX08MTCX

U104-3

10

9

8

C226

1NF

R210

10K

VDD_L

VDD

R205
8.2K

VAA

10K

R174

22K

R127

D101

CL-150HR

C214
1NF

R168

AU101

SMT-801-02A

0

L204

C143

VDD

10uH

27PF

1

2

5

4

VDD

L210

BLM11A102SPT

L208

U203

TC7S08FUTE85L

3

20K

27nH

R207

R134

_TEST

8C

4H

_TX_CLK

10K

13N

2M

_IDLE

12N

_LWR

12L

_RAM_CS1

_RAM_CS2

11L

_RD

11M

9M

_RESIN

5N

_RFR

_ROM_CS1

14M

14N

_ROM_CS2

_SLEEP

1D

VDD4

VDD5

9K

10F

VDD6

VDD7

10J

12B

WDOGSTB_PCMSCS

WDOG_EN

10L

XTAL_IN

10M

12P

XTAL_OUT

YAMN1

4M

_CTS

5M

3M

_GP_CS

_HWR

2K

TX_IQDATA2

TX_IQDATA3

1K

4J

TX_IQDATA4

TX_IQDATA5

3H

1J

TX_IQDATA6

TX_IQDATA7

2J

5F

VDD0

VDD1

5J

VDD2

6E

VDD3

6K

9E

TCK

2L

TCX0

8A

TDI
TDO

7A

TMODE

4D

TMS

5B

3N

TRK_LO_ADJ

TX_AGC_ADJ

3K

TX_CLK

1H

1L

TX_IQDATA0

TX_IQDATA1

3J

13A

PCM_SYNC

11C

2P

PDM1

3P

PDM2

Q_OFFSET

2D

RESOUT

11P

4N

RINGER

1M

RX_AGC_ADJ

11N

SLEEP_XTAL_IN

10K

SLEEP_XTAL_OUT

4K

SYNTH_LOCK

7C

1A

NC0

NC1

1P

NC2

14A

14P

NC3

PA_ON

4L

12M

PA_ON2

3L

PA_R0

PA_R1

1N

11B

PCM_CLK

12A

PCM_DIN

PCM_DOUT

KEYSENSE0

KEYSENSE1

4C

3B

KEYSENSE2

KEYSENSE3

5E

3A

KEYSENSE4

LCD_CS

10A

LCD_E

13P

13M

LNA_GAIN

LNA_RANGE

2N

MODE0

2B

3C

MODE1

GPIO5

GPIO6

6D

GPIO7

6A

6B

GPIO8

GPIO9

7D

9P

GPIO_INT0

8M

GPIO_INT1

GPIO_INT2

9L

GPIO_INT3

10P

GPIO_INT4

10N

3D

I_OFFSET

2A

GPIO23

7M

GPIO24

7N

7P

GPIO25

8N

GPIO26

GPIO27

8L

8P

GPIO28

9N

GPIO29

4A

GPIO3

5K

GPIO30

GPIO4

6C

5A

9A

GPIO14

9B

9C

GPIO15

GPIO16

9D

5P

GPIO17

GPIO18

6L

6M

GPIO19

GPIO2

5D

GPIO20

6N

6P

GPIO21

7L

GPIO22

GND4

GND5

6J

7E

GND6

GND7

7F

7G

GND8

GND9

7H

GPIO0

5C

4B

GPIO1

7B

GPIO10

8B

GPIO11

GPIO12

8D

GPIO13

8J

GND16

GND17

8K

9F

GND18

GND19

9G

6F

GND2

9H

GND20

GND21

9J

10G

GND22

GND23

10H

GND3

6G

6H

FM_RX_IDATA

FM_RX_QDATA

3E

1E

FM_RX_STB

5G

GND0

GND1

5H

7J

GND10

GND11

7K

8E

GND12

GND13

8F

8G

GND14

8H

GND15

11K

12K

D3

D4

13K

14K

D5

D6

11J

12J

D7

D8

13J

14J

D9

5L

DP_RX_DATA

DP_TX_DATA

4P

2E

FM_RX_CLK

4E

3F

C_RX_QDATA2

C_RX_QDATA3

4F

D0

13L

14L

D1

D10

11H

12H

D11

D12

13H

14H

D13

D14

13G

11G

D15

D2

10B

10D

AUX_PCM_DIN

11A

AUX_PCM_DOUT

10C

AUX_PCM_SYNC

2H

CHIPX8

1G

C_RX_IDATA0

C_RX_IDATA1

2G

3G

C_RX_IDATA2

C_RX_IDATA3

4G

1F

C_RX_QDATA0

2F

C_RX_QDATA1

14F

12G

A3

11F

A4

14E

A5

A6

13E

12F

A7

A8

14D

11E

A9

1C

ADC_CLK_SBCK

ADC_DATA_SBDT

1B

ADC_ENA_SBST

2C

AUX_PCM_CLK

A10

13D

12E

A11

A12

14C

10E

A13

A14

13C

12D

A15

A16

14B

13B

A17

A18

12C

11D

A19

A2

MSM3000-196PBGA-MT

U101

A0

14G

13F

A1

R132

100

R105

20

C231

15PF

12K

R225

30K

C131
1UF
10V

VDD

R223

1SV279-TPH3

D203

11

Q102

MMBT2222AWT1

1

3

2

74LCX08MTCX

U104-4

13

12

C234

10NF

R122

100

C244
100PF

8.2NF

C124

100PF

C201

1NF

C233

R117

47K

10K

R120

C123
8.2NF

4.7NF

C229

C228
4.7NF

R196

0

C242

6PF

C117

100PF

1.2K

R227

100NF

C245

10K

R226

R169

1K

47K

R118

100

R124

R215
10K

NC

R204

C120
10NF

10NF

C211

1NF

C235

C265

1NF

3

1

2

1.2K

R221

D110

DAN202UT106

VDD

33NF

C112

10K

22K

R175

C113

R115

VAA_L1

100NF

20K

R133

100NF

C104

C239

1NF

47NF

C248

R123

22K

VDD

NC

C111

C243
390PF

100PF

C240

Q103

2SC4081BRT106

1

3

2

T1

PCMSCS

C238

1NF

10NF

C223

4.7K

R110

430

R218

VDD

C134
NC

SW101
A3210ELH

3

GND

2

OUT

VCC

1

2.2NF

C236

R262

1.5K

R166

BLM11A102SPT

L209

1M

R201
22K

1NF

C212

R217

10K

NC

R195

S3.6

VDD

L205
180nH

VDD

C217
10NF

C105
10NF

100NF

C119

C237
1NF

C220

10NF

1NF

_LB

3G

_OE

5C

_RESET

4C

_UB

_WE

6B

_WP/ACC

5B

C103

8F

SA

VCCF

5H
6H

VCCS

3F

VSS1
VSS2

9H

_CE1S

2H

2G

_CEF

4B

NC2
NC3

6A

10A

NC4
NC5

1B
6D

NC6
NC7

9D
1E

NC8
NC9

9E

RY/_BY

5D

1A

10E

NC10
NC11

1F

10F

NC12

1K

NC13

5K

NC14
NC15

6K
10K

NC16

5A

DQ2
DQ3

5G
6G

DQ4
DQ5

7J

DQ6

7F
8H

DQ7
DQ8

3J
4G

DQ9

NC1

DQ0
DQ1

4F

DQ10

4H
5J

DQ11
DQ12

7H
7G

DQ13
DQ14

8J
8G

DQ15/A-1

4J

A6

3C
3B

A7

7B

A8
A9

7D

6C

CE2S

9G

CIOF
CIOS

6J

3H

A15

9F

A16

4E

A17
A18

4D
7C

A19

2D

A2
A3

2C
3E

A4
A5

3D

2F

A0
A1

2E

7E

A10
A11

8B
8C

A12

8D

A13

8E

A14

9C

MB84VD2119XA-85

U103

6

2

4

1

C218
1NF

OSC101

CSTCW2700MX03

5

3

22K

R145

470PF

C121

VAA_L

R113
22K

OSC102

CC4V-T1 32.768KHz 9pF

C128
10NF

SM05

1

2

3

470

D111

R131

R114

C206
1NF

100

22K

R107

10K

R216

VDD_L

1

3

2

VAA_L2

0

R211

C209
10NF

2SA1576FRT106

Q104

R111
NC

VDD

Q110

DTA144EE/TR

2

3

1

VAA

22K

R164

SMF05.TB

D102

2

1

3

4

5

C247
100PF

L211

1uH

R101

120

C230

220NF

NTH5G36B103J01TE

TH201

180nH

L207

6

C213
10NF

74LCX08MTCX

U104-2

4

5

C129

470PF

C122

VDD

470PF

C106
100NF

NC

R172

R112

10K

T2

D202
1SV279-TPH3

R208

1.8K

R138 10K

VDD

3.6K

R143

U104-1
74LCX08MTCX

7

1

2

14

3

15

VDD4
VDD5

17

VDD6

20
24

VDD7

35

VDD8
VDDM

44

SBST_IDLE/

30

36

TCXO

37

TCXO/N

VCONTROL

7

VDD1

4
6

VDD2

14

VDD3

41

RXQD1

RXQD2

40

39

RXQD3

25

RXVCO_OUT

RXVCO_T1

21

22

RXVCO_T2

32

SBCK_SLEEP/

31

SBDT_FM/
SBI_EN

26

23

GND8
GND9

34

28

I_OFFSET

Q_OFFSET

27

46

RXID2

RXID3

45

RXQD0

42

29

FM_SLOT

3

GND1

43

GND10

GND2

5

GND3

8
13

GND4
GND5

16
18

GND6
GND7

19

38

CHIPX8

33

DNC

10

FM_IF
FM_IF/

9

RM_RX_CLK

1

47

FM_RX_IDATA_RXID1

FM_RX_QDATA_RXID0

48

FM_RX_STB

2

IFR3000-48BCCF-TR

U201

CDMA_IF

11
12

CDMA_IF/

R125

C246

100NF

100

100K

R170

10

R230

1K

R103

C227

R176

22K

10NF

1NF

VAA

C205

22K

R102

10K

R220

R179

22K

2

C118

100PF

DTC144EE/TR

Q101

1

3

VAA

BLM11A102SPT

L202

R222
10K

C224
1NF

L201

BLM11A102SPT

100

R128

15PF

C232

VDD

27nH

L206

10NF

C298

C126
8.2NF

R214

10K

100

R129

A(2)

A(19)
A(18)
A(17)
A(16)
A(15)
A(14)
A(13)
A(12)
A(11)
A(10)

A(1)
A(0)

C-F

AD(12)
AD(11)
AD(10)

AD(1)
AD(0)

C_RX_QDATA(3)

C_RX_QDATA(2)

C_RX_QDATA(1)

C_RX_QDATA(0)

C_RX_IDATA(3)

C_RX_IDATA(2)

C_RX_IDATA(1)

C_RX_IDATA(0)

CHIPX8

ADC_ENA_SBST

ADC_DATA_SBDT

ADC_CLK_SBCK

A(9)
A(8)
A(7)
A(6)
A(5)
A(4)
A(3)

SCAN(0)

FM_RX_STB

C_RX_IDATA(0)

C_RX_IDATA(1)

FM_RX_CLK

AD(9)
AD(8)
AD(7)
AD(6)
AD(5)
AD(4)
AD(3)
AD(2)

AD(15)
AD(14)
AD(13)

CCLK

CI

PS_HOLD

-EAR_DET

EL_EN

MODE_SEL
PAMP_ONP

SCAN(2)

WP

SDA

SCL

CODEC_CS

TCXO_CON

PLL_EN

SCAN(1)

KEY(0)

A(20)

A(21)

-SEND_END

PLL_CLOCK

PLL_DATA

SCAN(6)

SCAN(5)

SCAN(4)

SCAN(3)

PCS_BAND

MOTOR

-RESOUT

PCM_SYNC

PCM_DOUT

PCM_DIN

PCM_CLK

PA_R0

PA_ON

LCD_CS

ON_SW_SENSE

KEY(3)

KEY(2)

KEY(1)

SLEEP-

-RESET

IDLE-

TX_IQDATA(7)

TX_IQDATA(6)

TX_IQDATA(5)

TX_IQDATA(4)

TX_IQDATA(3)

TX_IQDATA(2)

TX_IQDATA(1)

TX_IQDATA(0)

PDM1

V-F

RESOUT

-RESET

-RESOUT

19.68MHZ

RX_IFVCO_OUT

AD(6)
AD(7)
AD(8)
AD(9)

AD(10)
AD(11)
AD(12)
AD(13)
AD(14)
AD(15)

DTR

RI

A(9)
A(10)
A(11)
A(12)
A(13)
A(14)
A(15)
A(16)
A(17)
A(18)
A(19)

CELL_BAND

SLEEP-

CELL_CON

MOTOR

AD(1)
AD(2)
AD(3)
AD(4)
AD(5)

CDMA_IF-

AD(0)

A(21)

RESOUT

WP

A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
A(8)

PCS_BAND

BUZZER

MOTOR_

TX_CLK
TX_CLK-

TX_VCO_T1

TX_VCO_T2

S3.6

V-F

FM_MOD

FM_MOD

PA_ON

TX_VCO_T1
TX_VCO_T2

TX_IQDATA(0:7)

TX_IQDATA(7)
TX_IQDATA(6)
TX_IQDATA(5)
TX_IQDATA(4)
TX_IQDATA(3)
TX_IQDATA(2)
TX_IQDATA(1)
TX_IQDATA(0)

VDD_L

VAA_L1

CHIPX8

C_RX_QDATA(3)
C_RX_QDATA(2)
C_RX_QDATA(1)
C_RX_QDATA(0)

C_RX_IDATA(3)
C_RX_IDATA(2)

C_RX_IDATA(1)

C_RX_IDATA(0)

C_RX_QDATA(0:3)

C_RX_IDATA(0:3)

RX_IFVCO_VT

TX_AGC_ADJ

VDD_L

VAA_L2

VAA_L

CDMA_IF

FM_IF

FM_RX_CLK
FM_RX_STB

SLEEP-

I_OFFSET

Q_OFFSET

ADC_CLK_SBCK

ADC_DATA_SBDT

ADC_ENA_SBST

TCXO_N

RX_AGC_ADJ

VAA_L

CD

LED_ON

WP_E

A(1)

A(20)

A(0)

ADC_CLK_SBCK

ADC_DATA_SBDT

ADC_ENA_SBST

TX_IF
TX_IF-

I_OFFSET

Q_OFFSET

AD(0:15)

SCAN(0:6)

KEY(0:2)

TX_CLK-

TX_CLK

LNA_GAIN_CTL

PDM2

A(0:19)

CTS

DP_TX_DATA

DP_RX_DATA

RTS

CTS

TRK_LO_ADJ

TX_AGC_ADJ

RX_AGC_ADJ

TX_IQDATA(0:7)

C_RX_QDATA(0:3)

C_RX_IDATA(0:3)

CD

background image

9-2

Samsung Electronics

9-2 Logic Circuit Diagram (2)

Microchip ==> open

ATMEL ==> 10K

Power

MIC

FIXING HOLE

EEPROM

Codec

<< R199 >>

SCH-8500(DBTM) Rev10C

1

3

4

5

R183

100K

19

D105

SMF05.TB

2

6

7

_ERROR

8

_SHDN

VAA_L

VAA

U153

1

BYPASS

DELAY

2

3

GND

4

IN

OUT

5

SENSE

D107

SMF05.TB

2

1

3

4

5

LP2988AIMMX-3.0

C299
1NF

END/PWR

1

2

1UF

C159

R191
10K

H101

C285

15PF

10K

10K

R193

2SC4081BRT106

1

3

2

R194

Q151

100NF

C259

C282

7

15PF

VDD

100K

15PF

C179

2

R160

R2

VINR1

4

VON/OFF

5

FDC6329L

U156

C1

2

C2

3

6

R1C1

1

C157
4.7UF

U158

TC7S04FU(TE85L)

GND

3

IN

2

1NC

OUT

4

5

VCC

2K

C158

R259

10

10NF

680PF

C255

560PF

C184

LED107

LED106

1

2

NC

R139

560PF

C187

560PF

C186

7

1

2

6.3V

4.7UF

C152

35

10NF

C263

32

6.2K

R261

1.8NF

C271

SMF05.TB

D106

2

1

3

4

5

LED103

2.2UF

C252

6.3V

40

10K

R250

17

1NF

C175

2

6.3V

4.7UF

C162

8

100NF

C256

6

5

1

2

3

1

2

1

2

MENU

15

2.2K

R159

C254
100NF

Q150

DTC114EE/TR

2

3

1

21

22

13

J401-1

MQ179B-SAA-18P/4

1

1NF

C180

15PF

VDD

C283

15K

560PF

C185

R147

R157
200K

14

4.7UF

C161

27

#

1

2

1.8NF

C270

1.8NF

C272

H103

6.3V
2.2UF

C153

AXK6S40535P

CN401-1

1

HSJ1621-019010

J200

1

2

3

4
5

TC75W56FU-TE12L

4

3

2

8

1

20

U251-1

100NF

C267

4

R180
1K

21

C289

9

1

2

15PF

U159

ILC7082AIM5-30

BYP

4

2

GND

ON/OFF

3

VIN

1

5

VOUT

2

8

10K

R187

17

19

100K

R151

1

2

1K

36

*

3

R252

56K

18

25

R181

4

5

VON/OFF

3

1

2

U157

FDC6329L

2

C1

3

C2

R1C1

6

R2

1

4

VINR1

10

9

1

2

C251

470NF

CL-190YG-CD-T

LED100

1

2

26

OK

11

16

24

C168
1UF

15PF

C284

11

5

VDD

30

150K

R253

29

8

1

2

C273

100NF

30

R266

LED105

NC

R146

16

18

15

14

10NF

6

C167

1

2

4

15PF

6

2.2K

R152

C295

2.2K

R190

C160
4.7UF

19

7

LED102

6

H100

5

LED101

15PF

C293

22

R153
2.2K

12

R154

14

1

3

2

100K

Q152

DTC144EE/TR

18

VCC

41

VCCA

VCCP

42

3

VFR+

2

VFR-

6

VLR+

5

VLR-

4

NC2

7

NC3

9

NC4

11

NC5

12

NC6

NC7

13

22

NC8

23

NC9

28

NC11

29

NC12

NC13

32

NC14

35

39

NC15

NC16

40

NC17

43

44

NC18

34

MIC1+

33

MIC1-

MIC2+

31

MIC2-

30

38

MIC3+

MIC3-

37

1

NC1

NC10

27

10

DR

DX

20

FS

24

GND

21

GNDA

36

8

GNDP

26

LO

MCLK

25

17

BZ

CCLK

14

CI

16

CO

19

15

CS-

31

33

U250

ST5092TQFPTR

23

R184
100K

15PF

C292

1

2

TALK

1

2

CLR

1NF

C178

100K

R155

12

15PF

C291

20

13

VDD

5

VCC 8

R255
18K

U105

M24256-WMN6T

6

SCL

SDA

10NF

C253

VON/OFF

L212

BLM11A102SPT

U151

FDC6329L

2

C1

3

C2

R1C1

6

R2

1

4

VINR1

5

4

1

2

DTA144EE/TR

2

3

1

2.2K

R192

28

Q153

6.3V

2.2UF

C264

1

VAA

CN400-1

IL-FPR-22S-HF-E3000

1

1

2

U251-2
TC75W56FU-TE12L

5

6

7

CN201-1

1

20

R258

100NF

C258

33UF

C150

6.3V

VAA

22

R171 (N.C)

R158

56K

17

680

DTC144EE/TR

Q154 (N.C)

1

3

2

VAA

R182

56K

1UF

C156

2

D109

SMF05.TB

2

13

4

R186

1

1NF

C177

56K

1NF

VDD

C176

C166

VDD

C290

15PF

24K

10NF

33UF
6.3V

C257

R257

15PF

5

C288

13

4

SMF05.TB

D108

2

20

100NF

C301

R165

10K

7

18

5

VOUT

8

ILC7082AIM5-30

BYP

4

GND

2

ON/OFF

3

VIN

1

13

U155

NC

R163

C260

22NF

1

2

15

100K

R162

CN201-2

2

21

12

C287

15PF

R156
100K

C174
1NF

39

NC

C266
100NF

37

R185

1NF

34

C151

9

1K

R148

3

VIN

1

5

VOUT

R254

20K

U154

ILC7082AIM5-30

BYP

4

2

GND

ON/OFF

R251

VAA

6

3

2.2K

D1

1

8

D2

G1

4

G2

5

2 S1_1

S1_2

3

7

S2_1

S2_2

2

SI6943DQ

U150

R161
10K

10K

11

R249

9

R256

120K

10

16

15PF

C286

C269

100NF

0

1

2

56K

R150

H102

LED104

R1C1

1

R2

VINR1

4

VON/OFF

5

38

FDC6329L

U160

C1

2

C2

3

6

PS_HOLD

C155
100NF

SCL

WP_E

SDA

SCL

TCXO_CON

CELL_CON

PCS_BAND

PAMP_ONP

C-F

MIC

SCAN(0)

KEY(3)

SCAN(0)

KEY(3)

LCD_CS

RESOUT

A(1)

SPK+

SPK-E

MOTOR_

SPK-E

C-F
V-F

CELL_CON

PCS_BAND

CELL_BAND

PDM2

VRR

VRR_S

SLEEP-

SPK-

SPK+

SCAN(2)

SCAN(1)

TCXO_VAA

VRR_PCS

VAA

SDA

TCXO_VAA

MODE_SEL

VRR_S

VRR_CELL

CELL_BAND

SLEEP-

PCS_BAND

GND

GND

PA_ON

GND
GND

PDM1

LNA_GAIN_CTL

TRK_LO_ADJ

MODE_SEL

GND

PLL_EN

PLL_DATA

PLL_CLOCK

19.68MHZ

GND

VRR_PCS

VRR_CELL

VRR_S

VTT

CDMA_IF

CDMA_IF-

FM_IF
GND

GND

RX_IFVCO_OUT

GND

RX_IFVCO_VT

GND

GND

VTT

GND

TX_IF

PA_R0

TX_IF-

T3.6

T3.6

AD(1)
AD(0)

LED_ON

VBAT

VRR_S

PCS_BAND

IDLE-

SLEEP-

VRR

RESOUT
A(1)
GND
AD(7)

GND
VDD
VDD
SPK+
SPK-
MOTOR_
EL_EN
GND
GND
GND

AD(6)
AD(5)
AD(4)
AD(3)
AD(2)

CTS
DTR

VBAT

KEY(0)

KEY(1)

SCAN(1)

KEY(2)

SCAN(2)

ON_SW

VBAT

SCAN(3)

SCAN(4)

SCAN(5)

SCAN(6)

LCD_CS

PCM_DOUT

RX_AUDIO

RX_AUDIO

C-F

TX_AUDIO

DP_RX_DATA
DP_TX_DATA
HP_PWR
RI
CD
V-F

RTS

-EAR_DET

BUZZER

CCLK

CI

CODEC_CS

PCM_DIN

PCM_SYNC

PCM_CLK

TX_AUDIO

ON_SW

ON_SW_SENSE

HP_PWR

VBAT

S3.6

T3.6

PAMP_ONP

VDD

-RESET

-SEND_END

VAA

TCXO_CON

background image

Samsung Electronics

9-3

9-3 Transmitter Circuit Diagram

47nH

L416

100NF

C443

L417
47nH

C409

51PF

C403
33PF

1NF

C455

R403
300

G

4 5

G G

6

1

IN

2

OUT

C440

100NF

F406
SI-5L1.880G-T

3

G

1PF

C457

C461

47PF

VTT_CELL

BLM21P300SPT

L424

C430

12PF

C437

10NF

10K

R424

R431
NC

33PF

C450

FAR-F6CE-1G8800-L2XA

G

1 3

G G

4 6

G

IN

2

OUT

5

2

1

VTT_CELL

F403

D402
HSMS-285C

3

VTT_PCS

6.8nH

L405

C462
1NF

L404

10NF

C408

C404

BLM11A102SPT

1.5PF

C449
10UF
6.3V

G

2

IN

OUT

5

430K

R455

4

VDD

1

FAR-F5CE-836M50-K205-W

F404

G

1 3

G G

4 6

GN01037B01SA

2

GND1

5

GND2

IN

6

3

OUT

VAGC

C401

51PF

U404

G6

10

IN+

9

8

IN-

3

OUT+

OUT- 4

VTT_PCS

FB-G039

F401

G1

1

2

G2

G3

5

G4

6

7

G5

15nH

2

1

3

5

4

L419

1PF

C420

LMV821M7

U415

4

G

6

2

IN

5

OUT

F402

FAR-F5CE-836M50-K205-W

1

G G

3

G

R427
51K

6

2

IN

5

OUT

R425
0

FAR-F6CE-1G8800-L2XA

F405

G

1

G

3 4

G G

51PF

C412

C442

AXK5S40045J

CN401

15PF

82nH

L401

C407

47PF

IFIN

1

3

LO

POWER

4

RFOUT

6

VCC

5

U403

UPC8106T-E3

GND

2

1.5PF

C433

C439

100NF

R432
51

100nH

L402

100PF

C431

C418
33PF

R402

VTT

3.3nH

L420

0

NC

C453

R411

10K

910

R417

VTT_PCS

VTT_CELL

VTT_CELL

1PF

C454

33PF

L422

2.2nH

C444

C432

51PF

C429

10NF

C428

1NF

C417

4PF

C448

10NF

L412

LQH3C2R2M24

6

VCC3

VCC4

19

HSMP-389F-TR

D401

3

2

1

LOIN

5

NC

RF-V

9

18

RFOUT+

17

RFOUT-

TXEN

11

8

VCC1

12

VCC2

10

EXC-OUT

GND1

7

14

GND2

GND3

15

GND4

16

21

GND5

1

IFIN+

20

IFIN-

3

MRFIC1854R2

U410

B-SEL

4

ENABLE

2

EXC-IN

13

6

OUT

CE053R836DCA

F407

GND1

2

GND2

5

GND3

3

4

GND4

1

IN

300

R406

10NF

C447

1NF

8

VDD

VEE

3

4

VSS

C416

5

A

7

CH0

CH1

6

1

COM

2

INH

R410

5.6K

TC4W53FU-TE12L

U405

NC

R415

C438

47PF

L407
3.3nH

C402

10NF

2

3

4

5

L414

BLM11A102SPT

UMC5NTL

U402

1

C460
10NF

C427

1NF

10NF

C451

L411
82nH

10NF

C413

33PF

C426

R426
10K

C463

47NF

D1 6

4

D2

1 G1

3 G2

5

S1

2 S2

G1

1

G2

3

S1 5

S2

2

FDC6306P

U416

U408

FDC6306P

6

D1

D2

4

BLM11A102SPT

L418

33PF

C441

C425

NC

NC

C445

10K

1.5nH

R447

SLEEP(CELL)

12

NC

7

13

PCS_VC

VCC_IC

11

T3.6

L423

G3

16
17

G4
G5

18
19

G6
G7

20
21

G8
G9

22

8

NC

23

G10
G11

24
25

G12
G13

26
27

G14
G15

28
29

G16

15

G2

6

CELL_O

CELL_VCC

5

1

PCS_IN

NC

2

PCS_O

3

4

PCS_VCC

CELL_VC

10

G1

14

C405

U409

QCPM-9804

CELL_IN

9

1NF

C421

100PF

15nH

L406

1PF

C419

R428
0

0

C422

51PF

C423

R430

10NF

33PF

C434

L413

BLM11A102SPT

R416

3.9K

R434

82nH

L408

C436

1NF

1.8K

R429

510K

C465
100PF

L409

47nH

C415
33PF

10NF

C435

C459

33PF

R418

18

1NF

C446

VTT

R443
100K

C414
10NF

47K

R412

100PF

C410

10NF

C464

L421

BLM11A102SPT

TX_IF-
TX_IF
GND
PA_R0
PA_ON

GND
T3.6
T3.6
VTT
GND
GND
RX_IFVCO_VT
GND
RX_IFVCO_OUT
GND
FM_IF
GND
CDMA_IF-
CDMA_IF

GND

PA_R0

PDM1

CELL_BAND

PCS_BAND

VTT

PDM2

PCS_TX_LO

PDM2

MODE_SEL

PCS_BAND

SLEEP-

LNA_GAIN_CTL

PDM2

TRK_LO_ADJ

PDM1

GND

MODE_SEL

PCS_BAND

CELL_BAND

PA_ON

PCS_TX_OUT

CELL_TX_OUT

VRR_PCS

VRR

VRR_CELL

PLL_CLOCK

PLL_DATA

GND

GND

GND

TCXO_VAA

PLL_EN

19.68MHZ

CELL_BAND

TX_IF

TX_IF-

CELL_TX_LO

background image

9-4

Samsung Electronics

9-4 Receiver Circuit Diagram

TCO-5660U1(19.68MHz)

PO5251FA

R307
0

SLF-080EL

F301

4

AMPSOUT

1

G1

3

G2

G3

5

2

IN

PCSOUT

6

BLM11A102SPT

L319

4.7nH

L301

C308

430

R306

1

G G

3 4

G G

6

2

IN

5

OUT

1NF

F302

FAR-F6CE-1G9600-L2XB

3.9nH

L303

390,1%

R316

5PF

33NF

C330

2

3

1

C320

DTC114EE/TR

Q303

C325

1NF

30PF

C303

9

IN-

1

5

OUT+

OUT- 6

TCXO_VAA

TMXL011

F308

10 G1

G2

2

3

G3

4

G4

G5

7

8

G6

G7

1NF

C371

R319

1.8K

C370

100PF

NC

C354

L324

180nH

100NF

C352

D

2

G

4

S1

1 3

S2

1.8K

ATF-35143

Q301

6.3V

R320

C327
4.7UF

C368

4.7

R302

VRR

100NF

6.3V

10UF

C357

R318

0

L335

BLM11A102SPT

3

2

1

VRR_PCS

U305
STH-03R

4

2

6

HSMP-389F-TR

D302

C345
100NF

C351
10NF

VRR_CELL

120nH

L332

4.7nH

L312

4.7

R303

1

3

2

2.7uH

L321

Q302

2SC4081BRT106

C314

BPC

5

GND

2

6

IFOUT

3

LOIN

RFIN

1

4

VLD

10NF

L305

5.6nH

NJG1553F(TE1)

U301

C360

R311

NC

100PF

C326

240

33NF

VRR_CELL

100

R310

C336

1NF

C334

100PF

C366
10UF

6.3V

C312

VRR_PCS

ANT

L318

33nH

6.3V

10UF

C375

R328

1.5K

R313

3.3nH

L304

6

7

G6

G7

8

9

G8

IN

10

OUT

5

82

SAFC85.380ME35X-TC11

F310

G1

1

G2

2

3

G3

4

G4

G5

10NF

C315

8PF

C347
100NF

3

2

1

C324

C350

10NF

D303
HSMP-389F-TR

1PF

BLM11A102SPT

C307

10NF

C339

L306

BLM11A102SPT

L323

L311

12nH

10V

1UF

C367

0

R309

560PF

C319

L302

NC

NC

R419

1.8uH

L329

R305
51

R456

C361

1NF

R458
10K,1%

2.2K

C1

3

C2

R1C1

6

R2 1

4

VINR1

5

VON/OFF

U417

FDC6329L

2

C377

10NF

3.9K

C374

10NF

10NF

R329

R321

VRR_PCS

C372

0

L326

NC

C359

R312

330nH

0

C318

12PF

10PF

C341

10PF

1NF

C332

4

2

6

C310

R304
56

STH-01R

U304

150nH

L322

G1

3

4

G2

G3

5

G4

6

1

IN

2

OUT

J1

MHC-173

D301

BAR63-03W

C362

2PF

2PF

C302

R308

NC

1.8uH

L331

C321

3PF

L316
27NH

R317

10nH

L308

100K

C343

10NF

NC

C329

0.7PF

C301

C346

C305

NC

G5

8

9

G6

1

IN

IN.R

10

OUT 5

6

OUT.R

8.2PF

F309

TMXL972

2

G1

G2

3

4

G3

G4

7

3

VPD

L325

2.7uH

U302

RF2361TR13

GND1

2

GND2

5

1

RFIN

RFOUT

4

VCC

5PF

C340

16

LD

14

LE

9

OCS_IN

12

1

RFOUT1

7

RFOUT2

VBB1

2

VBB2

6

5

13

CLK

10

DATA

3

DO_IF

4

FIN_IF

8

GND1

GND2

11 15

GND3

G

3

G

4

G G

6

2

IN

5

OUT

U306

FAR-F5CE-881M50-D233-W

F306

1

10

R333

C356
100NF

C353
10NF

100PF

C331

0

R325

R457

56K

560PF

C466

1NF

5

RX

TX

11

C322

G1G2

3

4

G3

6

G4G5

7 9

G6G7

10 12

G8

NC

2

C358

F305

FAR-D5CC-881M50-D1A6

ANT

8

1

6.3V

10UF

1NF

C364

1NF

C333

C335

1NF

C313
4PF

47nH

L327

L333
1.8uH

100PF

C369

C306
30PF

1.2K

R332

R322

100

1PF

C365

L309

L310
15nH

VRR_CELL

10nH

100PF

C373

C317

1NF

C304

R326
0

NC

L315
39nH

C316
100PF

8.2nH

L314

C309
8.2PF

L328
1.8uH

VRR_PCS

L317
27NH

3.9nH

L307

G9

12

RX

3

TX

1

100

R324

G10

13

5

G2

G3

6

G4

7

G5

8 9

G6

G7

10 11

G8

7

MIXER_IN

3

PD

VCC

11

F303

DFX1880J1960F

2

ANT

G

4

GND2

6

9

GND3

10

GND4

14

GND5

17

GND6

2

IF_SALECT

LO+

4

LO-

5

BYP

8

CDMA+

15

16

CDMA-

FM+

13

FM-

12

GND1

1

L320
390nH

U303

RF2466TR13

C344
18PF

2.7K

R314

C348

R323

47

18PF

C342

10NF

R327

0

G

G

6

2

IN

5

OUT

C349

10NF

F304

FAR-F6CE-1G7475-L2YAD

1

G

G

3

4

10NF

C355

C311

C328
5PF

100NF

33NF

470nH

L330

C363

10NF

C338

R315

27NH

L313

4.7K

C337

1PF

VC

39PF

C323

U307

4

+DC

2

GND

OUT

3

1

R301

BLM11A102SPT

L334

56

PCS_TX_OUT

TRK_LO_ADJ

VRR

CELL_BAND

PLL_EN

RX_IFVCO_OUT

PLL_DATA

PLL_CLOCK

PCS_RX_LO

CELL_RX_LO

CDMA_IF-

MODE_SEL

PCS_IF

CD_IF

CD_IF-

PCS_IF-

SLEEP-

PCS_IF

CDMA_IF

CELL_RX_LO

MODE_SEL

PCS_IF-

CD_IF

CD_IF-

LNA_GAIN_CTL

19.68MHZ

PCS_RX_LO

PCS_TX_LO

CELL_TX_LO

RX_IFVCO_VT

CELL_TX_OUT

FM_IF


Wyszukiwarka

Podobne podstrony:
Samsung SCH A101 service manual
Samsung SCH 880 service manual
Samsung SCH 470 service manual
Samsung SCH A212 service manual
Samsung SCH X359 service manual
Samsung SCH A302 service manual
Samsung SCH 850 service manual
Samsung SCH 6100 service manual
Samsung SCH 570 service manual
Samsung SCH 870 service manual
Samsung SCH A205 service manual
Samsung SCH A105 service manual
Samsung SGH R200 service manual
Samsung SGH E710 service manual
Samsung SGH T500 service manual
Samsung SGH A408 service manual
Samsung SGH Q208 service manual
Samsung SGH N288 service manual
Samsung SGH A288 service manual

więcej podobnych podstron
