COWLING/MUFFLER/REAR FENDER

COWLING

REMOVAL

RIGHT AND LEFT SIDE COWLING

Remove the three screws.

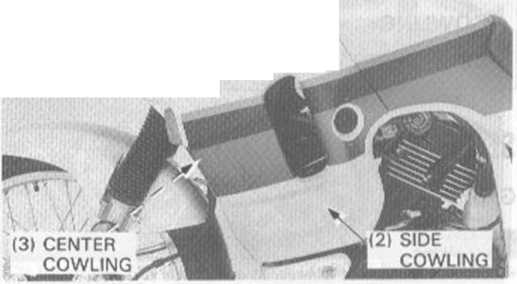

Disconnect the tum signal connector and release the tabs on the side cowling that hołd the center cowling.

Remove the side cowling with releasing its upper tab from the upper cover groove.

CENTER COWLING

Remove the two bolts and the center cowling.

(11 UPPER COVER

(4) SCREWS

taP**


Tli CENTER COWLING


(2) BOLTS


RIGHT AND LEFT UPPER COVER

Remove three screws and upper cover.

NOTĘ

• One of the screws also holds the side cowling.

FRONT COWLING

Remove the side cowlings and upper covers.

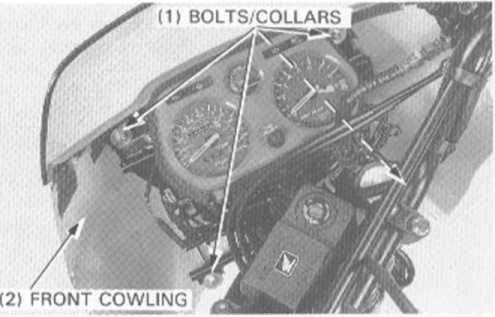

Remove the four bolts and collars, and the front cowling.

12-2

(11 UPPER COVER


(21 SCREWS
