MAINTENANCE


NUTS, BOLTS, FASTENERS

Tighten the bolts, nuts and fasteners at the intervals shown in the Maintenance Schedule (page 3-3).

Check that all chassis nuts and bolts are tightened to their specified torque values (pages 1-5 and 6).

Check all cotter pins and safety elips.

WHEELS/TIRES

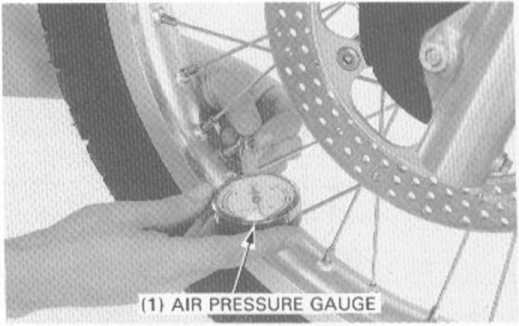

TIRE PRESSURE

NOTĘ

• Tire pressure should be checked when the tires are COLD.

Front

Rear

Tire size

90/90-21 54S

130/80-17 65S

Cold tire pressures psi (kg/cm2, kPal

Up 90 kg (200 Ibsl load

29

(2.00, 200)

29

(2.00, 200)

Up to vehicle capacity load

29

(2.00, 200)

29

(2.00, 200)

Check the tires for cuts, imbedded nails, or other sharp ob-jeets.

Check the front and rear wheels for trueness (Sections 13 and 14).

Measure the tread depth at the center of the tires.

Replace the tires if the tread depth reaches the following lim-its.

MINIMUM TREAD DEPTH:

Front: 1.5 mm (0.06 in)

Rear: 2.0 mm (0.08 in)

Tighten the wheel spokes periodically. Morę frequent inspec-tion is necessary when riding off-road.

T0RQUE (front/rear): 3.8 N*m (0.38 kg-m, 2.7 ft-lb)

TOOL:

SPANNER C 5.8 x 6.1 mm    07701-0020300

Equivalent commercially available in U.S.A.
